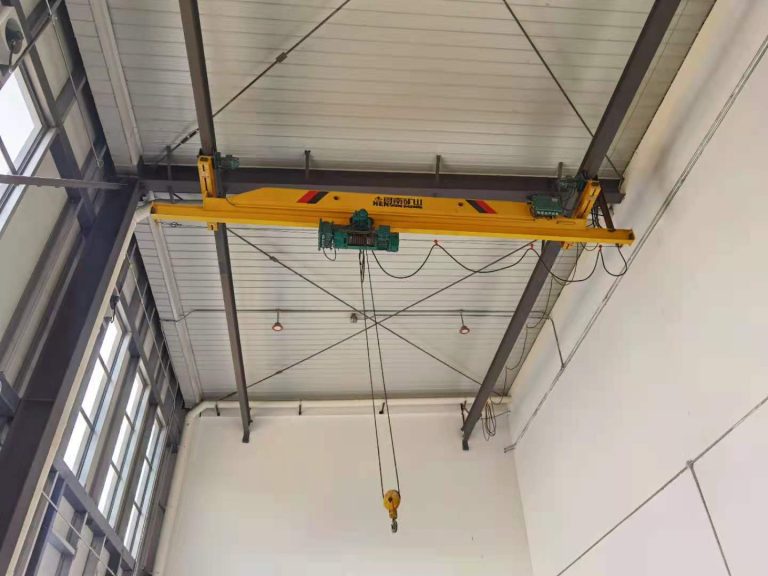

Explosion-proof suspended overhead crane
Henan Mine Crane explosion-proof electric single girder suspension crane is designed for flammable and explosive hazardous operating environment to create a special suspension lifting equipment, a perfect solution to the chemical industry, oil and gas, pharmaceutical and other industries, explosion-proof lifting requirements
Define the total suspended load, duty and site conditions for your project.
Technical specifications
Check the load.
Plan the configuration.
Parameters and equipment options are matched to the application and confirmed in the technical proposal.
| Rated Lifting Capacity | 1t – 10t |
|---|---|
| Basic Span | 7.5m – 28.5m |
| Lifting Height | 6m – 20m |
| Explosion-proof Grade | Ex d IIB T4 (Ex ia IIC T6 optional) |
| Hoist Type | Special explosion-proof electric hoist |
| Drive Motor | Explosion-proof type motor |
| Working Class | A3 – A5 |
| Lifting Speed | 2m/min – 10m/min |
| Crane Travel Speed | 15m/min – 25m/min |
| Control Mode | Explosion-proof ground handle / wireless remote |
| Power Supply | 380V/50Hz; 220V-660V/60Hz |
| Protection Level | IP55 (IP65 optional) |
| Working Temperature | -20℃ ~ 45℃ |
| Structural Feature | Modular assembly |
Final parameters, dimensions, wheel loads and supply scope follow the approved project specification.
Application & operation
Matched to the handling task.
Overhead Cranes
Workshop lifting, production lines and specialist steel handling.
Match the process
Define the material, handling method, load cycle and operating conditions to select the lifting arrangement.
Selection considerations
Start with your operating conditions.
Load & lifting method
Specify the material, dimensions, weight, centre of gravity and lifting attachment. Include the attachment weight in the suspended load.
Site & available space
Confirm span, lifting height, travel coverage, headroom and obstructions. Share runway or building drawings when available.
Duty & environment
State operating hours, lifts per hour, travel distances, temperatures, control requirements and the site power supply.
Configuration comparison
Compare related lifting arrangements.
| Crane arrangement | Handling configuration |
|---|---|
| Explosion-proof suspended overhead crane | Henan Mine Crane explosion-proof electric single girder suspension crane is designed for flammable and explosive hazardous operating environment to create a special suspension… |
| Double Girder Truss Gantry Crane | Double Trolley Truss Gantry Crane perfectly solves the core pain points of global engineering customers, such as difficult transportation of… |
| European style electric single beam suspended crane | Henan Mine Crane manufactured European style electric single beam suspended crane, both precise operation, high space utilization, low maintenance… |
| Multi-Point Suspension Crane | Henan Mine Crane’s suspended electric hoist bridge crane is a mid-air running lifting device with rails directly fixed to building structures. It is… |
Operating protection & lifecycle support
Plan beyond the equipment.
Operating protection
Confirm the required overload protection, travel limits, brakes, emergency controls and any process-specific interlocks in the technical specification.
Installation & commissioning
Agree the runway interface, assembly, electrical connections, inspection and commissioning responsibilities before delivery.
Maintenance & spares
Define inspection access, maintenance documentation, wear parts and the support scope for the complete crane and lifting attachment.
Questions before the order
Clarify the details
that shape the crane.
What information is needed for a quotation?+
Provide the lifting task, maximum suspended load, span, lifting height, duty cycle, working environment, control mode and site power supply. A bay layout and material photos help define the configuration.
Can the crane fit an existing building?+
The existing runway, structural capacity, available headroom and clearances must be checked against the proposed crane dimensions and wheel loads.
Does the proposal include installation?+
Specify the destination and the installation support you need. Equipment supply, shipping, erection, commissioning and operator training should be defined separately in the proposal.
