LH Electric Hoist Double Girder Crane
A conventional electric-hoist arrangement for workshop lifting, machinery assembly and maintenance. Select the catalogue configuration around the load and available hook height.
Define the total suspended load, duty and site conditions for your project.
Technical specifications
Check the load.
Plan the configuration.
Parameters and equipment options are matched to the application and confirmed in the technical proposal.
| Capacity | 3, 5, 10, 16, 20 t |
|---|---|
| Span | 10.5–31.5 m |
| Lifting height | 6, 9, 12 or 18 m* |
| Working class | A3–A4 |
| Hoisting speed | 3.5–8 m/min; dual speed available |
| Trolley travel | 20 m/min |
| Crane travel | 20 m/min; 30 m/min on listed variants |
| Power supply | 380 V · 50 Hz · 3 phase |
| Controls | Ground control |
| Lifting arrangement | CD₁ / MD₁ / HC / HM electric hoist |
Final parameters, dimensions, wheel loads and supply scope follow the approved project specification.
Application & operation
Matched to the handling task.
Overhead Cranes
Workshop lifting, production lines and specialist steel handling.
Match the process
Define the material, handling method, load cycle and operating conditions to select the lifting arrangement.
Selection considerations
Start with your operating conditions.
Load & lifting method
Specify the material, dimensions, weight, centre of gravity and lifting attachment. Include the attachment weight in the suspended load.
Site & available space
Confirm span, lifting height, travel coverage, headroom and obstructions. Share runway or building drawings when available.
Duty & environment
State operating hours, lifts per hour, travel distances, temperatures, control requirements and the site power supply.
Configuration comparison
Compare related lifting arrangements.
| Crane arrangement | Handling configuration |
|---|---|
| LH Electric Hoist Double Girder Crane | A conventional electric-hoist arrangement for workshop lifting, machinery assembly and maintenance. Select the catalogue configuration around the load and available hook height. |

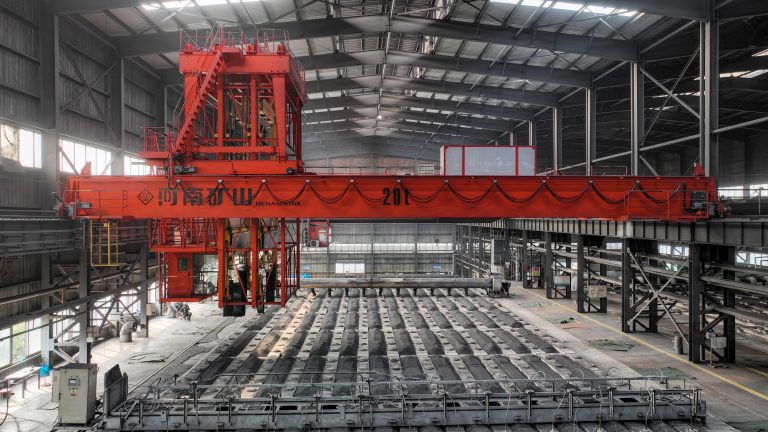

| Anode Carbon Block Stacking Crane | A dedicated arrangement for handling and stacking anode carbon blocks. Block geometry, grip arrangement and storage layout shape the configuration. |

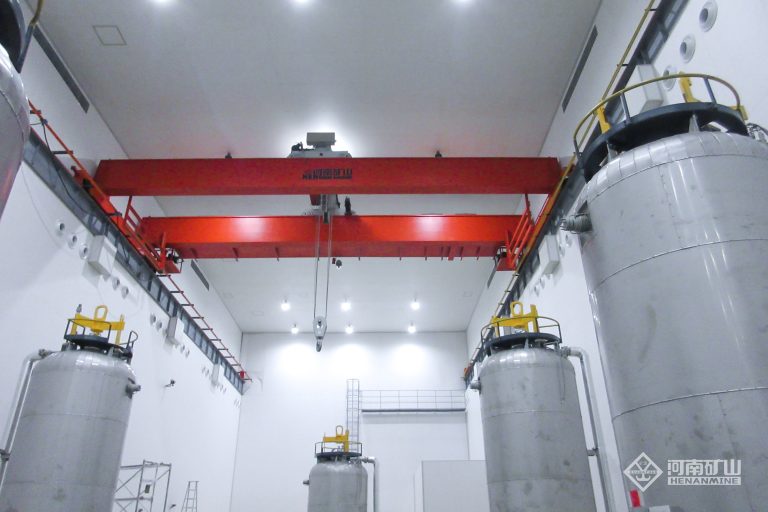

| Clean Explosion Proof Bridge Crane | A lifting arrangement for processes combining cleanliness and hazardous-area requirements. Provide the cleanroom and area-classification specifications. |

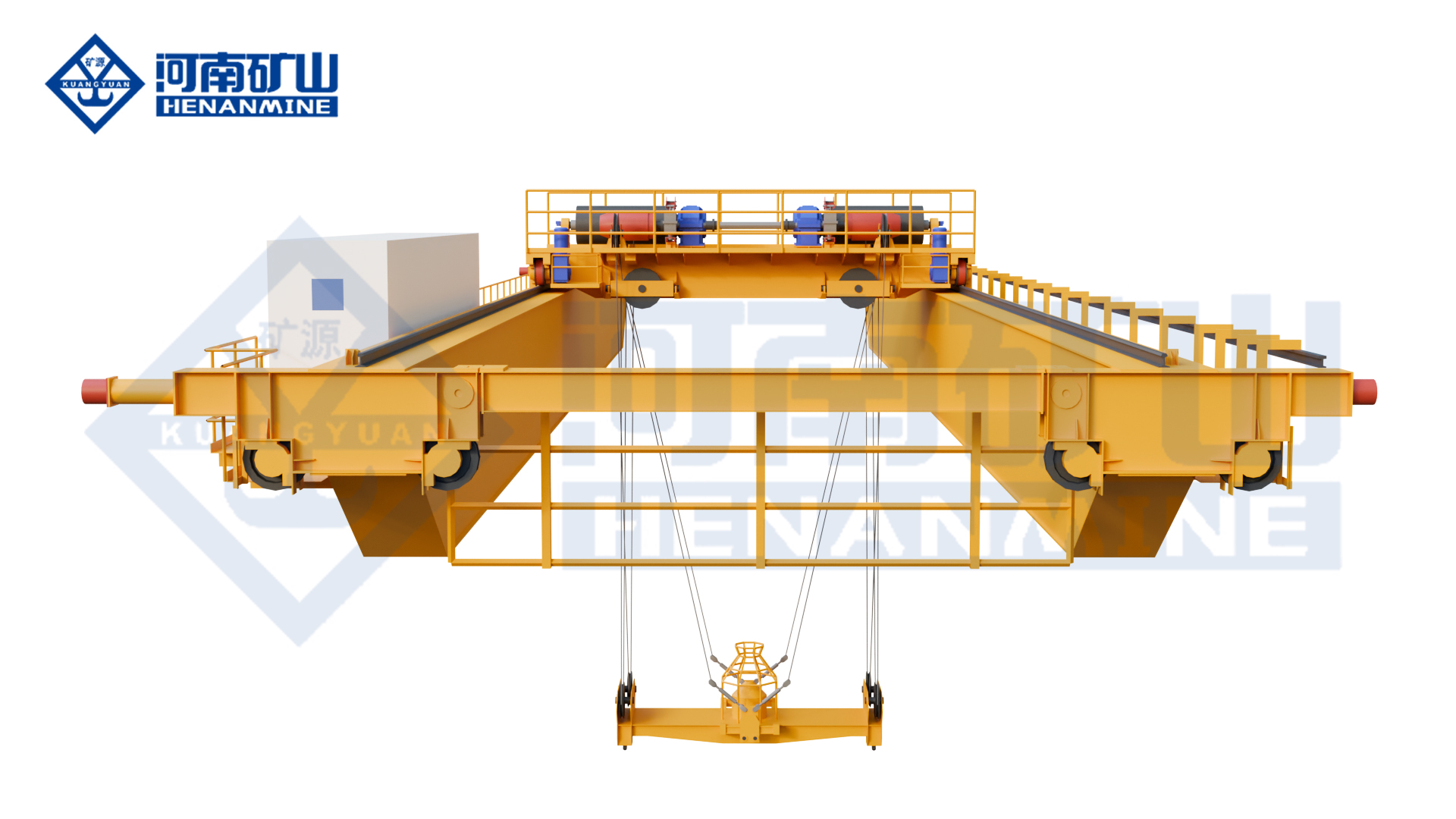

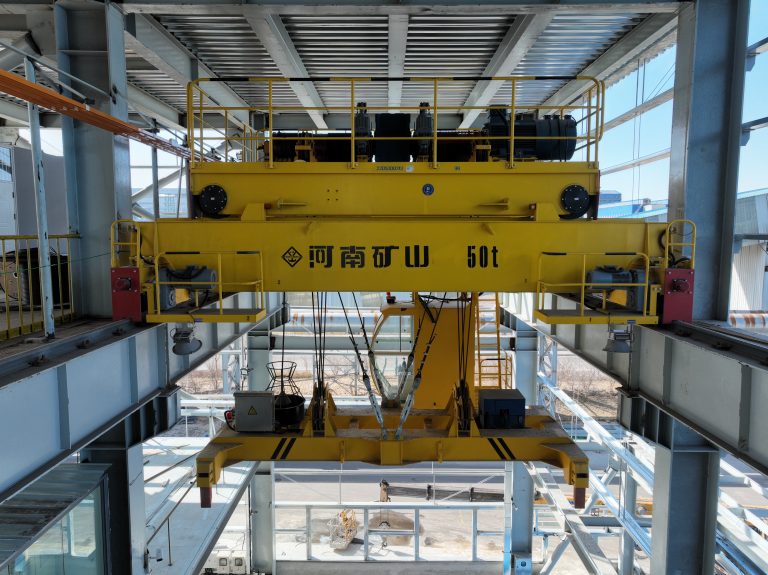

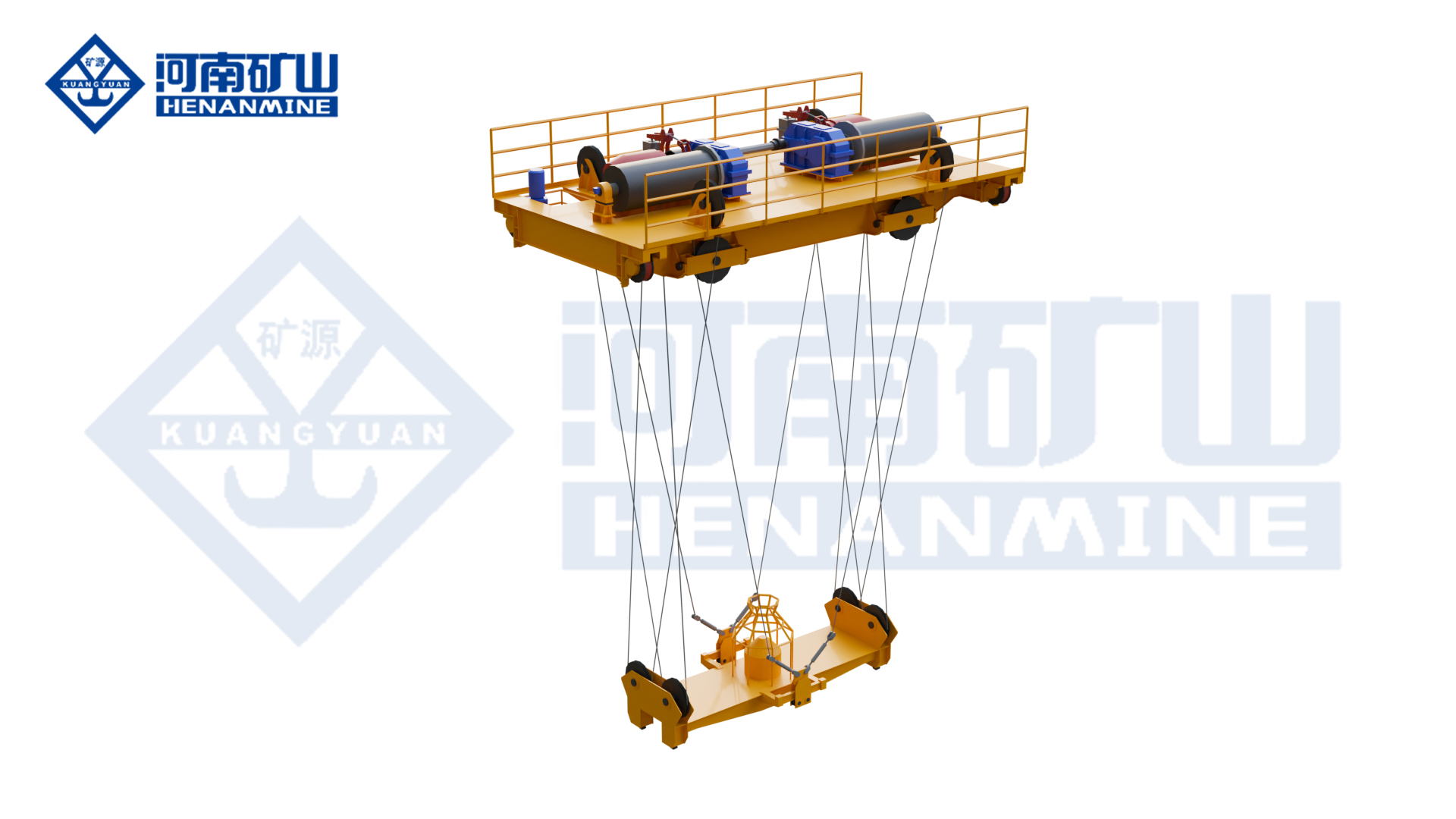

| Container Overhead Crane | A double-girder overhead arrangement for container transfer in a defined working area. Container size, spreader, clearance and operating layout require review. |
Operating protection & lifecycle support
Plan beyond the equipment.
Operating protection
Confirm the required overload protection, travel limits, brakes, emergency controls and any process-specific interlocks in the technical specification.
Installation & commissioning
Agree the runway interface, assembly, electrical connections, inspection and commissioning responsibilities before delivery.
Maintenance & spares
Define inspection access, maintenance documentation, wear parts and the support scope for the complete crane and lifting attachment.
Questions before the order
Clarify the details
that shape the crane.
What information is needed for a quotation?+
Provide the lifting task, maximum suspended load, span, lifting height, duty cycle, working environment, control mode and site power supply. A bay layout and material photos help define the configuration.
Can the crane fit an existing building?+
The existing runway, structural capacity, available headroom and clearances must be checked against the proposed crane dimensions and wheel loads.
Does the proposal include installation?+
Specify the destination and the installation support you need. Equipment supply, shipping, erection, commissioning and operator training should be defined separately in the proposal.
