Metallurgical Bridge Crane

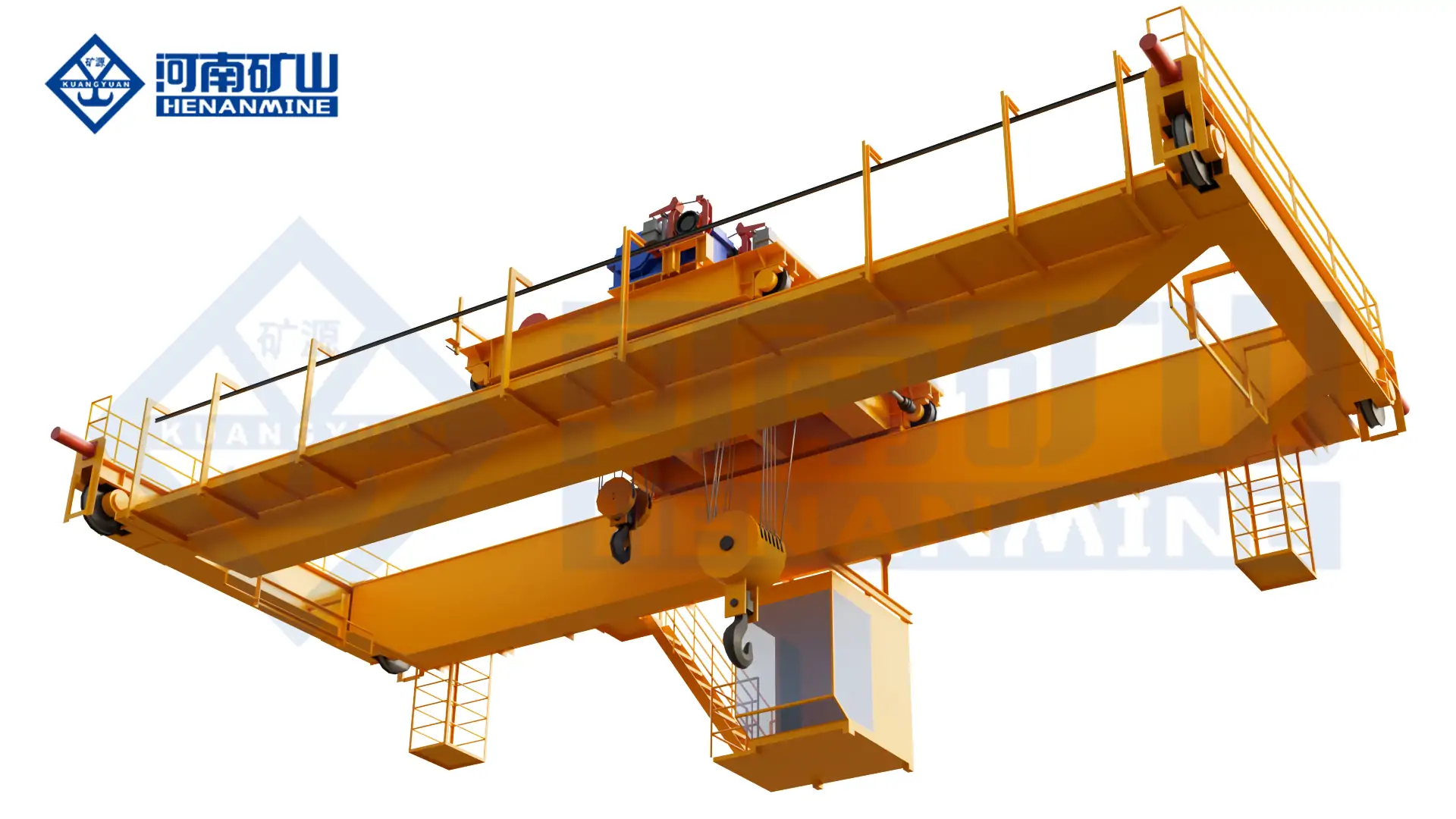

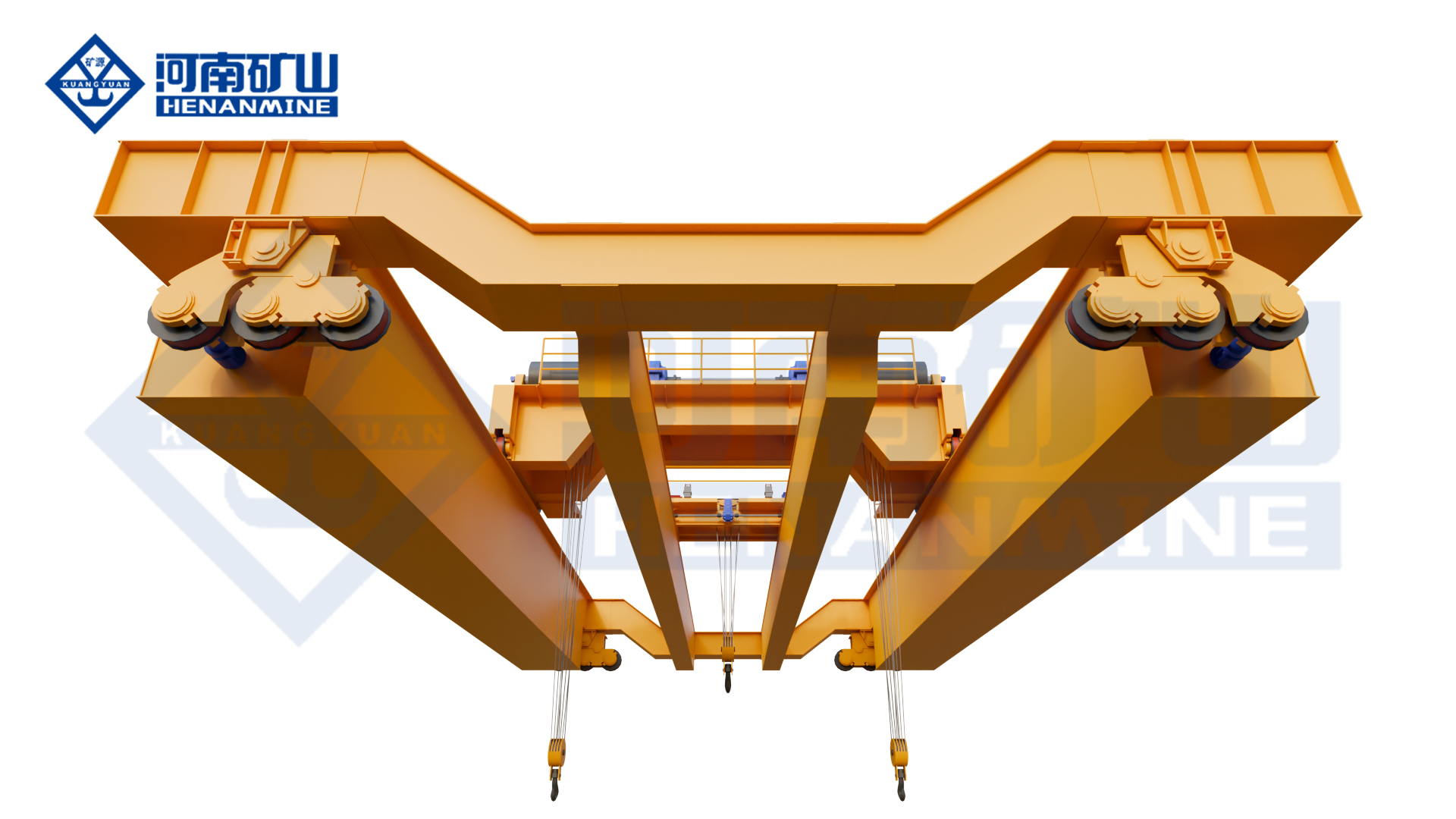

The YZD metallurgical bridge crane manufactured by Henan Mine Crane is specialized lifting equipment for metal smelting environments. Featuring a single-point lifting mechanism with a forged hook as the load-handling device and equipped with a gantry-type lifting attachment, it is designed for transporting liquid molten metal. Multiple safety protectionโฆ
Define the total suspended load, duty and site conditions for your project.
Technical specifications
Check the load.
Plan the configuration.
Parameters and equipment options are matched to the application and confirmed in the technical proposal.
| Lifting Capacity | 5 โ 200 t |
|---|---|
| Span | 10 โ 35 m |
| Lifting Height | 8 โ 30 m |
| Working Temperature Range | -20โ ~ 160โ |
| Positioning Accuracy | ยฑ5 mm |
| Lifting Speed | 0.1 โ 4 m/min |
| Traveling Speed | 0.5 โ 10 m/min |
| Protection Class | IP67๏ผCore Components๏ผ |
| Motor Type | YE4 ultra-high efficiency high-temperature resistant motor |
| Delivery Cycle | 30 โ 45 day ๏ผStandard Model๏ผ; 45- 60 day ๏ผCustomized Model๏ผ |
Final parameters, dimensions, wheel loads and supply scope follow the approved project specification.
Application & operation
Matched to the handling task.
Overhead Cranes
Workshop lifting, production lines and specialist steel handling.
Match the process
Define the material, handling method, load cycle and operating conditions to select the lifting arrangement.
Selection considerations
Start with your operating conditions.
Load & lifting method
Specify the material, dimensions, weight, centre of gravity and lifting attachment. Include the attachment weight in the suspended load.
Site & available space
Confirm span, lifting height, travel coverage, headroom and obstructions. Share runway or building drawings when available.
Duty & environment
State operating hours, lifts per hour, travel distances, temperatures, control requirements and the site power supply.
Configuration comparison
Compare related lifting arrangements.
| Crane arrangement | Handling configuration |
|---|---|
| Metallurgical Bridge Crane | The YZD metallurgical bridge crane manufactured by Henan Mine Crane is specialized lifting equipment for metal smelting environments. Featuring a single-point lifting mechanismโฆ |
| Anode Carbon Block Stacking Crane | A dedicated arrangement for handling and stacking anode carbon blocks. Block geometry, grip arrangement and storage layout shape the configuration. |

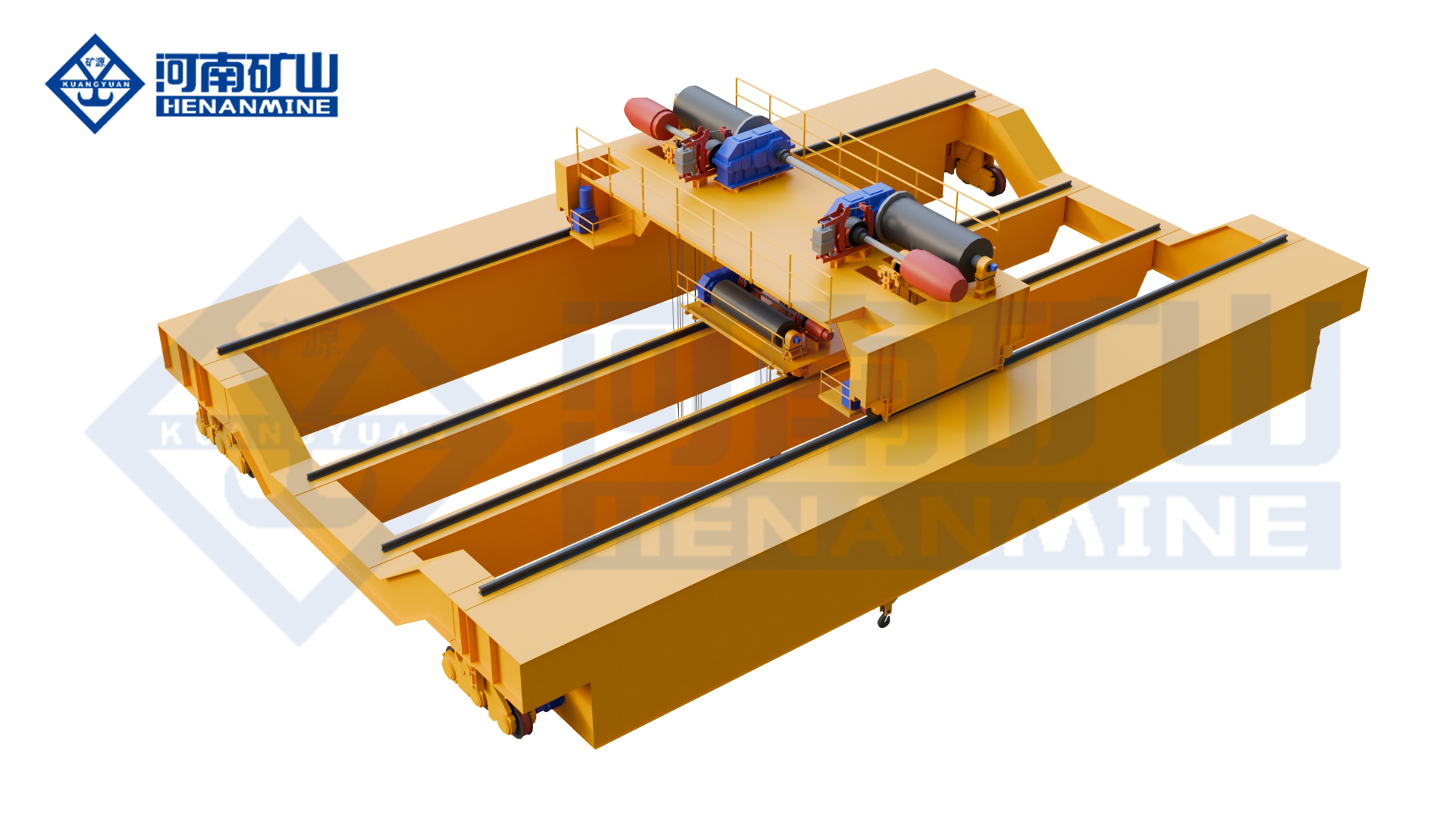

| Double Girder Casting Crane | A dedicated configuration for molten-metal ladles. The complete suspended load, process temperatures and metallurgical safety requirements govern selection. |
| Double Girder Truss Gantry Crane | Double Trolley Truss Gantry Crane perfectly solves the core pain points of global engineering customers, such as difficult transportation ofโฆ |
Operating protection & lifecycle support
Plan beyond the equipment.
Operating protection
Confirm the required overload protection, travel limits, brakes, emergency controls and any process-specific interlocks in the technical specification.
Installation & commissioning
Agree the runway interface, assembly, electrical connections, inspection and commissioning responsibilities before delivery.
Maintenance & spares
Define inspection access, maintenance documentation, wear parts and the support scope for the complete crane and lifting attachment.
Questions before the order
Clarify the details
that shape the crane.
What information is needed for a quotation?+
Provide the lifting task, maximum suspended load, span, lifting height, duty cycle, working environment, control mode and site power supply. A bay layout and material photos help define the configuration.
Can the crane fit an existing building?+
The existing runway, structural capacity, available headroom and clearances must be checked against the proposed crane dimensions and wheel loads.
Does the proposal include installation?+
Specify the destination and the installation support you need. Equipment supply, shipping, erection, commissioning and operator training should be defined separately in the proposal.
Related equipment
Explore the alternatives.
Overhead Cranes
Anode Carbon Block Stacking Crane
A dedicated arrangement for handling and stacking anode carbon blocks. Block geometry, grip arrangement and storage layout shape the configuration.
Overhead Cranes

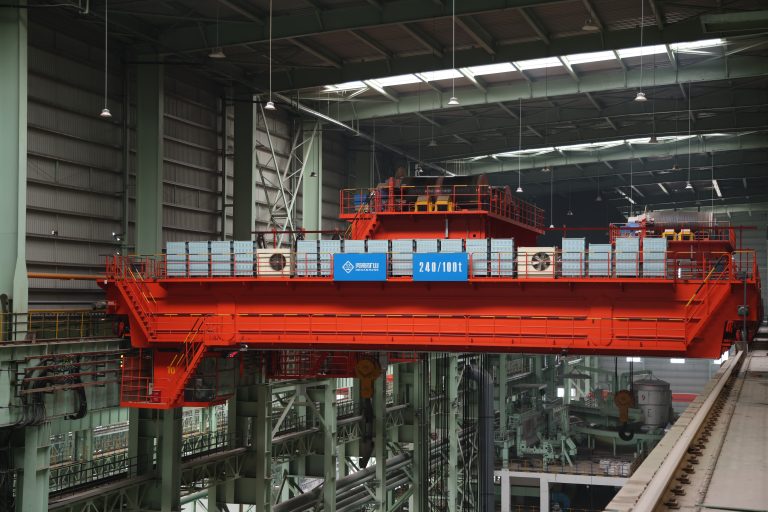

Double Girder Casting Crane
A dedicated configuration for molten-metal ladles. The complete suspended load, process temperatures and metallurgical safety requirements govern selection.
Overhead Cranes
Double Girder Truss Gantry Crane
Double Trolley Truss Gantry Crane perfectly solves the core pain points of global engineering customers, such as difficult transportation of large-spanโฆ
