In the steel pipe manufacturing, pipeline processing and heavy equipment industries, hoisting of ultra-long heavy steel pipes has always been a difficult point for material handling.Single-point lifting can easily cause the steel pipe to bend and deform, and the load to tilt, which will not only cause the product to be scrapped, but also bring major safety risks.

The 100-ton dual-machine linkage bridge crane uses a multi-hook PLC synchronization system to realize multi-point collaborative hoisting of ultra-long steel pipes. It is the core heavy-duty lifting equipment of the steel pipe workshop.This article introduces its working principle, PLC synchronization technology, safety configuration, selection points and application scenarios for reference by pipe companies and equipment buyers.

What Is a 100t Tandem Operating Bridge Crane?

The 100-ton dual-machine linkage bridge crane is suitable for multi-point collaborative lifting of heavy and ultra-long workpieces such as long steel pipes, pipelines, and large steel beams.The equipment consists of one or more double-beam bridge mechanisms, equipped with multiple sets of synchronous lifting mechanisms and hooks, and is uniformly controlled by PLC.100 tons is the total rated load of the system under linkage conditions, which can avoid the risks of pipe bending, load skew and single-point overload caused by single-point hoisting.

This kind of equipment is widely used in industrial plants, and can transfer long steel between production stations, flaw detection and inspection areas, finished product warehouse areas, and delivery areas, reducing manual intervention throughout the process and reducing pipe deformation and damage.

Principle of dual-machine linkage lifting operation

• Definition of dual-machine linkage: Multiple sets of lifting mechanisms work together to lift workpieces under the same control system, and the operator uniformly controls the entire set of equipment, relying on PLC and position sensors for real-time monitoring to ensure that the position and operating speed of each lifting point are kept in sync.
• The difference between a single bridge crane and a two-machine linkage system: a single machine is suitable for short workpieces, and it is easy to bend due to its own weight when hoisting long steel pipes; the linkage system adopts a multi-point support structure, and the electronic control can automatically correct the load attitude deviation, and the hoisting stability is stronger.
• Why long and heavy-duty steel pipes are suitable for dual-machine linkage hoisting: single-point hoisting of long steel pipes is easy to flex and deform, and multi-point hoisting can disperse the force, and the ultra-long steel pipes and steel pipe bundles can be hoisted smoothly and safely.

Core composition of the 100-ton dual-machine linkage crane system

1. Bridge structure and end beam: high-rigidity double-beam box-shaped or truss main beam, the deformation of the main beam under heavy load is controlled in a very low range, and it is suitable for decentralized heavy loads.The end beam is equipped with a walking drive wheel set, which runs along the track of the plant, and is generally equipped with an anti-skew mechanism.
2. Main and auxiliary lifting mechanism: wire rope hoist mechanism, the main lifting bears the rated load, and the auxiliary lifting is used for fine-tuning attitude and light load auxiliary operations.Multiple sets of independent reel hoists, providing multiple hook lifting points.
3. Multi-hook and hanging point components: usually equipped with 2 to 4 hooks, the spacing is drawn in the direction of the long workpiece.It can be equipped with hanging beams, balance beams, special hanging pliers for steel pipes, permanent magnet suction cups and other tooling to achieve multi-point stable clamping.
4. Electrical drive, encoder, sensor and PLC control cabinet: frequency conversion drive (VFD) to achieve smooth speed regulation; the motor or reel is equipped with absolute/incremental encoder to feedback the hook position in real time; load cell monitors the load; the central PLC uniformly coordinates all moving axes through the industrial bus (such as Profinet).
5. Operation unit and safety monitoring system: wireless remote control or cab operation, supporting human-machine interface HMI, real-time display of hook height, load of each hanging point, synchronization status, fault alarm.With safety PLC and stroke limit switch, the status of the whole machine is monitored in real time throughout the process.

Why Multi-Hook Lifting Matters for Long Steel Tubes

Anti-bending and deformation of steel pipe

Long steel pipes can be equivalent to long beam structures. The number of lifting points is insufficient or the spacing between the lifting points is unreasonable. Thin-walled and large-diameter pipes will flex significantly, and they will be directly and permanently deformed in severe cases.

The spacing of hanging points needs to be calculated based on the length of the steel pipe, stiffness (elastic modulus, wall thickness, pipe diameter), material and load distribution, and the bending moment and deflection are controlled within the design allowable range.When necessary, it is equipped with balanced hanging beams to optimize the force form and make the force of multi-point hoisting more controllable.

Maintain load stability

Multi-point hanging points distribute the weight according to the geometry of the workpiece and the position of the center of gravity, reducing the tilt, rotation, and large swing of the steel pipe.Each hook rises and falls synchronously, maintaining the level of the steel pipe, and suppressing the swing during lifting and cart operation.This solution can be adapted to different pipe diameters, lengths, wall thicknesses, and weight differences between batches, and stably control the attitude of the pipe.

Improve work efficiency

Simultaneous hoisting of multiple hoisting points, loading and unloading, warehousing and shelves, and process transfer can be completed in one action, from molding, flaw detection to finished product delivery, reducing the operation of repeatedly adjusting the spreader and re-hooking, reducing the amount of manual operation for long-piece handling, shortening the operating cycle, and reducing personnel safety risks.

How PLC Synchronization Works in Tandem Bridge Cranes

PLC control system function

The PLC receives the operator’s remote control/cab instructions, and uniformly coordinates multiple sets of lifting, trolley, and trolley drive units.Continuously collect operating data such as position, speed, and load through the encoder, and rely on master-slave or multi-axis closed-loop control logic to output motion curves to achieve synchronous action of multiple mechanisms.

Multi-hook synchronous control

The system controls the lifting height and lifting speed of each hook to ensure that the height difference of the hook is maintained within a very small tolerance range (high-end systems can reach within ±3~5mm).

The encoder collects the height deviation in real time, and the PLC adjusts the output speed of the inverter in real time.The acceleration, deceleration and shutdown curves are uniformly matched to avoid sudden load movement, and low-latency industrial communication networks are relied on to ensure real-time data interaction.

Load and deviation monitoring

Load cells and overload protection devices monitor the load of each hook and the total load.Pre-set the synchronization error threshold and load imbalance threshold.Once the limit value is exceeded, the system will issue an alarm, automatically slow down, and trigger a shutdown if necessary.Important note: Position synchronization is not equal to automatic load sharing.The static load distribution is still determined by the mechanical structure, spreader, and the position of the center of gravity of the workpiece.

Hook lag emergency response

The system detects the difference in the position and speed of the hook in real time. Once the deviation exceeds the standard, the driven mechanism is first executed to follow the correction; when the deviation exceeds the safety threshold, all shafts perform a controlled shutdown interlock, and it is forbidden to continue dangerous operations.Before the fault is reset, the synchronization state and load state must be confirmed to be normal before restarting is allowed.

Key Safety Features for 100t Tandem Crane Operations

Overload and partial load protection

Independently monitor the load of each set of lifting mechanism, and summarize the total load at the same time.Overload protection is set for a single hook and lifting mechanism, and hierarchical alarm thresholds can be configured (such as 90% to 100% load alarm, 105% to 110% trigger shutdown), which comply with EN 15011, ASME and other lifting specifications.The linkage mode downloads the load summary logic to protect the bridge structure from being overloaded.

Anti-swing smooth control

Relying on frequency converters to achieve segmented acceleration and deceleration curves, multi-axis linkage and coordinated movement, it can be equipped with open-loop/closed-loop anti-swing algorithms to reduce the swing amplitude of the pipe during the transfer and precise alignment stages.

Emergency stop and fault interlocking

An emergency stop loop that meets the safety level, and all mechanisms stop synchronously and safely in the linkage state.Encoder failure, drive failure, communication interruption, sensor abnormality, and synchronization deviation overrun will all trigger interlock protection.After the fault is cleared, the equipment must be checked and verified in accordance with the standardized process before it can be restarted.

Control method and field of vision guarantee

Wireless remote control is preferred, and the operator can operate on the ground away from the long pipe area; you can also choose the cab to operate.The HMI interface clearly displays the hook height, single hook/total load, synchronization status, and fault information.For long steel pipe operations, standardized communication signals and intercom processes are formulated between teams.

How to Configure a Tandem Bridge Crane for Long Steel Tubes

• Determine the size and load characteristics of the pipe: clarify the maximum length, outer diameter, wall thickness, weight of the steel pipe (considering batch weight fluctuations), material stiffness, allowable deflection, and center of gravity position, and include the weight of the spreader and the working system level.
• Selection of the number of hooks and the spacing between the hanging points: determine the number of hanging points based on the geometry and stiffness analysis of the pipe, and calculate the load of each hanging point and the local stress of the support position.Evaluate whether accessories such as balance beams, special hanging pliers, slings, magnetic tooling, etc. are needed.
• PLC control system matching accuracy requirements: select the encoder and frequency conversion closed-loop scheme as needed, define the synchronization error limit, load imbalance threshold, alarm and fault response logic.The prototype needs to be tested and verified under conditions close to the real load, and the load test is done.
• Assessment of plant layout and environmental conditions: calculate crane span, lifting height, total track length, and plant clearance height; evaluate workshop environment: temperature, dust, humidity, and busy production; at the same time consider power supply, maintenance channels, and docking with existing conveyor lines, finished product shelves, and processing equipment.

Typical Applications in Steel Manufacturing and Processing

• Steel pipe production line: relying on the linkage multi-hanging point system to transport finished steel pipes, it can smoothly transfer pipes between various process stations such as forming, welding, flaw detection, and finishing, and the hoisting positioning is stable and reliable, effectively reducing the surface bumps and scratches of the pipes during the hoisting process, and ensuring product appearance and quality.
• Steel pipe warehousing and logistics: complete the transfer of long pipes between storage shelves, waiting buffer areas, and finished product delivery areas; multi-hook collaborative lifting can stably and safely carry out the stacking and depalletizing of single or bundles of steel pipes, and improve the efficiency of warehouse material turnover.
• Steel processing service center: used for hoisting large bundles of pipes and oversized single steel pipes to meet business needs such as subsequent cutting, secondary deep processing and external distribution. Multi-point synchronous hoisting greatly reduces the frequency of repeated alignment of workpieces and adjustment of spreaders, saving operating time.
• Pipeline prefabrication workshop: accurately transport long steel pipes to cutting, beveling, welding, and machining stations, and sustainably maintain the straightness of the pipes with multi-point support, reduce the deformation caused by hoisting, and reduce the workload of manually correcting the attitude of the pipes on site.
• Energy heavy industry: responsible for the lifting of large-caliber pipelines supporting oil and gas, power stations, and large-scale steel structure engineering projects. Such workpieces have strict standards for lifting positioning accuracy and pipe deformation control, and the linkage multi-lifting point lifting system can meet the needs of high-standard operations.

In all of the above scenarios, simultaneous hoisting of multiple hoisting points can improve positioning consistency, shorten operating cycles, improve safety levels, and reduce manual operation and pipe damage.

Common Problems and Solutions in Tandem Crane Operation

Operational Problem	Potential Cause	Recommended Measure
Uneven hook elevation	Sensor drift or drive parameter mismatch	Calibrate feedback sensors and review synchronization control logic
Tube tilting during lifting	Uneven load distribution	Reassess hook spacing and verify load distribution at each lifting point
Excessive tube deflection	Unreasonable lifting-point support scheme	Review tube mechanical properties and re-optimize lifting point layout
Frequent synchronization alarms	Incorrect parameter settings or mechanical jamming	Inspect drive units, sensors, and mechanical alignment of bridge/trolley
Excessive load swinging	Abrupt acceleration and deceleration during start & stop	Optimize motion profiles and standardize operating procedures
Repeated positioning adjustments	Insufficient positioning control precision	Upgrade position feedback components and optimize control parameters

Regular maintenance, sensor calibration, and operator training are the keys to avoiding most failures.

Conclusion

The 100-ton dual-machine linkage bridge crane relies on a dual-machine collaborative structure, multiple lifting points and PLC synchronous control system. It is a special engineering hoisting scheme for long and heavy steel pipes and large-scale components.Reasonable planning of load, lifting point spacing, synchronization accuracy and safety configuration can enhance the stability of hoisting and reduce the deformation of the workpiece and the risk of operation.

When selecting models, focus on the supplier’s engineering design, electronic control synchronization, manufacturing strength and after-sales capabilities, and determine the lifting parameters and safety configuration based on working conditions.Henan Mine Crane can customize a 100-ton dual-machine linkage bridge crane for steel pipe processing and heavy industry logistics scenarios to ensure safe, efficient and accurate lifting of long and heavy parts.

In the construction of high-speed rail bridges and viaducts, the hoisting, transportation and stacking of prefabricated box girders and T-beams is a key process, which is related to progress and safety.The 100-ton railway prefabricated beam gantry crane is the core heavy equipment of the high-speed rail beam yard. The selection and calculation of heavy-duty wheel pressure are the focus of site adaptation, stable foundation, and long-term safe operation.

Many construction units only pay attention to the rated lifting weight of 100 tons in the selection of models, ignoring their own weight, dynamic wheel pressure and site conditions, which can easily cause hidden dangers such as track collapse, foundation settlement, and equipment instability.

This article introduces the crane structure, wheel pressure calculation, high-speed rail selection points and design specifications, provides technical reference for equipment selection and construction design, and answers technical questions such as gantry crane wheel pressure calculation and 100-ton gantry crane maximum wheel pressure.

What Is a 100t Precast Railway Beam Gantry Crane

The 100-ton railway prefabricated beam gantry crane is a heavy-duty lifting equipment for railway infrastructure, which can complete the hoisting, transshipment, stacking and assembly of prefabricated beams within 100 tons.Most of the equipment is rail-walking double-beam and double-trolley structure, which has stable operation and accurate positioning, and is suitable for outdoor heavy-duty beam yard operations.

The mainstream configuration is 50t+50t double hoist synchronous lifting, evenly sharing the load, and suitable for long prefabricated beams.However, 100 tons is only the rated reference, not the design limit. Engineering design requires comprehensive accounting of self-weight, dynamic load, wind load and orbital deviation.

Core application scenarios

The 100-ton railway prefabricated beam gantry crane is specifically adapted to the needs of railway infrastructure operations in all scenarios, and its core application scope covers：

• Main beam and outrigger structure: Generally, box-shaped main beam or truss main beam are used, with a combination of rigid outriggers and flexible outriggers.This structure can effectively control the deflection of the main beam under heavy-duty operations, resist the deformation caused by alternating loads, and meet the strength requirements of long-term high-frequency hoisting.
• Lifting mechanism: equipped with a single trolley or dual synchronous trolley system, often using a combination of double hoists for hoisting, with special prefabricated beam spreaders.The synchronous operation of the double lifting points can disperse the force of the beam body and prevent distortion and deformation of the long beam during hoisting.
• Cart walking mechanism: it consists of a rail-type end trolley and multiple sets of wheel train, which is responsible for the longitudinal movement of the crane along the track.The multi-wheeled trolley design can disperse the wheel pressure and reduce the load on the track and foundation.
• Trolley operating mechanism: the lifting trolley moves laterally along the main beam, flexibly adjusting the position of the lifting point, and adapting to the lifting of prefabricated beams of different lengths and different lifting point positions.
• Electrical control system: equipped with frequency conversion drive system and synchronous control system, it supports two modes of cab operation and wireless remote control.Frequency conversion and speed regulation achieve smooth start and stop, avoid impact loads during hoisting, and ensure the safety of beam hoisting.
• Track walking base: The standard crane track supporting structure is adopted, and the load is distributed through multiple rounds of combined management, and the maximum wheel pressure of a single wheel is controlled from the source of the structure to meet the requirements of outdoor heavy-duty continuous operation.

The equipment can be adapted to the outdoor open-air, dusty, and complex construction environment, effectively reducing the cost of off-site transportation of prefabricated beams, and greatly improving the construction efficiency of high-speed rail projects.

Equipment standard configuration structure

The 100-ton railway prefabricated beam gantry crane adopts a heavy-duty reinforced structure, and the core configuration takes into account strength, stiffness and stability. The specific composition is as follows：

• Main beam and outrigger structure: box-type or truss-type main beam is selected, with rigid and flexible reinforced outriggers, which can effectively resist structural deformation under heavy loads, and control the deflection of the main beam within the allowable range of the specification to meet the requirements of long-term cycle heavy-duty operations.
• Lifting mechanism: equipped with a single trolley or a double synchronous trolley, with a double synchronous hoist system, a special spreader for prefabricated beams and a beam lifting device, the load is evenly distributed when hoisting the long-span beam body to avoid the local stress concentration of the beam body.
• Cart walking mechanism: it adopts a rail-type end trolley and a multi-wheel structure to support the smooth movement of the whole machine along the longitudinal direction of the track, dispersing the total load to multiple wheels, and reducing the wheel pressure of a single wheel.
• Trolley operating mechanism: the lifting trolley can be accurately displaced laterally along the main beam, and the position of the lifting point can be flexibly adjusted to adapt to the lifting conditions of prefabricated beams with different beam lengths and different lifting point arrangements.
• Electrical control system: integrated frequency conversion speed control system (VFD) and synchronous control system, supporting two operating modes of cab operation and wireless remote control, to achieve precise speed regulation, smooth start and stop, and reduce hoisting impact.
• Track walking base: adopts a standardized track adaptation structure and relies on the load-sharing design of multiple wheel sets to control the maximum single-wheel wheel pressure from the structural level to protect the track and the lower foundation.

Understanding Heavy Wheel Loads in Gantry Crane Design

Wheel pressure is the core parameter of 100-ton prefabricated beam gantry crane design, site foundation construction, and track selection, which directly determines the operating stability and engineering safety of equipment, and is the top priority of high-speed rail lifting engineering design.

The core definition of wheel pressure

Wheel pressure refers to the vertical pressure generated by the crane’s walking wheels (wheel sets/trolleys) on the track. It is the core basis for track selection and foundation bearing capacity accounting. It is mainly divided into two categories.：

• Maximum wheel pressure: The maximum vertical pressure that a single wheel can withstand under the most unfavorable working conditions of the equipment (trolley partial load, full load hoisting, dynamic impact) is the control parameter of the engineering design.；
• Static wheel pressure: the value of the wheel pressure when the equipment is stationary and there is no dynamic impact, which is only affected by the gravity load；
• Dynamic wheel pressure: The actual wheel pressure after superimposed hoisting acceleration, equipment walking braking, vibration shock, and wind load is usually 1.1-1.3 times the static wheel pressure.

During crane operation, the load will be redistributed according to the position of the trolley, the position of the lifting point, and the state of the track. The wheel pressure of each wheel is not evenly distributed, and the local partial load will greatly increase the pressure of a single wheel.

Core factors affecting wheel pressure

The wheel pressure value of a 100-ton gantry crane is not a fixed value and is affected by multiple parameters. The core factors are as follows：

• Rated lifting weight: The rated lifting load of 100 tons is the most basic source of load for wheel pressure calculation.Under the extreme working conditions of prefabricated beam hoisting, the beam body load will be directly transmitted to the trolley, the main beam, and the outriggers, and ultimately act on the walking wheels, which is one of the core factors that determine the maximum wheel pressure level.
• Equipment weight: The weight of the crane, plus the weight of the trolley, spreader, hanging beam device and other ancillary components, together constitute the main part of the static wheel pressure.It is easy for many engineering calculations to ignore self-weight, but the weight of heavy-duty gantry cranes often accounts for a high proportion of the total load, which has a significant impact on the wheel pressure results.
• Span and outrigger structure: The larger the span of the crane, the longer the force transmission path between the outriggers; if the stiffness of the rigid outrigger and the flexible outrigger is inconsistent, the force transmission will deviate, and the uneven distribution of wheel pressure will be more prominent. The phenomenon is more prominent, and the one-sided wheels are more prone to load concentration.
• Trolley and load position: When the lifting trolley moves with the prefabricated beam to one side of the outrigger and approaches the limit position, the load center is biased to this side, and the wheel pressure on that side will increase sharply.This is also the control condition that must be used when calculating the maximum wheel pressure in the project.
• The number and arrangement of wheel sets: Under the premise that the total load remains the same, the number of wheels is rationally increased, and the wheel track and trolley arrangement are optimized at the same time, which can effectively distribute the total load, reduce the wheel pressure on a single wheel, and make the load distribution of the whole machine more uniform.
• Start-stop acceleration and braking force: Acceleration and braking during the movement of the cart and the traverse of the cart will produce inertial forces, which are superimposed on the static load, directly increasing the instantaneous dynamic wheel pressure.The faster the start-stop speed, the more obvious the inertial impact, and the greater the wheel pressure fluctuation.
• Environmental load: The wind load of open-air operations, the uneven foundation settlement caused by the long-term use of the site, and the deviation between the level and height of the track laying will all change the force state of each wheel, further exacerbating the uneven distribution of wheel pressure, and even causing individual wheels to overload.

Maximum wheel pressure and average wheel pressure

The average wheel pressure is the theoretical value of the total load evenly distributed to all wheels. It is only suitable for rough estimation and must not be used in engineering design.The maximum wheel pressure is the only control standard for the track and basic design of high-speed rail projects.

During the hoisting of prefabricated beams and the walking of equipment, the partial load of the trolley, the offset of the beam weight, and the uneven track will all cause the load to be concentrated, and the wheel pressure of a single wheel will be much higher than the average value.If the track and foundation are designed according to the average wheel pressure, problems such as local track collapse, cracking of concrete foundation, and uneven foundation settlement will occur, which directly affect construction safety and equipment service life.

Why High-Speed Rail Projects Require Careful Wheel Load Sizing

Compared with ordinary highway and municipal projects, the construction of high-speed rail prefabricated beams has extremely high requirements for the wheel pressure control of gantry cranes. The core stems from the high standards, high precision and high safety requirements of high-speed rail projects.

Characteristics of heavy-duty operation of prefabricated beams

The prefabricated box girders and T-beams of high-speed rail are large in size and have concentrated self-weight. The weight of the single beam is close to the rated load of the equipment, and the construction process requires frequent hoisting, precise alignment, and fine-tuning.Under long-term high-frequency and heavy-duty operations, the stability of the wheel pressure value directly determines the hoisting accuracy of the equipment, and avoids construction quality problems such as beam offset and alignment deviation.

Track and foundation bearing capacity requirements

The track and concrete foundation of the high-speed rail beam yard are customized designs, and there are strict standards for the bearing capacity, flatness, and anchoring strength of the special track for P50/P60 cranes and the reinforced concrete foundation.If the wheel pressure exceeds the design limits of the track and foundation, track deformation, loose bolts, and foundation settlement will occur, which will directly damage the construction base of the beam field and affect long-term construction safety.

Guarantee the walking stability of the equipment

The 100-ton gantry crane needs to carry a long-span prefabricated beam to walk. The beam body itself is prone to shaking, superimposed on the outdoor wind load and the track is slightly uneven, which is prone to the risk of equipment instability.Accurate wheel pressure ratio and uniform load distribution can effectively reduce the walking offset of the equipment and the swing of the beam body, and ensure the overall stability of the heavy-duty walking process.

Key Design Parameters for a 100t Precast Beam Gantry Crane

The 100-ton gantry crane adapted to the high-speed rail project needs to optimize the core parameters around wheel pressure control, safety and stability, and working condition adaptation. The key design indicators are as follows：

Lifting capacity and safety margin

The rated lifting weight is 100 tons, and the equipment is designed to reserve not less than 1.25 times the safety margin, which can cover the deviation of the beam weight, the weight of the spreader, and various temporary additional loads.The whole machine is equipped with an overload protection system to eliminate overload operations from the hardware level and meet the requirements of Class A safety specifications for high-speed rail projects.

Equipment span and lifting height

The applicable span range of conventional beam yards is 18–50m, which can be customized in combination with the layout of the site; the lifting height is 10–20m, which can meet the requirements of the spatial net distance between the layered storage of prefabricated beams and the high-level erection, and avoid component interference during hoisting operations.

Wheel and track matching design

High-strength forged alloy wheels are used to harden the tread, wear-resistant and compression-resistant; the wheel pressure is dispersed by increasing the number of wheel sets and optimizing the spacing of wheel tracks; and the special track for QU series cranes is matched to achieve accurate wheel-rail matching and minimize the problem of local load concentration.

Walking speed and drive system

The heavy-duty walking speed is set to 5–20m/min to meet the needs of low-speed precise alignment; the whole machine is equipped with a frequency conversion synchronous multi-drive system to ensure the synchronous start, stop, acceleration and deceleration of the outriggers on both sides, effectively preventing the uneven distribution of wheel pressure caused by walking deviation.

Main structure design

The main beam adopts a high-stiffness box-shaped structure to strictly control the deflection of heavy loads; the legs are strengthened with compression and torsional design to adapt to long-term cyclic heavy loads; the overall structure is optimized for fatigue resistance and adapted to high-frequency operating conditions of high-speed rail projects to eliminate wheel pressure offset caused by structural deformation.

Precast Railway Beam Conditions That Influence Crane Sizing

The wheel pressure design and selection of the 100-ton gantry crane must match the actual working conditions of the prefabricated beam of the project. The core influencing conditions include：

• Beam body parameters: the length of the prefabricated beam, the cross-section size, the weight distribution, the position of the lifting point and the height of the center of gravity directly affect the load transfer method during hoisting.The center of gravity and force points of different types of high-speed rail box girders and T-beams are obviously different, and improper design of the lifting points can easily cause the beam body to distort and tilt the hoisting.
• On-site operating conditions: the layout of beam storage in the beam yard, the stacking form and the average daily hoisting frequency determine the working level and long-term heavy-duty cycle strength of the 100-ton gantry crane.High-frequency hoisting produces alternating loads, which affect the dynamic changes of wheel pressure and the fatigue life of equipment. It is an important reference for wheel pressure verification and structure optimization.
• Site and track conditions: The bearing capacity and track flatness of the ground foundation of the beam site will change the state of the wheel force. Once there is a height difference or the foundation is weak, it is easy to produce partial loads, causing local wheel pressure to exceed the standard.

Safety Systems for Heavy-Duty Railway Beam Gantry Cranes

For high-speed rail outdoor heavy-duty operation scenarios, 100-ton prefabricated beam gantry cranes must be equipped with a complete set of safety systems to avoid abnormal wheel pressure and equipment instability risks.：

• Overload protection system: collect and continuously monitor the load of hoisting operations in real time, automatically trigger the protection action when the load exceeds the rated limit, cut off the lifting power in time, and eliminate the phenomenon of overload from the source to avoid a sharp increase in wheel pressure due to excessive load, and prevent overload damage to the wheels, tracks and foundations.
• Stroke limit switch: set the limit position protection for the traverse of the trolley, the lifting height, and the walking of the trolley respectively.Once it is run to the boundary position, it can automatically stop, prevent the equipment from running offside, avoid a large shift in the lifting center of gravity and cause the partial load to get out of control, and control the maximum wheel pressure not to exceed the design value.
• Emergency braking system: In the event of emergency working conditions such as sudden failure and abnormal force, it supports one-key shutdown and locking, quickly fixing the position of the crane and the whole machine, limiting further changes in the load, and avoiding the risk of wheel pressure mutation and instability caused by sudden load impact.
• Anti-collision system: scan the surrounding space in real time, monitor the distance between the equipment and the equipment and the beam field structure, give early warning and slow down and brake in advance, avoid hard collisions and produce instantaneous impact loads, and prevent the impact from causing the local wheel pressure to soar instantly.
• Walking deviation monitoring: continuously collect data on the walking trajectory of the cart, cooperate with the drive system to correct the running direction in real time, suppress the deviation of the cart, prevent the force on one side of the outrigger from increasing, and avoid the uneven distribution of wheel pressure caused by track offset and rail gnawing.
• Windproof anchoring device: For the open-air operating environment of the beam yard, the whole machine can be locked by the anchoring device in windy weather to resist the additional horizontal force and overturning torque generated by the lateral wind load, reduce the increase in unilateral wheel pressure caused by the wind load, and ensure the stability of the equipment in strong winds.
• Synchronous lifting control system: accurately control the lifting action of the double trolley, maintain the same lifting speed and displacement height on both sides, ensure the balance of force during the lifting of the prefabricated beam, avoid the tilt of the beam body and partial load, and maintain the stability of the wheel pressure of the whole machine.
• Regular inspection mechanism: Establish a normalized inspection plan, regularly detect the degree of wheel wear, track deformation, and fatigue damage of the main steel structure, investigate diseases in time, and ensure that the wheel pressure parameters are stable in the design allowable range for a long time.

Common Mistakes When Selecting a 100t Railway Gantry Crane

Combined with the construction experience of high-speed rail projects, high-frequency misunderstandings in the selection of equipment in the industry are also the core problem that leads to the failure of wheel pressure design.：

• Only rated load selection: Only refer to the rated lifting weight of 100 tons when selecting the type, ignoring the crane’s own weight, dynamic load, wind load and other additional forces, resulting in distortion of the wheel pressure calculation results.
• Ignore the influence of equipment weight: The weight of the gantry crane itself accounts for a high proportion of the total load, which is the core parameter of the wheel pressure calculation, but it is often missed by designers during the project planning stage.
• Misuse of average wheel pressure instead of maximum wheel pressure: simply design the track and foundation according to the average wheel pressure evenly distributed by the load, without considering the extreme partial load conditions such as trolley bias, there are safety risks.
• Underestimate the dynamic impact load: the wheel pressure calculation does not include the dynamic amplification coefficient caused by equipment start-stop, operating vibration, and wind load, resulting in the track and basic design values are too small.
• Mismatch of wheel and rail parameters: The actual wheel pressure of the crane does not match the bearing capacity and track specifications of the existing track on the site, and long-term operation can easily cause track deformation and damage.
• Ignore the deviation of the beam weight center of gravity: The center of gravity is offset when the prefabricated beam is hoisted, which will cause the wheel pressure on one side of the equipment to exceed the limit, causing safety risks such as partial load and abnormal structural force.
• Unreserved expansion margin: The plan only adapts to the current beam type parameters, and there is no reserved design margin, making it difficult to cope with subsequent production capacity increase, beam type replacement and other construction adjustment needs.

How to Specify a 100t Gantry Crane for a High-Speed Rail Project

In order to facilitate the precise selection of projects and the customization of docking manufacturers, a verification list of special selection parameters for high-speed rail projects is organized to cover all core design indicators.：

Key Parameters	Required Project Information
Rated Lifting Capacity	Standard 100 t; dual-hoist synchronized configuration available per project requirements
Girder Parameters	Max. girder self-weight, length, cross-section dimensions, and center of gravity
Crane Span	Rail center-to-center distance, tailored to precast yard layout and working range
Lifting Height	Max. hook height to satisfy clearance for stacking and girder erection
Working Duty Class	Heavy-duty class A5–A7 selected according to operating frequency
Travel Speed	Empty/loaded travel speed matched to on-site positioning accuracy requirements
Wheel Set Configuration	Number of wheels, wheelbase, and wheel-set arrangement
Maximum Wheel Load	Project-specific engineered dynamic maximum wheel load value
Rail Specification	Existing rail model or custom rail design parameters
Foundation Conditions	Site bearing capacity and concrete foundation design parameters
Power Supply	Site voltage and frequency; compatible with diesel generator backup system
Operating Environment	Outdoor wind speed, temperature, dust, and other working conditions

Conclusion

The 100-ton railway prefabricated beam gantry crane is a heavy-duty special equipment suitable for high-speed rail construction.In addition to the rated lifting weight, the selection also needs to focus on self-weight, dynamic load, wind load, beam weight, wheel configuration and maximum wheel pressure, and match the track and basic plan based on the calculation results.

In the actual design, the gantry structure, wheel set and safety control system should be configured in a targeted manner in accordance with the construction site, operation mode, operation frequency and safety requirements to ensure that the equipment and the track foundation are coordinated and matched.

Henan Mine Crane can provide customized design and manufacturing solutions for 100-ton gantry cranes based on the load parameters, site conditions and construction requirements of railway prefabricated beam projects, and perform engineering calculations for key parameters such as maximum wheel pressure to provide matching lifting equipment support for high-speed rail prefabricated beam hoisting construction.

In heavy industry scenarios such as heavy engineering, metallurgical processing, and ship construction, there are widespread requirements for high-intensity operations such as 100-ton bulk transshipment, equipment assembly, and component hoisting. Traditional small and medium-tonnage cranes have insufficient carrying capacity and adaptability to working conditions, making it difficult to adapt to strict production standards.Relying on a high-strength double-main beam structure, a stable electronic control system and multiple safety protection design, the 100t bridge crane has strong carrying capacity and high operating stability. It can be adapted to large-span, high-frequency, and heavy-duty workshop operation scenarios. It is the core heavy-duty hoisting solution for modern heavy-duty engineering workshops.

Where Are 100t Overhead Cranes Used?

Heavy engineering plants

The heavy-duty engineering workshop is the core application scenario of Henan Mine Crane manufactured100t bridge crane.Such workshops mainly undertake the processing, assembly, transportation and maintenance of large-scale construction machinery, heavy-industry equipment, and large-scale structural parts. The daily hoisting load generally reaches the level of tens of tons to hundreds of tons, and the load-bearing capacity, smooth operation and operating span of the crane are extremely demanding.The 100t bridge crane can cover the entire working space of the workshop, accurately complete the precise alignment, vertical lifting and horizontal transfer of large racks, heavy-duty bases, and complete tooling molds, and effectively solve the pain points of difficult lifting, low efficiency, and high safety risks in heavy industry workshops.At the same time, the equipment can be adapted to the normal continuous operation mode of the workshop, greatly improving the production coherence of the heavy engineering assembly line, and it is the standard equipment for the standardized production of heavy industry workshops.

Steel and metal processing

The steel and metal processing industry has harsh working conditions, concentrated loads, and high operating frequency. It is the core application field of large-tonnage cranes.In the processes of steel smelting, rolling, profile processing, and non-ferrous metal forging, heavy-duty materials such as steel ingots, thick steel plates, large steel coils, and smelting equipment components need to be hoisted frequently. The weight of a single group of materials is generally close to or reaches the level of 100 tons.With its super heavy-duty performance, the 100t bridge crane can stably complete heavy-duty hoisting operations under high temperature and dust conditions, and is suitable for the full-process operation needs of smelting workshops, hot-rolling workshops, and finished product storage workshops.The equipment adopts customized accessories with wear-resistant and high temperature resistance, which can withstand the harsh operating environment of the metallurgical industry, reduce equipment losses, and ensure the uninterrupted and stable operation of the steel processing production line for 24 hours.

Shipbuilding facilities

Shipbuilding belongs to the ultra-large component assembly industry. The core components such as hull segments, large marine engines, propellers, deck equipment, and cabin structural parts are heavy in weight, large in size, and high in hoisting accuracy. It relies on large-tonnage bridge cranes to complete the core process operations.In the ship’s workshop, the 100t bridge crane can realize the precise hoisting, alignment and splicing of the segments of the oversized hull, as well as the installation, maintenance and disassembly of large-scale marine equipment.Compared with mobile lifting equipment, the fixed track operation mode of bridge cranes has stronger operating stability and wider coverage, which can effectively avoid the shaking and offset problems of large-scale component hoisting, and greatly improve the accuracy of ship assembly and construction safety. It is the core lifting equipment of modern ship manufacturing buildings.

Heavy equipment manufacturing

In the manufacturing fields of heavy equipment such as construction machinery, power generation equipment, mining machinery, and rail transit equipment, the core components and the assembly links of the whole machine require the support of large-tonnage lifting equipment.Large excavator fuselage, wind power tower accessories, hydroelectric generator sets, mining heavy equipment and other products, a single piece can weigh up to 100 tons, the assembly process requires accurate and stable heavy-duty hoisting cooperation.The 100t bridge crane can be perfectly adapted to such scenarios, completing the whole process of heavy-duty parts transfer, assembly of the whole machine, equipment pressure test, and finished product out of the warehouse.The equipment can match the beat of the production line, adapt to the production needs of high frequency, high precision and large loads, effectively improve the production efficiency and assembly accuracy of heavy equipment, and help heavy equipment enterprises to mass produce on a large scale.

Key Specifications of a 100t Overhead Crane

Lifting height and span

Lifting height and span are the core parameters that determine the adaptability of the 100t bridge crane site, and directly determine the operating coverage of the equipment.Under industry standard working conditions, the conventional lifting height of 100t bridge cranes covers mainstream specifications such as 12m, 16m, 18m, and 20m, which can meet the vertical hoisting needs of most heavy-duty workshops. At the same time, non-standard customization can be made according to the height of the plant floor, the height of the equipment stacking, and the limit height of the workpiece hoisting.The span of the equipment is extremely adaptable, with a standard span range of 10.5m to 31.5m, which can be adapted to heavy industry workshops, metallurgical workshops, and ship workshops of different widths.The combination of reasonable span and lifting height can maximize the use of workshop space and avoid blind spots in operations. At the same time, it ensures that heavy workpieces are lifted vertically and move horizontally without blocking, and it is suitable for all kinds of large-scale hoisting scenarios.

Hoist and travel speeds

The three speed parameters of the lifting speed of the lifting trolley, the operating speed of the cart, and the operating speed of the trolley directly affect the operating efficiency and hoisting stability of the equipment.The 100t large-tonnage crane is different from the small and medium-tonnage equipment. It adopts a low-speed stable crane and a speed design with adjustable speed, taking into account efficiency and safety.In the no-load state, the speed can be appropriately accelerated to improve the efficiency of material transfer.Automatic low-speed operation under heavy-duty 100-ton working conditions, effectively suppressing the shaking and offset of heavy objects, and ensuring the accuracy of hoisting.Under the standard configuration, the lifting speed is adapted to the requirements of heavy-duty and low-speed, and the walking speed of large and small vehicles is uniform and stable. With a frequency conversion speed control system, it can achieve no impact on start and stop and no shaking in operation. It is perfectly adapted to the operation requirements of precise alignment and precision assembly of heavy-duty components, and eliminates safety hazards caused by high-speed heavy loads.

Working class

The working level is the core index that measures the adaptability of Henan Mine Crane manufactured100t bridge crane to working conditions, which represents the load status of the equipment and the operating frequency adaptation level.The mainstream 100t bridge crane in the industry has working levels of A5 and A6, which are suitable for industrial operation scenarios of different intensities.Among them, the A5 level is suitable for medium-frequency and intermittent operation scenarios, and is suitable for conventional heavy industry workshops, equipment maintenance, and low-frequency material transfer conditions.The A6 level is a heavy-duty work level, which is suitable for harsh scenarios of steel metallurgy, batch heavy industry production, and high-frequency continuous operations. It can withstand heavy-duty and high-frequency start-stop operations for a long time, and has higher structural fatigue strength and stronger durability.Customers can choose the corresponding work level according to the frequency and load time of their own production line to avoid equipment overload loss or performance waste.

Duty cycle

The working cycle parameters determine the continuous operating capacity and service life of the 100t bridge crane, and the core reflects the load continuity rate and tolerance performance of the equipment.Large-tonnage lifting equipment has extremely high requirements for the working cycle. The 100t bridge crane adopts an optimized motor and electronic control system, and the standard load continuity rate can reach 25%~40%, which can meet the needs of normalized continuous operation in industrial workshops.In high-frequency operation scenarios such as steel processing and batch equipment manufacturing, the equipment can achieve long-term, uninterrupted heavy-duty operation without motor overheating, system overload, structural fatigue and other problems.Stable work cycle performance can be effectively adapted to the two-shift and three-shift production modes of heavy industry enterprises, greatly reducing the probability of equipment downtime and ensuring the continuous and stable operation of the production line.

How to Choose the Right 100t Overhead Crane

Girder configuration

The main beam structure is the core load-bearing structure of a 100t bridge crane, which directly determines the bearing capacity, stability and service life of the equipment. When selecting the type, priority should be given to matching the requirements of the working conditions.Under heavy-duty conditions with a large tonnage of 100 tons, the double main beam structure is the preferred configuration. Compared with the single main beam, the double main beam has more uniform force, greater structural stiffness, and stronger deformation resistance. It can withstand heavy loads of 100 tons for a long time, effectively avoiding problems such as bending and structural fatigue of the main beam.The double-main beam structure is equipped with high-strength alloy steel, and the overall load-bearing performance and impact resistance are greatly improved, and it is suitable for high-frequency, heavy-duty and long-span operation scenarios.For some lightweight and intermittent operation scenarios, the cross-section specifications of the main beam can be optimized according to the actual load requirements, and the equipment cost can be controlled under the premise of ensuring safety, so as to achieve a balance between performance and cost performance.

Top-running vs. under-running

Overhead and suspended installation methods are the key points in the selection of 100t bridge cranes, and the core is adapted to different plant structures and space conditions.The overhead crane track is installed on the top of the column leg or roof beam of the plant. It has a strong load-bearing capacity and high operating stability. It is the mainstream choice for 100t large-tonnage equipment. It is suitable for standard heavy industry plants, large-span, and high-load operation scenarios. It is convenient for late maintenance and has a longer service life of the equipment.The suspended crane track is suspended under the roof of the plant, which takes up less space as a whole. It is suitable for low-rise, old factories, and space-restricted operation scenarios, but the upper load-bearing limit and operating stability are slightly lower than that of the overhead type.When selecting the type, it is necessary to combine the load-bearing structure, floor height conditions, and operating load of the plant, and give priority to the appropriate installation form to eliminate structural safety hazards.

Workshop space

The spatial parameters of the plant are the basic prerequisites for crane selection, which directly determine the span, lifting height, overall size and installation plan of the equipment.Before selecting the type, it is necessary to accurately measure the core data such as the headroom height of the plant, the spacing of the track columns, the effective operating width of the plant, and the layout of the ground equipment.For the standard new heavy industry plant, it can directly match the standard span and standard lifting height of the 100t bridge crane, which has strong adaptability, low installation cost and fast delivery speed.For special scenarios where old factories, non-standard factories, and equipment are densely laid out, it is necessary to customize and optimize the dimensions of the equipment, track installation location, and end size in combination with on-site space constraints, so as to avoid interference between the equipment and the plant structure and on-site equipment, maximize the use of limited workshop space, and ensure that there are no blind spots in the operation.

Load requirements

Load requirements are the core basis for the selection of Henan Mine Crane manufactured cranes. It is strictly forbidden to blindly select the crane based on the maximum lifting weight.When selecting the type, it is necessary to comprehensively consider the four core elements of maximum rated load, conventional operating load, hoisting workpiece size, and hoisting working condition complexity.The conventional configuration of the 100t bridge crane is 100 tons of main hook, which can be used with 10 tons and 20 tons of auxiliary hooks to take into account the heavy-duty lifting of large pieces and the transfer of light-load small pieces to improve operational flexibility.At the same time, it is necessary to reserve 10%~20% of the safety load margin to avoid long-term full load and overload operation of the equipment, and effectively avoid safety issues such as deformation of the main beam, motor overload, and structural fatigue.For special working conditions such as high temperature, outdoor, and high dust, additional load loss needs to be considered, and the corresponding heavy-duty protection configuration needs to be adapted to ensure the long-term stable carrying of equipment.

100t Overhead Crane Safety and Performance

Overload protection

Overload protection is the core safety line of defense of 100t bridge cranes, which prevents major safety accidents such as equipment damage, collapse, and heavy objects falling due to overload operations.All Henan Mine Crane manufactured100t bridge cranes come standard with an intelligent overload protection system and are equipped with high-precision weight sensors, which can accurately monitor the lifting load in real time.When the hoisting weight is close to the rated load threshold, the system automatically issues a sound and light warning to remind the operator to standardize the operation.When the load exceeds the rated load of 100 tons, the system immediately automatically cuts off the lifting power supply, locks the lifting action, and prohibits the equipment from continuing operation.At the same time, the system has a data recording function, which can retain load operation data throughout the process to facilitate later traceability and investigation, eliminate overloading and illegal operations from the root cause, and ensure the safety of equipment and on-site construction.

Braking systems

Large-tonnage heavy-duty hoisting requires extremely high braking performance, and a reliable braking system is the key to smooth start and stop of equipment, precise positioning, and anti-slip vehicles.The 100t bridge crane adopts a multi-brake protection design, and the lifting mechanism, cart operating mechanism, and trolley operating mechanism are all equipped with independent braking devices, and the dual protection modes of electromagnetic braking and mechanical braking are adopted.During normal operation, electromagnetic braking achieves smooth deceleration, start and stop, no impact and no shaking.In emergency working conditions or power failure, the mechanical brake locks instantly to prevent heavy objects from slipping, equipment from slipping, and position offset.The braking system has been strengthened and optimized for heavy loads, with strong wear resistance, fast response speed and low failure rate. It can be adapted to high-frequency and large-load start-stop operations to ensure the stability and safety of hoisting for a long time.

Load control

The ability of precise control of heavy loads directly determines the accuracy and construction efficiency of hoisting operations, and is the core guarantee for the assembly of heavy equipment and the hoisting of precision components.The 100t bridge crane is equipped with a frequency conversion intelligent load control system, which can realize stepless speed regulation and smooth start and stop, completely solving the pain points of heavy-duty start and stop shaking and offset of traditional cranes.The system can automatically match the operating speed according to the load weight, stable lifting of heavy loads at low speeds, and efficient transportation of light loads. It is suitable for complex scenarios such as precise alignment of large components, precise installation of equipment, and operation in small spaces.At the same time, it is equipped with anti-swing control function, which can effectively suppress the swing amplitude of heavy objects, greatly reduce the difficulty of hoisting and alignment, improve operating accuracy, reduce workpiece bumps, installation deviations and other problems, and adapt to the needs of high-end heavy industry precision operations.

Inspection and maintenance

Standardized inspection and maintenance are the core keys to extend the service life of Henan Mine Crane manufactured100t bridge crane, avoid the risk of failure, and ensure long-term stable operation.Standardized processes need to be established for daily operation and maintenance: daily inspection of the brake system, limit device, early warning equipment, and wire rope wear status, and timely troubleshooting of simple faults.Weekly inspection of the main beam structure, track flatness, motor operating status, and sensitivity of the electronic control system.Lubricate, overhaul and replace vulnerable parts such as reducers, bearings, brake pads, etc. every month.A comprehensive inspection of the whole machine is carried out every year, including special work such as structural flaw detection, load verification, and system debugging.Regular maintenance can effectively avoid structural fatigue, component aging, system failure and other problems, greatly reduce the equipment failure rate, extend the service life of the equipment, and ensure the long-term safe and efficient operation of the production line.

Why Choose a Customized 100t Overhead Crane?

Workshop-specific design

It is difficult for standardized cranes to adapt to all non-standard factories and special working conditions, while customized 100t bridge cranes can achieve one-to-one workshop exclusive adaptation.There are obvious differences in the plant structure, column spacing, equipment layout, operating procedures, and types of hoisting workpieces of different enterprises. Standardized equipment is prone to problems such as poor space adaptation, many blind spots in operation, and redundant or insufficient functions.Customized services can optimize the span, dimensions, operating range, and functional configuration of the equipment in a targeted manner based on the measured data, production process flow, and operating habits of the customer’s workshop, so that the equipment can fully fit the working conditions of the workshop and can be perfectly adapted without retrofitting the workshop, maximizing the workshop space utilization rate and operating efficiency, and adapting to all kinds of new, old, and non-standard heavy industry workshops.

Limited headroom solutions

A large number of old heavy industry factories, low-rise workshops, and factories with dense top pipelines have problems such as insufficient floor height and limited headroom, and standardized large-tonnage cranes cannot be installed and used.Henan Mine Crane manufactured customized 100t bridge crane can provide exclusive low-headroom solutions. By optimizing the trolley structure, compressing the headspace of the equipment, and adjusting the layout of the lifting mechanism, the overall height of the equipment can be greatly reduced without reducing the rated load and losing operating performance, and it can be adapted to the installation conditions of low-rise factories.The solution does not need to change the main structure of the plant and does not need to dismantle the top pipeline equipment. It can realize 100-ton heavy-duty hoisting operations, perfectly solving the problem of large-tonnage hoisting in restricted-floor workshops, and providing low-cost and high-efficiency solutions for the upgrading and upgrading of old workshops and the improvement of production capacity.

Customized lifting parameters

The hoisting requirements of different industries and different workpieces vary greatly, and the customized parameter configuration can accurately match the individual operation requirements.Customers can flexibly customize core parameters such as lifting height, equipment span, operating speed, working level, and load ratio according to their own working conditions. At the same time, they can match exclusive functions such as double hook linkage, synchronous hoisting, intelligent remote control, and precise positioning as needed.According to the high-temperature working conditions of the steel industry, the high-temperature protection configuration can be customized.For precision hoisting of shipbuilding, the anti-swing and precise alignment system can be optimized.For high-frequency continuous operation, the heavy-duty working level and enhanced motor configuration can be upgraded.Personalized parameter customization, completely avoid the problem of waste of standardized equipment performance or insufficient adaptation of working conditions, and achieve accurate matching of equipment performance and production requirements.

Long-term operating efficiency

The core advantage of customized 100t bridge cranes is that they can maximize the long-term operating efficiency of enterprises and reduce comprehensive production costs.The exclusive customized equipment fully fits the operation beat of the production line and adapts to all hoisting scenarios in the workshop, effectively reducing the blind spots of the operation, reducing the time-consuming hoisting, and improving the efficiency of production flow.At the same time, targeted operating condition configuration can greatly reduce the probability of no-load operation, overload loss, failure and shutdown of equipment, and reduce late maintenance costs and equipment losses.With intelligent electronic control, energy-saving motors, and wear-resistant reinforced accessories, the equipment has lower energy consumption, stronger stability, and longer service life for long-term operation.From the perspective of long-term operation, customized equipment can greatly increase production capacity, reduce operation and maintenance costs, avoid downtime losses, and create higher long-term economic benefits for enterprises.

Henan Mine Crane Factory Custom

As the core lifting equipment in the field of heavy engineering, 100t bridge cranes cover the needs of heavy-duty operations in all scenarios such as iron and steel metallurgy, shipbuilding, heavy industry equipment, and large-scale engineering workshops.Scientific parameter selection, standardized safe operation and maintenance, and exclusive customized design are the keys to ensure the efficient, stable and safe operation of equipment.As a professional large-scale crane manufacturer, Henan Mine Crane Factory can provide a complete set of standardized and customized 100t bridge crane solutions, from site survey, program design, equipment production, installation and commissioning to after-sales maintenance, to provide one-stop full-process services, accurately adapt to various heavy-duty and heavy-duty working conditions, and help enterprises produce efficiently and safely.

A single high-wind incident can overturn a fully assembled 100-ton outdoor gantry crane  crushing operator cabins, deforming runway rails, and triggering costly shutdown investigations. Yet this category of equipment continues to be specified, procured, and installed without adequate attention to three engineering requirements that are directly linked to outdoor catastrophic failure: wind load calculation, rail gauge tolerances, and anti-derailment device selection.

This guide cuts through the complexity. Whether you are an engineer specifying a 100-ton rail-mounted gantry crane for a precast bridge yard, a port terminal, or a heavy-industrial storage facility, you will find a precise, standards-based breakdown of each requirement, how they interact, and what compliance looks like in practice.

What Makes a 100-Ton Outdoor Gantry Crane Different From Lighter Configurations

Before addressing wind and rail specifics, it is worth understanding why 100-ton outdoor machines occupy a distinct engineering category.

At this capacity, the crane almost always features a double main girder structure. This provides the bending stiffness and torsional resistance needed when wind forces create asymmetric lateral loads across a span that can run from 15 m to 35 m or more. Double girder designs also allow trolley systems, lifting winches, and operator cabins to be mounted with adequate clearance for safe operation at height.

The crane’s large surface area  main girders, end trucks, legs, and any operator house or electrical enclosures  creates a substantial wind-facing profile. For a 100-ton machine with a 25 m span and 15 m lift height, the total wind-exposed frontal area can exceed 200 m². At a working wind pressure of 250 Pa (corresponding to approximately 20 m/s), that translates to a lateral wind force on the order of 50 kN on the structure alone  before any suspended load is factored in.

Common applications for 100-ton outdoor gantry cranes include:

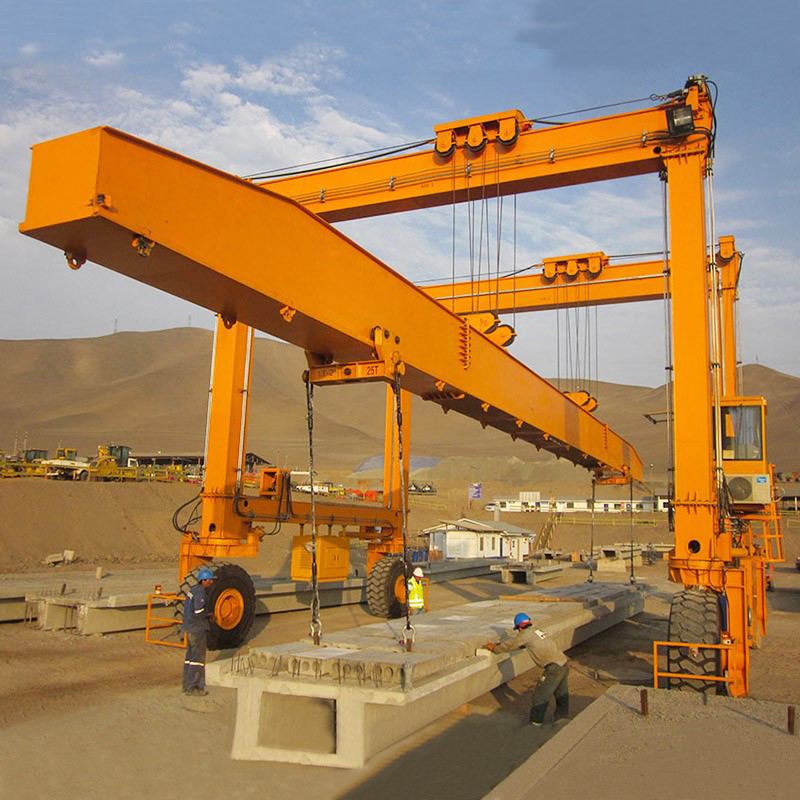

• Precast bridge and beam yards (lifting T-beams, box girders, railway precast sections)
• Shipyard hull section assembly

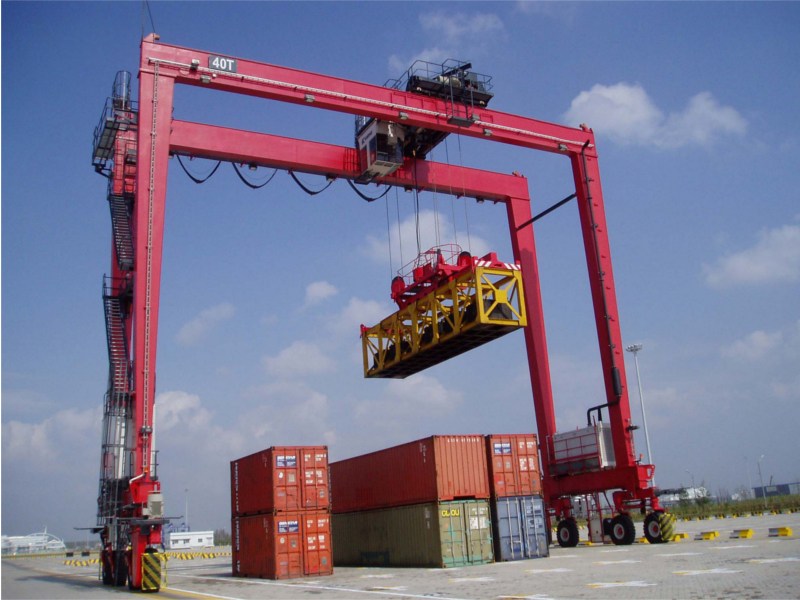

• Port bulk cargo and container handling

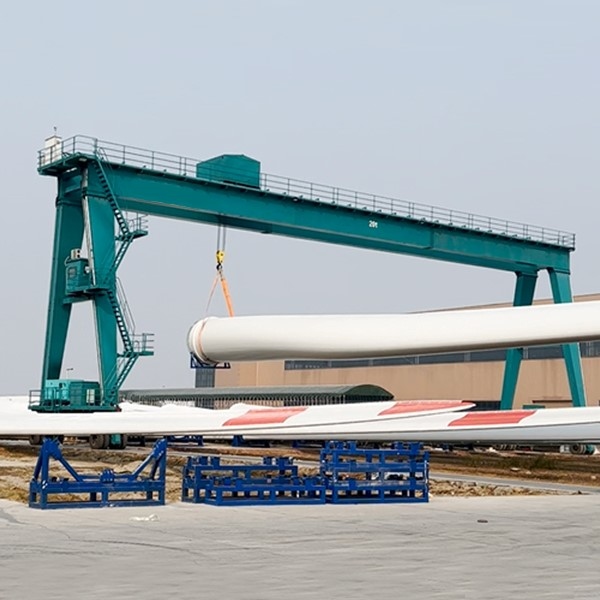

• Wind turbine component staging and assembly
• Heavy industrial raw materials storage yards

Each application brings its own site wind exposure class, local building code obligations, and operational duty cycle  all of which feed directly into the wind load and rail requirements discussed below.

Understanding Wind Load Requirements for 100-Ton Gantry Cranes

The Two-State Wind Design Framework

Gantry cranes do not experience wind in a single steady state. Engineering standards universally require design for two distinct conditions:

1. Working state wind load: the maximum wind speed at which lifting operations are permitted to continue. For most outdoor gantry cranes, this threshold is20 m/s (approximately Beaufort Force 8). The structural calculation must confirm that the crane remains stable and controllable at this speed while carrying the rated 100-ton load.
2. Non-working state (storm) wind load: the maximum wind speed the parked, secured crane must withstand without sliding, overturning, or structural failure. Depending on geographic location and the applicable standard, this figure ranges from 40 m/s to over 60 m/s. Port crane standards using a 50-year return period can push this threshold even higher in typhoon-prone coastal zones.

How Wind Load Is Calculated

The basic wind load acting on a crane structure is expressed as:

F = C × A × q

Where:

• F= wind force (N or kN)
• C= shape coefficient (drag factor; typically 1.2–2.0 depending on whether the structural section is solid plate, truss, or circular pipe)
• A= windward projected area of the structural element (m²)
• q= dynamic wind pressure (Pa), derived from the design wind speed for the site

For a box-girder main beam on a 100-ton crane, the shape coefficient C is typically taken as 1.3–1.4. Truss girder configurations reduce the effective wind area substantially, which is why truss designs can offer superior wind resistance though at the cost of increased fabrication complexity.

The total wind load on a complete 100-ton gantry crane must account separately for:

• Main girder(s)
• End trucks and traveling gear
• Legs and lower crossbeams
• Operator cabin and electrical enclosures
• Suspended load and hook block (in working state calculations)

North American Compliance Standards

OSHA 29 CFR 1910.179 sets binding requirements for outdoor gantry crane wind protection in U.S. workplaces. The regulation explicitly requires that rail-mounted gantry cranes located outside enclosed buildings be fitted with windproof rail clamps capable of activating automatically at preset wind speeds to prevent track instability caused by high winds. It also mandates a wind velocity indicator mounted on the crane runway structure, providing both visible and audible alarms to the operator at a predetermined threshold.

ASME B30.2-2022 the primary U.S. technical standard for overhead and gantry cranes specifies mandatory performance, inspection, and configuration requirements for wind protection devices, including interlocking rules between windproof equipment and the crane’s emergency stop system.

Washington State’s WAC 296-155-54200 is illustrative of how OSHA and ASME requirements translate into enforceable state code: it requires a wind velocity indicator for every outdoor overhead and gantry crane, mounted on the runway structure, giving visible and audible alarm at a predetermined wind velocity.

European and Chinese Standards

Under European FEM and EN 13001 standards, wind load classification runs from W0 to W3 based on geographic exposure. Most open outdoor installations fall in class W2 or W3. The EN framework requires that structural calculations explicitly demonstrate resistance to characteristic wind pressure for the 50-year return wind event.

China’s GB/T 3811 (crane design standard) and the port-specific JT/T 90-2020 define wind load calculation methodology for Chinese installations, with the latter requiring design based on the 50-year return maximum wind speed and prescribing typhoon preparedness measures including returning to anchored positions, engaging anti-slip brakes, tensioning windproof cables, and applying rail clamps and wedges.

Rail Gauge Requirements: Sizing the Running System for 100-Ton Loads

Defining Rail Gauge in Gantry Crane Context

Rail gauge for a gantry crane refers to the center-to-center horizontal distance between the two runway rails on which the crane’s end trucks travel. This measurement is distinct from  but related to  the crane’s structural span (the distance between the centerlines of the supporting legs). For most designs, rail gauge equals span at the base rail level.

Getting rail gauge right is not optional. An undersized gauge relative to the crane’s height, load, and operating wind exposure creates an inherently unstable machine that is prone to overturning and rocking under lateral loads. An oversized gauge wastes civil foundation resources and increases runway construction cost.

Typical Rail Gauge Ranges for 100-Ton Outdoor Cranes

For 100-ton rail-mounted gantry cranes, spans and corresponding rail gauges typically fall in the following ranges:

Application	Typical Span / Rail Gauge	Notes
Precast beam yard	15–25 m	Lifting height 8–15 m
Port bulk handling	18–35 m	Often with cantilevered outreach
Shipyard assembly	25–40 m	Stiff-leg + flex-leg beyond 30 m
Industrial storage	15–20 m	Compact footprint preferred

Design rule: For spans under 30 m, both legs are typically rigid (stiff legs). When span exceeds 30 m, one leg is designed as a flexible leg  allowing thermal expansion and deflection without introducing secondary stresses into the main frame.

Rail Profile and Fastening Requirements

The rail must be matched to the wheel load imposed by a 100-ton crane. At full rated load with trolley positioned at mid-span, the maximum wheel load on a double-girder 100-ton gantry can reach 250–400 kN per wheel depending on span and configuration. This typically dictates:

• Rail section:QU70, QU80, or QU100 (Chinese standard) / CR100 or heavier (North American ASCE rail profiles)
• Fastening:Spring clamp or bolted fishplate systems providing both vertical load transfer and lateral restraint
• Gauge tolerance:Typically ±3 mm per 10 m of rail length under CMAA and FEM guidelines; tighter tolerances for high-speed or precision cranes

Rail straightness and gauge consistency over the full runway length are critical to preventing wheel flange wear and  more importantly  to ensuring that anti-derailment guide rollers and rail clamp systems engage correctly when deployed.

Foundation and Rail Beam Design

A 100-ton outdoor gantry transmits very high concentrated loads into the runway rail beams and their supporting foundations. Civil engineers must account for:

• Static wheel loadfrom dead weight plus rated load
• Dynamic amplification factor(typically 1.1–1.3 for gantry bridge travel)
• Lateral wind forcetransferred through the traveling gear into the rail and foundation
• Braking forcesfrom traveling mechanism deceleration
• Settlement differentialbetween the two runway foundations, which can create gauge variation over time

Regular rail surveying  gauge measurement, rail head wear inspection, and fastener torque checks  is part of the required maintenance program under both ASME B30.2 and OSHA 1910.179.

Anti-Derailment Requirements: Devices, Types, and Compliance

Why Derailment Is the Primary Outdoor Wind Risk

Every documented case of an outdoor gantry crane being overturned by wind involved a sliding phase before the structure tipped. Wind forces generate a lateral load on the crane’s traveling gear that, if it overcomes wheel-rail friction, causes the crane to drift along the rails. Once the crane reaches a buffer stop or encounters a misaligned rail section, derailment and potentially overturning follows.

This is why anti-derailment and anti-sliding devices are not accessories. They are primary structural safety systems.

The Three Device Categories

Rail Clamps (Track Clamps)

Rail clamps grip the sides of the rail head, preventing the crane from sliding longitudinally. They are the most widely used and most critically important wind protection device for outdoor gantry cranes. Three types are in common use:

• Manual caliper rail clamp: Operator-actuated via screw mechanism. Low cost, suitable for small cranes or as a secondary device. Requires operator action and is inadequate as the sole protection for a 100-ton machine.
• Electric rail clamp:Motor-actuated, typically integrated with the crane’s wind alarm system so that when wind speed exceeds the threshold, the clamp activates automatically. Suitable for medium-tonnage outdoor cranes.
• Electro-hydraulic (spring-set) rail clamp:The preferred solution for 100-ton and larger outdoor gantry cranes. These clamps are spring-applied and hydraulically released: they engage automatically on power failure (fail-safe), and provide the highest clamping force. They are the standard specification for port cranes in typhoon-prone areas.

Rail clamps should be mounted on the crane’s end truck chassis, positioned to engage the rail head with equal force from both sides. OSHA requires that windproof rail clamps on outdoor gantry cranes activate automatically at preset wind velocities  manual-only systems do not satisfy this requirement for large cranes.

Anchor Devices

Anchor devices secure the crane to fixed ground points along the runway, preventing movement under storm-level winds that exceed the capacity of rail clamps alone. A typical anchor system for a 100-ton outdoor gantry consists of:

• Ground-embedded anchor bolts or sockets installed at fixed intervals (commonly every 10–20 m) along the runway
• Mating latches or pin connectors on the crane’s lower cross-beam or leg base
• A storm parking position where all four anchor points can be simultaneously engaged

The non-working state design requirement  that anchor devices alone must be able to bear the full storm wind load  is a key engineering constraint. Where anchor devices are absent, the anti-wind braking system must be capable of independently resisting the full non-working wind load, which typically requires oversized hydraulic clamping systems.

Iron Shoes and Wedge Devices

Iron wedges (also called iron shoes) are inserted between the wheel flange and the rail to provide a mechanical block against rolling under storm conditions. They are typically used as a tertiary or backup device, deployed manually by ground personnel before an approaching storm, in conjunction with rail clamps and anchors.

Some cranes incorporate track-pressing devices  positively engaging plates that press down onto the top of the rail rather than gripping the sides  which are less sensitive to rail lateral-surface condition and are common in environments where rail flanges may be contaminated by material buildup.

Anti-Derailment Guide Rollers

Separate from wind-protection clamps, all outdoor rail-mounted gantry cranes should be equipped with horizontal guide rollers that prevent the traveling wheels from climbing the rail head under lateral force. These rollers are mounted on the end truck and maintain a nominal clearance of 5–10 mm from the rail side face in normal operation. When a lateral force (from wind, off-center loading, or rail misalignment) pushes the crane sideways, the guide rollers engage the rail and prevent wheel climb.

Crane end trucks with sweeps  devices that extend below the top of the rail in front of the truck wheels  are also required under ASME B30.2 to clear debris from the rail path that could cause derailment.

Anemometer and Wind Speed Alarm Requirements

No anti-derailment system functions correctly if the operator cannot be warned in time. Outdoor 100-ton gantry crane installations must include:

• A calibrated anemometermounted on the crane runway structure at crane-top elevation (not ground level, where wind speed is systematically underestimated)
• Bothvisible and audible alarm triggered at the pre-set working wind speed threshold
• Alarm signals that are discernible from the operator’s cab under operating noise conditions
• A defined operational protocol: at working wind alarm, suspend load handling; at storm wind threshold, engage all rail clamps, park at anchor position, engage anchor devices, and evacuate

Common Failure Modes and How Requirements Address Them

Inadequate Rail Clamp Clamping Force

A frequently observed deficiency in accident investigations is that rail clamps were installed but generated insufficient gripping force  either because the clamp model was undersized for the crane weight, or because maintenance was inadequate and the clamping mechanism had corroded or worn. The engineering rule: the total combined clamping force of all rail clamps must exceed the calculated non-working wind force with an appropriate safety factor, typically 1.5 or higher.

Gauge Drift Over Time

Outdoor runways are subject to foundation settlement, frost heave, and thermal cycling. Gauge drift of even 10–15 mm can cause guide rollers to jam or fail to engage correctly. A formal rail inspection and gauge survey program,at minimum annually, more frequently in severe climates  is part of compliance under OSHA 1910.179 and ASME B30.2 maintenance provisions.

Operator Failure to Engage Devices

Multiple incidents have occurred where storm rail clamps and anchor devices were installed but not engaged before a high-wind event. This is a procedural failure, but one that engineering controls can mitigate: automatic activation of electro-hydraulic clamps on wind alarm removes dependence on operator action during a potentially chaotic weather emergency.

What to Specify When Buying a 100-Ton Outdoor Gantry Crane

Use this checklist to ensure wind load, rail gauge, and anti-derailment requirements are properly addressed in your crane specification and supplier technical documents:

• Wind load design basis:Confirm working wind speed (m/s) and non-working storm wind speed (m/s) specified, with design standard cited (ASME, FEM, GB/T, or EN)
• Wind load calculation report: Request supplier’s structural calculation showing working and non-working wind loads by component, with safety factors
• Rail clamp type and clamping force: Specify electro-hydraulic spring-set clamps for 100-ton outdoor installations; require clamping force documentation
• Automatic wind alarm interlock:Confirm rail clamp activation is interlocked with crane wind speed alarm (required by OSHA for outdoor cranes)
• Anchor device quantity and capacity:Confirm four-point anchoring at storm parking position, with each anchor device rated for its share of non-working wind load
• Rail gauge and tolerance:Confirm rail gauge matches site civil design; request gauge tolerance specification and acceptance criteria
• Rail section specification:Confirm rail profile (QU80, QU100, CR100, or equivalent) matched to maximum wheel load at rated capacity
• Anemometer specification:Confirm anemometer type, alarm setpoints, and alarm modalities (visible + audible)
• Guide roller clearance:Confirm horizontal guide roller or anti-derailment roller clearance specification (5–10 mm from rail face)
• Buffer and end stop design:Confirm travel limit switches, buffers, and rail end stops are rated to prevent derailment at maximum travel speed
• Applicable standards compliance:Request written confirmation of compliance with OSHA 29 CFR 1910.179 and ASME B30.2-2022 (or applicable local equivalents)
• Maintenance documentation:Confirm operation and maintenance manual includes rail gauge inspection intervals, clamp inspection procedure, and storm procedure

Conclusion

A 100-ton outdoor gantry crane is an asset that can deliver decades of reliable heavy-lift service  or become a liability in the first major storm if wind load engineering, rail gauge precision, and anti-derailment systems are not treated as core design elements rather than afterthoughts.

The framework is clear: design structurally for both working and non-working wind states, match rail gauge and rail profile to the actual wheel loads your machine generates, specify electro-hydraulic spring-set rail clamps with automatic wind alarm interlock, install anchor devices at storm parking positions, and establish a maintenance program that keeps all of these systems in measurable, documented compliance with OSHA 1910.179 and ASME B30.2-2022.

Procurement teams should demand wind load calculation reports, clamp force documentation, and standard compliance statements as part of the technical package  not as an optional supplement. A supplier that cannot produce these documents is not a supplier whose crane you want operating in an open yard at maximum capacity.

Henan Mine Crane Crane boasts a professional team and extensive experience, with engineers well-versed in site-specific wind conditions and applicable standards. We dedicate ourselves to rigorous preliminary engineering design to precisely meet our customers’ needs.

The demand for outdoor heavy-duty handling in ports, shipyards and heavy industries is constantly growing. The 100-ton rubber-tryed gantry crane (RTG) gets rid of track restrictions and can move flexibly, adapting to the lifting of various large-scale components. The rated load of 100 tons is suitable for most outdoor heavy-duty working conditions. Compared with fixed gantry cranes, there is no need for infrastructure bases, and they can freely switch operating points, which significantly improves the material turnover efficiency of the yard.

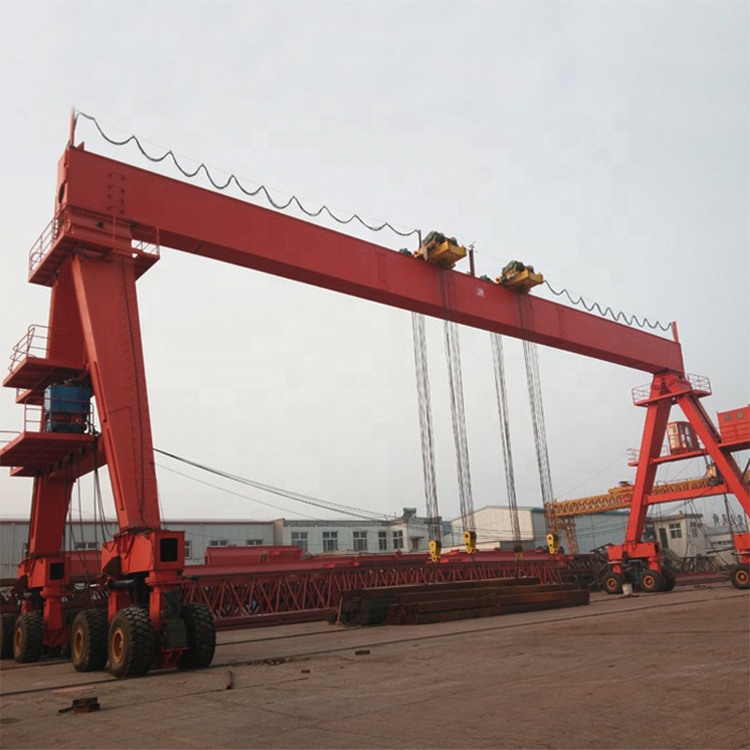

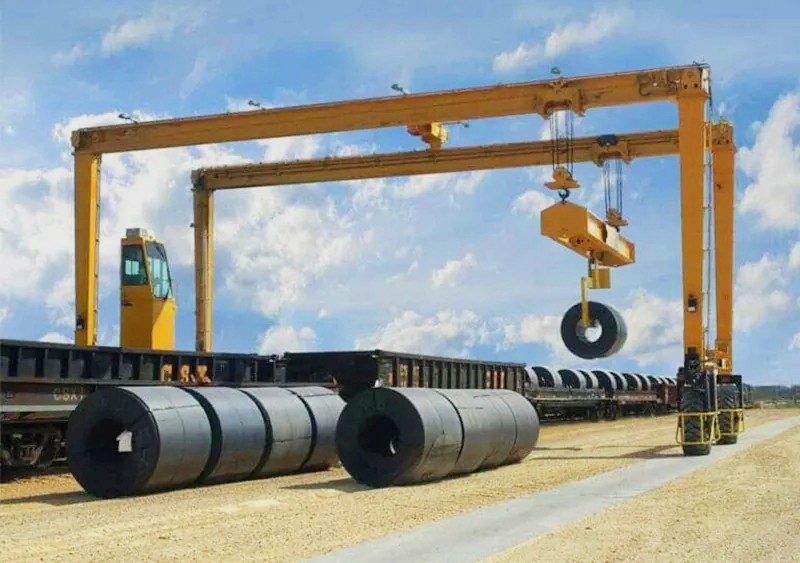

What Is a 100-Ton Rubber-Tyred Gantry Crane?

The rubber-tyred gantry crane (RTG) uses rubber tires to walk without tracks, and is suitable for heavy-duty loading and unloading on outdoor hardened sites. The 100-ton RTG has a rated lifting capacity of 100 tons, which is the main lifting equipment for heavy-duty outdoor industrial operations.

The rated lifting weight of 100 tons is the maximum total load that the spreader can withstand under standard working conditions, including the weight of the hanging beam and other accessories. During operation, the weight of the accessories should be deducted to calculate the net weight of the goods. Overloading is strictly prohibited to ensure the safe operation of the equipment.

The overall structure of the 100-ton tire gantry crane is precise, and the various systems operate in concert. The core components and functions are as follows：

• Gantry frame: welded and formed of high-strength alloy steel, it consists of the main beam, outriggers, and end beams. It has a stable structure and strong load-bearing capacity. It can withstand complex working conditions such as outdoor wind and rain, temperature differences, and slight bumps. It can effectively carry 100 tons of dynamic stress generated by heavy-duty operations, and the equipment is extremely durable and stable.
• Lifting mechanism: The core lifting execution components, including winches, wire ropes, hooks, pulley blocks and other components, are responsible for the vertical lifting of goods, and are equipped with multiple cushioning and protective structures to ensure stable and accurate heavy-duty lifting.
• Operating trolley: mounted on the top of the main beam of the gantry, it can walk back and forth laterally along the main beam, and cooperate with the lifting mechanism to complete the lateral displacement of the cargo, so as to achieve precise alignment and fine-tuning positioning of the cargo.
• Rubber tire group: industrial solid rubber tires with wear-resistant and strong pressure-bearing capacity are used, which are suitable for outdoor hardened ground. They have the characteristics of shock absorption, non-slip and anti-rolling. They can adapt to slightly uneven ground to ensure stable equipment walking, no track wear and no ground damage problems.
• Walking steering system: equipped with intelligent drive and global steering mechanism, it supports a variety of operating modes such as straight, in-situ steering, and oblique walking. The steering radius is reasonable, and it can be flexibly adapted to the spatial layout of various large and small depots to achieve multi-area free switching operations.
• Electrical control system: adopts PLC intelligent integrated control system, equipped with frequency conversion speed control module, accurate operation and stable operation, with basic functions such as overload protection, limit early warning, and fault self-inspection. It is the core center for safe and efficient operation of equipment.
• Operating terminal: equipped with a closed operating cab and a wireless remote control dual operating system, the cab has a wide field of view, sound insulation and heat insulation, and is suitable for outdoor all-weather operations; the remote control mode can realize long-distance precise control and avoid high-risk operations.

Relying on the tire walking and intelligent steering system as a whole, the equipment can move freely in a wide range of outdoor operating areas such as ports, factories, and construction sites independently, without manual assistance in shifting, and quickly switch operating points to adapt to the operation needs of multi-point and multi-area alternating construction.

Key Specifications to Consider When Selecting a 100t RTG Crane

Rated lifting capacity

The rated load of 100 tons is the core performance index of this model, which represents the ultimate safety lifting standard of the equipment.When selecting the type, it is necessary to strictly distinguish between the rated load and the actual operating load, and overloading operation is strictly prohibited.In actual operations, ancillary accessories such as hanging beams, spreaders, fixtures, etc. all have their own weight.

The weight of the accessories needs to be deducted from the rated load of 100 tons to calculate the net weight that the goods can carry.At the same time, it is necessary to take into account the position of the center of gravity of the cargo, the spacing of the lifting points, and the eccentricity of the load in a comprehensive manner to avoid uneven force on the equipment due to the offset of the load, causing safety risks, and ensuring long-term stable operation.

Span and lifting height

The span of the gantry crane is the distance between the centers of the two legs, which determines the width of the operation coverage, and selects the type according to the layout of the yard and the traffic requirements. The lifting height defines the maximum lifting distance of the cargo to meet the height requirements of loading, unloading, stacking and hoisting of large components.

The selection of models needs to take into account the current working conditions and reserve the parameter margin to match the long-term planning of the plant and reduce the cost of later transformation. The mainstream 100-ton RTG supports personalized customization with a span of 10-40 meters and a lifting height of 6-30 meters.。

Movement and steering performance

Mobility is the core advantage of the 100-ton tire gantry crane. The rubber tire walking structure is free of track restrictions and can move freely in all directions.The equipment supports straight, fixed-point steering, and multi-angle fine-tuning walking, and is suitable for the displacement needs of various small and medium-sized depots and narrow operating areas.

When selecting the type, it is necessary to pay attention to the turning radius of the equipment, the minimum operating spacing, the walking speed and other parameters, combined with the space size of the work site, the width of the channel, and the distribution of the work site, to match the adapted steering and walking configuration, to ensure efficient equipment displacement, accurate positioning, and avoid site space restrictions.

Power supply and drive system

The 100-ton RTG is mainly divided into three power configurations: diesel-electric, pure electric, and oil-electric hybrid, which are adapted to different operating environments and energy consumption requirements.

1. The pure electric motor type relies on the cable reel or the power grid of the plant for power supply, with low energy consumption, zero emissions and low noise, and is suitable for normalized and fixed plant operations.；
2. The diesel-electric motor type is equipped with an on-board generator set, which does not require an external power supply and provides independent power supply. It is suitable for temporary construction scenarios without power grid coverage and in the field.；
3. The oil-electric hybrid engine type takes into account energy saving and flexibility, and can automatically switch the power mode according to working conditions, which is suitable for high-frequency, all-weather outdoor operations.

When selecting the type, it is necessary to combine the power supply conditions of the operation site, the frequency of operation, environmental protection requirements, and the comprehensive selection of operating costs, while considering the energy consumption efficiency and power stability of the equipment to ensure the reliability of long-term high-frequency operations.

How a 100t RTG Crane Handles Heavy Loads Outdoors

The 100-ton tire-type gantry crane cooperates with the three major systems of lifting, trolley walking, and machine walking to complete the whole process of handling outdoor heavy-duty cargo. The operation process is standardized, the operation is stable, and the positioning is accurate.

Docking in place

After the equipment is driven to the designated operating station, the operator controls the hook and spreader through the lifting hoist mechanism, accurately aligns with the lifting and completes reliable locking; then starts the lifting action to lift the cargo smoothly and lift it to a preset safe operating height, fully avoiding ground pipelines, components and other obstacles.

Precise shift

Flexibly switch the transfer mode according to the needs of on-site operations: the main beam trolley can be used to walk horizontally and accurately to complete the fine alignment and calibration of the goods to ensure the accuracy of hoisting; the tire walking system of the whole machine can also be activated to carry the load smoothly and efficiently complete the longitudinal transfer of large-span and long-distance sites.

Blanking operation

After the hoisting cargo is transferred to the target operating area as a whole, the electronic control system of the equipment finely regulates the unloading rate in real time, keeping the hoisting stable and impact-free throughout the process, so that the cargo can fall smoothly to the predetermined location, and efficiently complete various hoisting processes such as heavy material handling, cargo stacking, or installation of large prefabricated components.

Stable load control

The whole machine is equipped with a high-performance frequency conversion stepless speed regulation system, which can realize the smooth and smooth start-stop, acceleration, and deceleration process, and eliminate heavy-duty shocks.At the same time, it is equipped with a professional anti-sway device to effectively suppress the shaking and offset of the cargo during the hoisting process, and greatly improve the positioning accuracy, operating stability and overall operating safety level of 100-ton heavy-duty operations.

Outdoor Applications for 100t Rubber-Tyred Mobile Gantry Cranes

Port container operations

In ports and container hub terminals, 100-ton RTG is the core loading and unloading equipment of the yard. It is mainly used for the stacking, transshipment, and loading and unloading of heavy containers and large freight boxes, and completes the cargo transfer between the yard and cargo trucks, the yard and the storage area.

The equipment can flexibly shuttle between container depots, not limited by fixed tracks, adapt to the changeable cargo stacking layout of the terminal and the rhythm of ship loading and unloading, and greatly improve the efficiency of port cargo turnover. It is the core supporting equipment of modern port logistics.

Shipbuilding and offshore manufacturing

The operation area of shipbuilding and offshore engineering equipment is open, the operation points are scattered, and most of them are for the handling of super-heavy components.The 100-ton tire gantry crane can easily complete the transfer and hoisting of prefabricated hull sections, large steel structures, heavy machinery supporting ships, drive shafts, and marine platform components.

The equipment can be moved in the whole area of a large open-air shipyard without the need for fixed infrastructure. It is adapted to the multi-station and multi-regional alternating construction mode of the shipyard, which perfectly matches the heavy-duty and large-scale operation needs of the shipbuilding industry.

Material transfer in heavy industry plant area

In heavy machinery, steel structure, electric power equipment, and heavy industry equipment manufacturing plants, 100 tons of RTG are widely used in material transfer in production lines and storage areas, and can be hoisted and transported large steel structure parts, transformers, industrial presses, heavy machinery and equipment and other bulk workpieces.

One equipment can cover multiple production and storage areas in the factory area, without the need to configure fixed lifting equipment separately for each station, which greatly reduces the input cost of infrastructure and equipment in the factory area and improves the efficiency of production and circulation.

Hoisting and construction of infrastructure projects

In outdoor projects such as bridge construction, municipal infrastructure, wind power engineering, and large-scale venue construction, 100-ton tire-type gantry cranes play an important role in hoisting prefabricated bridge box girders, large steel structure components, wind power tower accessories, heavy infrastructure materials, etc.

As the construction progress advances, the equipment can be shifted and adjusted at any time, without the need to build a temporary fixed lifting base, which adapts to the characteristics of strong mobility of infrastructure projects and changeable operating scenarios, and effectively shortens the construction cycle.

Heavy-duty logistics warehouse yard

Large-scale industrial logistics parks and heavy-duty storage depots mainly store oversized machinery, engineering equipment, large steel structures, and heavy-duty cargo for projects. Such cargo has a large tonnage, high handling frequency, and flexible stacking layout.

The 100-ton RTG can efficiently complete the loading, unloading, storage, and transshipment of large cargo, get rid of the site restrictions of fixed lifting equipment, and adapt to the layout adjustment of the yard and the renewal of cargo categories without the need to transform the yard infrastructure, greatly reducing the yard’s dependence on fixed lifting infrastructure.

Why Choose Rubber Tires for a 100t Mobile Gantry Crane?

Compared with rail-type gantry cranes and fixed gantry cranes, the rubber tire walking structure is the core differentiated advantage of 100-ton RTG, and it is also the key to its adaptation to outdoor changeable working conditions. The core advantages are as follows：

More maneuverable

The equipment abandons the operating limitations of traditional orbital equipment, completely gets rid of the constraints of the track, supports free walking in the whole field and flexible steering from multiple angles, and can quickly switch operating areas and adjust operating positions according to on-site construction needs.

Compared with traditional gantry cranes that can only run linearly along a fixed track, the equipment has a stronger dynamic operation ability, which effectively solves the problems of large blind spots and difficult transitions in fixed-point operations, and greatly improves the flexibility and adaptability of on-site hoisting operations.

No infrastructure investment

The whole machine adopts a tire-type walking structure, and there is no need to lay a special walking track in advance, and there is no need to pour a fixed equipment foundation base, which will not cause damage to the original ground structure of the factory and yard.

Fundamentally, a series of infrastructure processes such as track laying, foundation construction, and site restoration are eliminated, and the infrastructure costs in the early stage of the project and the site renovation and maintenance costs in the later stage are greatly reduced, effectively saving the overall investment in the project.

Multi-regional universal

A single 100-ton tire gantry crane can cover multiple operating stations and yard areas in the factory in all directions, without the need to configure lifting equipment separately for different operating areas.According to changes in construction progress and hoisting tasks, it can flexibly transition and freely allocate work sites, adapt to the production mode of multi-station alternating construction and zoning rotation operations, and greatly improve the utilization rate of equipment and reduce the cost of idle equipment.

High site adaptability

The equipment has lower requirements for the work site. It is not only suitable for standard hardened and flat ground, but also for slightly undulating outdoor complex sites, and is compatible with all kinds of open-air depots, factory sites and other operating environments.It can cooperate with enterprises to adjust the layout of the yard and optimize the arrangement of stations at any time, and flexibly adapt to various changeable working conditions such as temporary expedited construction, phased project operations, and dynamic production scheduling.

Wider application scenarios

The comprehensive operation performance of the equipment is outstanding. It can not only meet the normalized and continuous production line material transfer and hoisting operations of the factory, but also adapt to the heavy-duty construction scenarios of various temporary engineering projects such as outdoor infrastructure, wind power, bridges, shipyards, etc., taking into account fixed plant operations and outdoor mobile construction, the scene adaptation range far exceeds that of traditional fixed lifting equipment, and the comprehensive practicality and versatility are stronger.

Safety Considerations for 100t Outdoor RTG Crane Operations

The operation risk of 100-ton heavy-duty equipment is higher, and the outdoor open-air environment has increased uncertainties such as wind, weather, and site. Standardizing safe operation and implementing protective measures are the core of the stable operation of equipment and avoiding accidents. The key safety points are as follows：

• Overload protection and control: The equipment is equipped with an intelligent overload detection system, which monitors the weight of the load in real time, and automatically alarms and locks the machine when the rated load exceeds 100 tons to prevent overload operations.The total weight of the goods and spreader must be accurately calculated before operation, and lucky operation is strictly prohibited.
• Load stability control: confirm the position of the center of gravity of the cargo before operation, ensure the symmetrical force of the lifting point, and eliminate eccentric hoisting and cable-stayed oblique hoisting; rely on the anti-swing system to control the shaking of the cargo, heavy-duty lifting and shifting at low speed and smoothly throughout the process.
• Site and tire inspection: check the tire pressure, wear degree, and surface integrity before daily operation to avoid tire damage and air leakage causing the equipment to tilt; confirm that the operation ground is flat, the bearing capacity is sufficient, and there are no collapses or obstacles.
• Meteorological environment monitoring: outdoor operations pay real-time attention to wind, rain and snow, high temperature and low temperature weather, and stop in time in severe weather such as high winds, heavy rains, and snowstorms to avoid equipment overturning and cargo falling; coastal high-salt spray environments need to do a good job of anti-corrosion protection of equipment.
• Safety braking and limit protection: The equipment is equipped with an emergency braking system, a travel limit switch, and a safety interlock device. The effectiveness of the function is tested before operation. It can be stopped urgently under over-travel and sudden working conditions to avoid the risk of collision and over-limit.
• Personnel operation specifications: operators need to hold a certificate to take the job and be familiar with the equipment operation process and emergency response plan; keep a clear vision during the operation, be on-site alert, and prevent personnel from approaching the operating radius.
• Regular safety inspections: Normalize equipment safety inspections, conduct regular special inspections of lifting systems, braking systems, electrical systems, and safety protection devices, and promptly investigate hidden dangers.

How to Design a 100t RTG Crane for a Specific Project

The site conditions, operating conditions, and cargo types of different projects vary greatly, and it is difficult for standardized equipment to be fully adapted to individual needs. It needs to be customized in combination with the actual project design. The core design process is as follows：

1. Clarify the load parameters: count the maximum heavy load and conventional operating load of the project, based on the peak load of 100 tons, and combine the average daily operating frequency and working level to match the structural strength of the equipment, motor power and working level.
2. Matching site parameters: according to the yard size, channel width, and working radius, customize the equipment span, lifting height, and turning radius to adapt to the site space layout and eliminate blind spots in the operation.
3. Evaluate the working conditions of the site: detect the flatness of the ground and the bearing capacity of the foundation, and combine the environmental characteristics of outdoor wind and rain, temperature difference, corrosion, etc. To optimize the anti-corrosion, shock absorption, and wear-resistant configuration of the equipment in a targeted manner.
4. Determine the control and power plan: according to the site’s power supply conditions and environmental protection requirements, choose pure electric, diesel-electric or hybrid power modes; according to the requirements of operating accuracy, it is equipped with manual, semi-automatic, and fully automatic control systems.
5. Add intelligent optional functions: anti-swing, automatic alignment, path planning, and obstacle recognition systems can be installed in high-precision operation scenarios; high-frequency operation scenarios can be equipped with remote monitoring and fault self-inspection functions.
6. Optimize maintenance design: adopt a modular structure design, reserve maintenance operation space, and match standardized accessories to reduce the difficulty and cost of late maintenance, and ensure the long-term stable operation of the equipment.

Improving Heavy Load Transport Efficiency with a 100t RTG Crane

To maximize the operating value of the 100-ton tire gantry crane, in addition to the performance of the equipment itself, scientific operation control and optimization of working conditions are essential, which can improve operating efficiency from the following dimensions：

• Optimize the overall hoisting operation process, streamline redundant processes, effectively avoid inefficient operations such as secondary cargo transfer and repeated alignment, and realize the operation effect of single hoisting and precise placement of goods, greatly shorten the duration of a single operation, efficiently compress the overall operation cycle, and significantly improve the efficiency of heavy-duty hoisting operations.
• Scientifically plan the optimal driving path based on the overall layout of the on-site yard, standardize and fix the operation movement line, effectively avoid invalid equipment displacement, detour driving and redundant positioning actions, reduce redundant loss of operations, and significantly improve the efficiency of cargo transfer and the overall speed of operation.
• Relying on a high-performance intelligent control system, the hoisting positioning accuracy can be significantly improved, and the time-consuming manual alignment and fine-tuning on-site can be greatly reduced. Even under heavy-duty conditions of 100 tons, fast, stable and accurate hoisting alignment can still be achieved, reducing errors caused by human operation.
• It can realize collaborative linkage with various material handling equipment such as trucks, forklifts, and on-site transshipment vehicles, synchronously match the operating beats of various supporting equipment, eliminate waiting gaps between processes, avoid the problem of convergence faults in the material transfer link, and ensure the continuous and smooth operation of the entire material transfer link.
• The equipment is equipped with frequency conversion stepless speed regulation technology, which deeply optimizes the operation logic of the whole machine to start, stop, accelerate and decelerate. Under the premise of ensuring the smooth and impact-free lifting process of 100-ton heavy-duty, the coherence of the action response is further improved, and the entire lifting operation is smoother and smoother.
• The equipment is equipped with an integrated system of remote monitoring and intelligent operation and maintenance, which can collect and monitor the operating parameters of the whole machine in real time around the clock, identify and predict potential hidden faults in advance, implement preventive maintenance, minimize sudden downtime, and avoid on-site missed work losses caused by equipment failures.
• The parameters of the equipment can be customized in combination with the actual operating frequency and conventional lifting load on the site, which can not only prevent the waste of costs caused by over-design of the equipment, but also avoid the performance shortcomings caused by insufficient parameter configuration, and fully adapt to long-term continuous, high-intensity and efficient heavy-duty operating conditions.

Maintenance Requirements for a 100t Rubber-Tyred Gantry Crane

Normalized preventive maintenance is the core of extending the service life of equipment, ensuring operation safety, and reducing operation and maintenance costs. For the characteristics of 100-ton RTG heavy-duty operations, the core maintenance items are as follows：

• Maintenance of tire walking system: regularly check tire pressure, tread wear, and cracking, check the operating status of wheels and bearings, and replace severely worn tires in time to ensure that the equipment walks smoothly and has uniform load-bearing.
• Maintenance of lifting system: daily inspection of wire rope wear, corrosion, and broken wire, regular lubrication and maintenance; inspection of hook deformation, cracks, and effectiveness of anti-release devices to prevent sick operations of lifting parts.
• Brake and transmission system maintenance: regularly check the sensitivity of the brake and the degree of wear of the brake pads, check the oil level and oil quality of the lubricating oil of the gearbox and transmission mechanism, change the oil in time, and fasten the accessories to ensure reliable braking and smooth transmission.
• Electrical system maintenance: clean up the control cabinet, circuit dust and stagnant water, check the aging of cables and loose wiring, test the functions of the control system, alarm system, and limit device to ensure the stable operation of the electrical system.
• Maintenance of structural parts: regularly check the main beam, outriggers, and welds of the gantry for deformation, cracking, and corrosion. Outdoor equipment should be painted and anticorrosive in time to strengthen loose connectors.
• Hydraulic and steering system maintenance: check whether the hydraulic pipeline is leaking and the status of the hydraulic oil, test the flexibility of the steering system, and regularly lubricate the steering accessories to ensure accurate and smooth shifting and steering.
• Safety system testing: regularly carry out load tests and functional tests of safety devices to ensure the normal operation of overload protection, emergency braking, anti-swing, and limit systems.

Conclusion

The 100-ton tire-type mobile gantry crane (RTG) can be used in outdoor scenes such as ports, shipyards, heavy industries, infrastructure and heavy-duty depots.Compared with rail and fixed cranes, it does not need to lay tracks, has strong mobility, and can flexibly transition to complete the hoisting and stacking of large-tonnage materials.

The selection of the project needs to configure the equipment according to the parameters of lifting weight, span, site, transition requirements, operation frequency, etc., taking into account the driving, safety protection and operation and maintenance requirements.Customized design can improve the adaptability of working conditions and control operation and maintenance costs.Henan Mine Crane can customize the production of 100 tons of RTG for ports, heavy industries, and infrastructure projects, and provide outdoor heavy-duty hoisting solutions.

In the fields of industrial production, warehousing and logistics, heavy-duty manufacturing, etc., industrial cranes are the core equipment to improve operational efficiency and ensure the flow of materials.However, purchasing an industrial crane is by no means a simple order and payment. It is a systematic investment involving technology adaptation, cost control, safety assurance, and long-term operation and maintenance.Due to insufficient pre-planning and unclear key issues, many enterprises eventually face problems such as mismatch between equipment and working conditions, blocked installation, soaring operation and maintenance costs, and prominent safety risks, which not only cause a waste of funds, but also affect production progress.Sorting out the core issues in advance and making adequate planning can effectively avoid unexpected costs, installation problems and operational risks, and ensure that the crane is adapted to production needs.The following are the 10 key issues that must be clarified before ordering industrial cranes to help companies accurately select models and invest rationally.

What Is The Required Lifting Capacity For Your Application?

Lifting capacity is the core parameter of Henan Mine Crane manufactured industrial cranes and the primary basis for selection. Once the judgment is wrong, the light equipment cannot meet the operating requirements, and the heavy equipment will cause a safety accident.First of all, we must comprehensively evaluate the maximum load requirements in the actual working conditions. We must not only consider the weight of the materials for conventional hoisting, but also take into account the heavy-duty requirements under special working conditions to avoid equipment overload due to insufficient load estimation. Operation.When accurately calculating the load requirements, it is necessary to check the material specifications, weight and lifting frequency one by one in accordance with the actual operation scenarios on the site to ensure that the data is true and accurate, and provide reliable support for the selection.

At the same time, attention must be paid to the setting of the safety factor. The safety factor of industrial cranes must meet industry standards, and a certain amount of redundancy is usually reserved to ensure the safety of operation under sudden working conditions.In addition, it is necessary to combine the future development plan of the enterprise to predict the capacity requirements that may be brought about by future production capacity increases and material weight gain, so as to avoid the replacement of equipment due to increased load in the short term, resulting in unnecessary waste of investment.Reasonable planning of lifting capacity can not only eliminate the risk of overload, but also realize the efficient use of funds.The setting of the safety factor must strictly follow the relevant national and industry norms, and the standards cannot be lowered at will. At the same time, it is necessary to take into account the long-term development plan of the enterprise to avoid the increase in the cost of subsequent equipment upgrades due to short-term demand constraints.

Which Type Of Industrial Crane Is Best For Your Facility?

There are many types of industrial cranes. The common ones are bridge cranes, gantry cranes, special lifting systems, etc. The scenarios, spaces and operating requirements for different types of cranes are significantly different, and improper selection will directly affect the operating efficiency.Henan Mine Crane manufactured Bridge cranes are suitable for fixed-span scenarios such as indoor factories and warehouses, which can realize vertical and horizontal movement of materials, and have strong adaptability.Gantry cranes are more suitable for outdoor operations and large-span sites, such as ports, depots, construction sites, etc., and are more adaptable to ground conditions.Before selecting the type, it is necessary to conduct an on-site survey of the operating site, clarify the space constraints, environmental characteristics and operating procedures of the site, and combine the advantages of different types of cranes to filter out the types of equipment with the highest adaptability.

There are three core factors that need to be considered in the selection of models. One is the working space, including the length, width and height of the site, and the distribution of obstacles.The second is the operating environment, such as indoor and outdoor temperature difference, humidity, dust, corrosive gases, etc., special models such as anti-corrosion and explosion-proof need to be selected for special environments.Third, the operation process, combined with the lifting frequency, moving range, and accuracy requirements of the material, selects the type of crane that best fits the workflow to ensure the seamless connection between the equipment and the production link.For special operating environments, customized adaptation plans need to be communicated with the manufacturer in advance to ensure that the equipment can still operate stably in complex environments and avoid environmental factors affecting the service life and operation safety of the equipment.

What Are The Required Span Length And Lifting Height?

The span and lifting height are the key parameters that determine the crane design plan. They are directly affected by the structure of the plant and the conditions of the work site. Parameter deviations will cause the equipment to fail to be installed or used normally.First of all, it is necessary to clarify the actual span of the plant, that is, the distance between the crane’s operating tracks, and at the same time consider the installation accuracy and load-bearing capacity of the track to ensure the smooth operation of the Henan Mine Crane manufactured crane.When measuring the span and lifting height, professionals need to be invited to accurately survey the site, and at the same time combine the load-bearing limit of the plant structure to avoid hidden dangers in equipment installation due to unreasonable parameter design.

The lifting height needs to be determined in combination with the stacking height of the material and the vertical movement range required by the operation. It is not only necessary to meet the height requirements of conventional lifting, but also to reserve a certain safety margin to avoid risks such as material collision and falling off.In addition, it is necessary to consider the operating range of the crane, including the moving distance of the cart and trolley, to ensure that the equipment can cover all operating points, avoid blind spots in the operation, and improve the overall operating efficiency.When reasonably planning the operating range, it is necessary to combine the distribution of operating points to optimize the movement path of equipment, reduce invalid running time, and further improve the overall efficiency of material lifting.

What Is The Expected Working Duty Class?

The working level is an important indicator to measure the intensity of crane operations, which is directly related to the service life, operating stability and operation and maintenance costs of the equipment. The selection must be determined in combination with the actual operating frequency and working conditions.Different work levels correspond to different job intensities. For example, the light-level work system is suitable for scenarios with occasional jobs and light loads, while the heavy-level work system is suitable for scenarios with continuous jobs and frequent heavy loads.When accurately evaluating the intensity of operations, it is necessary to count the length of daily operations, the frequency of loads, and the number of starts and brakes to avoid premature equipment wear or waste of resources due to improper selection of work levels.

If the working level of the selected crane is lower than the actual demand, it will cause accelerated wear and tear of equipment components, frequent failures, and shorten the service life.Conversely, excessive selection of high-level equipment will increase procurement costs.Therefore, it is necessary to accurately evaluate the parameters such as operating frequency, load continuity rate, and number of starting and braking times, and select a matching working level to achieve a balance between equipment performance and investment costs.The selection of work level needs to take into account practicality and economy, and make reasonable choices based on the actual operating needs of the enterprise, which can not only ensure the stable operation of the equipment, but also effectively control the procurement cost.

What Features And Customizations Does The Crane Need?

There are differences in the functional requirements of cranes in different industries and working conditions. Standardized equipment often cannot fully meet individual needs, so it is necessary to clarify the required functional configuration and customized solutions.The core functions include control system, automation options, safety devices and supporting accessories. Among them, the control system can be divided into manual control, remote control, intelligent control, etc., which can be selected according to the needs of operation accuracy.Automation options such as automatic positioning, intelligent lifting, remote monitoring, etc. can greatly improve operational efficiency and safety.The functional configuration needs to be reasonably selected in combination with the characteristics of the industry and the needs of the operation, so as to avoid the blind pursuit of high-end configuration leading to increased costs, while ensuring that the core functions are complete and meet the needs of daily operations.

Safety devices are essential configurations, such as overload protection, limit protection, emergency braking, anti-collision devices, etc., which can effectively avoid safety risks.In addition, for the special needs of different industries, such as high-temperature resistant cranes in the metallurgical industry, explosion-proof cranes in the chemical industry, intelligent stacking cranes in the warehousing industry, etc., customized solutions need to be provided to ensure that the equipment is adapted to the characteristics of the industry and maximizes its effectiveness.Safety devices need to be inspected and maintained regularly to ensure that they are always in normal working condition. At the same time, customized solutions need to be combined with special industry standards to ensure that the equipment complies with industry safety specifications.

Does The Crane Manufacturer Have The Required Experience And Certifications?

The quality and performance of the crane directly depend on the strength of the manufacturer. Choosing a professional and experienced manufacturer is the key to ensuring the reliable operation of the equipment.First of all, it is necessary to evaluate the comprehensive capabilities of the manufacturer, including the level of R&D and design, manufacturing technology, quality control system, etc., which can be understood by looking at corporate cases, customer evaluations, industry reputation, etc.When evaluating the strength of a manufacturer, it can visit its production base on the spot to check the production equipment, testing process and product quality to ensure that the manufacturer has a stable production capacity and a perfect quality control system.

Secondly, it is necessary to verify the manufacturer’s relevant qualification certifications, such as ISO quality management system certification, CE certification, special equipment production licenses, etc., to ensure that the equipment meets national and industry standards.In addition, it is necessary to pay attention to the manufacturer’s production capacity, testing standards and export experience, especially for companies with export needs, the manufacturer’s export qualification and overseas service capabilities are essential, which can effectively avoid subsequent compliance issues and service problems.

What Is Included In The Total Crane Cost?

The procurement cost of industrial cranes is not a single equipment price, but a comprehensive cost that includes equipment body, installation, transportation, operation and maintenance, etc. The cost composition is clear in the early stage, which can effectively avoid additional subsequent expenditures.Equipment price is the core part. It is necessary to clarify the corresponding price standards for equipment configuration, material, technology, etc. to avoid inflated prices due to vague configuration.Clarify the cost composition with the manufacturer in the early stage, sign a detailed price agreement, and write the details of each expense into the contract to avoid subsequent invisible expenditures and ensure the controllability of the procurement budget.

In addition, installation costs must be considered, including track installation, equipment commissioning, personnel construction and other costs.Transportation costs need to be determined in combination with factors such as equipment size, weight, and transportation distance.Operation and maintenance expenses include long-term expenses such as daily maintenance, parts replacement, and overhaul services.At the same time, it is necessary to understand the core factors that affect the price of the crane, such as equipment specifications, functional configuration, degree of customization, material grade, etc., and plan the budget rationally to maximize the cost performance.When planning the budget rationally, it is necessary to take into account short-term procurement costs and long-term operation and maintenance costs, and give priority to equipment with high price ratio and low operation and maintenance costs to achieve efficient use of funds.

How Long Is The Manufacturing And Delivery Lead Time?

The production and delivery cycle directly affect the production planning arrangement of the enterprise, especially for projects with clear construction period requirements, it is essential to clarify the delivery time in advance.The production process of Henan Mine Crane manufactured cranes usually includes design, raw material procurement, parts processing, machine assembly, quality inspection and other links. The progress of each link will affect the final delivery time.Before signing the contract, it is necessary to clarify the time nodes of each link with the manufacturer, formulate a detailed production and delivery plan, and reserve a certain buffer time to deal with possible emergencies.

The factors that affect the delivery cycle mainly include the degree of customization of equipment, the supply of raw materials, the manufacturer’s production capacity, and the order volume.Therefore, before signing the contract, it is necessary to clarify the production cycle, delivery time, acceptance criteria, etc. with the manufacturer, and at the same time understand the factors that may lead to delivery delays and response plans to ensure that the equipment can be delivered on time without affecting the production progress of the enterprise.For equipment with a high degree of customization, it is necessary to communicate the production progress with the manufacturer in advance, follow up on the procurement of raw materials and production and processing in a timely manner, and ensure that the delivery cycle conforms to the enterprise’s production plan.

What Installation, Training, And After-Sales Support Are Provided?

The installation quality of the crane, the professional level of the operators and the subsequent after-sales service are directly related to the operation safety and service life of the equipment, so it is necessary to clarify the relevant service content provided by the manufacturer.Professional installation guidance is the basis for the normal operation of the equipment. The manufacturer should provide a professional installation team or technical guidance to ensure that the installation of the equipment meets the standards and the commissioning is in place.During the installation process, professional personnel need to be arranged for on-site supervision to ensure that the installation process complies with the specifications. After the commissioning of the equipment is completed, a trial operation test is required to confirm that the equipment is running normally before it is put into use.

Operator training is also indispensable. It is necessary to ensure that operators master the operating specifications, safety precautions, and daily maintenance skills of the equipment to avoid failures or safety accidents caused by improper operation.In addition, the after-sales service system is essential, including parts supply, regular maintenance, fault repair, technical support, etc., perfect after-sales service can effectively reduce equipment downtime and ensure production continuity.Operators need to undergo professional training and pass the assessment before they can take the job. At the same time, a complete equipment operation and maintenance file is established, equipment maintenance is carried out regularly, and hidden faults are investigated in a timely manner to extend the service life of the equipment.

How Can The Crane Improve Long-Term Operational Efficiency?

The procurement of industrial cranes is not only to meet the current operational needs, but also to pay attention to its effect on the long-term operational efficiency of the enterprise. The core is to evaluate the return on investment (ROI) of the equipment.A high-quality industrial crane can create long-term value for enterprises by improving material lifting efficiency, reducing labor costs, and reducing downtime.When evaluating the return on investment, it is necessary to combine equipment procurement costs, operation and maintenance costs, operational efficiency improvement and labor cost savings to comprehensively calculate the long-term value of equipment to ensure the rationality of procurement decisions.

At the same time, the energy-saving performance, durability and expandability of the equipment should be considered. Energy-saving equipment can reduce long-term operating costs, durable equipment can reduce the frequency of replacement, and the expandability can be adapted to the future production capacity upgrade needs of enterprises.Through reasonable selection and planning, cranes can be truly integrated into the production process of enterprises and become the core driving force for improving productivity and reducing operating costs.Priority is given to equipment with energy-saving, durable and scalable characteristics, which can not only reduce long-term operating costs, but also adapt to the future development needs of enterprises, and realize the long-term maximization of equipment value.

Henan Mine Crane Factory Custom

Choosing the right industrial crane is a systematic work that requires comprehensive consideration of technology, cost, service, and long-term value.The above 10 key issues cover the whole process from demand assessment, selection planning, cost control to after-sales guarantee, which can help enterprises comprehensively sort out their procurement needs and avoid various risks.Choosing a manufacturer with professional strength and a perfect service system is the key to ensuring the stable operation of equipment and realizing long-term value, and can provide strong support for the production and operation of enterprises.Henan Mine Crane Factory has always taken customer needs as the core, providing customized lifting solutions to help enterprises improve operational efficiency and achieve sustainable development.

Gantry cranes should be seen in the heavy duty work site, it is not like bridge cranes need to rely on the plant columns, by independent portal frame and movable legs, can be in the outdoor, open space flexible operation.

Because of the advantages of this independent structure, it is almost indispensable in the heavy industry, no matter it is a large span of cargo handling, or high load lifting operations, can be easily competent. Today, we will break with you, gantry cranes are most commonly used in 10 industrial scenarios, to see what role it plays in different industries.

These scenes cover the port, shipbuilding, construction, mining and other areas, each scene on the gantry crane model, configuration requirements are not the same, to understand these, but also to help you follow the selection of less detour.

Industry	Core Application	Suitable Gantry Crane Type	Key Requirements
Container Ports and Intermodal Terminals	Container stacking, loading and unloading, connecting port and land transportation	RMG (Rail-Mounted Gantry Crane), RTG (Rubber Tyred Gantry Crane), large-tonnage double girder gantry crane	High positioning accuracy, stable efficiency, suitable for heavy-duty scenarios, capable of handling overweight containers
Shipbuilding and Marine Engineering	Hoisting of hull blocks and deck modules, handling and installation of offshore platform modules	Goliath cranes, heavy-duty gantry cranes	High load capacity, large span, high precision, stable operation, suitable for outdoor coastal environments
Precast Concrete Production Yards	Handling, stacking and loading of precast concrete components (bridge girders, precast slabs, etc.)	Rubber Tyred Gantry Crane, single girder gantry crane	Flexible mobility, suitable for irregular outdoor yards, capable of handling light to medium loads
Steel Fabrication and Structural Workshops	Handling of steel raw materials, assembly and loading of steel structure components	Double-hoist gantry crane, single/double girder gantry crane	Stable operation, suitable for long steel materials, capable of connecting indoor and outdoor operations
Construction and Infrastructure Projects	Bridge beam hoisting, tunnel segment handling, transportation of large equipment and materials	Temporary gantry crane, tire-mounted/double girder gantry crane	Quick installation and disassembly, reusable, suitable for temporary outdoor construction sites
Power Plants and Energy Sector	Installation and maintenance of turbines/generators, coal yard material handling	Grab gantry crane, heavy-duty gantry crane, light gantry crane	Stable hoisting, high precision, suitable for continuous operation and outdoor environments
Mining and Bulk Material Handling	Loading, unloading and transportation of ore, coal, aggregates and other bulk materials	Grab-type gantry crane, heavy-duty gantry crane	High durability, dust-proof, suitable for harsh outdoor environments and continuous heavy-duty operation
Warehousing and Logistics Centers	Handling and stacking of large equipment and oversized goods, connecting trucks and warehouses	Tire-mounted gantry crane, custom-span gantry crane	Flexible mobility, custom-span, stable efficiency, suitable for outdoor storage yards
Waste Treatment and Recycling Facilities	Garbage handling, recycling of scrap metal and plastic, waste classification and crushing	Grab gantry crane, electromagnetic gantry crane	Corrosion-proof, dust-proof, easy maintenance, suitable for complex operating environments
Aerospace and Heavy Equipment Manufacturing	Handling and assembly of large aerospace components, heavy equipment parts	Double girder gantry crane, custom gantry crane	High precision, high synchronization, custom-designed, suitable for high-precision assembly operations

1. Container Ports and Intermodal Terminals

Container Ports and Intermodal Terminals is the most core application scenario of gantry cranes, there is no one. Whether it is an ocean freighter unloading containers, or storage and transfer in the yard, are inseparable from its figure.

The two most commonly used models here are rail-mounted gantry cranes (RMG) and tire-mounted gantry cranes (RTG), both of which have a clear division of labor to meet the needs of different yards.RMG operates along a fixed track, with high positioning accuracy, and is suitable for high-density stacking and storage operations at large container terminals, accurately stacking containers to a designated location, with very stable efficiency.

RTG, on the other hand, is a tire-type design, does not need to lay a fixed track, can move freely in the yard, more flexible, suitable for small and medium-sized ports, temporary yards, or need to work across the box area of the scene.

In addition to stockpiling, gantry cranes are also responsible for container loading and unloading operations, quickly transferring containers in the yard to freight trucks and trains, connecting ports and land transportation, and ensuring the smoothness of the entire logistics chain. For heavy duty scenarios, large tonnage double girder gantry cranes are also configured to cope with the handling of overweight containers.

2. Shipbuilding and Marine Engineering

Shipbuilding industry operations, the gantry crane requirements are extremely high – not only to carry capacity, but also a large span and high precision, after all, the hull segments, large-scale module lifting, can not tolerate the slightest deviation.

The most common in shipyards is the giant gantry cranes (Goliath cranes), this heavy gantry crane span can reach dozens of meters, lifting capacity of up to several hundred tons, specially designed for lifting hull segments, deck modules and large equipment.

In the ship assembly process, gantry cranes need to dozens of tons or even hundreds of tons of hull segments, accurately lifted to the ship platform, and other segments aligned, welded, which requires the crane’s positioning accuracy is sufficiently high, and the operation is smooth enough.

In addition to hull assembly, offshore platform module lifting in the field of marine engineering, will also use heavy gantry cranes, in the open field of the seaside, it is not subject to the building restrictions, to complete the handling and installation of oversized, super-heavy modules.

3. Precast Concrete Production Yards

Precast concrete production yards, mostly open-air layout, no fixed plant structure, the advantages of gantry cranes are fully embodied here – no need to attach any building, as long as the site is leveled, it can be quickly deployed.

The gantry cranes here are mainly responsible for handling prefabricated concrete components, such as bridge girders, prefabricated panels, prefabricated columns, etc. These components have high weight and long dimensions, and ordinary lifting equipment is simply incapable of handling them.

Tire gantry crane is the first choice here, the flexible mobility can be adapted to the irregular layout of the yard, can be freely transferred between different production areas, the precast components from the production line lifted to the yard stockpile, or directly loaded onto trucks for transportation.

Sometimes single girder gantry cranes are also used, for light and medium-sized prefabricated components, it is cheaper and easier to maintain, and can fully meet the operational requirements.

4. Steel Fabrication and Structural Workshops

In steel fabrication and structural workshops, gantry cranes are indispensable auxiliary equipments, which are indispensable in every aspect from raw material transportation to component assembly.

Raw materials such as steel plates, profiles and tubes in the workshop are heavy and long, and need to be lifted by gantry cranes to the cutting and welding stations; completed steel structure components, such as plant frames and bridge components, also need to be lifted by cranes to the finished product yards or loaded onto trucks directly.

Many workshops will be equipped with double hoist gantry cranes, this double winch configuration, suitable for handling long steel, can maintain the level of the components, to avoid tilting, collision during transportation, to protect the components from damage.

Although there are overhead cranes in the workshop, the gantry cranes can be extended to the yard outside the workshop, connecting indoor and outdoor operations without additional lifting equipment, which is very practical.

5. Construction and Infrastructure Projects

Construction and infrastructure projects, such as bridge construction, highway and railroad projects, tunneling projects, gantry cranes can be seen everywhere, especially for large-scale outdoor operations, its flexibility and load-bearing capacity, more advantageous than other lifting equipment.

Bridge construction, gantry cranes are responsible for lifting bridge girders, whether prefabricated girders or cast-in-place girders, can be accurately lifted to the abutment to complete the installation; highway and railroad projects, the handling of large-scale equipment, the transfer of roadbed materials, but also inseparable from the gantry cranes.

Tunneling project, the handling of tunnel tubes is a big problem, gantry cranes can be in the open field at the tunnel entrance, lifting the tubes to the designated location in the tunnel, to adapt to the tunnel construction of special scenarios.

Moreover, as most of the project sites are temporary sites, gantry cranes can be quickly installed, dismantled and transferred to other sites for re-use after the project is over without wasting equipment costs, which is very suitable for lifting needs of temporary projects.

6. Power Plants and Energy Sector

Power Plants and Energy Sector, gantry cranes are mainly used for equipment installation and daily maintenance, whether it is thermal power generation, hydropower, or new energy projects, you can see its application.

In thermal power plants, gantry cranes are responsible for handling turbines, generators, boilers and other large-scale equipment, which are heavy and highly accurate, and require cranes to lift smoothly to avoid damage to the equipment; during routine maintenance, cranes are also required to lift and unload equipment parts to facilitate overhaul.

Coal yard material handling, will also use gantry cranes, with grab device, can quickly grab coal, transfer to the boiler feeder, to achieve continuous operation, to protect the efficiency of power generation.

In the new energy field, such as wind power projects, some sites will use gantry cranes to handle wind power equipment components; large-scale stents and components of photovoltaic power plants can also be used to handle lightweight gantry cranes, which are suitable for outdoor work scenes.

7. Mining and Bulk Material Handling

In the field of mining and bulk material handling, gantry cranes are mainly responsible for loading, unloading and transferring bulk materials such as ore, coal, sand and gravel, etc. The operating environment here is harsh, with a lot of dust and load, which makes the durability of cranes very demanding.

Grab gantry crane is the main model here, through the grab quickly grab bulk cargo, transfer to trucks, trains or silos, high operational efficiency, can adapt to the mine’s continuous operational needs.

Most of the operating sites in mines are open air, there is no fixed building, the independent structure of the gantry crane is just right for this kind of scene, and the heavy-duty gantry crane has a strong load-bearing capacity, which can cope with the handling of large tonnage of bulk cargo and reduce the number of operations.

Some mines will also be equipped with wear-resistant, dust-proof gantry cranes to reduce the wear and tear of dust on the equipment components, extend the service life of the equipment and reduce maintenance costs.

8. Warehousing and Logistics Centers

Large warehousing and logistics centers, especially outdoor yards, gantry cranes are the core equipment for outdoor material handling, mainly responsible for large equipment, oversized cargo handling and storage.

Many logistics centers will store large machinery and equipment, heavy parts, these goods are heavy, large size, ordinary forklifts can not be handled, can only rely on gantry cranes lifting, transfer.

The span of the gantry crane can be flexibly customized to cover the entire outdoor yard, whether it is the centralized stacking of small goods, or the separate storage of oversized goods, can be adapted. Moreover, the tire gantry cranes are flexible and can move freely in the yard, adapting to the operational needs of different locations.

For logistics centers that require frequent loading and unloading, gantry cranes have a stable operating efficiency and can connect trucks and warehouses to ensure the rapid flow of materials.

9. Waste Treatment and Recycling Facilities

Waste treatment and recycling facilities is also one of the important application scenarios for gantry cranes, where the operating environment is complex, requiring cranes to have corrosion resistance, dustproof and pollution prevention characteristics.

In garbage treatment plants, gantry cranes are equipped with grapples, responsible for grabbing garbage and transferring it to the treatment facilities to realize the classification, crushing and treatment of garbage; in recycling yards, the handling of waste metals, waste plastics and other recycling materials is also inseparable from gantry cranes.

For waste metal recycling, electromagnetic suction cup gantry cranes can also be configured to adsorb the waste metal through electromagnetic force for quick grabbing and transferring, which is more efficient and convenient than grabs.

The operating intensity of this type of scene is not particularly high, but the protection requirements of the equipment is high, the structure of the gantry crane is simple, easy to maintain, can adapt to the harsh operating environment, reduce equipment failure.

10. Aerospace and Heavy Equipment Manufacturing

Aerospace and heavy equipment manufacturing industry, the most demanding requirements for gantry cranes – not only to carry capacity, but also have a very high positioning accuracy and synchronization, after all, the assembly of large parts, the difference is not.

Aerospace field, gantry cranes are responsible for handling aircraft fuselage, wings, engines and other large components, in the assembly process, the need for multiple cranes synchronized operation, accurate positioning, to ensure that the interface between the components without error.

Heavy equipment manufacturing, such as large machine tools, construction machinery, generator sets, the handling and assembly of large components, also need the cooperation of gantry cranes. Double main girder gantry cranes with strong stability and high positioning accuracy can meet the needs of such high-precision operations.

Most of the gantry cranes in this industry are customized to fit specific component sizes and operating scenarios to ensure operational safety and precision.

Why Gantry Cranes Are Preferred in These Industries

After talking about so many application scenarios, you should be able to see that the core of why gantry cranes are preferred in so many heavy industries is that it has several advantages that just fit the needs of these industries.

The most crucial point is that it does not have to rely on permanent structures. Whether it is a port, construction site, mine, these scenes without plant, or there is a plant but need to be extended to the outdoor operation of the workshop, gantry cranes can be deployed independently, without the need to remodel the site, laying complex tracks, saving a lot of trouble.

Secondly, it is suitable for outdoor environment. Most of the heavy industry operations are outdoors, wind and sun, dusty, gantry cranes are structurally designed to adapt to these harsh environments, with high levels of protection, durability and no need for frequent maintenance.

Large span and high load capacity are also its core advantages. Many industries need to handle oversized and overweight goods, such as shipbuilding hull segments and bridge girders, and gantry cranes can be flexibly customized in terms of span and lifting capacity, which can easily cope with these needs.

There are also flexible mobile options, rail type, tire type, portable, different ways of moving to adapt to different scenarios, rail type is suitable for stationary work, tire type is suitable for flexible movement, portable is suitable for temporary work, a variety of choices.

Choosing the Right Gantry Crane for Your Industry

The operational needs of different industries are not the same, choose the right gantry crane can not be blind, must be combined with their own working conditions, or choose the right model, but also do not work well, but also a waste of costs.

First of all, to clarify the carrying capacity requirements, you have to count the weight of the goods themselves, plus the weight of the spreader, such as grabs, electromagnetic suction cups, to avoid inadequate selection, resulting in failure to operate properly. For example, mining, shipbuilding these heavy scenes, we must choose heavy duty gantry crane, carrying capacity is strong enough.

Span and lifting height is also very critical, the span to match the width of the operating site, to ensure that the entire operating area can be covered; lifting height to meet the demand for storage of goods, lifting, but also to leave a certain safety gap to avoid collision.

Work level can not be ignored, high operating frequency, long duration of the scene, such as ports, mines, to choose a high working level of cranes, to avoid premature wear and tear of the equipment, frequent failures; low frequency of the scene, such as small workshop maintenance, choose the ordinary work level is enough.

Environmental conditions must also be considered, outdoor windy scenes, such as ports, to choose with windproof device; dusty, corrosive scenes, such as mines, waste treatment plants, to choose high protection level, corrosion-resistant equipment.

Mobile demand is also important, fixed site operations choose rail-mounted gantry cranes (RMG), flexible mobile operations choose tire-mounted gantry cranes (RTG); temporary operations choose portable gantry cranes to save costs.

Finally, we should also consider the budget and long-term ROI, not only the initial purchase price, but also maintenance costs, energy costs, downtime losses, such as electric gantry cranes, the initial investment is slightly higher, but long-term energy consumption is low, suitable for long-term stable operation.

Frequently Asked Questions

After talking about the application and selection, and then answer a few frequently asked questions, are usually the most customers consult, to help you quickly clear up the doubts.

What industries use gantry cranes the most?

The most used is definitely container ports and intermodal terminals, almost every port yard is inseparable from the gantry cranes; followed by shipbuilding, construction, mining industry, these industries have more heavy-duty operations, the demand for gantry cranes is also large. In addition, steel processing, prefabricated concrete, garbage disposal and other industries, will also use a large number of gantry cranes.

What is the difference between RMG and RTG applications?

The core difference between RMG and RTG applications is the mobile mode and application scenarios. RMG is rail-type, running along a fixed track, with high positioning accuracy, suitable for large container terminals, fixed yards, focusing on high-density stockpiling and high-efficiency operations; RTG is a tire-type, without rail, high flexibility, suitable for small and medium-sized ports, temporary yards, or need to cross-regional operation scenarios. Simply put, choose RMG for fixed site and RTG for flexible operation.

Are gantry cranes suitable for indoor use?

Yes, but more often for outdoor use. If the indoor site is large enough, such as large steel structure workshop, heavy equipment manufacturing plant, you can also use gantry cranes, especially single girder gantry cranes, compact structure, can be adapted to indoor space. However, for indoor work, bridge cranes are often more suitable, and the advantage of gantry cranes is still in outdoor scenes without fixed buildings.

What is the maximum capacity of a gantry crane?

There is no fixed upper limit, mainly depends on the customization needs. Conventional gantry cranes, lifting capacity of 5-100 tons, suitable for most industrial scenarios; heavy-duty gantry cranes, such as shipbuilding, mining, lifting capacity can reach more than 500 tons; currently on the market for large-tonnage gantry cranes, lifting capacity can even reach more than 1,000 tons, dedicated to large-scale offshore engineering, heavy equipment manufacturing.

Can gantry cranes be customized for specific industries?

Of course you can, and customization is a major advantage of gantry cranes. Regardless of the industry, can be customized according to specific working conditions, such as span, lifting height, load carrying capacity, mobile mode, and spreader, guards and so on. For example, if aerospace needs high precision, it is customized for high positioning accuracy; if mining needs corrosion resistance, it is customized for wear and dust resistance; if ports need high-density stockpiling, it is customized for double cantilever RMG.

Conclusion

Gantry cranes are very versatile and play a key role in many areas of heavy industry, from container handling in ports, to hull lifting in shipbuilding, from bridge construction in buildings, to bulk transfer in mines, it is everywhere.

In fact, the core of the selection of gantry cranes is to look at the application scenarios – the operational needs of different industries, environmental conditions are not the same, the suitable models and configurations are not the same. No need to blindly pursue large tonnage, high configuration, fit their own working conditions, in order to both ensure operational safety, but also cost savings.

The correct choice of gantry cranes can not only improve operational efficiency, but also reduce downtime losses and extend the service life of the equipment, which is a very cost-effective investment for the long-term operation of the enterprise.

Call to Action

If you are choosing a gantry crane for your industry, and you don’t know which model and parameters are the most suitable, you may want to submit your project details, such as the operating industry, load requirements, site conditions, we will provide you with customized gantry crane solutions.

Henan Mine Crane Factory supply, as a professional crane manufacturer, integrates R&D, design, manufacturing, sales and service to provide customers Please feel free to contact us, we will provide you with free design drawings, and field survey!

A bridge crane going down for even a few hours can stall an entire production line. Most bridge crane failures don’t come out of nowhere — they follow predictable patterns that show up in wire rope, brakes, wheels, and electrical systems long before a full breakdown happens. Knowing what to look for, and what to do about it, is what separates facilities that fix problems on a Tuesday morning from ones that lose a Tuesday entirely.

This guide walks through the 10 most common bridge crane problems, what causes each one, how to fix it, and how to prevent it from coming back. We’ll also cover how to build a preventive maintenance program and when a problem is safe to fix in-house versus when it’s time to call a certified crane technician.

What Is a Bridge Crane?

Henan Mine Crane Factory supply bridge crane (also called an overhead crane) is a material handling machine that runs on elevated runway rails, lifting and moving loads along the length of a building using a bridge, trolley, and hoist. It works by combining a horizontal bridge girder that travels down the runway with a trolley that moves across the bridge, allowing the hoist to reach almost any point in the work envelope. It matters because it’s often the single piece of equipment a facility depends on most to move heavy materials safely, efficiently, and repeatedly — which is exactly why unplanned downtime on a bridge crane is so costly.

Bridge cranes are mechanically simple in concept but mechanically demanding in practice: every cycle puts stress on wire rope, brakes, wheels, and electrical contacts. Over thousands of cycles, that stress turns into the 10 problems below.

Why Bridge Crane Problems Matter for Safety and Compliance

Bridge crane failures aren’t just a productivity issue — they’re a regulatory and safety issue. OSHA 29 CFR 1910.179 requires documented daily, frequent (monthly), and periodic (annual) inspections of overhead and gantry cranes, and failure to maintain that documentation can result in fines on top of the cost of the breakdown itself.

The financial case is just as direct. Industry data on crane maintenance practices shows that a systematic, root-cause approach to troubleshooting — rather than reactive, trial-and-error repairs — meaningfully reduces average repair time and gets equipment back into service faster. Combined with the fact that most of the 10 problems below give early warning signs (noise, vibration, scraping, blown fuses), the takeaway is simple: catching a symptom early is always cheaper than replacing the component it was warning you about.

1. Wire Rope Damage and Wear

Signs: Obvious kinks, fractured or unravelled outer strands, flattened areas, rust or pitting, “bird caging”–outer strands rupture and separate with outward bulges.

Causes: Overloading, improper reeving, abraison against sheaves, corrosion due to moisture or chemicals or just plain fatigue from repeated lifting cycles.

Fix: Cease operation of the wire rope as soon as deterioration is observed, this should not be a “monitor and continue” situation. Replace wire rope with an OEM replacement of same specifications as crane for load rating and reeving.

Prevention: Daily examination of wire rope before each shift (use torch for inspection). Use lubrication guides from the importer. Never shock load the wire rope, or exceed the maximum crane capacity (damages four times faster than the duty cycle).

2. Bent or Cracked Hooks

Symptoms: Visible bending, throat opening wider than spec, cracks, or twisting of the hook body.

Causes: Overloading is the leading cause — hooks are engineered for a specific load rating, and exceeding it even occasionally can deform the metal permanently. Side-loading (lifting at an angle instead of straight up) is a close second.

Fix: A bent, cracked, or out-of-spec hook must be replaced, not reshaped or welded back into service. Hooks are a single point of failure for the entire load, so there’s no safe field repair for structural deformation.

Prevention: Inspect hooks and below-the-hook devices at the start of each shift. Use load charts and rated capacity indicators so operators never have to guess whether a lift is within limits.

3. Brake Failure or Slippage

Symptoms: The load swings or creeps after the operator has released the control, the crane doesn’t stop smoothly, or an abnormal noise or delay occurs when the brake is applied.

Causes: Worn Brake Linings, Dirty or contaminated brake oil or grease, Incorrect brake torque or an electrical fault which prevents the brakes from applying or releasing.

Fix: Change worn brake pad or lining, clean contaminated components,adjust brake torque to manufacturer‘s specification. If a brake does not grip and maintain a load suspended by the crane this is a stop-work problem – the crane must not be operated until it has been rectified.

Prevention: Check brake response as part of the operational check at each shift change. Check annually for the kind of brake inspections that are part of the monthly preventive maintenance, since linings wear in a steady, predictable fashion.

4. End Truck Wheel Wear and Misalignment

Signs: Irregular wheel tread wear; a scraping or grinding noise when moving; a power shift crawler which needs more than usual effort to have it rolling.

Causes: Continued wear from recurring years of travel, unequipped wheel hardness relative to rail hardness, or inherent skew/tracking issues leading to applying uneven stresses on the wheel.

Wheel repair: Swap out worn wheels with OEM equivalent (should match existing wheel hardness for the rail material). If wheels are wearing irregularly side to side then explore tracking adjustment options for correction prior to replacing the wheels otherwise the new wheels are going to wear just as quickly.

Prevention: Inspect wheel treads as part of your scheduled monthly maintenance. Maintain clean runway rails and gutters. Dirt and debris can accelerate wheel wear and hide early symptoms of misalignment.

5. Crane Skewing and Runway Tracking Issues

Signs: The crane “crabs” or angles slightly as it moves, makes a grinding/scraping noise at the end trucks when running or pushes harder against one rail than the other.

Causes: Skewing occurs when traction variations between the left and right drive wheels results in a slight rotation of the bridge out of perfect right angle to the runway. This eventually deteriorates into a skew if present wheel/rail wear, misalignment of the runway rails, or uneven performance of drive motors side-to-side.

Fix: An ongoing problem with the skew will need a Runway Alignment Inspection and will not simply need a wheel change. The root cause can be discovered with a trained crane technician measuring run way gauge, rail elevation and end truck alignment.

Prevention: Do not fall into the trap of forcing squareness by “slamming” the crane against the end stops. This can be very harmful to the structure. Regular runway squareness testing should be done at regular intervals. This is especially critical on older or heavily traveled systems.

6. Electrical Faults: Blown Fuses and Conductor Bar Problems

Symptoms: Frequent blowing of fuses, intermittent power loss to crane, or poor control response.

Causes: Blowing fuses too often is almost certainly a circuit fault rather than coincidence. Most cases are caused by oxidized or worn contactor components, poor connection between the conductor bar and collector, loose connections in power or junction boxes, or motor winding faults causing excessive current draw.

Fix: Don’t simply replace the fuse and continue operating — this only addresses the symptom, not the root cause. Arrange for the electrical system to be tested and the fault identified. Conductor bar condition should be checked. Collector contact pressure should be inspected, and any corrosion or loose connections must be repaired.

Prevention: Check conductor bars and collectors on a monthly basis. Ensure electrical boxes are properly sealed to prevent the ingress of dust or water, which are the main causes of oxidation and poor contact.

7. Pendant or Radio Control Failures

Symptoms: The crane is unresponsive to commands / has a delay of response / moves in a jerking motion instead of smooth control.



Causes: For radio controls the favorite culprits are an empty/dead transmitter battery, loss of sight to the receiver, or interference from other equipment. For pendant controls it is usually an open or severed cable conductor.

Fix: First try just the basics, change or charge the battery in the transmitter, make sure it has a clear line of sight to the receiver, and power-cycle (reboot) the transmitter. If it still isn’t working, the fault is most likely in the receiver inside the pendant wiring, and you need to call a technician.

Prevention: Always repair a safety interlock or other control system that is not functioning do not just ignore a monitor and “keep working.” This is one of the leading causes of “minor” problems resulting in serious accidents. Make battery and cable checks part of the normal maintenance.

8. Motor Overheating and Failure

Symptoms: Excessively hot motor housing, decreased raising or traveling speed, abnormal noise or the motor repeatedly tripping out its overload.

Causes: Excessive loading of crane. Running the crane over rated capacity. Operating the crane too rapidly, that is starting and stopping more frequently than allowed with insufficient time to cool, unbalanced three phase supply voltage, worn bearings and windings from age and service it has received.

Solution: Be sure to let the motor cool down and check the load and duty cycle which was happening just before the motor overheated. If the motor overheats again with no obvious load problem then the motor’s windings and bearings should be tested and check the three phase voltages as imbalanced voltages is a very typical but often missed reason for the stress to the motor.

Prevention: Use motor overheating protectors and takeover requirements into account, don’t operate the crane perpetually above its class rating. Clean motors and inspect them monthly.

9. Gearbox, Coupling, and Abnormal Noise or Vibration

Symptoms: Grinding, knocking or whining noise while running; shaking or vibration while traveling or lifting; or apparent oil leakage from gearbox seals.

Causes: Worn gears from age and duty cycle, low or contaminated lubricant, misaligned couplings or loose mounting bolts, permitting parts to move under load.

Fix: For oil leaks, replace worn seals and bolt up the housing firmly. If the gearbox is making a lot of noise or vibrating, check gear teeth and coupling alignment; while it may seem easier at the time to run the crane with gearbox damage, this will lead to an immediate, more costly breakdown.

Prevention: Adhere to the manufacturer’s lubrication schedule carefully, as both lack of and excess of lubrication can speed up gear wear. Monitor any new or changing noise as a maintenance item rather than a reason to continue operating.

10. Limit Switch Malfunctions and Hoist Over-Travel

Symptoms: The hoist doesn’t stop at end of travel, the travel limits activate prematurely or irregularly, or the crane keeps moving after the operator releases the control close to a limit.

Possible causes: A worn or defective limit switch, a switch blocked by debris, a wiring fault interrupting the switch signal to the control system.

Fix: During regular inspection all limit switches should be tested and any that do not activate reliably should be reset or replaced. Over-travel is a major safety risk; malfunction of a limit switch on the upper travel end of a hoist could lead to equipment damage or to loads slipping.

Prevention: Include limit switch testing in each pre-operational shift check, rather than periodic maintenance, since it is one of the few failure modes where the result (over-travel) can occur on the very next lift.

Quick-Reference Bridge Crane Troubleshooting Table

Problem	Key Symptom	Likely Cause	Recommended Fix	DIY or Call a Pro?
Wire rope damage	Birdcaging, broken strands	Overload, abrasion, corrosion	Replace rope immediately	Pro (load-rated part)
Bent/cracked hooks	Visible deformation	Overload, side-loading	Replace hook	Pro (load-rated part)
Brake failure	Load drifts after release	Worn linings, contamination	Replace/adjust brake	Pro
Wheel wear/misalignment	Scraping noise, uneven tread	Normal wear, hardness mismatch	Replace wheels, check alignment	DIY inspect / Pro repair
Crane skewing	Crabbing, grinding at end trucks	Traction imbalance, runway wear	Runway alignment inspection	Pro
Electrical faults	Fuses blow repeatedly	Conductor bar/collector wear	Isolate and repair circuit	Pro
Control failures	Unresponsive or jerky movement	Dead battery, interference, worn cable	Charge battery, reboot, inspect cable	DIY first step / Pro if persists
Motor overheating	Hot housing, reduced speed	Overload, voltage imbalance	Cool down, test windings/voltage	Pro
Gearbox/coupling noise	Grinding, vibration, oil leak	Worn gears, low lubricant	Reseal, relubricate, realign	DIY lube / Pro for gear repair
Limit switch malfunction	Hoist doesn’t stop at limit	Worn switch, debris, wiring fault	Recalibrate or replace switch	Pro

Building a Preventive Maintenance Program to Prevent These Problems

A strong preventive maintenance program is built around three inspection tiers, matching the framework required under OSHA 29 CFR 1910.179:

1. Daily/shift inspections.Operators visually and operationally check wire rope, hooks, brakes, limit switches, and controls before every shift. This step catches the vast majority of the symptoms described above while they’re still minor.
2. Periodic (monthly) inspections.Maintenance staff perform a deeper check of wheels, conductor bars, lubrication levels, and brake wear — items that degrade gradually rather than failing suddenly.
3. Annual inspections.A qualified technician performs a full structural, mechanical, and electrical inspection, including load testing where applicable. This tier catches fatigue and wear that wouldn’t be visible in routine checks.

To make the program effective rather than just compliant on paper:

• Log everything.Document symptoms, diagnostic steps, and repairs for every incident — recurring failures on the same component point to a root cause that hasn’t been addressed yet.
• Stock critical spare parts.Wheels, fuses, contactors, and brake linings are predictable wear items; keeping them in inventory turns a multi-day repair into a same-day fix.
• Train operators on basic troubleshooting.Operators who can recognize early warning signs (unusual noise, drift, scraping) catch problems faster than any inspection schedule alone.
• Match maintenance frequency to duty cycle.A crane running multiple shifts a day in a harsh environment needs more frequent checks than a lightly used unit — don’t apply a one-size-fits-all schedule.

DIY Fix vs. Calling a Professional Crane Service

Not every bridge crane problem needs a service call, but several should never be handled in-house. Use this framework to decide:

Safe for trained in-house staff:

• Visual inspections and shift-start checks
• Replacing fuses, batteries, and pendant cables
• Lubrication per the manufacturer’s schedule
• Cleaning conductor bars and removing debris from runways

Requires a certified crane technician:

• Any load-rated component replacement (wire rope, hooks, slings)
• Brake adjustment, repair, or replacement
• Structural repairs to the bridge, runway, or end trucks
• Electrical diagnostics beyond simple fuse/battery replacement
• Annual load testing and certification inspections

If you’re ever unsure which category a problem falls into, default to calling a professional. The cost of a service call is always lower than the cost of a structural failure, a dropped load, or an OSHA violation from improperly performed repairs.

Henan Mine Crane Factory Custom

When a bridge crane problem occurs, what we need to do is not only repair faults but also real service to keep the equipment under well-maintained, considering its working conditions. Henan Mine Crane Factory here supply bridge crane systems, spare parts and the technical support on relevant installation&operation demands.

We provide a full line of overhead crane equipment, critical parts and ancillary products. We thrive on providing the right product for the right application and environment. Whether you are embarking on a new overhead crane project, or searching for replacement parts, Henan Mine Crane Factory is available to help you find the most appropriate product and information to meet your requirements.
