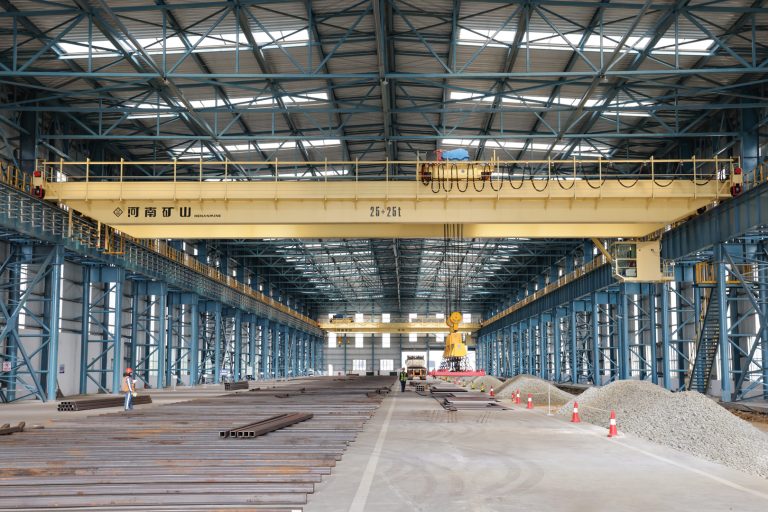

  • Automatic Electromagnetic Hanging Girder Crane

    Automatic Electromagnetic Hanging Girder Crane

    Automatic Electromagnetic Hanging Girder Crane

    Henan Mine Crane Factory Automatic Electromagnetic Hanging Girder Crane Product Introduction

    Henan Mine Crane Crane manufactured full-automatic electromagnetic hanging girder cranes, designed for the global intelligent manufacturing workshop, automated production lines and other scenes, is the company’s independent research and development of high-end intelligent lifting equipment. With high automation, high safety, high-precision positioning, multi-mode operation as the core, in line with the development trend of digitalization, customization and greening, it can realize fully automated operations, and is the core choice of intelligent factories to reduce costs and improve efficiency.

    The equipment breaks through the traditional mode of operation, integrates a number of leading technologies, and has significant core advantages:

    Rigid guide column anti-shaking, millimeter-level accurate positioning

    Equipped with rigid guide column anti-shaking system, it solves the problem of shaking lifting, realizes millimeter-level positioning, accurately connects with the production line transfer demand, and greatly improves the operation efficiency, which is the benchmark product of this category.

    Dual-motor safety design, double protection is more reliable

    Adopting dual-motor configuration for lifting, it supports one-key seamless switching, and the standby motor starts instantly when the main motor fails, which eliminates potential safety hazards and meets the requirements of high safety standard operation.

    Equipped with electro-permanent magnet spreader, instant charging, permanent magnetization, no need for additional blackout magnetization system, simplify the structure, reduce energy consumption and maintenance costs, and avoid the risk of loss of magnetization during power failure.

    Intelligent Scheduling, Improve Efficiency in Nearby Operations

    It supports fully automatic operation and intelligent interaction, and can be connected to the MES system to realize unmanned operation, and has the function of automatic avoidance and nearby scheduling of the same cross-traffic to solve the problem of equipment interference.

    Multi-mode operation, adapting to multiple scenarios

    Covering ground, remote control and long-distance operation modes, it can be switched flexibly to adapt to short-distance control and long-distance unmanned operation to meet the diversified needs of intelligent manufacturing and intelligent warehousing.

    Cooperative Adaptation and Enterprise Strength

    Core adapted scenarios: adapted to intelligent manufacturing, intelligent warehousing, automotive parts and new energy battery production scenarios, in particular, to meet the strict requirements of international intelligent factories for automation and positioning accuracy.

    Enterprise strength endorsement: Henan Mine Crane is a leading enterprise of intelligent lifting equipment, with digital production lines and advanced R & D platform, products through the CE, ISO and other international certifications, overseas services covering five continents, can provide one-stop international solutions.

    Henan Mine CraneDiscuss your requirements ↗
  • Automated Container Gantry Crane

    Automated Container Gantry Crane

    Automated Container Gantry Crane

    Product Introduction of Henan Mine Crane’s Automated Container Gantry Crane

    Henan Mine Crane’s automated container gantry crane represents the company’s focus on developing intelligent heavy-duty equipment for demanding international logistics scenarios. Tailor-made for a national railway project, it has successfully completed load testing. Following landmark projects like Pakistan’s waste heat power generation and Congo’s mining operations, this crane stands as another flagship achievement in the company’s international market expansion. Positioned around “extreme cold resistance, triple efficiency, and full-process automation,” the equipment resolves industry pain points in high-latitude regions and international rail hubs—namely “low-temperature shutdowns, inefficiency, and heavy reliance on manual labor” during container handling. It delivers a one-stop intelligent loading/unloading solution for global high-latitude logistics hubs, cross-border rail freight stations, and international container yards.

    Henan Mine Crane  Automated Container Gantry Crane

    As a flagship achievement of Henan Mine Crane’s premium product strategy, this crane leverages the company’s global R&D and manufacturing capabilities. Designed for A8 heavy-duty duty cycle, it integrates specialized cold-weather adaptation technology, full variable-frequency drive systems, and intelligent automation control. It operates stably at -40°C (-40°F), achieves triple the lifting efficiency of conventional models, and enables automated container handling, crane status visualization, and integrated logistics information. With its robust international adaptability and stable performance, the product has passed multiple international standard certifications. It stands as a representative of China’s lifting equipment “going global,” earning worldwide market recognition.

    Henan Mine Crane  Automated Container Gantry Crane

    Core Technical Advantages



    1. Extreme Cold Adaptation, Global Stability: Core structures and components are crafted from specialized low-temperature-resistant materials. Enhanced through cryogenic strengthening and optimized sealing protection, they operate reliably at -40°C in high-latitude, frigid environments. This eliminates cold-induced mechanical jamming, electrical system failures, and hydraulic fluid solidification, meeting operational demands in global high-latitude, severe cold regions.
    2. A8 Heavy-Duty Standard, High-Frequency Heavy-Load Reliability: Designed to the highest A8 heavy-duty duty cycle standard for lifting equipment. Core components (motors, reducers, brakes) undergo heavy-load, high-frequency reinforcement, enabling sustained intensive operation. Achieves over 1,000 hours of continuous, fault-free operation, perfectly matching the high-frequency container handling demands of international railway projects.
    3. Triple Efficiency Breakthrough, Accelerated Logistics Turnover: Optimized drive systems and operational logic, combined with full variable-frequency drive technology, deliver significantly higher operating speeds and operational continuity than conventional models, directly tripling handling efficiency. A single unit processes over 450 TEU daily—200 TEU more than traditional equipment—dramatically reducing cargo turnaround time and boosting hub throughput capacity.
    4. End-to-End Intelligent Control for Efficient Management and Operations: – Equipped with ACCS automated control system enabling fully unmanned container pickup, stacking, and loading/unloading operations, reducing labor dependency and operational errors; GPS high-precision positioning system achieves ±3mm accuracy, ensuring collision-free loading/unloading; full variable-frequency drive and energy feedback system delivers energy savings while maintaining stable operation; crane status visualization and integrated logistics information enable real-time synchronization of equipment data with logistics information, facilitating remote management and scheduling.

      Henan Mine Crane  Automated Container Gantry Crane

    Suitable Scenarios & Benchmark Cases



    • Core Applications: Widely deployed in international rail freight hubs, high-latitude container yards, cross-border logistics parks, and frigid port terminals. Supports automated loading/unloading, stacking, and transfer operations for standard 20ft and 40ft containers. Particularly suited for international logistics projects demanding extreme cold resistance, high-frequency operations, and advanced automation.
    • Benchmark Case Endorsement: Successfully secured a national railway international project and completed load testing. Previously served multiple Belt and Road flagship projects including Pakistan’s waste heat power generation, Congo’s mining operations, Bangladesh’s power plants, and Serbia’s copper industry. Similar technology equipment operates stably across diverse complex overseas conditions, earning high recognition from international clients and validating the product’s global adaptability.

    Corporate Strength Endorsement

    As a leading Chinese crane manufacturer advancing internationalization, Henan Mine Crane is comprehensively upgrading from strength to excellence. We consistently pursue a premium strategy and enhance technological innovation. The company possesses over 3,500 advanced processing units, enabling full-chain capabilities in R&D, manufacturing, and commissioning of specialized lifting equipment—including automated and sub-zero temperature adaptations. Our products hold multiple international certifications (CE, ISO, etc.), with an overseas service network spanning Asia, Europe, and Africa. We continuously introduce high-quality lifting equipment to international markets, driving the high-quality development of China’s lifting machinery industry.

    Henan Mine Crane  Automated Container Gantry Crane

    Henan Mine CraneDiscuss your requirements ↗
  • Aerospace-Specific Downward-Rotating Crane

    Aerospace-Specific Downward-Rotating Crane

    Aerospace-Specific Downward-Rotating Crane

    Henan Mine Crane’s Aerospace-Grade Under-Rotation Crane Product Introduction

    The aerospace-grade under-rotation crane is an innovative lifting solution engineered for high-end precision heavy-load applications worldwide.

    As a core product of China Aerospace’s long-term strategic partnership, this series of under-rotating cranes is positioned around high precision, dual-hook independent innovation, modular intelligent design, and full-scenario safety adaptation. It comprehensively addresses industry pain points in aerospace, defense, and high-end manufacturing—such as handling precision composite components, heavy-load positioning accuracy, and efficient safety operations—delivering trusted aerospace-grade precision lifting solutions for globally demanding clients.

    Core Technical Advantages

    1. Aerospace-grade precision control below 1mm: Proprietary dual-hook design integrates aerospace-specific laser positioning modules and closed-loop variable-frequency control systems, achieving measured positioning accuracy ≤0.8mm to meet stringent aerospace operational standards.
    2. Modular Design + Finite Element Structural Optimization: Core load-bearing components are optimized through finite element analysis, utilizing high-strength specialty steels. This enhances structural stability while maintaining heavy-load capacity, enabling 24/7 high-frequency operations.
    3. Highly Informed Intelligent Control: Integrated intelligent data monitoring and traceability systems collect real-time core data—including load, positioning accuracy, and equipment status—enabling full lifecycle digital management.
    4. Aerospace Field Validation + Industry Gap Filling: As the first down-rotating crane applied in aerospace, it has successfully completed load tests for aerospace clients and been deployed for handling core components of solid rocket motors. Following the 160t+160t explosion-proof double-girder bridge crane, this further demonstrates Henan Mining’s innovative breakthrough capabilities in specialized aerospace lifting equipment.

    Collaborative Endorsements & Compatible Scenarios

    Core Collaborative Endorsements: Long-term strategic partner of the Xi’an Aerospace Composite Materials Research Institute (Fourth Academy, China Aerospace Science and Technology Corporation); successfully completed load testing for aerospace-grade downward-rotating cranes, filling an application gap in the aerospace sector.

    Global Application Scenarios: Aerospace rocket engine development workshops, spacecraft composite component production bases, defense precision component machining plants, high-end composite material manufacturers, large equipment assembly plants, and other facilities—particularly suited for international high-end precision manufacturing projects demanding stringent control accuracy, structural stability, and operational safety.

    Corporate Strength Endorsement

    Henan Mine CraneDiscuss your requirements ↗

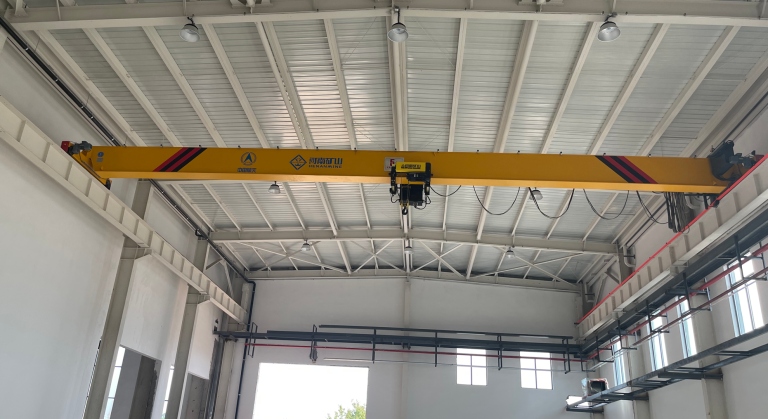

  • Aerospace-Specific Bridge Cranes

    Aerospace-Specific Bridge Cranes

    Aerospace-Specific Bridge Cranes

    Henan Mine Crane Aerospace-Grade Bridge Crane Product Introduction

    Henan Mine Crane manufactured aerospace-grade large-span, high-precision cranes represent premium heavy-duty lifting equipment. Tailored for demanding global applications in aerospace engineering, defense manufacturing, and high-end production, they serve as the benchmark product designated by the Fourth Academy of China Aerospace Science and Technology Corporation as its core crane supplier.

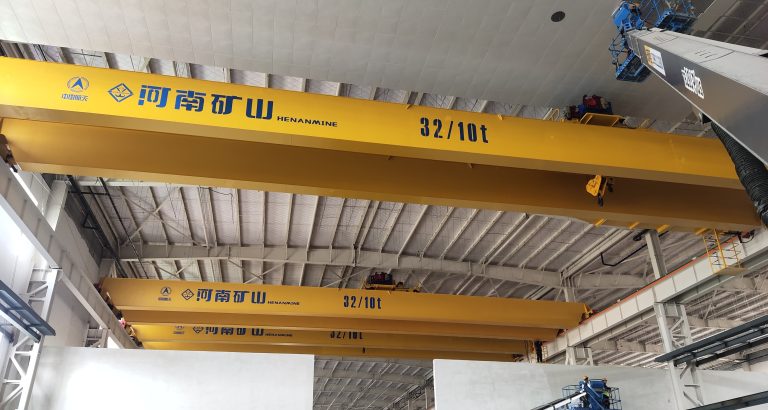

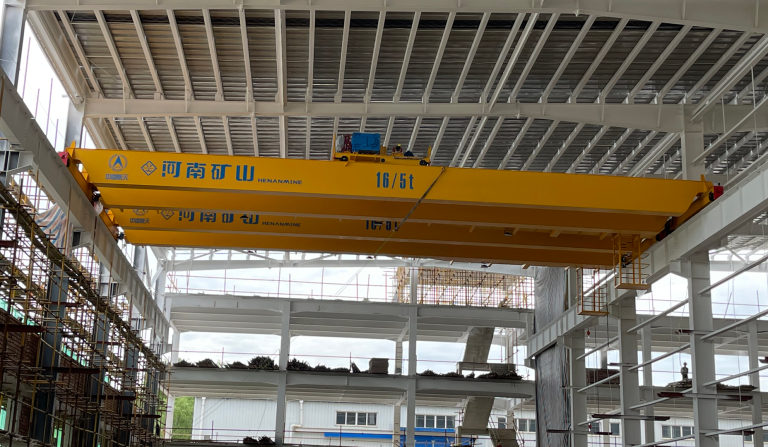

    This series encompasses multiple core models including 50t, 16/5t, 32/10t, and 160t+160t bridge cranes, deeply tailored to handle the lifting demands of aerospace core components such as composite shells for solid rocket motors and spacecraft structural sealing systems.

    Core Technical Advantages



      1. Aerospace-Grade Long-Span Adaptation Technology: Optimized for large-space operations in aerospace facilities and high-end manufacturing workshops, this technology enhances main girder structural design. It ensures stability during long-span operations while reducing structural weight and improving load-bearing efficiency, meeting column-free operation requirements in various large-scale facilities.
      2. Micron-Level Precision Control: Enables handling of high-precision, high-value materials like composite casings for solid rocket motors and spacecraft sealing components, meeting stringent aerospace-grade operational standards.

    Multi-Model Full-Scenario Coverage: Accommodates diverse lifting demands from small-to-medium aerospace components to super-heavy engine casings; supports customizable lifting heights and universal lifting tool types tailored to customer site layouts and operational processes.

    1. Aerospace-Grade High Reliability Assurance: Core components undergo specialized reinforcement for high-frequency aerospace operational conditions, achieving zero-failure operation during Shenzhou-17 mission support.
    2. Full-Process Space Mission Adaptability: Seamlessly integrates with operational requirements from core component manufacturing and transfer to final assembly and debugging, aligning with mission milestones to enhance production efficiency.

    Collaborative Endorsements & Application Scenarios

    Core Collaborative Endorsements: Key lifting equipment supplier for the Fourth Academy of China Aerospace Science and Technology Corporation; supported major missions including the successful launch of the Shenzhou-17 manned spacecraft, lunar exploration, BeiDou navigation, and Mars exploration.

    Global Application Scenarios: Space rocket final assembly workshops, spacecraft core component production bases, defense industry heavy equipment manufacturing plants, high-end composite material manufacturers, large-scale equipment assembly facilities, etc. Particularly suited for international high-end aerospace projects, defense research, and premium manufacturing initiatives demanding stringent requirements for span, precision, and reliability.

    Corporate Credentials

    We provide one-stop solutions including multilingual technical support, international logistics coordination, overseas on-site installation and commissioning, and operator training, consistently delivering aerospace-grade lifting equipment and worry-free services to global clients.

    Henan Mine CraneDiscuss your requirements ↗

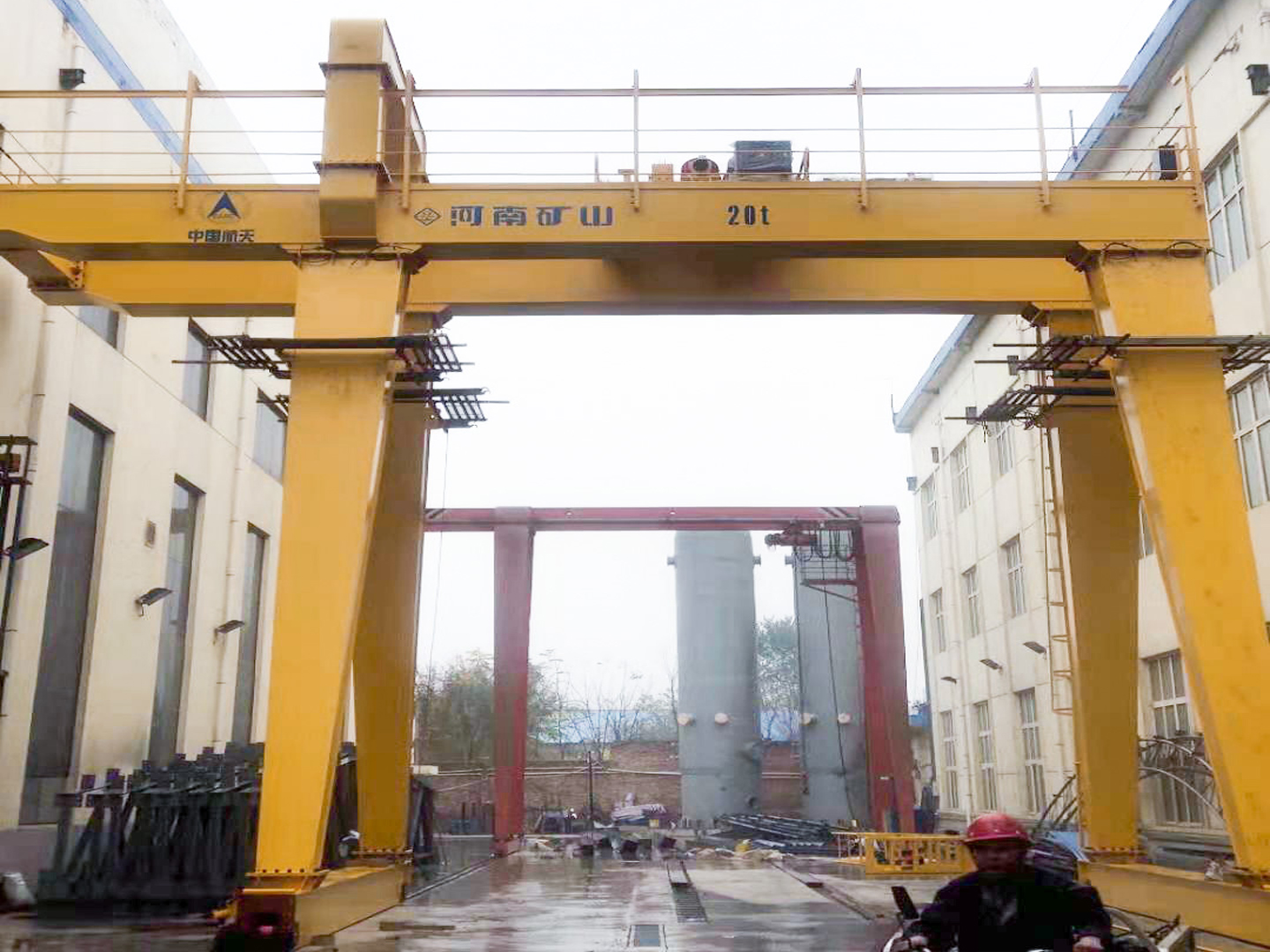

  • Aerospace-Grade Customized Crane

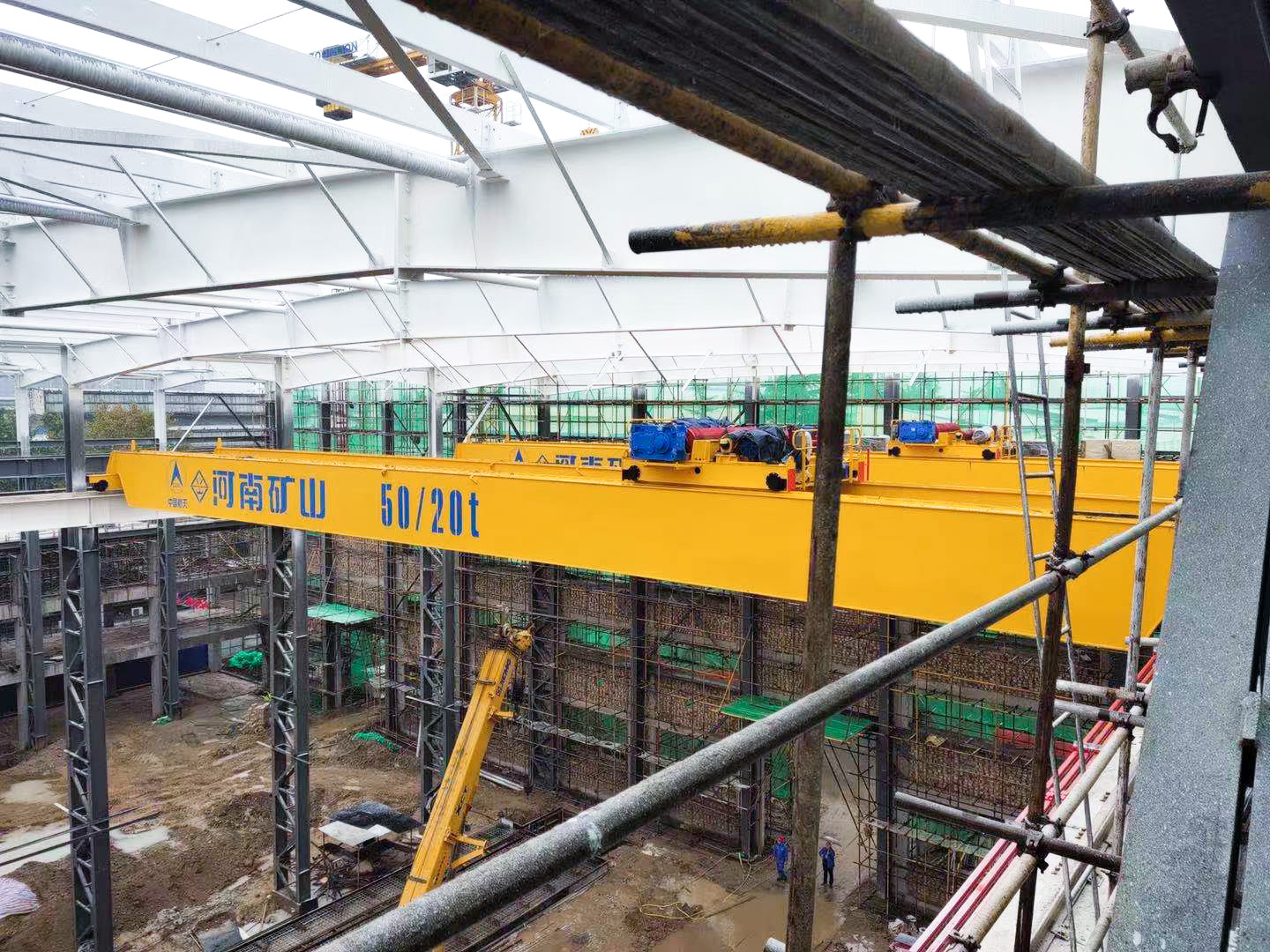

    Aerospace-Grade Customized Crane

    Aerospace-Grade Customized Crane

    Henan Mine Crane Aerospace-Grade Customized Crane Product Introduction

    As a long-term strategic partner of China Aerospace, we have supplied over 62 units of various crane models, effectively resolving industry pain points such as “precision component handling errors, tight project timelines, and challenges in adapting to extreme operating conditions” in high-end manufacturing. This has established us as the trusted choice for globally demanding clients.

    Adhering to the stringent quality control standards of China Aerospace, this crane series follows aerospace-grade quality control systems from R&D and design through production and delivery. Experts from the China Aerospace Science and Technology Corporation (CASC) conducted an on-site inspection at our factory, granting high recognition to our production environment, machining equipment, process flows, and quality management.

    Core Technical Advantages



    1. Aerospace-Grade Precision and Reliability: Equipped with high-precision variable frequency control systems and wear-resistant track designs, achieving positioning accuracy of ±2mm. Capable of stable handling of high-risk, high-value materials such as aerospace core components and precision mechanical assemblies, meeting demands for high-frequency, high-intensity operations.
    1. Comprehensive Customization Capabilities: Tailored models ranging from 5 to 500 tons, with varied spans and lifting heights, are available based on client site layouts, operational processes, and material specifications. Suitable for diverse environments including heat treatment workshops, precision manufacturing plants, and research laboratories, with support for specialized functional customization.

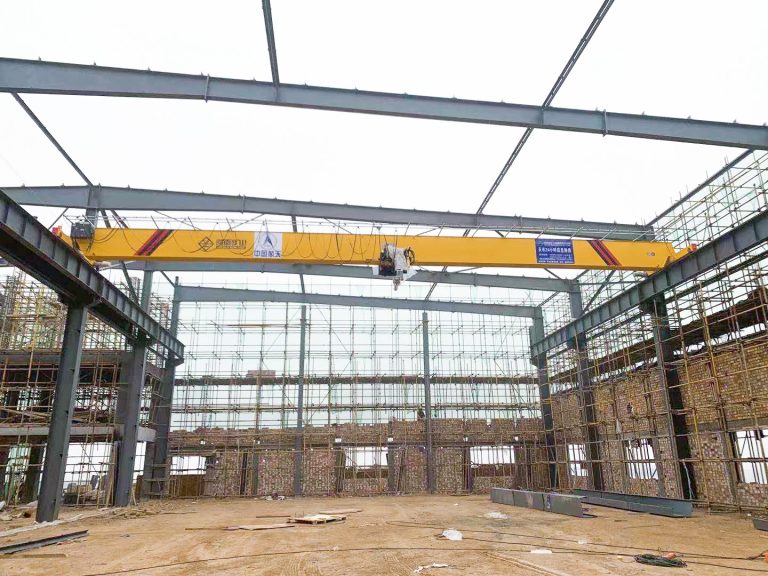

    2. Rapid Delivery and Efficient Adaptation: Leveraging intelligent production facilities and modular design, the shortest production cycle can be compressed to 35 days, significantly reducing project implementation time. Equipped with quick-connect aviation plug wiring and modular installation solutions, on-site commissioning is highly efficient, enabling swift integration into customer production workflows.
    3. Stringent Quality Control & Authoritative Endorsements: Adhering to ISO 9001 quality management systems and China Aerospace-specific standards, our “Triple Inspection” process is validated by on-site audits from the China Aerospace Science and Technology Corporation and officially recognized by the Xi’an Aerospace Composite Materials Research Institute through letters of appreciation, ensuring traceable quality.

    Collaborative Endorsements and Application Scenarios



    Core Collaborative Endorsement: Long-term provider of lifting equipment solutions for the China Aerospace Science and Technology Corporation, with over 62 units delivered for critical processes including aerospace component manufacturing, heat treatment, and final assembly.

    Global Application Scenarios: Widely deployed across aerospace engineering, defense R&D, high-end equipment manufacturing, precision electronics, and new materials development. Particularly suited for international high-end manufacturing projects demanding stringent precision, reliability, and delivery cycle requirements.

    Corporate Strength Guarantee

    Henan Mine Crane possesses an intelligent production industrial park and globally leading processing equipment, offering full-chain service capabilities from R&D and custom design to manufacturing, installation, and commissioning. We have established a global customer service system providing multilingual technical support, international logistics coordination, and overseas installation guidance—delivering worry-free, reliable collaboration experiences worldwide.

    Henan Mine CraneDiscuss your requirements ↗
  • 700T Gantry Crane for Super Bridge Projects

    700T Gantry Crane for Super Bridge Projects

    700T Gantry Crane for Super Bridge Projects

    Henan Mine Crane  700-ton Gantry Crane for Super Bridge Engineering

    Henan Mine Crane  700-ton gantry crane, specifically engineered for super bridge projects worldwide, serves as the core lifting equipment for constructing steel towers of monumental bridges. Positioned around “ultra-high load capacity, precision reliability, energy efficiency, and strong adaptability,” this equipment resolves industry challenges in super bridge projects—such as the difficulty of lifting large-tonnage components, poor stability during high-altitude operations, and stringent requirements for span-to-lift-height compatibility. It delivers a one-stop heavy-lift solution for world-class river and ocean-spanning bridges, large-scale infrastructure projects, and other major undertakings.

    Developed using modern computer technology, this 700-ton gantry crane represents a heavy-duty, long-span, high-lift engineering gantry crane. It integrates advanced domestic configurations, new materials, and innovative processes, embodying four core characteristics: lightweight design, universal applicability, high technological sophistication, and energy efficiency. Its 700-ton ultra-high rated lifting capacity effortlessly meets the hoisting demands for the 350-meter-tall main steel tower of the Zhangjiagang Yangtze River Bridge. With its exceptional quality, it has become the “equipment of choice” for major national projects in bridge construction, military, and aerospace sectors, showcasing Henan Mine Crane’s top-tier R&D and manufacturing capabilities in heavy-duty lifting equipment.

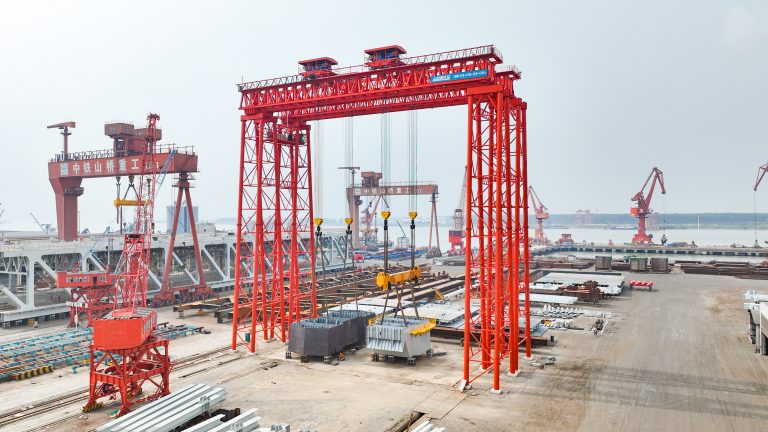

    Henan Mine Crane  700t Gantry Crane for Super Bridge Projects

    Core Technological Advantages

    1. Super-heavy Load Capacity, Tailored for Mega-Projects: With a rated capacity of 700t, its core structure utilizes high-strength new materials. Optimized through finite element analysis and validated by rigorous type testing, it offers ample safety margins. This crane reliably handles the lifting, transportation, and precise positioning of heavy components like 500-650t-class main bridge steel towers and large-span segments, fully meeting the core lifting demands of mega-bridge projects.
    2. Long Span + High Lifting Height, Flexible Adaptation to Scenarios: Featuring a modular design with extended span and lifting height capabilities, standard spans cover 40-60m while lifting heights reach 80-100m. Parameters can be flexibly adjusted based on bridge site layouts and component dimensions, effortlessly covering the full range of lifting operations for tall main steel towers. Paired with a high-precision laser positioning system, lifting alignment error is ≤5mm, ensuring installation accuracy for heavy components and laying a solid foundation for project quality.
    3. Lightweight Design: Cost-Effective and Robust: Modern computer simulation technology optimizes structural layout, achieving equipment weight reduction while maintaining load-bearing strength. Compared to traditional cranes of equivalent tonnage, self-weight is reduced by over 10%, effectively lowering foundation load requirements and indirectly saving infrastructure investment costs. Simultaneously, torsional resistance is enhanced by 20%. Validated through 1.25 times overload testing, it fully meets stability demands for long-term high-intensity operations.
    4. Energy Efficiency + Advanced Craftsmanship: Durable and Economical: Incorporating variable frequency speed control and energy recovery technology, electrical energy is reclaimed during component descent and braking. This achieves over 15% energy savings compared to traditional equipment of the same tonnage, aligning with green infrastructure development principles. Utilizing new processes like high-precision welding and full annealing, combined with fatigue-resistant and corrosion-resistant materials, the machine achieves an average mean time between failures (MTBF) exceeding 8,000 hours. This significantly enhances equipment durability and reduces operational and maintenance costs.

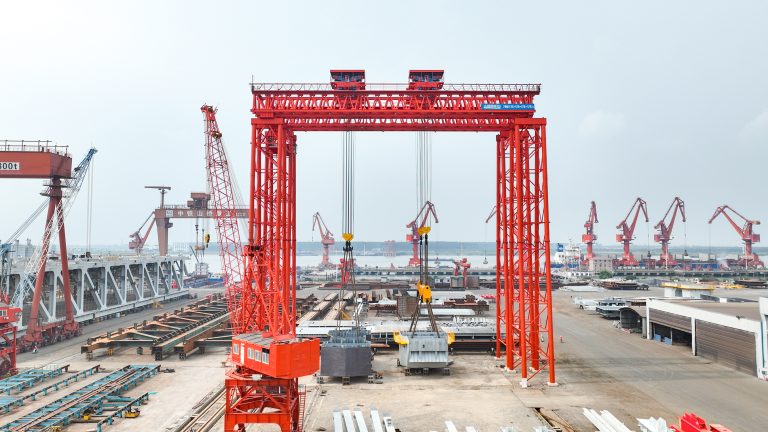

      Henan Mine Crane  700t Gantry Crane for Super Bridge Projects

    Suitable Scenarios & Benchmark Cases

    • Core Applications: Engineered for super-scale bridges, large river/sea crossings, and heavy infrastructure projects. Designed for lifting, transporting, and installing ultra-heavy components like main steel towers, large-span bridge segments, and heavy steel structures. Especially suited for demanding scenarios involving “high tonnage, long spans, great lifting heights, and complex high-altitude operations.”
    • Benchmark Case Endorsements: Successfully adapted for steel tower hoisting at Zhangjinggao Yangtze River Bridge (main steel tower height: 350 meters), passing type testing; Previously served multiple national key bridge projects including Jianzhou Bridge, Changtai Yangtze River Bridge, and Ma’anshan Yangtze River Road-Rail Bridge. With stable operational performance and precise lifting capabilities, it has earned high recognition from all project owners, establishing itself as the “preferred brand” equipment in bridge engineering.

      Henan Mine Crane 700t Gantry Crane for Super Bridge Projects

    Corporate Strength Endorsement

    Henan Mine Crane has become the “preferred brand” for national key projects in bridge construction, military, aerospace, and other sectors through its superior product quality, stable and reliable performance, and leading technological advantages. The company possesses full-chain capabilities in R&D, manufacturing, and commissioning of heavy-tonnage lifting equipment, equipped with advanced production facilities and stringent quality control processes. Every stage from design to delivery adheres to “premium standards.” For years, it has provided core equipment support for major national projects, driving the high-quality development of China’s lifting industry through its intelligent manufacturing expertise.

    Henan Mine CraneDiscuss your requirements ↗
  • 50+50T Slab Clamping Crane

    50+50T Slab Clamping Crane

    50+50T Slab Clamping Crane

    50+50T Slab Clamping Crane from Henan Mine Crane Factory

    Product Introduction

    Henan Mine Crane manufactured 50 + 50T slab clamp crane, designed for the global steel metallurgy high temperature material handling scenarios, the equipment to electric adjustment and positioning of the slab clamp as the core, integrated with a number of sets of intelligent control and monitoring technology, is the core of the metallurgical steelmaking chain of intelligent cranes and equipment.

    As an innovative product in the field of metallurgical cranes, the crane deeply fits the industry’s “large tonnage, large span, high speed, automation” development trend, and achieves multiple breakthroughs in technology and function, with significant core advantages.

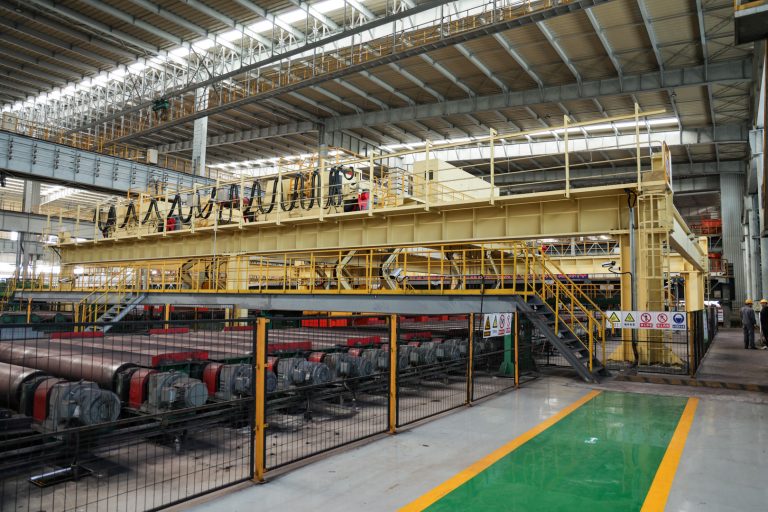

    Special adaptation technology for high-temperature working conditions

    For high-temperature slab lifting scenarios in steel mills, the equipment adopts high-strength heat-resistant materials, which can withstand high-temperature radiation of more than 650℃ and prolong its service life. Equipped with advanced digital speed control and precise guiding device, it ensures smooth operation under heavy load and accurate positioning of slabs, solving the pain point of poor precision and rapid loss under high temperature working conditions.

    Intelligent configuration, reserved space for upgrading

    Integrated PLC control, accurate weighing, fault alarm and other intelligent modules, real-time collection of operational and material data, support for fault warning and traceability. It not only protects the current intelligent control, but also lays the foundation for subsequent automation upgrade, and helps metallurgical enterprises in intelligent transformation.

    Cooperative endorsement and adaptable scenarios

    Core cooperation endorsement: customized model for Rizhao high-quality goods base of Shanshan Iron & Steel; overcoming 650℃ high-temperature lifting problems; assisting the double increase in production efficiency; meeting the trend of automation and large-scale metallurgical lifting.

    Global application scenario: It is suitable for high temperature billet lifting in steel, non-ferrous metals and other metallurgical fields, especially to meet the demanding needs of international metallurgical projects in terms of high temperature resistance, high precision and intelligentization.

    Enterprise strength endorsement

    Our products have passed CE, ISO 9001 and other international certifications, and our overseas service network covers five continents, providing one-stop solutions such as multi-language support, international logistics, on-site installation and commissioning, etc. We continue to supply high-quality intelligent lifting equipment for global metallurgical enterprises.

    Henan Mine CraneDiscuss your requirements ↗
  • 40.5t Rail Mounted Container Gantry Crane for International Inland Port

    40.5t Rail Mounted Container Gantry Crane for International Inland Port

    40.5t Rail Mounted Container Gantry Crane for International Inland Port

    40.5t Rail-mounted Container Gantry Crane Exclusive Solution for International Dry Ports

    Program Overview

    This program is tailored by Henan Mine Crane for overseas international dry ports, railroad grouping stations and container logistics hubs, the core carrying 40.5t rail-mounted container gantry cranes, the integration of mature industrial control technology and intelligent loading and unloading design, to fully meet the cross-border logistics, the land-based logistics nodes of the Silk Road, efficient operational needs, stable and reliable container gantry cranes equipment, to help overseas customers to build a modernized, Highly efficient national logistics hub.

    Rail Mounted Container Gantry Cranes (RMG)

    the applicable scene

    Overseas international dry ports, railroad freight grouping stations, container transshipment yards, cross-border logistics distribution centers, logistics hubs along the land Silk Road and other types of cargo loading and unloading operation scenarios.

    Core products and technology configuration

    The core equipment of this program is 40.5t rail-mounted container gantry crane, the whole machine integrates a number of core technologies, all-round adaptability to the complex operating conditions of the dry port:

    1. Adopting frequency conversion speed control system with Siemens PLC control system, the equipment runs smoothly and accurately, with strong anti-interference ability, which can be adapted to long-term continuous high-intensity operation, and is the mainstream stable configuration in the field of rail-mounted Crane;
    2. Standard anti-sway system, combined with intelligent control algorithms, to achieve precise positioning of container lifting, to avoid cargo shaking offset from the source, significantly improving operational safety;
    3. Adopt ring trolley lifting mechanism, perfectly adapted to the complex lifting stations in dry ports, effectively improve the efficiency of container loading and unloading, and adapt to the needs of multi-scene turnover;
    4. With the upper and lower frame structural interchangeable spreaders, it can be quickly switched to adapt to different specifications of containers and goods to meet the diversified cargo handling needs of dry ports, and is a professional container handling equipment for dry ports.
    5. Rail Mounted Container Gantry Cranes (RMG)

    Program Core Advantages

    1. Exclusive customization: It is exclusively designed according to the site size, operation intensity and cargo type of overseas dry ports and railroad stations, which is fully adapted to the actual operation requirements;
    2. Intelligent and safe: the combination of anti-swaying system and precise positioning function reduces the difficulty of manual operation, reduces the safety hidden danger, and guarantees the stability of the whole process of operation;
    3. High efficiency and energy saving: frequency conversion technology reduces the energy consumption of the equipment, and the ring trolley mechanism optimizes the operation path, which significantly improves the turnover efficiency of the container yard;
    4. Universal adaptability: interchangeable spreader design is compatible with multiple types of goods, one equipment to meet a variety of loading and unloading needs, reducing customer equipment investment costs;
    5. Stability and durability: Mature mechanical structure and industrial-grade electronic control system, low equipment failure rate, convenient maintenance, suitable for long-term overseas operation and maintenance needs.Rail Mounted Container Gantry Cranes (RMG)

    Project Application and Value

    The program has been successfully landed in China YTO Dongfanghong (Luoyang) international dry port project, after the delivery of equipment to significantly improve the dry port container loading and unloading capacity and yard turnover efficiency, for the dry port to build a national logistics hub, to create a multi-billion open platform to provide the core equipment support. For overseas customers, this program can comprehensively help the international dry port to enhance logistics throughput capacity, improve cross-border logistics facilities, and deeply empower the logistics construction of the land-based Silk Road Economic Belt.

    Rail Mounted Container Gantry Cranes (RMG)

     customized service guarantee

    Henan Mine Crane provides a full chain of services from program design, manufacturing, installation and commissioning to after-sales operation and maintenance, for overseas customers to provide remote technical guidance, rapid supply of parts and other exclusive services to ensure the stable operation of 40.5t rail container gantry cranes for the operation of the customer’s logistics hub.

    Henan Mine CraneDiscuss your requirements ↗
  • 4 Girder Casting Crane Supplier by Henan Mine Crane Factory

    4 Girder Casting Crane Supplier by Henan Mine Crane Factory

    4 Girder Casting Crane Supplier by Henan Mine Crane Factory

    Product Introduction of Henan Mine Crane’s Four-Girder Casting Bridge Crane

    Henan Mine Crane’s four-girder casting bridge crane is a heavy-duty core equipment custom-designed for foundry workshops in steel and non-ferrous metal smelting industries. It precisely adapts to extreme operating conditions such as molten metal handling, ladle transfer, and casting lifting.

    Featuring a four-beam, four-rail, dual-trolley structure at its core, the equipment integrates intelligent welding techniques, multi-level safety redundancy design, and enhanced high-temperature protection. This addresses industry pain points inherent in traditional double-beam casting cranes—poor load-bearing stability, weak torsional resistance, and high-temperature failure susceptibility—delivering a safe and reliable material handling solution for 24/7 continuous heavy-duty operations in foundries.

    Henan Mine Crane’s Four-Girder Casting Bridge Crane

    Core Technical Advantages

    1. Four-beam, four-rail structure with stable load-bearing and high torsional resistance: Utilizing a four-beam, four-rail dual-trolley layout, the main beams are constructed from Q235B/Q345B high-strength steel. Optimized through finite element analysis, the structure exhibits superior stiffness under vertical and horizontal loads compared to LQ/1700, with strength ≤1000 kg/cm², far exceeding industry standard requirements. The trolley employs a balanced 20-wheel configuration with uniform wheel pressure distribution, effectively reducing structural steel costs for factory buildings.
    2. Full-process safety redundancy ensures secure molten material handling:
      The main hoisting mechanism employs a redundant design with dual motors, dual reducers, and quadruple braking. If one motor fails, the other can temporarily operate to complete the current cycle. Multiple safeguards include overload warning, forced power shutdown at 1.05 times load capacity, infrared temperature monitoring, and anti-collision systems. An upper limit switch on the power circuit prevents hook collisions with the body, eliminating molten metal splatter.
    3. Intelligent Manufacturing Processes Enhance Overall Reliability:
      The main girder welding employs industry-leading intelligent welding robots. Internal welds utilize MAG welding with a mixed shielding gas of Ar and CO₂, while external welds employ automatic submerged arc welding. All welds undergo radiographic testing and ultrasonic flaw detection to ensure welding quality, guaranteeing machining precision and service life.
    4. High-Temperature Adaptive Design for Enhanced Operating Environment
      The lower section of the main beam incorporates dual thermal insulation systems. An internal cooling fan maintains optimal operating conditions for electrical control equipment. The operator cab features a fully enclosed, insulated structure with integrated cooling fans/air conditioning. The large-format tempered glass front panel provides expansive visibility while blocking high-temperature radiation. Electrical system utilizes IP55-rated, H-class insulation YZR series metallurgical motors, adapted for foundry workshops’ high-temperature, high-dust conditions to effectively prevent component failure.
    5. Modular customization for diverse production needs
      Core parameters are customizable. Rated lifting capacities range from 125/32 to 320/80 tons, with spans ranging from 19 to 28.5 meters and lifting heights from 22 to 32 meters. The gantry hook supports both rotating and non-rotating configurations. Employing modular, equal-strength, equal-lifespan design, transmission and structural components are optimally matched for ease of maintenance. Customizable fully automated operation enables remote monitoring and fault diagnosis, supporting seamless integration with MES production systems. Operational efficiency improves by 32% compared to traditional equipment.

      Henan Mine Crane’s Four-Girder Casting Bridge Crane

      Application Scenarios

      Specifically engineered for core foundry processes, it is widely used in steel and non-ferrous metal smelting for transporting molten metals (steel/copper), casting, iron blending, lifting large castings, and mold handling. Operates in -30°C to 40°C environments, withstands long-term 1000°C radiation, meets A7 duty cycle standards, and supports continuous operation exceeding 8000 hours annually.

      Henan Mine Crane’s Four-Girder Casting Bridge Crane

      Benchmark Case Endorsement

      A customized 260/100t four-girder casting bridge crane for a major steel group meets the demands of its 12-million-ton-per-year steelmaking workshop. Post-commissioning, it achieved zero accident rate in molten metal handling, boosted operational efficiency by 32%, and reduced annual maintenance costs by 18%, establishing itself as a flagship equipment for the enterprise’s smart manufacturing upgrade. Leveraging the structural advantages and manufacturing capabilities of this product series, Henan Mining consistently provides customized solutions and spare parts services to major domestic metallurgical enterprises, earning widespread industry recognition.

      Henan Mine Crane’s Four-Girder Casting Bridge Crane

    Henan Mine CraneDiscuss your requirements ↗
  • 360 Ton Foundry Crane Custom

    360 Ton Foundry Crane Custom

    360 Ton Foundry Crane Custom

    Product Introduction of Henan Mine Crane’s 360t Foundry Crane

    The Henan Mine Crane 360t Foundry Crane is a super-heavy-duty material handling solution custom-engineered for large-scale steel and metallurgical enterprises’ heavy foundry workshops. It precisely addresses extreme operating conditions such as transporting 360t-class molten metals (steel/iron), casting massive components, and moving heavy molds.

    Henan Mine Crane’s 360t Foundry Crane

    Featuring a four-girder, four-rail, dual-trolley structure, the equipment integrates Q690 high-strength steel intelligent welding technology, multi-level safety redundancy design, and enhanced high-temperature protection. This eliminates industry pain points such as poor load stability, weak torsional resistance, high-temperature failure risks, and elevated safety hazards in ultra-heavy-duty casting cranes, enabling 24/7 continuous heavy-load safe operation.As Henan Mine Crane’s breakthrough product that disrupted state-owned enterprise monopolies, this model achieves industry-leading innovations in large-span, high-precision, and safety performance. It has been successfully delivered to benchmark projects like Jinsheng’an Group and operates reliably. Certified against multiple mandatory national standards including AQ7011—2018 “Safety Regulations for Lifting Molten Metals at High Temperatures” and and GB/T 14405-2011. It serves as core support equipment for intelligent, large-scale production in major foundries.

    Henan Mine Crane’s 360t Foundry Crane



    Core Technical Advantages

    1. Four-beam, four-rail reinforced structure with stable load-bearing and exceptional torsional resistance: Features a four-beam, four-rail dual-trolley layout. The main beams utilize Q690 high-strength low-alloy structural steel, optimized through finite element analysis. Simulated under 360t full load, off-center load, and high-temperature radiation conditions, it ensures uniform load distribution. Structural rigidity exceeds LQ/1700 standard requirements, with torsional resistance improved by 50% compared to traditional double-beam structures. The trolley employs a balanced 24-wheel arrangement, distributing wheel pressure evenly to significantly reduce structural load on the plant building and minimize retrofitting costs.
    2. Comprehensive Safety Redundancy, Fortifying Molten Metal Handling Defenses: The main hoisting mechanism features an ultimate redundant design with dual motors, dual reducers, and quadruple braking. Should a single motor or reducer fail, the other set can independently complete one full work cycle, ensuring safe molten metal placement. Wire ropes utilize GB/T 8918 standard wire rope core-specific models with a safety factor of 9:1 (far exceeding the industry standard of 5:1), maintaining safe load-bearing capacity even if two diagonal wires break. Multiple safeguards include 90% overload warning, forced power shutdown at 1.05 times rated load, infrared temperature monitoring, and collision avoidance alerts. The hoisting mechanism incorporates an upper limit switch on the power circuit to prevent molten metal splatter caused by hook collisions with the machine body.
    3. Smart Manufacturing Processes Enhance Overall Reliability: Main beam welding employs intelligent robotic dual-wire submerged arc welding. Internal welds utilize MAG welding with mixed Ar+CO₂ shielding gas. All welds undergo 100% radiographic and ultrasonic testing with 100% pass rate. Large structural components like drums and trolley frames undergo natural gas annealing to fully eliminate welding stresses. Wheels and axles receive high-efficiency quenching and tempering treatment, achieving HRC 38-42 hardness and 30% improved wear resistance. The machine’s mean time between failures significantly exceeds industry benchmarks.
    4. High-Temperature Precision Protection for Extreme Environments: To withstand foundry workshop temperatures exceeding 1000°C, the lower section of the main beam incorporates dual ceramic fiber insulation. An intelligent cooling fan system within the main beam maintains the electronic control equipment’s operating temperature ≤40°C.
    5. The electrical system employs IP55-rated, H-class insulated YZR series metallurgical motors with ≥125°C temperature resistance. Combined with sealed dustproof cooling modules, it effectively withstands high temperatures and dust corrosion. The fully enclosed, insulated operator cab features industrial-grade air conditioning and radiation-resistant tempered glass, ensuring a comfortable and safe working environment.
    6. Modular Customization + Intelligent Synergy for Diverse Applications: Core parameters are customizable to meet specific requirements. The gantry hook supports both rotating and non-rotating configurations, precisely adapting to layouts of heavy casting workshops of varying scales.
    7. Featuring modular, equal-strength, equal-lifespan design, transmission and structural components offer high interchangeability for simplified maintenance. Supports fully automated operation with remote monitoring and fault diagnosis systems, seamlessly integrating with enterprise MES production execution systems. Enables automatic task reception and real-time operational data upload, boosting efficiency by over 35% compared to traditional equipment.

      Henan Mine Crane’s 360t Foundry Crane

    Suitable Applications

    Specifically engineered for core processes in heavy casting workshops of large steel and metallurgical enterprises, it is widely applied in scenarios such as transporting 360-ton-class molten metals (steel and iron), casting massive components, handling heavy molds, and lifting finished products for storage. It operates in environments ranging from -30°C to 40°C and can withstand long-term exposure to 1000°C high-temperature radiation.

    with a duty cycle rating of A7, meeting the demands of continuous heavy-duty operations exceeding 8,000 hours annually.

    Henan Mine Crane’s 360t Foundry Crane

    Benchmark Case Endorsement

    The 360-ton four-girder casting crane manufactured for Jinsheng’an Group represents Henan Mine Crane’s landmark achievement in breaking state-owned enterprise monopolies within the heavy-tonnage casting crane sector. Precisely tailored to the production demands of its heavy casting workshop, the equipment has achieved zero accident rate in molten metal handling since commissioning, with monthly average failures below 1 instance. Operational efficiency increased by 35%, and reduced annual maintenance costs by 20%, earning high praise from the client. The successful delivery of this project fully demonstrates Henan Mine Crane’s core capabilities in R&D, manufacturing, and commissioning of ultra-large-tonnage casting cranes, providing a proven solution for similar industry projects.

    Henan Mine Crane’s 360t Foundry Crane

    Henan Mine CraneDiscuss your requirements ↗
