Choosing the wrong yacht crane load capacity is one of the most expensive mistakes a marina operator can make. Undersize the equipment and you turn away larger vessels or risk a critical safety incident; oversize it and you sink capital into concrete, tires, and hydraulics you don’t need. Marina cranes and travel lifts on the market today range from under 1 ton for small davits to well over 1,000 tons for shipyard-class travel lifts, so “capacity” is not a single number it’s a decision that depends on your vessel mix, growth plans, and site infrastructure.

This guide walks through exactly how to determine the right load capacity for a marina crane, covering crane types, the calculation methodology for capacity headroom, vessel-specific sizing factors, and the infrastructure that a given tonnage class requires.

What Load Capacity Actually Means for a Marina Crane

Every marina crane or travel lift is rated by its lifting capacity, expressed as a Safe Working Load (SWL) in metric or short tons. This figure already builds in a structural safety factor it is not the absolute point of mechanical failure but the maximum load the manufacturer certifies as safe under normal operating conditions.

It’s worth distinguishing gross capacity from net capacity. For heavier lifts, the difference matters: rigging gear alone can consume several tons of a crane’s rated capacity, so the true available load for the vessel itself is always somewhat below the number printed on the spec sheet.

For travel lifts specifically, capacity also interacts with the sling arrangement. A crane rated for 100 tons doesn’t mean each individual sling point can bear 25 tons independently uneven mass distribution, hull shape, and center of gravity mean load isn’t evenly spread across lifting points, which is why the full hoisting arrangement, not just the headline number, needs review.

Crane Types Used in Marinas and Their Typical Capacity Ranges

Marinas typically rely on a mix of equipment rather than one universal crane. Matching the type to the task avoids paying for capacity you don’t need on routine jobs.

Crane Type	Typical Capacity	Best For
Davit crane	Up to ~1.5 tons	Tenders, jet skis, dinghies; space-constrained docks
Jib crane	2.5–20 tons	Engine/gearbox removal, mast stepping, quayside component handling
Marine gantry crane	5–300 tons	Fixed-rail installations spanning a work area
Mobile boat hoist / travel lift	15–1,000+ tons	Full vessel haul-out, launching, and yard transport
Shipboard/knuckle-boom crane	10–200 tons	Cargo handling and onboard equipment transfer

Davit cranes are the most space-efficient option and are common on yachts themselves for launching tenders, but their lifting capacity is limited and they require secure anchoring against lateral forces. Jib cranes are the workhorse of daily marina tasks a single vertical column anchor-bolted to a concrete pad, with a horizontal boom that rotates to cover a working radius, ideal for jobs like engine servicing rather than full vessel extraction.

Mobile boat hoists (also called travel lifts) are a different category altogether. They straddle the vessel in a haul-out slip on a wheeled, self-propelled frame, pass slings under the hull, and lift the boat completely clear of the water. This is the equipment class that actually determines a marina’s maximum vessel size, since jib and gantry cranes handle components, not whole boats.

Matching Capacity to Your Marina’s Vessel Mix

The right tonnage class depends heavily on the type of facility you’re running:

• Small recreational marinas:dayboats, dinghies, entry-level cruisers usually see maximum vessel displacement under 15 tons, with most boats well below that. A hoist in the 15–30 ton range provides appropriate operational headroom without over-investing in infrastructure a small marina doesn’t need.
• Mid-size yacht service centers:handling sailing and motor yachts in the 12–30 meter range typically need equipment in the 35–75 ton bracket, which covers most monohull sailing yachts up to roughly 60 feet LOA and powerboats of comparable displacement.
• Superyacht and commercial shipyard operations: move into custom-engineered territory above 100 tons, with the largest travel lift platforms rated from 150 up to 1,500 metric tons for vessels like superyachts, tugs, and cargo ships.

Rather than sizing to your “typical” boat, size to the heaviest vessel you currently service or plan to service a single oversized haul-out request that you can’t fulfill costs you both the job and the client relationship.

Our engineering team supports customers from project consultation and equipment selection to manufacturing, installation guidance, and long-term after-sales service.

The Safety Margin Calculation

The core sizing formula used across the industry is straightforward:

Required Crane Capacity = Heaviest Vessel Displacement × (1 + Safety Margin %)

A minimum margin of 20% above the heaviest vessel’s full operational displacement is a common industry starting point, rising to 30% for marinas with strong growth ambitions or a vessel mix clustered near the top of a capacity class. In broader marine crane contexts, a 25% margin above the calculated load (inclusive of rigging weight) is a frequently cited baseline as well.

A related concept from crane safety practice: any lift that uses more than 75% of a crane’s net rated capacity is generally classified as a “critical lift,” requiring additional planning, inspection, and oversight before proceeding. Applied to marina sizing, this means your day-to-day heaviest vessel should ideally sit well under 75% of the crane’s rating not right up against it.

Worked example: If your heaviest current vessel displaces 40 tons, a 20% margin puts your minimum crane spec at 48 tons. Rounding up to the next standard model size (commonly 50 tons) keeps that lift at 80% of rated capacity still inside comfortable operating range, with headroom for a slightly heavier future vessel.

Vessel-Specific Factors That Affect Sizing

Tonnage isn’t the only variable. Several vessel characteristics change what a crane needs to handle physically, independent of raw weight:

• Draft depth:deep-draft sailing yachts with fin keels require slings to be positioned and managed at significant depth from the dock surface, which affects lift frame height and haul-out slip design, not just capacity.
• Beam width:modern yachts and catamarans are trending wider, which affects pier spacing and the inside clear width a travel lift needs to straddle the vessel.
• Hull shape and mass distribution:catamarans, trimarans, and vessels with uneven contents may require dual-point lifting or custom sling positions, placing asymmetrical loads on the crane structure that a simple tonnage rating doesn’t capture.
• Tidal range:variation in water level at the haul-out slip needs to be factored into sling positioning and access planning.

A crane sized correctly on tonnage alone can still be the wrong choice if it can’t physically accommodate these hull-specific factors.

Infrastructure Requirements at Different Capacity Levels

Capacity decisions and civil infrastructure decisions can’t be separated. A heavy-duty hoist concentrates enormous point loads onto a small number of tire contact patches, rather than distributing weight the way a standard vehicle does. That has direct construction implications:

• Runway thickness:typically scales from standard slabs up to 10–18 inches of high-PSI reinforced concrete for heavier hoist classes, with dense rebar grids required to prevent cracking under repeated loading.
• Geotechnical review:becomes necessary at higher capacities, since waterfront soil is often soft silt, clay, or reclaimed land that may need soil borings and, in some cases, deep pile foundations to prevent uneven settlement.
• Haul-out ramp specification:a reinforced ramp with a defined slope, typically in the 1:10 to 1:15 gradient range, along with load-rated hardstanding for vessel storage, is required for travel lift installations.
• Pier and slip clearance:must accommodate the widest vessels the facility intends to serve, factoring in the trend toward wider modern hulls.

Before committing to a capacity class, it’s worth budgeting the infrastructure cost alongside the equipment cost the crane purchase price is often the smaller of the two line items at higher tonnage levels.

Planning for Growth: Why Undersizing Costs More Long-Term

Vessel sizes across both recreational and commercial marine markets have trended consistently larger over recent decades, and a marina correctly specified for today’s fleet often finds itself needing higher capacity within the operational life of the equipment. A correctly specified boat hoist represents a 25-to-30-year capital investment, and the incremental cost of stepping up one capacity tier at initial purchase is consistently lower than retrofitting or supplementing undersized equipment later.

Practically, this means: if your analysis puts you between two standard capacity tiers, the growth-oriented choice is almost always to round up rather than down.

Environmental and Duty-Cycle Considerations

How often and how intensively a crane operates changes what capacity and build quality you actually need, beyond the raw tonnage figure. Light-duty, seasonal marinas can typically use smaller-capacity equipment with lower duty ratings, while commercial shipyards or high-throughput operations need continuous-duty systems built with stronger components and higher-powered drive systems to handle sustained daily cycling.

Marine environments also degrade equipment faster than land-based use. Saltwater exposure calls for corrosion-resistant construction and protective coatings, and in regions with high wind exposure, load charts and permitted lifting conditions may need to account for reduced safe capacity in gusty conditions.

Common Sizing Mistakes and How to Avoid Them

1. Sizing to the average boat instead of the heaviest one.A crane rated for your typical vessel will fail you the first time an outlier arrives.
2. Ignoring rigging weight.Slings, spreader bars, and hooks eat into net capacity verify the crane’s net rating, not just the gross figure.
3. Overlooking hull geometry.A tonnage-appropriate crane can still be wrong for a wide catamaran or deep-draft sailboat if frame height and slip width weren’t checked.
4. Underbuilding the infrastructure.A correctly rated crane on an undersized concrete runway is still a safety failure waiting to happen.
5. Skipping the growth calculation.Buying exactly to today’s fleet, with no margin, guarantees a costly upgrade cycle sooner than expected.

Conclusion

Terminal equipment selection should take into account the current use needs and future business, ship development trends, to ensure long-term investment returns.In the early stage of the project, we cooperated with professional lifting equipment manufacturers to accurately optimize the selection scheme, avoid installation hidden dangers, and eliminate the high cost of equipment upgrading and transformation in the later stage.

Henan Mine Crane specializes in marine lifting equipment manufacturing, providing customized lifting solutions for marinas, shipyards, ports and ship maintenance sites.The team can provide full-process services such as load calculation, equipment selection, structural design and project consultation, adapt to complex marine conditions, and create safe, efficient and durable lifting systems.

Specifying the wrong load capacity on an explosion-proof crane is one of the costliest and most avoidable mistakes in oil and gas and chemical plant procurement. Buy too little tonnage and you can’t handle a reactor internals swap during a turnaround. Buy too much, or the wrong duty class, and you’re paying a 20–50% explosion-proof premium on capacity you’ll never use, or running a crane that wears out years ahead of schedule.

What Is a QB Crane?

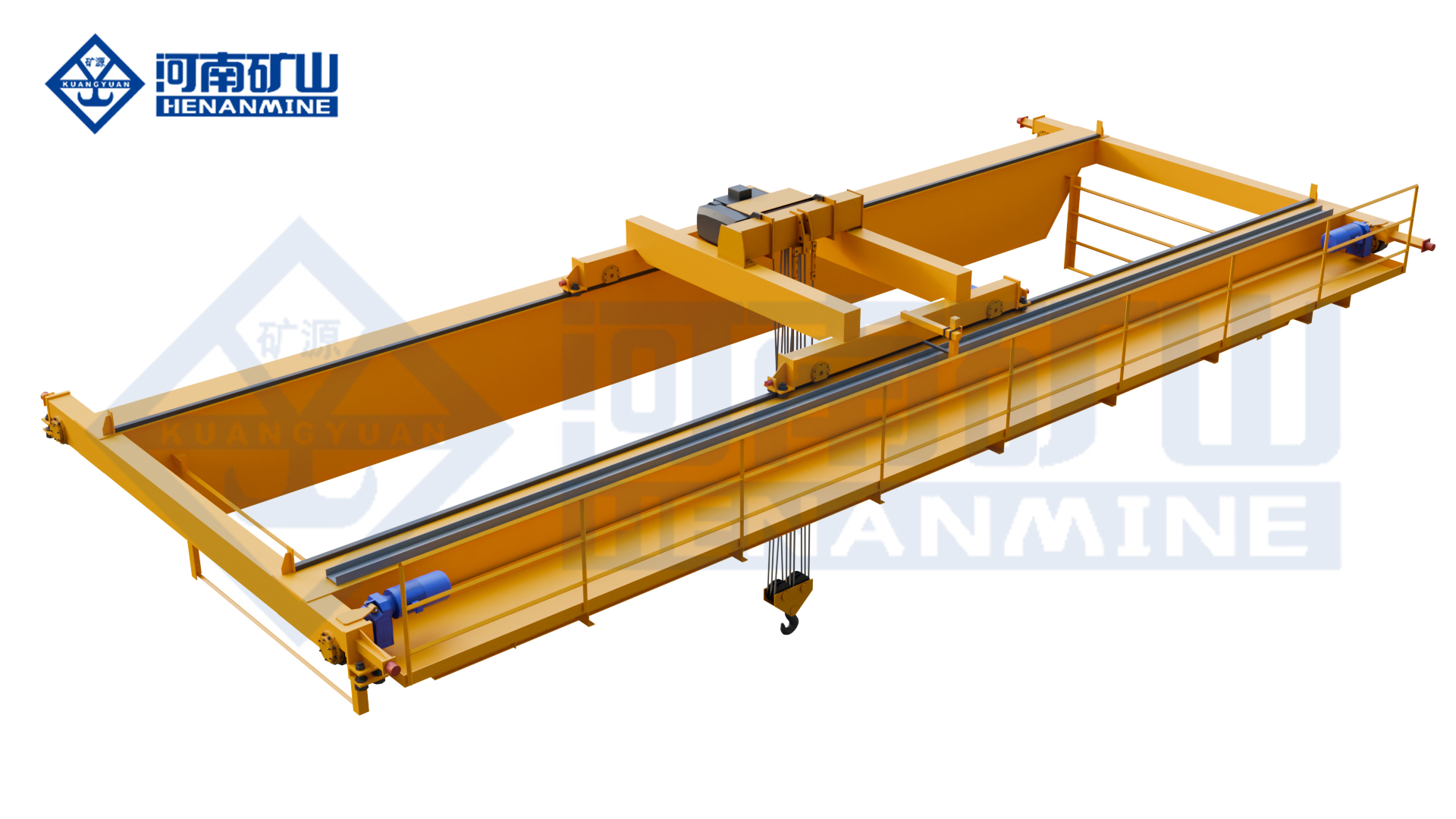

A QB crane is a double-girder, top-running overhead crane built with explosion-proof electrical components throughout motor, hoist, control panel, pendant, limit switches, and cable routing. The “QB” designation is standard across most Chinese and Asian crane manufacturers and denotes a flameproof (Ex d) double-girder bridge crane rated for use in classified hazardous areas.

QB cranes are certified to flameproof grades such as ExdIIBT4 or ExdIICT4. The “T4” indicates a maximum surface temperature of 135°C, low enough to avoid igniting the flammable atmospheres common in petroleum and chemical processing. The gas group IIB or IIC determines which specific gases the crane is rated to operate safely around, a distinction covered in more detail below.

Unlike a standard industrial overhead crane, every spark-capable component on a QB unit is either eliminated or enclosed to contain any internal ignition, preventing it from reaching the surrounding atmosphere. This is why QB cranes carry a meaningful cost premium over a standard double-girder crane of equivalent capacity and why getting the capacity specification right the first time matters so much.

QB Crane Standard Capacity Range: 5–75 Tons

Across manufacturers, the QB double-girder explosion-proof crane series is most commonly offered in the following standard range:

Specification	Standard Range
Lifting capacity	5 – 75 tons
Span	10.5 – 31.5 meters
Lifting height	6 – 18 meters
Hoisting speed	1.9 – 8 meters/minute (decreases as capacity increases)
Travel speed (crane & trolley)	Up to 25 meters/minute
Duty class	A3 – A5
Ambient operating temperature	−20°C to +40°C (some configurations to +60°C)

Within this range, hoisting speed drops as capacity rises: 5–10 ton units typically lift at around 5 meters per minute, mid-range 20–32 ton models run closer to 4 meters per minute, and the largest 50–75 ton configurations slow to roughly 2–3 meters per minute to keep heavy loads stable and controlled during hazardous-area lifts.

For projects requiring more than 75 tons large reactor installation, pressure vessel setting, or heavy turnaround work custom double-girder Ex configurations are available from most manufacturers up to 300+ tons, though these move outside the “standard” QB catalog and require project-specific engineering.

How Duty Class (A3–A5) Affects Which Capacity You Actually Need

Tonnage alone doesn’t tell you whether a QB crane is correctly specified. Duty class governed by ISO 4301 / FEM 1.001 determines how many lift cycles and what load spectrum the crane’s structure and drivetrain are engineered to handle over their service life. For QB cranes, duty class typically runs from A3 to A5, with A5 as the practical ceiling for this series.

This matters because two plants needing the same 20-ton lift can require very different cranes:

• A3–A4 (light duty):Batch-process operations with real rest time between lifts maintenance turnarounds, occasional drum handling, infrequent equipment swaps. Roughly 10–30 cycles per shift is typical.
• A5 (the QB maximum):Regular, near-daily lifting without the extended idle periods of A3–A4, but still short of continuous production-line cycling.

If your actual usage pattern is closer to continuous multi-shift lifting for example, a reactor feed operation running 40+ cycles an hour across three shifts that workload exceeds what any QB-class crane is designed for. Running that duty cycle on an A5-rated crane pushes the gearbox, hoist motor, and structural welds beyond their fatigue design life, leading to premature failure and unplanned maintenance inside a Zone 1 classified area which is a safety event, not just a maintenance headache.

Before specifying capacity, gather:

1. Daily lift-cycle count
2. Shift pattern (single, double, or continuous)
3. Average load as a percentage of maximum rated capacity
4. Rest/idle time between lifts

Your crane supplier should calculate duty class from this data rather than defaulting to a conservative guess both under- and over-specifying carry real cost consequences.

Matching Load Capacity to Oil & Gas / Chemical Plant Tasks

Different areas of an oil and gas or chemical facility generate very different lift profiles. Mapping your task type to a realistic capacity band avoids both under-spec risk and unnecessary overspend:

Task / Area	Typical Load Range	Suggested QB Capacity Band
Drum, IBC, and container handling	0.5 – 5 tons	5 – 10 ton
Pump, valve, and instrument maintenance	2 – 15 tons	10 – 20 ton
Compressor and heat exchanger servicing	10 – 30 tons	20 – 32 ton
Reactor internals and column tray installation	15 – 40 tons	32 – 50 ton
Reactor vessel and large equipment installation (turnarounds)	40 – 75+ tons	50 – 75 ton (or custom heavy-duty)

Petrochemical reactor and pressure-vessel installation during turnarounds is consistently the heaviest recurring lift category, which is why plants with active turnaround programs often specify the upper end of the QB range even if day-to-day lifting rarely approaches that tonnage. It’s common and reasonable for a single facility to run more than one QB crane at different capacities across different bays rather than oversizing one unit for the whole plant.

Step-by-Step: How to Calculate the Load Capacity You Need

Sizing a crane by “the heaviest thing we lift” alone is a common and costly shortcut. Use this sequence instead:

• Determine the maximum actual net weight of equipment/component itself: the data specified in the technical specification of equipment and freight list shall prevail. It is forbidden to adopt estimated value and calculate the heaviest single weight actually required to be hoisted on site.
• Weight of all lifting tools and accessories included: lifting rigging, balance lifting beam, shackle, lifting beam and crane hook group, etc., all supporting lifting equipment weight shall be included in the total load to be carried by the crane.
• Considering dynamic load additional coefficient: during hoisting process, component deviation, swing and start-stop impact will produce additional load exceeding static dead weight, especially when reactor special-shaped components and suspended pipelines are hoisted in sections, so dynamic load allowance must be reserved.
• Additional safety margin: The general industry standard is to increase the safety factor by 20%~25% on the basis of the total calculated load; there are other specifications that require that the actual lifting load shall not exceed 75%~85% of the rated lifting capacity of the crane. The two calculation methods are essentially equivalent and are used to reserve safety buffer intervals.
• Load value up to take the standard tonnage, it is forbidden to round down: for example, when the total load is calculated to be 42 tons, the rated lifting capacity of 50 tons crane should be selected, and the 32 tons model should not be selected.
• In addition to tonnage, synchronous check crane working level: even if the rated lifting capacity of the crane meets the load requirements, if the working cycle frequency does not match the field operation conditions, it is still a selection error.

Worked example: A 32-ton reactor component, plus a 1.5-ton lifting beam and rigging, totals 33.5 tons. Applying a 20% safety margin brings the target to 40.2 tons which specifies a 50-ton QB crane as the appropriate standard capacity, not a 40-ton unit that leaves no further margin.

QB vs. LB (Single Girder): When 75 Tons Isn’t the Right Question

Before finalizing the purchase order for QB crane, verify whether the double girder crane is actually required for the working condition.LB type explosion-proof single-beam crane conventional adaptation tonnage of 1 – 20 tons, the maximum span of about 28.5 meters, working level of A3-A4, under the same load specifications, its procurement and use costs are much lower than QB type double-beam crane, cost-effective.

QB double-beam crane shall be selected to meet any of the following working conditions:

• The rated lifting capacity required for the operation is greater than 20 tons
• Operation span greater than 28.5 m
• The field conditions require higher lifting height
• Working conditions require that the hook can be close to the rail end wall: the hook end clearance of QB type double beam structure is only 300 – 500 mm, while the hook end clearance of single beam crane is 600 – 900 mm.This advantage is especially critical when lifting operations are carried out in narrow areas such as close to plant walls and reactor nozzles.

10 – 20 tons is the overlapping range of the two types of cranes.Under this tonnage, the type selection cannot be based on the lifting weight alone, but needs to be comprehensively judged in combination with the operation span, lifting height and working level to select the model with better cost performance and adaptability.

For example, 15 tons, 28 meters span, A5 working conditions, although the tonnage is in the LB single beam crane adaptation range, but by the structural stiffness and working load allowance restrictions, QB type double beam crane will be more appropriate.

Gas Group & Zone Classification’s Effect on Capacity Selection

Load capacity and hazardous-area rating are specified independently, but both must be confirmed together before ordering. QB cranes are most commonly rated:

• ExdIIBT4:the standard default configuration, covering the majority of industrial hazardous atmospheres including hydrogen sulfide, ethylene, propylene, and most petroleum and solvent vapors. This is correct for the large majority of petrochemical transfer, refinery, and fuel storage applications.
• ExdIICT4:required only where hydrogen or acetylene are present, the two most ignition-sensitive gases found in chemical synthesis and some specialty processes.

Your facility’s hazardous area classification document not a general assumption about “the oil and gas industry” should specify which gas group and zone (Zone 1, Zone 2, Zone 21/22 for dust) applies to the specific bay where the crane will operate. Ordering IIC coverage you don’t need adds cost without adding usable safety margin; ordering IIB where IIC is actually required is a compliance failure that surfaces at a safety audit, not before.

Common Overspec/Underspec Mistakes in Oil & Gas Procurement

Three patterns show up repeatedly in QB crane procurement, and both directions of error are expensive:

• Sizing to the nameplate weight only.Teams frequently specify capacity from an equipment datasheet weight alone, without adding rigging, lifting devices, or a safety margin leaving no buffer for the real-world lift.
• Ignoring duty class in favor of tonnage.A crane rated for the correct maximum weight but installed in a higher-cycle-frequency application than its duty class supports will fail structurally years ahead of its design life inside a classified hazardous area, where unplanned maintenance carries outsized risk.
• Defaulting to IIC “to be safe.”Specifying the higher gas group as a blanket precaution, rather than confirming actual area classification, adds unnecessary cost without a corresponding safety benefit if the facility’s actual atmosphere only requires IIB.

The fix in all three cases is the same: pull actual cycle, shift, and area-classification data before the RFQ stage rather than after installation reveals the mismatch.

Cost Implications of Capacity & Duty Class

Capacity and duty class are the two largest cost drivers on a QB crane order, and they interact rather than stacking independently:

• Explosion-proof components(motor, hoist, controls) typically add roughly 20–50% over a standard, non-Ex double-girder crane of the same capacity.
• Duty class upgradescompound this. Moving a crane from A4 to A6-equivalent duty on the same capacity frame can add a further 20–35% to structural and drivetrain cost but this is almost always cheaper than a premature rebuild or a failed structural inspection mid-service-life.
• Spanhas a nonlinear effect: extending span beyond roughly 28 meters requires deeper main girder sections, which can add 15–25% to bridge structure cost alone, independent of capacity.

Specifying accurately upfront correct tonnage, correct duty class, correct gas group is consistently cheaper over the crane’s service life than either an oversized “just in case” order or an undersized unit that fails early.

Frequently Asked Questions

What is the maximum load capacity of a QB explosion-proof crane?

Standard QB double-girder explosion-proof cranes range from 5 to 75 tons. Heavy-duty custom configurations for reactor and pressure-vessel installation can extend well beyond that on a project-engineered basis.

What duty class should a QB crane in an oil and gas plant use?

QB cranes are typically rated A3 to A5, with A5 as the practical maximum for this series. The correct class depends on your daily lift-cycle count and shift pattern, not on tonnage alone.

Is gas group IIB or IIC required for a QB crane?

Gas group IIB covers most petroleum and chemical vapors, including hydrogen sulfide and ethylene, and is the default rating for QB cranes. IIC is required only where hydrogen or acetylene are present in the classified area.

How much safety margin should I add when specifying crane capacity?

Add rigging and lifting-device weight to the load, then apply roughly a 20–25% safety margin above that total before selecting a rated standard capacity.

Should I choose a QB double-girder or LB single-girder crane?

LB single-girder cranes suit loads up to 20 tons and spans up to 28.5 meters. QB double-girder cranes are the better choice above 20 tons, above 28.5-meter spans, or where close hook approach to the runway end wall is required.

Does explosion-proof rating affect crane load capacity?

The Ex rating itself doesn’t reduce rated load capacity, but explosion-proof components typically add roughly 20–50% to cost over a standard crane of equivalent capacity.

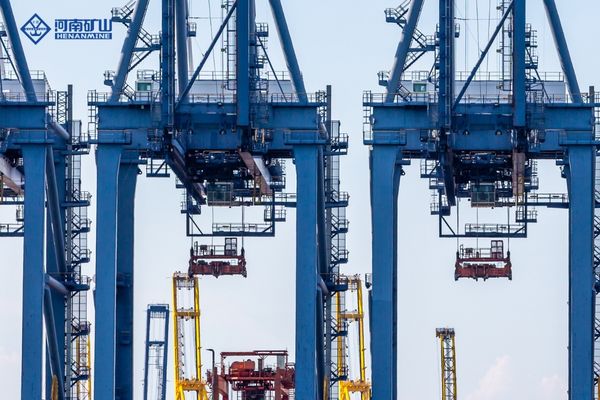

STS shore bridge Crane is the core of the main equipment for loading and unloading ships in container ports, the terminal’s navigability, container turnover efficiency, berth utilization, are directly linked to the lifting parameters of the equipment. Many port operators, EPC contractors and procurement personnel, in the selection of only reference to the self-weight of a single container, it is easy to appear parameter matching deviation.

The real STS crane lifting capacity selection, can not only look at the basic load. It needs to be combined with the type of docking vessel, container operation mode, terminal throughput, and also take into account the self-weight of the spreader, dynamic load and safety margin. Accurately matching the container crane lifting capacity, in order to take into account the current operational needs and long-term terminal operation planning.

the core definition of STS Crane lifting capacity

The ship-to-shore crane capacity labeled by the port industry is mainly divided into two standards: the rated load under spreader and the rated load under hook, which have completely different purposes and are the most confusing key points for model selection.

The rated load under spreader is the core parameter of container operation, including container weight, special telescopic spreader weight, and at the same time, it is suitable for different operation modes, such as single container, double container and multi-consolidated container, etc. This is the daily container loading and unloading operation in the terminal. It is the core reference index for daily container loading and unloading operation in terminals, and also the core parameter of bidding documents and equipment contracts.

The rated load under the hook belongs to the auxiliary operation parameters and is not used for routine container lifting. It is mainly adapted to the sporadic operation of terminals, such as hatch cover dismantling, engineering large lifting, equipment maintenance and counterweighting, and other special working conditions, and most of the conventional terminals will not be used at high frequency.

Many project acceptance and later operation and maintenance disputes arise from confusing the two sets of parameters. At the stage of procurement and selection, it is necessary to clearly distinguish between container-specific loads and maintenance auxiliary loads, so as to avoid parameter mismatches that may cause the equipment to be unable to go into normal operation.

 according to the docking ship type to determine the basic lifting parameters

Different container ship deck box layout, stacking height, hull width varies greatly, corresponding to the appropriate STS crane for container terminal lifting capacity is also completely different, which is the primary basis for selection.

Feeder vessels are the mainstream docking vessels in small and medium-sized ports, with small hull width, fewer rows of deck containers and lower number of stacking layers. This type of ship type operation pressure is small, the standard lifting tonnage of conventional single-box operation can meet the demand, without the need for high allocation of large load equipment.

Panama-type, super Panama-type ships, the hull size is larger, the deck box space is dense, the average daily throughput of the terminal is higher. In order to enhance the speed of berth turnover, this type of ship is generally adapted to double-box operation mode, which requires equipment with higher rated load under the spreader to ensure the stable operation of high-frequency loading and unloading operations.

Ultra-large super-Panamax vessel (ULCV) is the main ship type of ocean-going trunk line, with wide hull, many stacking layers and large single-carrying capacity, which requires high requirements for equipment operation efficiency and structural stability. These terminals usually use double or even multiple container operation configuration of the quay bridge, with a stronger structural load and stability control system.

the container mode of operation on the lifting tonnage impact

The mode of operation directly determines the STS crane rated load under spreader selection criteria, but also to distinguish between the terminal operation level, the upper limit of production capacity of the key factors, the load configuration of different modes of the difference is very obvious.

Single container operation is the basic operation mode, the equipment only lifts one 20-foot, 40-foot or 45-foot standard container at a time. This mode is suitable for small and medium-sized feeder ports and regional terminals with low throughput, with lower equipment procurement cost, simple operation logic and less pressure on operation and maintenance in the later stage. The corresponding lifting tonnage does not need to be too high to meet the standard full container lifting.

The double container operation relies on the special double container spreader, which can lift two 20-foot standard containers at the same time, and is the standard mode for medium and large mainstream terminals. This mode can greatly improve the work capacity of single equipment, shorten the port call time of ships, and meet the high-frequency operation demand of mainline routes. However, it has higher requirements on equipment load rating, steel structure strength and electrical control system.

Multi-tandem operation belongs to the high-end terminal configuration, which can lift two 40-foot or four 20-foot containers at the same time, and is only applicable to large-scale deep-water hub ports and transshipment home ports. This type of mode of operation on the lifting tonnage requirements are extremely high, the cost of equipment, terminal infrastructure bearing standards will also be synchronized to enhance only high throughput terminals are suitable for this configuration.

 the mainstream STS Crane lifting tonnage range reference (English comparison table)

Combined with the various types of global dock conditions, sorted out different scenarios under the quay crane specification standard tonnage range, to facilitate pre-project parameter benchmarking and quotation reference:

Terminal & Vessel Type	Operation Mode	Rated Capacity (Under Spreader)	Core Application Scenario
Small Feeder Port	Single-lift	40–50 Ton	Regional small terminals, low daily throughput
Medium Container Terminal	Single / Twin-lift	50–65 Ton	Mainline ports, standard Panamax vessel service
Large Deepwater Terminal	Twin-lift	65–80 Ton	Super Post-Panamax & large vessel operation
Transshipment Hub	Tandem / Multi-lift	80–120 Ton	High-volume automated container terminals

Accurately calculate the required lifting capacity of STS Crane

Lifting tonnage selection can not only refer to the theoretical weight of the container, must be superimposed on the multiple working conditions coefficients, in order to meet the needs of long-term stable operation. All calculations need to reserve a reasonable margin to avoid the risk of dynamic operation.

The core calculation logic of single container operation is the maximum full container weight, superimposed with spreader weight, lifting dynamic inertia coefficient and safety margin. Offshore operation wind and waves, equipment start and stop shaking will produce additional loads, purely theoretical tonnage will lead to long-term overloaded equipment operation.

Double box operation needs to account for the total weight of two fully loaded 20-foot containers, with double box special spreader weight, and at the same time, consider the container offload, alignment deviation brought about by the eccentric load. This is also the core reason why the tonnage of equipment for double box operation is generally higher than that of single box equipment.

The calculation logic of multi-container operation is even more complex, requiring statistics of the total deadweight of all synchronized lifted containers, superimposed on the weight of large tandem spreaders, while adapting to the load fluctuations under high-frequency start-stop and windy conditions, with a higher standard of safety and redundancy.

In addition, we should also take into account the fatigue life of the equipment, the future container heavy-duty upgrading, terminal extreme weather operations and other hidden factors, to avoid short-term parameters to meet the standard, long-term working conditions do not match the problem.

 lifting tonnage and terminal capacity, infrastructure and adaptive logic

Larger lifting tonnage, not directly equivalent to higher operating efficiency, the need for equipment and lifting speed, trolley operating speed, terminal collection and transportation system to match each other. Blindly high matching tonnage will only increase the cost of equipment and infrastructure.

Small and medium-sized low throughput terminals, high with large tonnage double box bridge can not play the capacity advantage, but will increase the equipment weight, wheel pressure and energy consumption, raise the later operation and maintenance costs. Large trunk terminals, transit hubs, a reasonable high allocation of tonnage and double box configuration, can effectively shorten the ship docking time, enhance the berth utilization rate.

Lifting tonnage will also directly affect the terminal infrastructure standards. Large tonnage STS Cranes have greater deadweight, higher wheel pressure, higher requirements for the track foundation, quay surface, load-bearing structure, the preliminary civil investment will increase simultaneously. Selection needs to balance the equipment parameters and infrastructure budget.

At the same time, the equipment outreach, lifting height must be matched with the tonnage. Large ocean-going vessels are not only large container capacity, hull width and deck height is also higher, only to enhance the tonnage, do not match the outreach and lifting height, still can not meet the operational requirements.

spreader configuration and safety standards on the constraints of tonnage selection

Spreader is the core component that directly carries the container, different spreader types correspond to the fixed tonnage fitness standard, which is a link that cannot be ignored in the selection.

Conventional telescopic single container spreader is suitable for 20-45 feet standard containers, matched with 40-50 tons class quay bridge to meet the basic terminal operation. Double box spreader is suitable for medium and large terminals, and requires 50-65 tons and above tonnage equipment to match. Multi-Container spreaders are only suitable for heavy-duty axles above 80 tons.

Safety system configuration also affects the actual use of tonnage. Qualified twin lift STS crane must be equipped with overload protection, anti-sway, off-load control, wind warning and other systems, through multiple safety protection to offset the risk of dynamic load, to ensure the stable output of rated tonnage.

The design of all the equipment follows the international common port equipment standards such as FEM, ISO, EN, etc. The strict safety margin design can effectively reduce the fatigue loss of the equipment and minimize the failure and downtime, and it is suitable for the acceptance specifications of the ports in different regions of the world.

The impact of tonnage selection on the whole life cycle cost of equipment

From the perspective of TCO of the whole life cycle, tonnage selection directly determines the terminal pre-investment and later operating costs, excessive low allocation and high allocation have disadvantages.

Higher tonnage equipment, preliminary procurement costs, steel structure materials, electrical configuration, infrastructure support costs are higher, daily energy consumption and spare parts maintenance costs will also rise slightly. However, the equipment is more adaptable to cope with the future upgrading of large-scale ships, to avoid short-term equipment elimination and transformation.

Low tonnage will significantly reduce the upfront cost, but can not be adapted to heavy-duty containers and double-box operation, terminal capacity constraints, ship turnover efficiency is low. In the long run, it will generate more berth vacancy cost and capacity loss, and the comprehensive cost performance is lower.

The optimal selection logic is to match the current situation of the terminal and the 3-5 years development plan, match the docking ship type, throughput and infrastructure conditions, and find a balance between the procurement cost and long-term operating income.

 the industry’s common selection misunderstandings

Many purchasers only according to the maximum weight of a single container selection, ignoring the spreader weight, dynamic load and the impact of off-load, resulting in frequent triggering of overload protection in the actual operation of the equipment.

Some small and medium-sized terminals only focus on low price, choose low tonnage equipment, later can not be adapted to double box operation and large ships docking, limiting the terminal expansion and upgrading. There are also some projects that blindly allocate heavy-duty equipment, resulting in a waste of infrastructure and equipment resources.

Neglecting the wharf wheel pressure and infrastructure carrying capacity, simply raise the lifting tonnage, will lead to the wharf surface, track foundation can not carry the weight of the equipment, the need for secondary transformation, increase additional investment.

Frequently Asked Questions

What is the standard lifting tonnage of conventional STS Cranes?

The mainstream tonnage range is 40-120 tons (under the spreader), small feeder terminals are dominated by 40-50 tons of single-box equipment, medium and large trunk terminals are commonly used 50-65 tons of double-box equipment, and large transshipment ports use more than 65 tons of heavy-duty equipment.

Does 40 tons STS bridge meet the regular terminal operation?

It is only suitable for single container operation in small feeder terminals, can’t support double container lifting and heavy-duty container operation, and is not suitable for future upgrading of large-scale ships.

Why are 65-ton STS cranes commonly used in mainstream terminals?

The 65-ton tonnage can be perfectly adapted to double 20-foot fully loaded container lifting, leaving enough safety margin, taking into account the capacity and cost, and adapting to the operation of most of the super-Panamax vessels, with the most versatility.

Henan Mine Crane Factory supply

Selecting the correct lifting capacity for STS cranes is not based on simple container weight data, but on comprehensive factors including vessel type, container handling mode, terminal throughput, quay infrastructure and long-term development plans.

A matched crane specification can balance initial investment and long-term operational efficiency, avoiding insufficient capacity or resource waste.

As a professional port crane manufacturer, Henan Mine Crane provides customized STS crane specification design for global container terminals. We can recommend the most suitable container ship crane capacity and complete technical solutions according to your berth conditions, vessel types and productivity goals.

Industrial production, construction, warehousing and logistics and other scenes, heavy load handling of the core equipment is an electric winch and electric hoist, but many practitioners in the selection of easy to fall into confusion, choose the wrong equipment will reduce efficiency, increase costs and the existence of safety hazards.

Although both are used for heavy load handling, but there are essential differences, clear differences are the key to protect safety and improve efficiency. This article will dismantle the core differences between the two, applicable scenes and advantages, provide selection guidelines and answer common misconceptions, to help practitioners accurate selection!

Overview of Electric Winches

Electric winches are driven by electric motors, the core structure of the drum or reel winding wire rope, mainly used for heavy load lifting and traction, designed to focus on torque generation, can output a strong traction, is the power and distance have high requirements for the operation of the necessary equipment.

It is compact, lightweight, easy to install and move, suitable for a variety of complex environments, widely used in construction, shipbuilding, manufacturing, off-road and logistics and other fields, especially good at horizontal traction, such as dragging and pulling heavy building materials, towing broken down vehicles.

Overview of Electric Hoists

Electric hoist also uses electric motor as the power source, but different from electric winch, it is specially designed for vertical lifting and lowering operations of special equipment, the core advantage lies in the high precision of the operation, strong maneuverability, able to accurately achieve the lifting and lowering of heavy loads, a complete alternative to manual handling, to avoid the inefficiency and safety risks brought about by manual operation.

In the design, the electric hoist integrated perfect braking system and all kinds of safety protection devices, the overall volume is relatively larger, heavier weight, in order to adapt to the heavy vertical lifting operation needs.

Its application scenarios are mainly concentrated in warehouses, factory workshops, garages and assembly lines, etc., the core for vertical load handling, such as warehouse goods on and off the shelves, production line parts lifting, truck loading and unloading.

Key Differences Between Electric Winches and Electric Hoists

Core Functions and Mechanisms

The core function of electric hoist is vertical lifting and lowering, the focus of the operation is on precise control, can efficiently complete the rising and falling operation of heavy loads, without manual power, usually can carry 250 kg to 5000 kg load, widely used in the scenes that require high lifting precision, such as fine stacking of warehouse goods, production line precision lifting and loading and so on.

The core function of electric winches is horizontal traction, which is more suitable for long-distance traction operations, not designed for vertical lifting, and its advantage lies in its ability to output strong traction force, easily dragging and pulling heavy objects to move in the plane or adjusting their position in a narrow space, for example, hauling steel beams into position in construction sites and dragging and pulling goods onto the trucks in logistics scenarios.

Mechanical Design and Safety Devices

The mechanical design of electric hoist is centered on the safety of vertical lifting and lowering, equipped with perfect safety protection devices, including anti-fall braking system, limit switches, overload protection devices, etc. The core purpose is to prevent the load from falling during lifting and lowering, to safeguard the safety of the operators and the equipment, and to ensure the stability of the vertical load retention.

The mechanical design of electric winches focuses on traction lifting, equipped with sealed gearboxes to protect against external impurities and adapt to harsh environments, as well as a built-in braking system to keep the wire ropes taut, and some models are also equipped with safety devices such as load limiters and emergency stop buttons to safeguard operational safety.

Load Handling Capacity

Electric hoist mainly focuses on high vertical load capacity, can be customized explosion-proof, frequency conversion and other functions, can accurately control the load in complex working conditions, suitable for production line batch lifting, daily handling of warehouses and other repetitive vertical lifting and lowering operations, stable and efficient operation within the rated load.

Electric winch has irreplaceable horizontal traction, suitable for indoor and outdoor many kinds of operating environment, can be customized dustproof, rainproof and other protective functions, can be in the long distance, complex terrain, stable traction heavy loads, but does not have the vertical load capacity, can not be used for vertical lifting and lowering operations, otherwise it will lead to serious safety accidents.

Explanation of load limitation: the vertical load capacity of electric hoist is strictly limited, and it needs to operate within the rated range; the core advantage of electric winch is traction force, not vertical load capacity, and the load design logic of the two is completely different.

Equipment Size and Installation Requirements

Electric winches are compact in size and light in weight, with low installation difficulty, easy to install and move in narrow spaces, common installation methods include vehicle mounting (e.g., off-road vehicles, trailers), small bracket mounting, etc., without complex support structures, suitable for small industrial scenarios and mobile operation requirements.

Electric hoist is bigger and heavier, usually used in fixed installation, such as installed in the factory overhead beams, gantry cranes, need to build a strong support structure, the installation process needs to consider the load-bearing capacity and installation accuracy, more suitable for fixed operation scenarios, is not suitable for frequent movement.

Operation Efficiency and Maintenance

Electric hoist operation noise is low, very suitable for indoor operation scenes; plug and play design, easy to understand the operation, without the need for complex debugging process, low daily maintenance needs, only need to regularly check the braking system, wire rope and safety devices, do a good job of basic maintenance to ensure long-term stable operation.

Electric winch operating efficiency, traction speed faster than the traditional manual or hydraulic winch, can effectively reduce the operation downtime; its internal operating components are less, less prone to leakage, pollution and other issues, low maintenance costs, daily only need to check the gear box, wire rope and braking system, the difficulty of maintenance is much lower than hydraulic or pneumatic equipment.

Applications in Industrial Settings

Electric hoist is the core equipment in factories, warehouses and other industrial scenarios, which can realize the rapid transfer of goods and is widely used in truck loading and unloading, stacking of high-level shelves and docking of assembly line parts and other operations. The equipment is divided into wire rope type and chain type, which can be flexibly selected according to different industrial operation requirements.

Electric winches are mostly used for horizontal material handling in construction sites, which can complete the operations of steel beams traction in place in construction, heavy machinery moving in complex terrain, etc.; they are also widely used in the logistics sector to realize the loading of trailers and fixing of goods in the process of transportation.

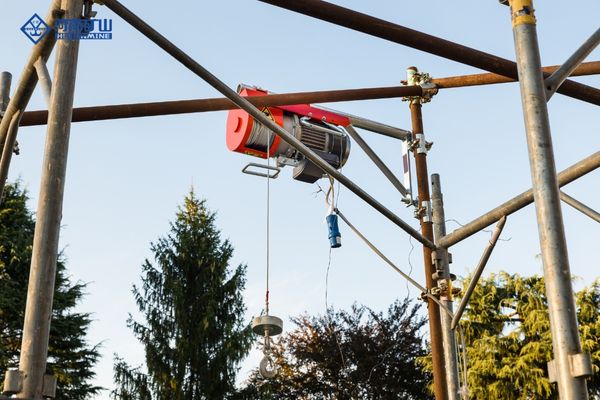

Key Benefits Of Electric Hoists

• High safety: Controllable and predictable traction action during operation can effectively reduce the physical exertion of the operator and the risk of injury, with emergency stop, alarm and other safety devices to further enhance operational safety. Outstanding efficiency: Compared with manual or hydraulic winches, electric winches are more efficient.
• Outstanding efficiency: Compared with manual or hydraulic winches, the traction speed of electric winches is faster, which can effectively reduce the operation downtime, lower labor costs and improve the overall operational efficiency.
• Convenient maintenance: fewer internal operating parts, less prone to leakage, pollution and other faults, small daily maintenance workload, low maintenance costs, can save maintenance expenses for the enterprise.
• Strong versatility: adapt to a variety of harsh indoor and outdoor operating environments, can be customized according to the needs of the protection function, can be installed on the wall, ceiling, floor and other locations, can be used for traction, but also to assist in completing part of the lifting operation (non-vertical lifting), to meet the needs of construction, manufacturing, logistics and other industries.
• Cost-effective: equipment procurement costs lower than hydraulic, pneumatic equipment, combined with its low maintenance costs and high efficiency, long-term use can save a lot of operating costs for the enterprise, is a very cost-effective industrial traction equipment.

Core Advantages of Electric Winch

• High safety: controllable and predictable traction action during operation can effectively reduce the physical exertion of the operator and the risk of injury, with emergency stop, alarm and other safety devices to further enhance operational safety. Outstanding efficiency: compared with manual or hydraulic winches, electric winches have a higher traction speed, which can effectively reduce operational downtime and labor costs.
• Outstanding efficiency: Compared with manual or hydraulic winches, the traction speed of electric winches is faster, which can effectively reduce the operation downtime, lower labor costs and improve the overall operational efficiency.
• Convenient maintenance: fewer internal operating parts, less prone to leakage, pollution and other faults, small daily maintenance workload, low maintenance costs, can save maintenance expenses for the enterprise.
• Strong versatility: adapt to a variety of harsh indoor and outdoor operating environments, can be customized according to the needs of the protection function, can be installed on the wall, ceiling, floor and other locations, can be used for traction, but also to assist in completing part of the lifting operation (non-vertical lifting), to meet the needs of construction, manufacturing, logistics and other industries.
• Cost-effective: equipment procurement costs are lower than hydraulic and pneumatic equipment, combined with its low maintenance costs and high efficiency, long-term use can save a lot of operating costs for the enterprise, is a very high cost-effective industrial traction equipment.

How to Choose between Electric Winch and Electric Hoist

The core of choosing two kinds of equipment is to match their own operational needs, the following five key factors can help you accurately select the type, to avoid the risk of choosing the wrong equipment and losses:

Operation Use

Operational use is the first core factor in the selection, if the core operational needs for vertical lifting (such as warehouse goods on and off the shelves, production line parts lifting, etc.), give priority to the use of electric hoist;

If the core demand for horizontal traction (such as construction sites to haul building materials, logistics scenarios towing goods, etc.), you must use electric winches, electric hoist is strictly prohibited as a substitute for horizontal traction operations, to avoid triggering safety accidents.

Load Capacity

Before selection, the maximum load should be accurately calculated to ensure that the rated load of the equipment completely covers the actual demand, and overloading is strictly prohibited.

Among them, the electric hoist focuses on vertical load capacity, the conventional model load range of 250kg-5000kg, overweight scenarios need to be customized special models; electric winch focuses on horizontal traction capacity, does not have the qualification of vertical load, and is strictly prohibited to be used for vertical lifting and lowering operations.

Lifting Height

Lifting height is the exclusive selection consideration for electric hoist, when selecting the model, you need to specify the lifting height required for the actual operation, and reserve a safety margin of 50-100cm; if there are special working conditions in the operation scene (such as high and low drop, obstacles, etc.), you need to calculate in advance the actual height of lifting, and prioritize the choice of adjustable-speed, equipped with limit switches, to further enhance the safety of the operation.

Environmental Conditions

Operating environmental conditions directly determine the adaptability of the equipment, if the operating scene for the outdoor, dusty, humid and other harsh environments, give priority to electric winches (its sealing and protection performance is excellent, can be adapted to the complex working conditions);

If for the warehouse, workshop and other indoor controlled environments, the electric hoist is more advantageous, its running noise is low, without the need for complex outdoor protection, can be better adapted to the indoor operational needs.

Safety Requirements

Selection should strictly follow the industry safety standards to ensure operational compliance. Electric hoists need to focus on whether they are equipped with fall arrest brakes, overload protection, limit switches and other safety devices; electric winches need to focus on the verification of sealing protection, emergency stops, load limiters and other configurations, and at the same time need to be regularly calibrated for various types of safety devices, to ensure the safety of the whole operation.

Common Misconceptions (to answer user confusion)

• Myth 1: electric winches can be used for vertical lifting – Correction: the core of the design of electric winches is horizontal traction, does not have the ability to carry vertical, used for vertical lifting will lead to load falling, equipment damage, there are serious safety hazards, absolutely prohibited for vertical lifting operations.
• Myth 2: electric hoist is suitable for all heavy load operations – Correction: electric hoist is only good at vertical lifting operations, in the horizontal traction scenarios of low efficiency, poor safety; and electric winches in the horizontal traction scenarios have obvious advantages, the two have their respective roles, irreplaceable.
• Myth 3: the larger the size of the equipment, the stronger the load capacity – Correction: electric winches are small in size, but strong traction capacity; electric hoist volume, focusing on the vertical load capacity, equipment size and load capacity is not directly related to the core of the equipment to see the rated design parameters.

Conclusion

In summary, the core difference between electric winches and electric hoists is the direction of operation and functional positioning: electric hoists focus on precise vertical lift, electric winches focus on efficient horizontal traction, the two have no advantages and disadvantages, the key is to match the operational requirements, choose the right equipment to protect safety, improve efficiency and reduce costs.

If you are still not sure how to choose, you can consult industry experts, we will combine your operational needs, load capacity, environmental conditions, etc., to provide personalized selection advice and customized equipment solutions to help operations efficiently and safely.

In manufacturing and logistics industries, overhead cranes are the core equipment for material handling, and their efficiency and safety determine the production and operational safety. Most of the enterprises pay too much attention to the lifting capacity and span when selecting the model, but neglect the key speed of the bridge crane, and the problems of load shaking and inefficiency are mostly originated from this.

As the core performance factor of overhead travelling crane which is easy to be neglected, the bridge speed directly affects the operation efficiency, safety, precision and operation cost. In this article, we will disassemble its core concepts, importance, influencing factors and industry applications to help practitioners understand and optimize bridge speed to achieve efficient and safe material handling.

What Is Bridge Speed on an Overhead Crane?

The bridge speed is the speed (unit: ft/min fpm) at which the bridge of an overhead crane travels along the plant track, which is the core indicator of its horizontal transfer capability and directly determines the efficiency of load movement, e.g., steel mills require fast transfer and precision laboratories require low-speed operation.

Need to make clear the big car speed and lifting speed, bridge speed difference: lifting speed control load vertical lifting, bridge speed control load along the bridge transverse movement, the big car speed drives the bridge and load along the track longitudinal movement, the three synergistic composition of the complete material handling process.

The uniqueness of the bridge speed is to determine the crane “operational coverage efficiency”, unlike the hoisting, bridge speed only affects the local range, it directly determines the load in the entire operating area of the transit speed, especially in the large-span, long-distance operation, the overall efficiency of the impact is more prominent.

Why Bridge Speed Matters in Crane Design

Efficiency and Productivity

Reasonably matched truck speed can effectively optimize the bridge crane operation process, shorten the load transfer cycle, reduce equipment idle loss, and then significantly improve the overall productivity of the enterprise.

In mainstream application scenarios such as automobile manufacturing, building construction, logistics and warehousing, the speed of the bridge crane that matches the operational requirements can respectively ensure the continuous and stable operation of the production line, accelerate the progress of engineering construction, and enhance the efficiency of the warehouse goods throughput, providing strong support for the high-efficiency production of various industries.

Safety Consideration

Reasonable control of truck speed is the key to ensure the safety of bridge crane operation, too fast speed is easy to cause load shaking, equipment wear and tear, and even personnel safety accidents, too slow speed will cause waste of resources and slow down the overall operational efficiency.

From the physical principle level analysis, unreasonable acceleration and deceleration operation will produce large inertia force, which will lay a hidden safety hazard, the relevant details will be carried out in the following chapters to explain in detail.

Load Handling and Precision Control

There is a negative correlation between the speed of the truck and the accuracy of load handling, the faster the speed, the more difficult the accuracy control. When handling heavy, precise or high-value loads (e.g., aerospace components, turbine parts), it is necessary to reasonably reduce the speed of the bridge to ensure accurate positioning of the loads and to effectively avoid damage to the loads and installation deviations.

Energy Efficiency and Cost Savings

The speed of the large vehicle should be strictly controlled in a reasonable range, too fast or too slow will cause unnecessary energy loss. Scientific optimization of bridge speed setting can not only effectively reduce the cost of electricity, but also reduce the wear and tear of equipment, extend the service life of the bridge crane, and realize the reasonable control of long-term operating costs, which is in line with the core demand of sustainable development of enterprises.

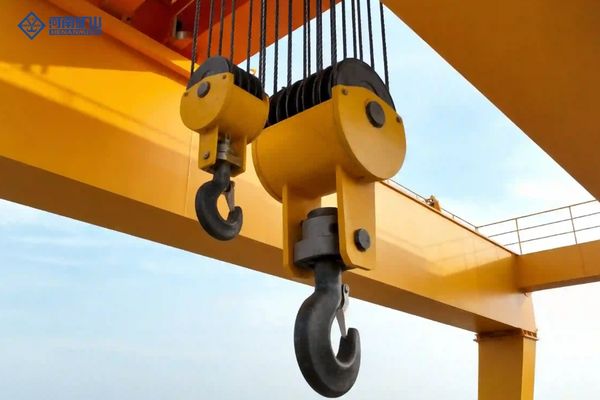

How Bridge Speed Impacts Safety and Reliability

The safety of crane operation is the most important, and the speed of the big vehicle is the key link to control the safety risk. From the physical principles and practical operational experience, the influence of large vehicle speed on safety and equipment reliability is mainly reflected in the following four aspects:

Load Sway and Pendulum Effect

Large car acceleration or deceleration is too fast, will make the suspended load due to inertia shaking (pendulum effect), not only affects the positioning accuracy, extends the operating time, jeopardize the safety of personnel and equipment,but also exacerbate the wear and tear of the crane structure and ropes; and the operator needs to decelerate or stop the machine in order to control the shaking, but to reduce the actual operating efficiency.

Increased Difficulty in Accurate Positioning

The higher the speed of the truck, the longer the braking distance, the operator wants to achieve millimeter precision positioning, it requires longer deceleration time and higher operating skills.

For example, for a crane running at 300 ft/min, to accurately place the load in the specified position, the operator needs to carry out a long and smooth deceleration in advance, which not only increases the cognitive burden on the operator, but is also prone to positioning deviation (i.e., “drop point error”), resulting in collision and damage to the load.

Structural Fatigue and Dynamic Loading

Crane bridge and rail design have specific load bearing capacity, and high-speed braking, imposed on the rail block and plant structure is not only the static load of the crane and the load, but also multiplied by the dynamic impact coefficient of the dynamic load.

Long-term high-speed operation, frequent emergency stops of the crane, its driving wheels, rims, rails and even plant support columns of the wear and tear will be significantly accelerated, leading to early failure of the equipment, reducing the reliability and service life of the crane.

Ergonomics and Operating Errors

Controlling cranes with high inertia to run at high speeds is a huge test of the operator’s physical and mental strength. High concentration of attention for a long time and frequent adjustment of speed and braking can easily lead to operator fatigue, which in turn leads to problems such as reduced concentration and operational errors, increasing the risk of safety accidents.

What Factors Determine the Right Bridge Speed?

There is no uniform standard for the speed of the bridge crane, the ideal speed should be based on the design of the crane, operating scenarios and the actual needs of a comprehensive judgment, the core influencing factors mainly include the following six points:

• Rated lifting capacity of the crane: the larger the lifting capacity, the larger the inertia of the load, in order to ensure safety and precise control, the bridgespeed needs to be reduced accordingly; on the contrary, cranes with smaller lifting capacity can appropriately increase the bridge speed to enhance efficiency.
• Bridge span and crane weight: the longer the bridge span, the greater the weight of the crane itself, the more difficult to control the stability of the operation, so you need to reduce the speed of the bridgein order to reduce the shaking and structural stress; smaller span, lighter weight cranes, the speed can be appropriately increased.
• Track length and operating distance: the longer the track, the farther the operating distance, the appropriate increase in bridgespeed can reduce the load transfer time, improve efficiency; if the operating distance is shorter, frequent starting and stopping, too high a speed will increase the number of braking times, reduce efficiency and accelerate the wear and tear of equipment.
• Work level and frequency of use: high work level, high frequency of use of cranes (such as continuous production line cranes), the need to balance the speed and durability of the equipment, to avoid excessive wear and tear due to high-speed operation; work level is low, low-frequency cranes (such as maintenance cranes), according to the needs of the appropriate increase in speed.
• Type of operation: production-type operation (such as assembly line material transfer) has higher speed requirements and needs to take into account the efficiency and safety; maintenance-type operation (such as equipment overhaul) has higher precision requirements and the speed needs to be appropriately reduced.
• Operation and control mode: Push-button operated cranes (pendant-operated) are usually designed for walking speeds to facilitate the operator to follow the control; radio-controlled, cab-operated and automated cranes can be designed for higher operating speeds within the safety range because the operator does not need to follow.

Typical Bridge Speed Ranges by Application

Combined with the operational needs of different industries, there are clear typical ranges of bridge speeds, which need to be strictly matched to the application scenarios to ensure a balance between efficiency and safety:

1. Ultra-high precision environments (labs, cleanrooms, optical assembly): 10-40 ft/min. In this type of scenario, speed is not the primary consideration. The core requirements are smooth operation, minimal vibration, and sub-millimeter positioning accuracy, so a variable frequency drive (VFD) must be equipped to achieve precise speed regulation.
2. General industry and warehousing (machine shops, maintenance shops): 40-125 ft/min. This is the most commonly used speed range, taking into account a reasonable transit time and good controllability, able to adapt to a variety of loads and tasks, is the industrial field of the “workhorse speed.
3. High-intensity manufacturing and processing (automotive plants, stamping plants): 125-250 ft/min. These scenarios are dominated by repetitive, long-distance standardized load transfers, requiring cranes with rugged construction and excellent control performance to meet the demands of high-paced production.
4. Bulk material handling (steel mills, foundries, lumber mills): 150-350+ ft/min. These cranes are required to transfer large, rough loads and operate over long distances, so the design focuses on durability and productivity with high-power drive systems and specialized brakes.
5. Specialized high-speed cranes (automated three-dimensional warehouse AS/RS, container handling): 400-600+ ft/min. These cranes are designed for specific scenarios, mostly with automated controls, and the entire system (structure, drive, control, load fixing) is designed around high-speed operation, with the core objective of increasing throughput.

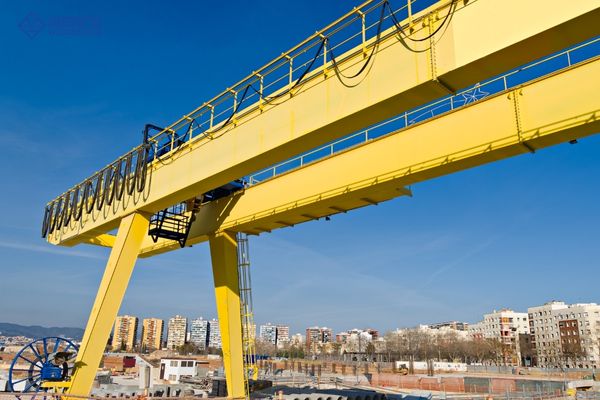

The Role of Variable Frequency Drives in Bridge Speed Control

With the technological upgrading of the crane industry, the role of variable frequency drive (VFD) in the speed control of the big car is becoming more and more prominent, and it has become one of the core configurations of modern overhead cranes.

It realizes precise control of the speed of the bridge by adjusting the power supply frequency and voltage of the motor, which brings various advantages for material handling operations, as follows:

• Improved safety: The VFD comes with a load sway control function that automatically counteracts the pendulum effect of the load, so that the operator does not have to focus on controlling the sway and can concentrate on hooking up and placing the load, significantly reducing the risk of safety accidents.
• Improve energy efficiency: The VFD can dynamically adjust the power output of the motor according to the running status of the bridge, avoiding the motor running at full power during no load or low load, thus significantly reducing energy consumption.
• Extend the service life of the equipment: VFD can smoothly control the start and stop of the motor, reduce the current impact and mechanical impact, reduce the wear and tear of the crane drive system, braking system and other components, and extend the overall service life of the equipment. In addition, some VFDs also have anti-shock function to stabilize the load operation by reducing the rapid increase of torque.
• Enhance control precision: VFDs can realize stepless speed regulation of the speed of the big crane, precisely controlling the speed and torque, which is especially suitable for scenarios requiring fine operation (such as precision parts handling). Meanwhile, some of the drives are equipped with high-resolution keyboards, making it easy for operators to make parameter adjustments and troubleshooting, and simplifying the operation process.
• Increased productivity: By optimizing the speed of large vehicles, VFDs are able to reduce equipment start/stop time and load positioning time, increasing the efficiency of the work cycle and reducing downtime. For example, some VFDs are equipped with an over-lift function that monitors motor torque in real time and adjusts motor speeds for optimal operation, further increasing job throughput.
• Enhanced connectivity and diagnostics: Modern VFDs are equipped with advanced networking capabilities that can be interfaced with the plant’s monitoring system to realize real-time monitoring of equipment status and preventive maintenance reminders.
• Cost Savings: In the long run, VFDs can bring significant cost savings by reducing energy consumption, minimizing equipment maintenance costs, and shortening downtime. In addition, some VFDs are equipped with weight measurement functions, which can replace expensive load cells and further reduce equipment investment costs.

Does Higher Bridge Speed Increase Crane Cost?

The answer is yes: the higher the bridge speed, the overall cost of the crane will increase significantly, and this cost increase is reflected in a number of aspects, through the design, manufacture and installation of the crane throughout the process:

Drive Systems

Higher speeds require more powerful (and costly) motors, larger capacity transmissions (with matching ratios), and more durable wheel assemblies to transmit more torque and ensure smooth, fast operation.

Electrical System

Higher-capacity motor starters, wires and protection devices are required to accommodate the operation of high-power motors; if VFDs (the recommended configuration for high-speed cranes) are used, higher-specification, more expensive drive models need to be selected.

Structural Reinforcement

The bridge and end girders need to be redesigned to increase the amount of steel and enhance the structural strength to withstand the huge dynamic forces and inertia generated during high-speed acceleration and braking, and to avoid structural deformation or damage.

Braking System

Larger and superior braking devices (e.g. disc brake, electromagnetic brake or regenerative brake) are required to ensure that cranes operating at high speeds can be braked quickly and safely to avoid safety accidents caused by insufficient braking.

Rail Requirements

Cranes running at high speeds require higher rigidity and installation accuracy of the rail, which needs to be reinforced and accurately calibrated, which will increase the cost of rail installation and plant structure.

Therefore, the choice of higher wagon speeds must be subjected to a rigorous return on investment (ROI) analysis.

High-speed operation is only worth considering if it can significantly reduce operating cycles, increase throughput, and bring benefits that exceed the increased costs.

Can You Adjust Bridge Speed After Installation?

This is a common question asked by many companies, the answer is: can be adjusted, but the adjustment process is complex and there are obvious limitations, specifically divided into two cases:

• Small adjustment: If the crane is equipped with a VFD, then you can adjust the maximum speed parameter of the VFD within the power and torque of the existing motor to achieve a small speed adjustment. However, it should be noted that this does not mean that the speed can be doubled – the limitations of the design limits of the motor, braking system and other components, small adjustments are feasible, a significant increase will be beyond the equipment to withstand.
• Large increases: If you want to significantly increase the speed of a large truck, you will need to completely rebuild the crane, including replacing the motor, gearbox, wheel assembly, braking system, and even upgrading the electrical wiring. The cost and downtime of this kind of remodeling is often close to or more than a new, well-designed crane, with a very low cost performance ratio.
• Professional advice: in the crane design and selection stage, clear operational requirements, determine a reasonable speed of the big car, to ensure that the equipment performance and current and future operational requirements to match, to avoid the need for costly transformation later due to improper selection in the early stage, to protect the enterprise’s investment.

Common Misunderstandings About Bridge Speed

In practice, many practitioners have misconceptions about the speed of the big truck, these misconceptions may lead to improper selection of cranes, operational errors, which in turn affects operational efficiency and safety, as follows:

• Misunderstanding 1: that the highest speed of the product manual is the actual average operating speed. In reality, the manual maximum speed for the ideal limit value, the actual due to acceleration, deceleration, positioning, the average effective speed is lower, the quality of the control system will affect this efficiency gap.
• Misconception 2: Thinking you can run at low speed for a long time when you don’t need high speed. In fact, companies have paid extra costs for high-speed components, and high-speed systems run at low speeds for long periods of time, which may reduce energy efficiency and increase wear and tear on the equipment.
• Misconception 3: Thinking that bridgespeed is the main factor affecting productivity. In fact, the speed of the bridge is only one of the factors, the total operating cycle should be combined with the lifting, bridge movement and load hanging and removal time, synergistic optimization of the three in order to enhance productivity.
• Misconception 4: that the same speed crane performance is the same. The actual crane performance also depends on the control system acceleration and deceleration curves and structural rigidity, control of good low-speed crane may be better than poor control of high-speed crane.

Conclusion

To summarize, the speed of the large truck is the core performance indicator of the overhead crane, directly affecting the operational efficiency, safety, precision and operating costs, need to be combined with the rated lifting capacity of the crane, operating distance, application scenarios and industry needs to be reasonably determined, to avoid blindly chasing the high or excessive speed reduction.

In heavy cargo operation scenarios such as port container terminals, railway intermodal freight yards, and large logistics hubs, gantry cranes are the core loading and unloading equipment, while RMG rail gantry cranes have become the mainstream equipment of modern smart depots with the advantages of high precision, high production capacity, and easy automation.

Many practitioners often confuse RMG cranes with ordinary tire gantry cranes. This article will comprehensively explain the definition, core structure, working principle, performance characteristics, and core advantages of RMG cranes. At the same time, compare the popular RTG tire gantry cranes, attach selection techniques and applicable scenarios to help you understand RMG cranes in all directions.

What Is an RMG Crane?

The full name of RMG crane is Rail-Mounted Gantry Crane (Rail-Mounted Gantry Crane), also often referred to as rail-mounted container gantry crane, is a kind of heavy industrial lifting equipment equipped with a fixed rail walking system, specially adapted for standardized container loading, unloading, stacking, and transshipment operations.

Unlike mobile lifting equipment, RMG cranes must rely on precision steel rails laid on a concrete foundation to operate, and the operating path is fixed. They are mainly used in standardized and large-volume cargo operation scenarios such as port container terminals, railway intermodal depots, and inland logistics hubs, and can efficiently complete the whole process of container lifting, handling, stacking, and alignment transshipment operations.

Its core basic characteristics can be summarized as three points：

• Orbital walking design: The whole machine runs in a straight line along a fixed steel rail, and the walking path is limited, but the stability, positioning accuracy, operating speed and energy saving far exceed that of tire cranes, eliminating ground slippage, offset and other problems.
• Long-span rigid steel structure: it adopts bridge-type gantry steel frame structure, which can span multiple rows of container storage areas, and is equipped with laterally movable lifting trolleys, lifting mechanisms and special container spreaders, which are suitable for large-area yard operations.
• Modular customized configuration: the equipment span and cantilever structure (single cantilever, double cantilever, and no cantilever) can be customized according to the yard layout and operation needs, and adapted to the operation planning of different sites.

Main Components of an RMG Crane

The overall structure of the RMG crane is specially designed for heavy-duty, high-frequency and accurate container operations. The core components work together to ensure the stable and efficient operation of the equipment. The main components are as follows：

• Gantry steel frame main body: The core load-bearing structure is made of high-strength steel (Q235, Q345, etc.), including vertical outriggers, horizontal main beams, end beams and beams. It is extremely rigid and can span multiple rows of container stacking areas to support the load of the whole machine and resist harsh environments such as high winds and humidity in ports and outdoor depots.
• Track walking system: it consists of fixed steel rails embedded in the concrete foundation, crane steel walking wheels, bogies, track clamps and windproof braking devices. It is the core of RMG’s high-precision positioning to ensure the smooth longitudinal walking of the whole machine.
• Lifting trolley: it can move at a uniform speed laterally along the main beam, and is equipped with a complete lifting mechanism, which is responsible for accurately adjusting the horizontal position of the spreader and adapting it to container pick-and-place operations in different positions.
• Lifting mechanism: it includes core components such as drive motor, reducer, reel, wire rope, pulley block, etc., which is responsible for the vertical lifting of containers and is the core power unit for cargo hoisting.
• Special spreader for containers: Standard Twist-lock structure, which can accurately lock the four corners of the container, firmly fix the box body, prevent offset and falling off during hoisting, and support single-box and double-box hoisting modes.
• Power and control system: it adopts full electric drive, powered by sliding contact wire, cable reel or busbar, and is equipped with PLC programmable controller, sensor, and frequency conversion drive system.It supports three modes of manual operation, remote control, and fully automatic operation of the cab, and can be connected to the intelligent management system of the yard.
• Safety auxiliary system: including anti-collision sensors, overload protection devices, wind speed monitors, windproof anchoring devices, ladders, maintenance platforms, lighting systems, etc., to ensure the safety of equipment and operations in all directions.

How Does an RMG Crane Work?

The core working logic of RMG crane is to realize the precise alignment, pick-up, transshipment, and stacking of containers through three-dimensional linkage of vertical track walking, horizontal trolley movement, and vertical lifting. With anti-swing technology, the operation is stable and efficient.

Three core exercise methods

• Vertical walking (operation of the whole machine): The entire RMG crane walks in a straight line before and after the embedded fixed steel rail, which can quickly complete the alignment of the whole machine, accurately reach the target container operation area, and fully cover the vertical operation area of the yard, laying the foundation for subsequent precise operations.
• Horizontal walking (trolley operation): The lifting trolley equipped with the lifting mechanism moves smoothly laterally along the main beam, which can fine-tune the horizontal position of the spreader with high precision and accurately align the center point of the container, effectively making up for the slight deviation of the longitudinal positioning of the whole machine, and ensuring zero alignment error.
• Vertical lifting (lifting operation): The lifting mechanism drives the special spreader to lift smoothly, completing the container grabbing, lifting, lowering and precise placement.The equipment is equipped with a multi-rope anti-swing structure, which can effectively suppress the shaking of the box and greatly improve the operating stability and safety factor.

Standard operating cycle process

1. The whole machine travels accurately along the embedded steel rail to the container station to be operated, completes the initial positioning of the locked area, and accurately locks the operating range, laying a solid foundation for subsequent refined operations.；
2. The lifting trolley is accurately fine-tuned laterally along the main beam, and the special spreader is driven to align the standard positioning points of the four corners of the container to achieve precise alignment at the millimeter level and eliminate operating deviations.；
3. The spreader is smoothly lowered to fit the box body, and the four-corner rotary locking mechanism automatically and accurately bites the corners of the container. After the locking verification is completed, the box body is smoothly lifted so that it is completely separated from the container stacking or transportation carrier.；
4. Through the collaborative linkage between the vertical walking of the whole machine and the horizontal movement of the lifting trolley, the container is smoothly suspended and transported to the target storage area, directly above the designated drop-off point of the freight truck or railway carriage.；
5. The control system controls the spreader to descend at a uniform speed and slowly. After the container is completely and safely landed, the rotary lock mechanism is unlocked to complete the standardized unloading and landing operation.；
6. The spreader is reset and lifted at no load, and the equipment quickly returns to the standby state, seamlessly connecting the next round of operation cycle, ensuring continuous and efficient operation of the yard around the clock.

The modern intelligent RMG crane (ARMG fully automatic rail gantry crane) can rely on the terminal operating system to realize unattended continuous operation and greatly improve the throughput efficiency of the yard.

Key Features of RMG Cranes

Compared with traditional lifting equipment, the design of RMG cranes is fully adapted to the needs of modern high-density, high-throughput, and intelligent depots, and its core advantages and characteristics are very prominent.：

High work efficiency

The rail walking speed of the RMG crane can reach more than 45m/min, and the lifting speed can reach 30m/min at full load. With precise linkage control, it can complete 28-40 container operations per hour, and the automated model is more efficient.At the same time, it supports the hoisting of double 20-foot containers and single 40/45-foot large containers, and the throughput of a single operation is greatly improved, which can meet the 24-hour uninterrupted continuous operation of the yard.

Accurate positioning

Energy-saving and low-carbon

The whole machine is driven by pure electricity, has no diesel exhaust emissions, and meets the standards of green port construction.Equipped with a regenerative braking energy recovery system, excess electrical energy can be recovered during container decentralization and equipment deceleration, and the energy consumption and utilization rate can be greatly improved.At the same time, the equipment has no vulnerable parts such as tires and diesel engines, and the daily maintenance workload and maintenance cost are much lower than that of fuel-fired tire cranes.

Intelligent adaptability

The fixed track operation path can be entered into the system in a programmable manner, which is the optimal equipment for the automated transformation of the yard.It can be seamlessly connected to the TOS terminal management system of the yard, and supports remote centralized control, automatic unmanned operation, intelligent obstacle avoidance, and automatic container identification and positioning. It is widely used in international smart ports such as Rotterdam, Hamburg, and Singapore.

Strong durability

The whole machine adopts heavy-duty anticorrosive steel structure, which is suitable for harsh working conditions such as high salt spray in ports, outdoor wind and rain. The standardized industrial design allows the service life of the equipment to reach more than 25 years, far surpassing ordinary lifting equipment, and the long-term use is extremely cost-effective.

Advantages of RMG Cranes

Combining the dimensions of operating performance, cost, safety, and environmental protection, RMG cranes have a comprehensive competitive advantage over traditional yard lifting equipment.：

1. Production capacity advantage: The multi-agency high-speed linkage operation mode is adopted, which supports 24-hour uninterrupted and stable operation, and the throughput of operations under automated working conditions is greatly improved, which is perfectly adapted to the high-intensity and high-frequency operation needs of large logistics hubs and core ports.
2. Space advantage: The equipment has the core capabilities of long-span coverage and high-rise stacking, supports high-density intensive stacking of containers, and significantly improves the storage capacity and land utilization rate of the unit site.
3. Cost advantage: The energy consumption of the whole machine’s pure electric drive is low, and it is equipped with regenerative braking energy-saving technology to effectively reduce power consumption; the equipment has no vulnerable components such as tires and diesel engines, and the structural wear rate is low, which greatly reduces the later operation and maintenance costs.
4. Environmental protection advantages: the operation has zero exhaust emissions, low operating noise, and a green and energy-saving operation mode, which is fully in line with the construction standards and environmental protection compliance requirements of green ports and low-carbon logistics parks.
5. Intelligent advantages: It is natively adapted to the intelligent control system of the yard, which can seamlessly realize remote centralized control and unattended automatic operation, effectively reducing labor costs and avoiding the operational risks caused by human operation errors.
6. Safety advantages: It is equipped with multiple safety protection systems such as anti-collision, overload protection, windproof anchoring, and real-time fault self-inspection as standard. The automated operation mode greatly reduces the entry of personnel into high-risk operation areas and guarantees the safety of yard operations in all directions.
7. Durability advantages: It adopts heavy-duty industrial-grade steel structure design, has excellent wind resistance, anti-corrosion, anti-vibration, and anti-vibration properties, and is suitable for harsh outdoor working conditions in ports. The service life of the equipment can reach more than 25 years, and the durability is extremely strong.
8. Adaptation advantages: It supports the rapid replacement of special spreaders, which can not only meet the batch operation of standard containers, but also adapt to heavy-duty and special cargo hoisting and transshipment, taking into account the needs of standardized operations and diversified special working conditions, and is extremely versatile.

RMG Crane vs RTG Crane

RMG rail gantry crane and RTG tire gantry crane are the two mainstream equipment in the port yard. The functions are similar, but the adaptation scenarios, performance, and cost are greatly different. They are the core comparison items for the selection of yard equipment：

Contrast dimension	RMG rail gantry crane	RTG tire gantry crane
Walking style and flexibility	Fixed steel rail walking, fixed path, low flexibility, unable to move across areas at will	Rubber tires walk, can move freely, the site is flexible to adapt, and the working area can be quickly adjusted
Power source	Pure electric drive, energy saving and zero emissions	Diesel/hybrid/electric drive, traditional models have high fuel consumption and pollution
Work efficiency and accuracy	Fast speed, accurate positioning, high stacking density, and excellent automation efficiency	The speed is medium, the road surface is uneven and easy to offset, and the accuracy and stability are slightly poor.
Initial input cost	High, steel rails need to be laid, foundations need to be retrofitted, and supporting power facilities need to be installed.	Low, no rail infrastructure is required, and the equipment can be operated when it enters the field
Late operating costs	Extremely low, energy saving, low wear and easy maintenance	Higher, tires are easy to wear, diesel consumables are large, and parts are lost.
Service life	About 25 years	About 15 years
Automation adaptability	Excellent, it is the preferred equipment for smart yard automation	Generally, the movement is random, and the automatic transformation is difficult.
Environmental adaptability	Strong wind resistance, seismic resistance, stability, and excellent operating ability in bad weather	Windproof and weak stability, operation needs to be restricted in windy weather

Selection summary: RMG cranes are preferred for large-scale fixed depots that pursue long-term efficient, intelligent, and high-density operations; the site is flexible, short-term operations, and small-scale depots are suitable for RTG cranes.

Common Applications of RMG Cranes

Relying on the core advantages of high precision, high production capacity, and easy automation, RMG cranes focus on standardized, high-volume, high-frequency, and fixed-layout cargo operation scenarios. The core application areas are as follows：

• Port container terminal: As the core application scenario of RMG crane, it is mainly responsible for the automated storage, orderly dispatching, interval transshipment and consolidation of containers in the port area. It is perfectly adapted to the high-intensity, high-throughput, and all-weather large-scale operation needs of large ports. It is the core equipment of smart port yard.
• Railway intermodal yard: it can efficiently complete the rapid transfer and alignment of containers between railway carriages, freight trucks, and storage depots, open up public railway and sea railway multimodal transport links, and greatly improve the turnover efficiency of intermodal transport hubs and the speed of cargo movement.
• Inland logistics hub/container yard: adapt to inland standardized container warehousing and turnover yard operations, relying on the advantages of high-precision positioning and high-density stacking, maximize the use of limited site resources, and improve the storage floor area ratio and intensive operation level of inland yard.
• Large-scale industrial freight yard: The equipment is extremely scalable. Through the replacement of special customized spreaders, it can be adapted to multi-category heavy-duty hoisting and transshipment operations such as heavy steel, modular engineering equipment, and structured bulk cargo, so as to get rid of the restrictions of single container operations and adapt to diversified industrial freight scenarios.

How to Choose the Right RMG Crane

The purchase of suitable RMG cranes needs to be considered in combination with site conditions, operating requirements, and long-term planning. The core selection points are as follows：

Matching rated lifting weight

According to the selection of cargo for the operation, 40-50 ton models are selected for conventional container operations, and 51-65 ton and above heavy-duty models are selected for heavy-duty high-box and special containers to avoid cost waste caused by excess parameters and prevent insufficient load from affecting the operation.

Adapt to yard span and layout

The conventional span of RMG cranes is 20-60 meters, and the mainstream is 30-50 meters. It needs to be determined according to the number of container rows in the yard and the width of the lane. It can be equipped with a single-sided/double-sided cantilever of 0-10 meters to adapt to the corner operations of the site, while reserving space for future site expansion.

Determine the stacking and lifting height

The stacking height of conventional operations is 4-7 layers, the automated yard can reach 8 layers, and the lifting height range is 9-27 meters. The type needs to be selected according to the storage density requirements of the yard. The higher the height, the higher the site utilization rate, and the higher the requirements for equipment structure stiffness and control accuracy.

Choose the automation level as needed

• Small and low-throughput yard: manual operation models are preferred, with simple configuration and excellent cost performance, which can fully meet the needs of daily basic container loading, unloading and storage operations.
• Medium-sized conventional yard: adapted to semi-automatic ARMG models, relying on remote monitoring + automatic walking and collaborative operation, balancing operating costs and operating efficiency, and adapting to medium and high-frequency yard operation scenarios.
• Large-scale smart yard (annual throughput of more than 500,000 TEU): Fully automated ASC unattended models are selected to support uninterrupted and continuous operation around the clock, and are suitable for high-throughput, high-density, and intelligent modern ports and hub yards.

Optimize performance and energy consumption configuration

Priority is given to the configuration of frequency conversion speed regulation and regenerative braking energy-saving models to accurately match the on-site power supply load conditions; combined with the actual operating intensity of the yard, scientifically match the lifting, trolley and walking operating speed, while ensuring efficient operation, energy consumption and consumption are effectively reduced, and a two-way balance between efficiency and energy saving is achieved.

Pay attention to safety and compliance standards

The equipment must comply with FEM, EN, and ISO international lifting equipment standards, and be equipped with a full set of safety systems such as anti-swing, anti-collision, overload protection, wind monitoring, and emergency braking. The marine anticorrosive coating structure needs to be selected for port scenes to adapt to harsh environments.

Consider infrastructure and long-term costs

Plan the rail foundation and power supporting infrastructure in advance, and give priority to modular design models to facilitate later maintenance and upgrading; comprehensively compare equipment purchase prices, infrastructure costs, operation and maintenance costs, and service life to calculate the long-term return on investment.

Conclusion

RMG rail gantry crane is an efficient, intelligent and energy-saving core equipment of a modern container yard. With the core advantages of precise track positioning, high stacking density, high operating efficiency, easy automation, long life, and low operation and maintenance costs, it has become the preferred lifting equipment for ports, railway intermodal transportation, and large logistics hubs.

Although its initial infrastructure investment is higher than that of RTG tire cranes, from the perspective of long-term operation, in the yard scenario of fixed layout, high throughput, and intelligent upgrading, the comprehensive price ratio and operating advantages of RMG cranes are irreplaceable. It is the core equipment for the construction of smart ports and green logistics parks.

In heavy lifting, material handling industry, gantry crane has become an indispensable core equipment.From precision heavy lifting in small workshops to stacking of 10,000-ton containers in ports and lifting of heavy components in large-scale infrastructure projects, gantry cranes gradually replace traditional lifting equipment with superior adaptability, stable load capacity and flexible operation mode, becoming the mainstream lifting solution in global manufacturing, logistics, construction, ports and other fields.With the upgrading of industrial intelligence and the acceleration of large-scale engineering construction, the market demand for flexible, high-efficiency and high-safety lifting equipment continues to skyrocket, and portal cranes precisely match the diversified lifting needs of modern industry, and they are firmly at the core of heavy handling equipment.

How Does a Gantry Crane Work?

Henan Mine Crane manufactured gantry crane is a mobile heavy lifting equipment with its own support structure, also known as gantry crane in the industry, belonging to the derivative upgrade category of bridge crane.Its core definition is: supporting the main beam structure by rigid legs on both sides, relying on the ground track or tire walking system to realize the movement of the whole machine, matching with the lifting trolley and lifting mechanism that can slide horizontally, completing the vertical lifting, horizontal translation and vertical walking of heavy objects.The whole equipment adopts electric drive, accurately controls lifting, operation, amplitude variation and other actions through control system, ensures operation stability by mechanical transmission and braking system, and can complete lifting, handling, stacking and loading and unloading of heavy materials with full coverage and no dead angle in designated operation area, so as to meet the continuous and large-scale industrial production operation requirements.

What Are Gantry Cranes Used For?

The versatility and high adaptability of gantry cranes make them cover all heavy handling scenarios in the industry. Different tonnage and structure models can accurately match the working conditions of various industries. The following are the detailed operation scenarios and core values of the seven core application fields.

Manufacturing and heavy equipment production

Gantry crane is the core hoisting equipment of heavy industry manufacturing industry, which runs through the whole process of heavy industry production, parts processing and equipment assembly.The tonnage of all kinds of heavy machinery and equipment, precision molds, and large-scale production parts in the workshop is extremely large, far exceeding the carrying capacity of ordinary handling equipment.The equipment runs smoothly and accurately, which can safely complete heavy workpiece transfer, station switching and raw material handling, effectively protect precision components, and stably guarantee product processing accuracy and production line operation efficiency.

It can cooperate with the whole process of equipment assembly, steel structure welding, component processing and equipment maintenance, complete the accurate alignment and suspension fixing operation of heavy components, effectively reduce manual intensity, shorten production cycle, and adapt to large-scale assembly line production.At the same time, it is widely suitable for steel, automobile, general machinery, new energy power and other industries, which can meet the lifting and transportation needs of steel, frame, large machine tools and wind power components, and can be produced efficiently by all-round energy heavy industry.

Warehouses and material handling facilities

Gantry cranes are widely used in large-scale storage, material storage and logistics transit bases, effectively making up for the shortcomings of traditional equipment such as forklifts.It can easily accept heavy goods of more than 5 tons, adapt to steel profiles, large plates, complete sets of equipment and other ultra-long and ultra-wide non-standard large materials, can smoothly complete the loading, unloading, shifting and stacking operations of all kinds of heavy and ultra-large size goods, and solve the heavy storage and handling problems that ordinary equipment cannot complete.

Relying on accurate and large-scale operation capacity, portal cranes can stack stored goods in a regular manner, optimize the storage layout of zones, and greatly improve the utilization rate of site space.The equipment supports all-weather uninterrupted continuous operation, can efficiently handle centralized loading and unloading and transfer of large-batch materials, simplify logistics operation process, significantly improve the overall turnover efficiency of warehousing, and assist the efficient and stable operation of logistics warehousing system.

Ports and container terminals

Gantry cranes are the core lifting equipment in ports and container terminals, supporting the efficient flow of global container and bulk cargo logistics.It mainly undertakes ship loading and unloading, truck transfer and stacking of marine containers, and can realize multi-layer regular stacking and rapid and accurate alignment operations.Compared with traditional lifting equipment, it has higher operation efficiency and stronger stability, which can continuously improve the cargo handling capacity of the port and ensure the normal and efficient operation of the terminal.

The port scene mainly adopts Henan Mine Crane manufactured RMG rail type and RTG tire gantry crane, which complement each other’s advantages and adapt to different port working conditions.RMG has accurate positioning and strong bearing capacity, suitable for standardized yard fixed operation;RTG has excellent mobility and can flexibly switch operation areas.With intelligent dispatching and unmanned control system, the equipment can complete automatic loading and unloading stacking, greatly reducing manual intervention, which is the key core equipment for intelligent automatic port construction.

Construction and infrastructure projects

With excellent outdoor adaptability, gantry cranes have become the core main lifting equipment for municipal infrastructure, bridge tunnels, large venues and other projects.It can efficiently complete the hoisting and transfer of heavy materials such as steel structure frames, precast concrete members and large-scale reinforced building materials, accurately realize the alignment of high-altitude and large-span members, effectively guarantee the construction accuracy of engineering projects, and stably promote the overall construction progress.

The equipment can be fully adapted to all kinds of large-scale infrastructure complex outdoor conditions, undertake the erection and displacement of box girders and T beams in bridge engineering, responsible for segment hoisting, equipment installation and material transfer in tunnel construction, and widely used in plant infrastructure, municipal engineering and large-scale venue construction, providing stable and efficient heavy hoisting support for various infrastructure projects.

Shipyards and marine industry

Shipbuilding and offshore engineering have strict standards for the load, accuracy and stability of lifting equipment. Henan Mine Crane manufactured heavy gantry cranes are the core standard equipment of shipyards and dry docks.It supports ship construction, assembly and maintenance operations in the whole process, and can accurately complete fine procedures such as hull section docking, deck and engine room equipment assembly, effectively ensure ship construction accuracy, and greatly improve the overall safety and standardization of offshore equipment construction.

For the lifting problems of oversized and overweight components in the ship industry, large-tonnage gantry cranes have irreplaceable operational advantages, which can safely lift hull sections, marine main engines, propellers and heavy accessories on offshore platforms.The 1,000-ton heavy-duty aircraft are specially adapted to the construction, operation and maintenance of large cargo ships, cruise ships and offshore drilling platforms. They can meet the ultra-large load hoisting needs of high-end offshore engineering and are the core support equipment for the development of the shipbuilding industry.

Railway and transportation industry

Gantry crane is the core lifting equipment of railway transportation and multimodal transport hub, which provides stable and reliable operation support for railway heavy material handling and equipment maintenance, and ensures efficient and orderly operation of railway transportation system.The equipment can safely complete the lifting, transfer and installation of rails, sleepers, bridge components, train chassis and large locomotive accessories, and at the same time undertake the loading, unloading and stacking tasks of railway freight containers and heavy freight materials.

The equipment is widely adapted to various scenarios such as railway marshalling station, freight yard, highway-railway intermodal transportation hub and rail transit maintenance base, and can realize large-scale and standardized handling of heavy materials.With stable operation performance and strong environmental adaptability, it can perfectly match the high-frequency and large-flow material transfer and equipment maintenance conditions of the railway industry, effectively improving the overall efficiency of railway logistics operation.

Power plants and energy projects

With its excellent stability and safety performance, gantry cranes are widely used in the construction, operation and maintenance of various energy projects such as thermal power, hydropower, wind power, photovoltaic, and nuclear power.Energy engineering involves a large number of heavy power equipment hoisting operations. The core components such as steam turbine, generator, transformer, wind power tower and fan blade are heavy in weight and strict in installation accuracy. The equipment can accurately complete hoisting, positioning, installation and later disassembly and maintenance, effectively ensuring the installation quality and operation stability of power equipment.

Most energy projects are located in open field areas with complex operating environments and face harsh working conditions such as temperature difference changes, wind and sand, rain and corrosion all year round.Gantry crane has strong environmental adaptation and weather resistance, can continue to operate stably in various complex outdoor scenarios, fully meet the construction of power generation facilities, equipment replacement, daily maintenance and other full-process heavy lifting requirements, is an indispensable core lifting equipment in the energy and power industry.

Why Choose A Gantry Crane for Industrial Applications?

In the field of industrial heavy lifting, gantry cranes can fully replace traditional equipment and become the mainstream choice in the industry. The core comes from its irreplaceable scene advantages, performance advantages and cost-effective advantages, which fully meet the diversified operation needs of modern industry.

Independent structural design

Gantry crane adopts integrated independent support structure, completely without relying on the main building body such as plant wall, roof, column, etc., and does not need complex civil engineering reconstruction projects. The landing threshold is extremely low.Whether it is a brand-new blank factory area, an open-air material storage yard, an old transformation workshop, or an unobstructed outdoor operation site, it can be directly installed and put into use.It completely solves the pain point of traditional equipment such as bridge crane depending on building structure, adapts to various non-standard sites and flexible working conditions, and covers various industrial lifting environments.

Indoor and outdoor usability

Gantry crane factory standard windproof, rainproof, dustproof, anti-corrosion and other protective technology, the overall weather resistance is excellent, not limited by the operation site and environment, truly realize indoor and outdoor dual scene universal.It can not only stably complete precision hoisting operation in closed dust-free indoor production workshop, but also adapt to severe outdoor working conditions such as open-air construction site, coastal port, sandstorm and cold, wet and rainy, etc. It can operate normally and continuously throughout the year, greatly improve equipment utilization rate, and adapt to industrial construction requirements of all seasons and scenes.

Broad lifting capacity

Gantry crane has a very wide load coverage, tonnage configuration is very complete, comprehensive coverage from light to heavy lifting needs.It includes 0.5 tons of light portable models, 10 to 50 tons of small and medium-sized conventional industrial models, and hundreds of tons of ultra-heavy customized models, which can flexibly match different working conditions such as light material handling, conventional workpiece lifting, and large heavy component construction.It can fully meet the differentiated tonnage operation requirements of machinery, steel, port, energy and other industries, and has strong adaptability.

Flexible customization and installation

Gantry crane installation process is simple and convenient, construction cycle is short, no large-scale civil engineering foundation works, can be quickly commissioned and put into production after mobilization, effectively saving project duration and installation cost.At the same time, the equipment supports all-round personalized customization service. According to the actual working conditions such as user site span, effective lifting height, operation frequency, special environment, etc., the manufacturer can tailor-made anti-corrosion, explosion-proof, high-low leg, intelligent automation and other exclusive models to accurately adapt to the differentiated and non-standardized industrial lifting operation requirements of various enterprises.

High efficiency and safety

Henan Mine Crane manufactured gantry crane stable operation, high positioning accuracy, wide operation coverage, support long-term uninterrupted continuous operation, can greatly improve the efficiency of industrial material handling and engineering construction, effectively reduce labor investment and time cost.The equipment is equipped with multiple safety protection systems such as overload limit, travel limit, emergency braking, anti-fall, etc., comprehensively avoiding safety risks such as lifting deviation, overload, sliding, etc., minimizing the accident rate on the construction site, and comprehensively ensuring the stable operation of the equipment and the personal safety of the operators.

How to Choose the Right Gantry Crane for Your Application?

Reasonable type selection is the key to ensure the operation efficiency, service life and safety of portal cranes. Blind type selection is easy to cause problems such as idle equipment, insufficient load and site mismatch.When selecting models, users need to combine their own working conditions, comprehensively consider the five core factors, and accurately match the optimal models.

Determine capacity and duty cycle

The actual maximum lifting weight shall be accurately calculated during the selection, and 10% to 20% of the safety load margin shall be reserved to prevent overload selection and prevent structural loss and life attenuation caused by long-term full-load operation of the equipment.At the same time, in combination with the frequency matching model of field operation, the economical and portable single-beam gantry crane can be selected for intermittent low-frequency operation, and the stable and durable double-beam model is preferred for high-frequency and continuous heavy industrial lifting scenarios, effectively ensuring the stability and service life of long-term operation of the equipment.

Check span and lifting height

Before the user selects the type, it is necessary to accurately measure the effective span and maximum lifting height of the operation site, and determine the core parameters of the equipment in combination with the material stacking range and the actual operation area planning.The larger the span and lifting height of the equipment, the higher the requirements for the structural strength, overall rigidity and anti-shaking performance of the main beam. For the complex working conditions of large span and high lifting, it is recommended to select the reinforced double-beam structure type to effectively avoid the deformation and shaking problems of equipment operation and stably ensure the accuracy and safety of lifting operation.

Choose crane type and operation mode

It is necessary to match the corresponding gantry crane model according to the site space and operation scene. Semi-gantry crane is suitable for indoor narrow workshop. Full-gantry crane is selected for open-air large-area storage yard. Portable equipment can be used for temporary short-term operation. RMG and RTG cranes are specially matched for port container scene.At the same time, ground operation, wireless remote control and cab control mode can be selected as required. Intelligent unmanned dispatching system can be upgraded for high-frequency standardized operation to meet diversified operation requirements.

Assess working conditions

Operating environment is the core reference factor for type selection, and targeted equipment protection and configuration upgrade shall be made according to field conditions.Windproof, rainproof and sun-proof protective devices shall be installed for outdoor operation. A complete set of anti-corrosion and anti-rust treatment shall be carried out in coastal areas with high salt fog. Explosion-proof special models shall be selected for dust and inflammable and explosive conditions. Temperature control protective accessories shall be fitted for high and low temperature extreme environments to ensure stable and safe operation of portal cranes under various special conditions.

Consider smart automation features

For large-scale, standardized and high-frequency industrial lifting scenarios, upgrading intelligent automation functions can greatly improve operation efficiency.Intelligent gantry crane can be equipped with automatic positioning, intelligent dispatching, remote monitoring, automatic fault alarm and unmanned operation system, which can reduce manual operation intervention, reduce labor cost, improve lifting accuracy and operation efficiency, and perfectly adapt to the intelligent upgrading development needs of modern factories, smart ports and other scenarios.

Henan Mine Crane Factory Custom

Gantry crane is the core main equipment of heavy material handling, large component hoisting and engineering construction in modern industry.From light temporary operations to heavy normal industrial operations, gantry cranes can provide accurate, reliable and efficient lifting solutions, providing core equipment support for the large-scale, intelligent and efficient development of modern industry.

Equipment selection and quality control is the key to play the lifting value, choose professional and regular gantry crane manufacturers, not only can obtain high-quality equipment in line with national standards, but also enjoy one-to-one condition survey, personalized customization, installation and commissioning, life-long maintenance of the whole process services.Henan Mine Crane Factory can customize its own gantry crane solutions for different industries and different working conditions, accurately match various operation scenarios, maximize operation efficiency, reduce operation and maintenance costs, ensure operation safety, and protect industrial production and engineering construction of enterprises.

Gantry cranes are the core lifting equipment for industrial material transfer and heavy-duty assembly. Relying on the self-supporting structure, they can realize a wide range of indoor and outdoor general operating conditions, high flexibility, and are widely used in various industrial sites. Most users are difficult to distinguish between model differences and adaptation conditions when purchasing and using. Lack of scientific basis for selection.

What Is a Gantry Crane?

Gantry crane, also often referred to as gantry crane, portal crane (gantry crane), is a kind of self-supporting bridge lifting equipment.In simple terms, it is a lifting device built on a gantry frame structure. It supports the horizontal main beam through vertical outriggers, and can rely on wheels, casters, and rails to move as a whole. Without the support of the plant building structure, the three-dimensional space lifting operation of heavy objects can be completed.

The specifications of gantry cranes have a huge span and cover the needs of the whole scene. They are as small as portable small equipment for workshop maintenance, which can easily lift automobile engines and small machinery and equipment, and as large as giant industrial models used in ports and shipyards. They can carry hundreds of tons of heavy cargo and are the core equipment of heavy industrial production.

Core components of gantry crane

A complete gantry crane is composed of five core components, and all components work together to ensure stable and efficient lifting operations.

• Outriggers: As the core support structure for self-supporting and load-bearing equipment, A-shaped and inverted V-shaped vertical shapes with excellent stability are mostly used. Single-leg and double-leg designs are the most common on the market. Large heavy-duty gantry cranes will be equipped with multiple sets of outriggers to ensure the overall stability of the equipment during operation in all directions.
• Main beam/bridge frame: The core load-bearing beam erected laterally above the outriggers on both sides is divided into two mainstream structures, single main beam and double main beam. It is a key component that carries heavy loads and determines the operating span and load-bearing upper limit of the equipment.
• Running trolley: A movable walking mechanism equipped with a crane, which can slide accurately laterally along the main beam, flexibly adjust the starting position, and realize the precise horizontal positioning of the goods within the operating span.
• Hoisting hoist: The core lifting execution device of the equipment relies on the transmission structure of wire rope, chain and pulley block to complete the cargo lifting operation. According to the type of power, it can be divided into three types: manual, electric and hydraulic, which are adapted to the needs of different loads and operating frequencies. Working conditions.
• Walking mechanism: it consists of wheels, non-slip casters, load-bearing steel rails, wear-resistant rubber tires and other components, which can support the entire equipment to complete the longitudinal movement, directly determining the movement mode, walking stability and scene adaptation ability of the gantry crane.

How Does a Gantry Crane Work?

The core working logic of the gantry crane is vertical lifting and multi-dimensional horizontal movement. Through the coordinated operation of the three moving axes, the hook can cover the three-dimensional space in the working area and accurately complete the cargo grabbing, transshipment, and unloading operations.

Three core motion axes

1. Vertical lifting movement: the crane uses a motor to drive the retractable wire rope or chain to drive the hook and load to lift smoothly to complete the core operation process of lifting and accurately positioning the goods from the ground.
2. Horizontal walking movement: The running trolley can slide left and right laterally along the main beam, quickly adjust the horizontal position of the hook and the cargo, and accurately cover all operating points within the operating span.
3. Longitudinal walking movement: The entire gantry crane can rely on ground tracks or rubber tires to complete the longitudinal walking before and after, greatly widening the overall operation coverage to achieve long-distance smooth transfer of goods

Standardized operation steps

Conventional lifting operations follow a five-step process, with standardized operation and high safety.

• Equipment alignment: Operators clean up the work site in advance to ensure smooth and smooth passage. The gantry crane adjusts the position of the whole machine so that the main beam accurately covers the top of the material to be hoisted. Correct the operating benchmark to avoid the hidden dangers of hoisting offset and build a solid safety foundation for subsequent lifting and transshipment.
• Precise positioning: After the alignment of the whole machine is completed, control the trolley to move laterally along the main beam, fine-tune the position of the hook and the crane, combine the shape of the cargo, and locate the center of gravity lifting point, effectively prevent the cargo from tilting and shaking during the hoisting process, and ensure that the overall hoisting attitude is stable and controllable.
• Hook lifting: according to the specifications and weight of the goods, choose the appropriate spreader specifications to complete the binding and hanging, and confirm that the locking force is uniform, start the crane to lift the material at a uniform speed, so that the goods are off the ground and avoid surrounding obstacles to maintain a stable hoisting state.
• Transfer and shift: after the cargo is lifted, the standard safe lifting height is maintained, and the linkage control equipment walks vertically and laterally at a uniform speed and smooth operation throughout the process to prevent the goods from shaking caused by sudden stops and turns, and the materials are safely and accurately transferred to the target operating area.
• Unloading and unloading: After the material is in place, the placement position and angle are carefully calibrated, and the goods are slowly lowered. After the material is stabilized and the force is not offset, the spreader and binding device are removed and the complete lifting operation process is standardized.

Power and control system

Industrial-grade gantry cranes are mostly driven by electric power, powered by cable tow chains, sliding contact lines, and cable reels to ensure the stable operation of hoists, trolleys, and walking mechanisms; small portable equipment can be driven by manual chains or powered by batteries.

The operation methods include wired control of the handle, wireless remote control, and cab control. Large-scale equipment comes standard with frequency conversion speed regulation, limit protection, overload protection, and anti-swing systems to greatly improve operating stability and safety.

Types of Gantry Cranes

Gantry cranes can be divided into four categories according to structure, main beam type, movement method, and application scenarios. Different models are adapted to different working conditions, which is the core basis for selection.

Classification by structure

Model	Structural features	Applicable scenarios
Full gantry crane	Self-supporting legs on both sides, walking on the ground as a whole, stable structure and strong bearing capacity	Outdoor yard, steel mill, shipyard, heavy industrial operation scene

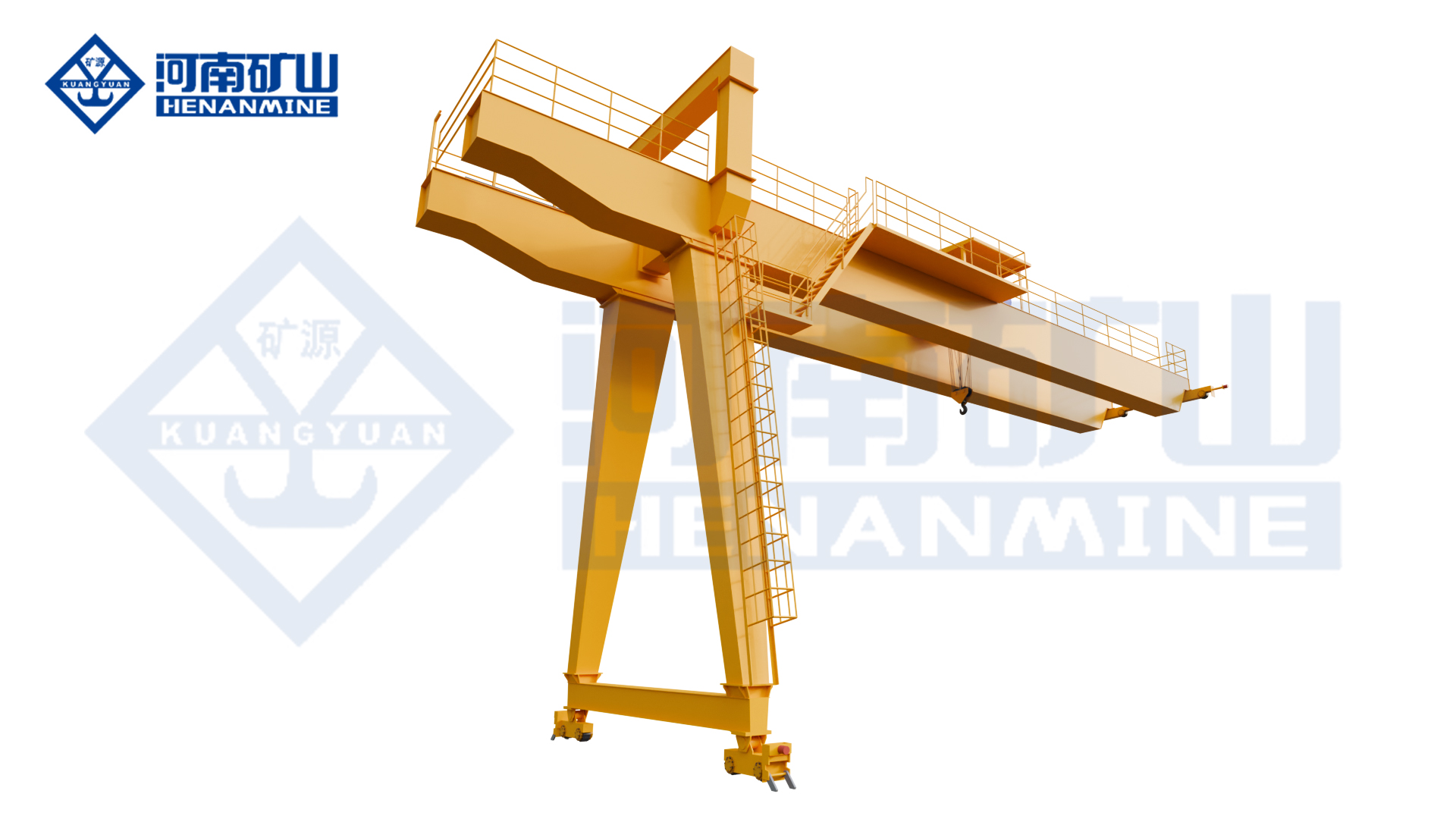

Semi-gantry crane	Single-sided floor-to-ceiling legs, relying on the wall/track support of the plant on one side, saving space	Indoor workshop, semi-outdoor venue with building support
Portable gantry crane	With casters, adjustable height and span, lightweight design, can be passed manually	Workshop maintenance, light assembly, small cargo hoisting

Classification by main beam structure

• Single main beam gantry crane: adopts a single horizontal main beam structure, the overall body is lightweight and compact, the procurement and operation and maintenance costs are lower, and the rated load is generally within 32 tons. The main light and medium-sized material hoisting operations are suitable for most indoor and outdoor conventional industrial conditions. Extremely versatile
• Double main beam gantry crane: equipped with double parallel main beam structure, the overall carrying capacity is strong, the operating stability is excellent, the effective lifting height is greater, the maximum load can reach hundreds of tons, and it can be adapted to heavy materials and high-frequency continuous operations for a long time. It is mostly used in large-scale heavy industry scenarios.

According to the differences in beam structure, the main beam can be divided into two types: box beam and truss beam. The box beam has good overall sealing, high structural strength, outstanding weather resistance and corrosion resistance, and is suitable for various complex working conditions. The truss beam has lighter weight, excellent wind resistance, and strong stability. It is the preferred structure for outdoor and open-air operation scenarios.

Classified by way of movement and walking

• Rail gantry crane (RMG): Relying on fixed steel rail track, high positioning accuracy, large carrying tonnage, stable and reliable operation, can be adapted to high-frequency continuous operations in scenarios such as port steel mills, material depots, etc. It is the core equipment for heavy-duty transshipment in fixed factories.
• Tire gantry crane (RTG): The use of wear-resistant rubber tires to walk the structure without laying a fixed track, the site has strong adaptability, can be freely and flexibly transferred, and the movement efficiency is high. It is widely used in the stacking and transshipment operations of various container depots.
• Portable adjustable gantry crane: equipped with silent casters, it can be easily moved manually, and the height of the equipment and the operating span can be flexibly adjusted. The overall lightweight design, the rated load is mostly controlled within 20 tons, which is perfectly adapted to the flexible operation needs of workshop maintenance, temporary hoisting and frequent transitions.

Customized models for dedicated scenes

• Shore bridge gantry crane (STS): It is a special large-scale heavy-duty equipment for ports, designed for ship container loading and unloading operations, with a large span and strong carrying capacity. It is the core main equipment for the loading and unloading of import and export goods in maritime ports.
• Container gantry crane: customized research and development for standardized container operations, which can efficiently complete the stacking, handling and regular transshipment of containers, and adapt to large-scale container operation scenarios such as port yards, logistics parks, etc.
• Goliya extra-large tonnage gantry crane: Super-heavy customized gantry equipment with super-heavy load and ultra-high stability is mainly used in ship construction, large-scale steel structure assembly, heavy industry equipment assembly and other super-heavy operation scenarios
• L-shaped/U-shaped gantry crane: By optimizing the shape and overall structure of the outriggers to adapt to special site space and special operation clearance requirements, the hoisting problem of restricted space can be solved, and the site adaptability is more flexible.

Common Applications of Gantry Cranes

With the advantages of no need for building support, universal indoor and outdoor, flexible and efficient, and wide load coverage, gantry cranes cover almost all heavy industry, logistics, and maintenance industries. The core application scenarios are as follows：

• Ports and container depots: relying on large-scale professional gantry equipment such as RTG RMG STS, it can efficiently complete the loading, unloading, stacking and transshipment of containers. Stable operation and strong carrying capacity are the core main equipment of modern port logistics and warehousing operations.
• Shipbuilding and shipyards: large-tonnage double main beams and Golyat gantry cranes are adapted to heavy-duty working conditions in shipyards, which can safely and accurately lift super-heavy components such as hull modules, decks, marine engines, etc. To meet the needs of large-scale assembly operations for ship construction.
• Industrial manufacturing and steel structure processing: widely used in various industrial production scenarios, it can smoothly transfer steel raw materials, machinery and equipment, and finished components to adapt to the assembly process of the production line and the daily material turnover operations of the factory.
• Steel mills and waste yards: it can be used with special lifting accessories such as electromagnetic suction cups and grab buckets to adapt to the lifting and handling of various heavy bulk materials such as steel coil steel scrap, and to adapt to the high-frequency heavy-duty operating conditions of steel mills and waste yards.
• Construction site: suitable for outdoor temporary construction scenes, it can efficiently hoisting prefabricated building components, engineering building materials and large-scale construction equipment, easy to install, strong adaptability, and perfectly fits the needs of temporary lifting operations on the construction site.
• Workshop maintenance and warehousing and logistics: lightweight portable gantry cranes are mostly used for the maintenance and hoisting of motor hvac equipment, machinery and equipment, and small and medium-sized gantry equipment can meet the needs of daily warehousing and logistics operations such as warehouse cargo stacking and transshipment.
• Power and energy industry: it is suitable for power engineering scenarios such as wind power and thermal power, and can complete the hoisting, installation and maintenance of heavy equipment such as generator sets, transformers, large wind power components, etc. To ensure the safe and efficient operation and maintenance of power equipment.

Advantages of Using a Gantry Crane

Self-supporting structure

The gantry crane adopts an independent and self-supporting frame structure, no need to rely on the load-bearing system of the plant building, no need to strengthen and transform the main body of the plant, and the equipment can be put into use. It can be perfectly adapted to various special operating scenarios such as temporary construction sites without load-bearing structures, factories, etc. The threshold for site adaptation is extremely low.

Extremely flexible

The whole machine has extremely high operational flexibility, supports fixed-point precise hoisting and global mobile operations, portable models can be quickly shifted and stored, orbital and tire models can be adapted to fixed-station high-frequency operations and site free transition requirements, and can be stably adapted to various indoor and outdoor complex operating environments.

Low installation cost

Compared with traditional bridge cranes, gantry cranes do not need to build a complex top track load-bearing system. The overall assembly process is simple and easy to disassemble, greatly shortening the construction cycle and effectively controlling project investment. It is very suitable for temporary engineering projects, leasing plant operations and industrial scenarios with controllable budgets.

Excellent outdoor operation performance

The equipment as a whole has been treated with professional anti-corrosion, windproof and waterproof technology, and can withstand harsh outdoor working conditions such as open-air wind, rain, temperature difference, exposure, etc. for a long time. It effectively solves the industry shortcoming that bridge cranes cannot operate outdoors. The stability and durability of outdoor operations are more prominent.

Extremely versatile

Equipment working conditions cover a wide range, complete models and specifications, can be adapted to 1 ton light workshop maintenance hoisting to hundreds of tons of heavy industrial hoisting operations, with suction cups, special hoisting beams and other supporting accessories, can meet the handling and hoisting needs of different forms and materials of different weights, and the versatility fully covers all kinds of industrial scenarios.

Customizable

The whole machine supports highly customized design, the operating span, the lifting height, the rated load, and the walking mode can be adjusted according to the on-site working conditions. The portable model can flexibly adjust the height and span, and can be adapted to later production capacity upgrades and changes in working conditions. The equipment is extremely scalable and adaptable.

Safe and efficient

The equipment can completely replace manual heavy-duty handling and reduce the risk of work-related injuries from the root cause. Relying on an accurate three-dimensional positioning system, the accuracy of material hoisting and positioning is greatly improved. With multiple safety protection devices such as overload limit, anti-swing, emergency braking, etc., it can effectively avoid safety hazards such as overload, collision, material shaking, etc., and comprehensively improve operation safety and production efficiency.

Factors to Consider When Choosing a Gantry Crane

Scientific and reasonable equipment selection is the core prerequisite to ensure the safety and stability of lifting operations, control the input cost of the project, and improve the overall operating efficiency. In the selection process, users need to focus on the ten core selection dimensions combined with the actual working conditions on the site to accurately match and adapt to the model.

• Rated load:When selecting the type, it is necessary to comprehensively calculate the weight of the cargo, the weight of the spreader and the weight of various ancillary accessories, reasonably reserve the safe load margin, strictly prevent overload, and select the type to ensure the safe and stable operation of the equipment from the source.
• Operating span: Accurately measure the effective operating width between the two legs. The larger the operating span, the higher the requirements for the structural strength and overall stability of the main beam. The manufacturing cost of the equipment will also increase. The span parameters need to be reasonably planned in combination with the scope of operation.
• Lifting height: combine the height of the cargo stacking on site with the height of the surrounding obstacles to accurately determine the maximum effective lifting height of the hook to ensure that the equipment has sufficient working space to avoid bumps and interference during the lifting process.
• Operating frequency: According to the frequency of use of the equipment, the working condition level is divided into light intermittent operations, medium-sized conventional operations, and heavy-duty continuous operations. The corresponding working level of equipment is matched to effectively improve the durability and service life of the equipment.
• Mobile mode: High-frequency operations in fixed factories give priority to orbital models that require frequent transitions and flexible operations. Tire-type or portable models can be selected. Indoor scenes with building support conditions can be adapted to half-door models. On-demand matching and adaptation of mobile solutions
• Operating environment: outdoor open-air scenes need to be equipped with optional windproof, anticorrosive and waterproof protection configuration, uneven ground needs to be adapted to special walking structures, corrosive moisture and dust scenes need to be customized, special anticorrosive coating needs to be adapted to complex working conditions and environments
• Power and control methods: manual or battery-powered models can be selected for light-duty and low-frequency operations, industrial high-frequency heavy-duty operations, priority is given to electric power systems, and various control modes such as wireless remote control cab control can be used with handles according to operating needs.
• Material selection: Heavy-duty industrial heavy-duty operations give priority to steel structure, high strength, strong bearing capacity, frequent transitions in lightweight operations, and scenarios with high anti-corrosion requirements. Aluminum alloy material can be selected to take into account lightness and corrosion resistance.
• Safety configuration: When selecting the type, priority is given to a full set of safety devices such as overload protection, stroke limit switch, emergency braking, anti-swing intelligent braking, etc., which strictly comply with industry safety standards and avoid all kinds of hoisting safety hazards in all directions.
• Budget and long-term needs: comprehensively consider the overall cost of equipment procurement, installation, commissioning and late maintenance, while reserving space for equipment span and load upgrade, taking into account the current use needs and long-term production expansion to improve the overall cost performance of the equipment.

Conclusion

Gantry cranes have multiple advantages such as flexibility, general economy, etc., which are different from traditional lifting equipment. The unique self-supporting movable structure supports indoor and outdoor multi-scene operations. It is widely adapted to many industries such as port heavy industry construction and maintenance. The rich model specifications can accurately match various working conditions from light maintenance to heavy lifting.

In the actual selection, only the comprehensive considerations of load, span, operating environment, and frequency of use can be combined to select the gantry lifting equipment with high cost performance, high safety, and the strongest adaptability.

Gantry cranes are the core equipment for outdoor heavy-duty operations and are widely used in ports, construction, manufacturing and other fields. Many people will confuse it with bridge crane, in fact, the two are very different in structure, installation and use scenarios.

This article will help you fully understand the gantry crane from the basic definition, type division, practical applications and core advantages, and will teach you how to choose the right model for your own conditions, as well as the key difference between the bridge crane and the gantry crane.

Crane Type	Key Advantages	Ideal Applications	Lifting Capacity	Typical Span	Cost Level
Single Girder Gantry Crane	Light self-weight, simple structure	Light/medium-duty workshop handling	5–30 tons	≤ 20 m	Low
Double Girder Gantry Crane	High rigidity & stability, heavy-load capacity	Heavy industry, port lifting, bridge construction	30–500+ tons	10–50 m	Medium–High
Rail Mounted Gantry Crane (RMG)	High positioning accuracyong-term wear	Container yards, fixed large industrial yards	20–50 tons	20–40 m	Medium–High
Rubber Tyred Gantry Crane (RTG)	No fixed rail required, high mobility	Ports, temporary yards, precast concrete yards	20–50 tons	15–30 m	Medium
Portable / Mobile Gantry Crane	Adjustable height & span	Small workshops, maintenance bays	1–20 tons	3–12 m	Low
Full Gantry Crane	Fully independent structur	Open yards, ports, construction sites	5–500+ tons	5–50 m	Medium
Semi-Gantry Crane	Saves space	Factory outdoor warehouses, workshop edge handling	5–30 tons	5–25 m	Low–Medium

 What Is a Gantry Crane?

 Basic Definition

A Gantry Crane, also known as a Gantry Crane, is a lifting device supported by a portal frame. Its main beam is supported by both sides of the outriggers, and the bottom of the outriggers is equipped with a walking mechanism, which can move on the ground track or tires to realize the horizontal movement of the whole machine.

Unlike overhead cranes, gantry cranes do not need to be attached to the columns or roof structure of the plant, its support is completely independent, installation and site adaptability is stronger. Whether it is an open yard or a workshop with certain space limitations, as long as there is a level working surface, it can basically be deployed.

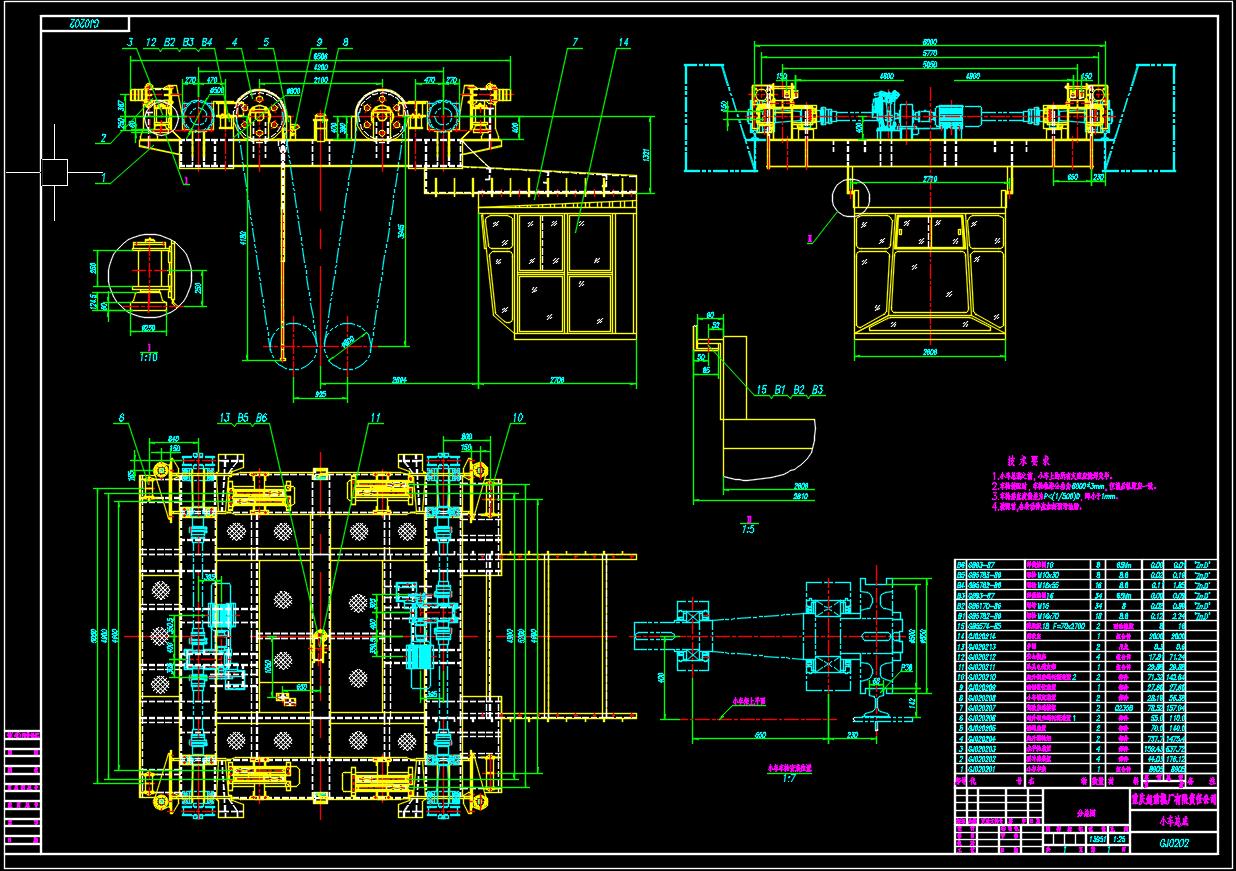

 Main Components

There are not many core components of gantry cranes, but each of them has a direct impact on operational safety and efficiency. The first is the main girder, which is divided into single and double main girders. It is the core structure for carrying heavy loads and determines the maximum lifting capacity and span of the crane.

Next is the supporting leg, connecting the main beam and traveling mechanism, transferring the weight and load of the whole machine, common L-type, C-type design, C-type outriggers will be done tilted or curved processing, the purpose is to leave a larger lateral space, so that the extra-wide cargo smoothly through the outriggers underneath.

Then the lifting mechanism, responsible for the lifting and lowering of heavy loads, mainly consists of motors, reels, wire ropes, hooks, etc. It is the core power unit to realize the lifting operation. Walking mechanism is divided into two types: rail type and tire type, rail type runs on a fixed track by steel wheels, and tire type relies on rubber tires to achieve movement.

Finally, there is the control system, which is divided into wired handle, wireless remote control and cab operation, and is responsible for controlling the lifting, traveling, luffing and other actions, and at the same time integrates all kinds of safety protection devices to ensure the safety of operation.

 How It Differs from an Overhead Crane

Many people can’t tell the difference between a gantry crane and an overhead crane, but the core difference between the two is in the structural support and installation conditions. Overhead cranes, also known as overhead cranes, run on the columns and roof rails of the plant, with the main beams suspended under the roof rails, without independent legs, and can only work inside the plant.

Gantry cranes, on the other hand, are independent portal frames with outriggers directly on the ground without the need for the plant to provide support, which means that they can be used in non-fixed construction environments such as open fields, temporary yards, and outdoor construction sites, whereas overhead cranes can only be deployed in scenarios with fixed plants.

From the point of view of the scope of operation, the mobile range of bridge cranes is limited by the span of the plant, while the span of the gantry crane can be flexibly customized according to the site, from a few meters to dozens of meters can be achieved, and can even be made to do a double cantilever design, to expand the area covered by the operation.

In addition, there are differences in installation costs. Overhead cranes need to renovate the plant and lay special tracks, with high renovation costs and a long cycle; gantry cranes only need to level the site, lay simple tracks or directly deploy tire-type, with faster installation and commissioning, and less alteration to the existing site.

 Types of Gantry Cranes

There are many ways to categorize gantry cranes, the most commonly used is according to the main girder design, movement mode and structural form, different types are suitable for different working conditions and loads.

By Girder Design

Single Girder Gantry Cranes

Single girder gantry crane has only one main girder, which usually adopts I-beam or combined cross-section, and the height of cross-section is generally between 0.5-1.2 meters, which is lighter in dead weight, lower in manufacturing cost, and more convenient in installation. Its trolley mostly adopts the under-hanging design, hanging directly below the main beam track operation.

This type of crane is suitable for light to medium load operation scenarios, such as small workshop equipment maintenance, small cargo handling, lifting capacity is generally between 10-30 tons, the span is also relatively small, usually not more than 20 meters.

Its advantages are simple structure, low cost, easy maintenance; disadvantages are limited carrying capacity, overall stability is not as good as double main girder, easy to shake in heavy load or large span operation, not suitable for long-term high-intensity heavy operations.

Double Main Girder Gantry Crane

Double main girder gantry crane consists of two parallel main girders, mostly using box beam or truss structure, box beam has the characteristics of large stiffness and good stability, suitable for large tonnage operations. Its supporting legs and main girder are more firmly connected, and the overall structure is more stable.

This type of crane has strong load carrying capacity and large span, the maximum lifting capacity can reach more than 500 tons, and the span can reach 50 meters, which is suitable for heavy and ultra-heavy operations, such as harbor container storage, bridge girder lifting, shipbuilding module lifting, and so on.

Its disadvantages are self-importance, higher cost than single main girder, slightly longer installation and commissioning cycle, and slightly higher energy consumption. However, in long-term high-intensity, high-load operations, the stability and safety of the double main girder is more secure, and it is the first choice for heavy-duty working conditions.

 By Mobility and Running Method

Rail Mounted Gantry Cranes (RMG)

Rail Mounted Gantry Crane (RMG) is a gantry crane that runs on a fixed rail. Its outriggers are equipped with steel wheels at the bottom, which travel on the pre-buried track, and the running path is completely limited by the track, so it can only move in a straight line along the track.

The core advantage of RMG is its high positioning accuracy, up to centimeter level, which is suitable for high-density stockpiling operations, such as container yards in ports and raw material yards in large factories, and can realize accurate stacking and fast access of containers. It has strong carrying capacity, can be designed with larger span and cantilever, suitable for single cantilever, double cantilever and other configurations, with low difficulty of automation transformation, suitable for intelligent yard deployment.

Its disadvantages are poor mobility and flexibility, unable to trans-regional transfer, once the track laying is completed, the operating range is fixed, the site is difficult to transform, the initial infrastructure costs are high, the need to lay special tracks and power supply systems.

Tire Gantry Crane (RTG)

Tire Gantry Crane, called Rubber Tyred Gantry Crane in English, or RTG for short, relies on rubber tires to achieve mobility, there is no fixed track limitations, and it can be moved freely on a level site, and it is very flexible for cross-box and cross-area operations.

The advantage of RTG is that it has excellent site adaptability, does not need to lay tracks, and can be quickly deployed in old yards and temporary yards, with low site modification costs. It can also be driven by diesel, electric or hybrid power, and is suitable for scenarios where the site is irregular and the operation area is frequently adjusted, such as port bulk yards and prefabricated parts processing plants.

Its disadvantages are slightly lower operational accuracy than RMG, slightly lower stockpiling density and single-unit operational efficiency, lower capacity ceiling per unit area of yard, and higher energy consumption and operational costs for long-term use.

Portable/Mobile Gantry Cranes

Portable gantry crane, also called mobile gantry crane, is a small gantry crane with flexible height and span adjustment, mostly with detachable design for easy transportation and installation. It has a small lifting capacity, generally between 5-20 tons, suitable for small workshops, maintenance workshops, equipment maintenance, as well as temporary small cargo handling operations.

With simple structure and light weight, these cranes can be moved to any working position by forklift or trailer, and no professional tools are needed for installation and easy operation, making them ideal for small-scale operation scenarios.

 By Structural Design

Full Gantry Cranes

Full Gantry Crane is the most common type of gantry crane. It has two supporting legs, and the two ends of the main girder are connected to the supporting legs to form a complete gantry frame, and the whole machine is completely independent of the site, not attached to any building structure.

Its operating range covers the whole area under the main beam, suitable for open open yard, harbor, construction site and other scenes, can realize all-round material handling, wide range of carrying capacity and span, from light to heavy duty operations can be adapted.

Semi-portal Crane

Semi-gantry cranes, also called half-gantry cranes, have only one supporting leg, while the other outrigger is attached to the column or ground track of the plant, and one end of the main girder is supported by the outrigger, while the other end is hung on the track of the plant.

It is a cost-saving design, suitable for both plant and open yard scenarios, utilizing the existing structure of the plant to reduce the number of outriggers, reducing the cost of equipment and site modification costs. Its operating range is mainly in the yard outside the plant, and it is suitable for material handling around the plant, such as the loading and unloading of the factory’s finished product warehouse.

 Main Applications of Gantry Cranes

Gantry cranes have become the core lifting equipment in many industries due to their flexible installation methods and powerful loading capacity, and the following are the most common application scenarios.

 Ports and Container Terminals

Ports and container terminals are the core application scenarios of gantry cranes, especially RMG and RTG, which are almost the standard equipment in container yards. In container yards, gantry cranes are mainly responsible for stacking and transferring containers, stacking containers unloaded by shore cranes to designated locations, and also quickly removing containers according to instructions to complete loading and unloading operations.

The complexity of the operating environment in the port, container weight, high frequency of operation, the stability and efficiency of the crane requires a very high degree of RMG is suitable for a high degree of automation, high stockpiling density of large ports, to achieve accurate stacking and fast access; RTG is suitable for small and medium-sized ports or temporary yards, the flexibility of the mobile mode can be adapted to the different stockpiling layout.

In addition to containers, gantry cranes can also be used for handling bulk cargoes and general cargoes in ports, such as coal, ores, steel, etc. By replacing the lifting gears (such as grabs and electromagnetic suction cups), different materials can be handled, which is suitable for handling multiple types of cargoes in ports.

Construction and Infrastructure

In construction and infrastructure projects, gantry cranes are the main equipment for lifting heavy components, especially in bridge projects and prefabricated parts processing plants. In bridge construction, gantry cranes are mainly responsible for lifting and installing bridge girders. Large-span double girder gantry cranes can easily lift girders of dozens of tons or even hundreds of tons, and accurately place them in the designated positions.

In precast concrete component processing plants, gantry cranes are responsible for the handling and stacking of precast panels, precast columns and precast girders, lifting precast components from the production line, transferring them to the yard for storage, or loading them directly for transportation. The flexible mobility of the tire gantry crane can be adapted to the material handling needs of different production areas in the processing plant.

In addition, in large-scale construction projects, gantry cranes are also used for the lifting of structural steel components and the installation of large equipment, such as the lifting of steel roof frames in factories, and the installation and dismantling of tower cranes, to ensure the safety of high-altitude heavy-duty work by virtue of their stable load-bearing capacity.

Manufacturing and Fabrication

In manufacturing and steel fabrication plants, gantry cranes are mainly responsible for the transportation and assembly of heavy equipment and steel structure parts. In steel processing plants, gantry cranes lift steel plates and profiles to processing stations, complete cutting, welding, assembly and other processes, and then lift the assembled steel structure parts (such as plant frames and bridge components) to the finished product yard.

In large equipment manufacturing enterprises, gantry cranes are responsible for the handling and installation of heavy equipment, such as machine tools, generators, large pressure vessels, etc. The equipment is lifted from the production workshop and transferred to the installation site, or the assembly and commissioning of the equipment is completed in the workshop.

Single girder gantry cranes are suitable for small and medium-sized manufacturing enterprises for light-duty operations, while double girder gantry cranes are suitable for large manufacturing enterprises for heavy equipment handling, with a stable structure, to ensure the safety of high-precision equipment handling, to avoid damage to the equipment due to shaking.

Shipbuilding and Marine Industry

In shipbuilding and marine engineering, gantry cranes are the core equipment for lifting heavy modules and hull components, especially in large shipyards. In the shipbuilding process, gantry cranes are responsible for the assembly and lifting of hull segments, lifting the segments to the ship’s platform, completing the welding assembly and forming a complete hull structure.

Shipbuilding, hull segments of large weight and size, the crane’s carrying capacity and span requirements are extremely high, double main girder gantry cranes are the preferred equipment, some of the oversized tonnage shipbuilding gantry cranes, the lifting capacity can reach hundreds of tons, the span can cover the entire ship platform, to achieve the precise lifting and positioning of the segments.

In addition, in marine engineering, gantry cranes are also used for the lifting of offshore platform modules, port equipment installation and maintenance, with a strong load-bearing capacity and stable structure, to adapt to the harsh operating environment of marine engineering.

 Key Advantages of Gantry Cranes

Gantry cranes are widely used in various industries because of their flexibility, cost advantage and strong working ability, the following are the core advantages.

 Flexible Installation

One of the biggest advantages of gantry cranes is their flexible installation, which does not depend on fixed buildings. It does not need to be attached to the columns or roof of the plant, but only needs a flat working site, it can be quickly deployed, whether it is an open yard, temporary site, or existing plant, can be adapted.

Rail gantry cranes only need to lay a simple track, tire gantry cranes do not even need a track, driving directly on the level ground, the installation and commissioning cycle is short, usually within a few days to complete the deployment, compared with the bridge crane plant modification, the installation cost and time are significantly reduced.

In addition, the span and height of the gantry crane can be flexibly customized, according to the size of the operating site and the size of the material, adjusting the span of the main girder and the height of the lifting height, to adapt to the operational needs of different scenarios, and will not be affected by the site limitations of the operational efficiency.

Cost-Effective for Outdoor Operations

For outdoor operations, the cost advantage of gantry cranes is very obvious. The first is the installation cost, does not require large-scale transformation of the site, no need to lay complex track and power supply system, especially tire-type gantry cranes, almost no need for site modification, can be deployed directly.

High Load Capacity

Gantry cranes have a wide range of load capacity, from light loads to super heavy duty operations can be adapted. Single girder gantry cranes are suitable for light load operations of 10-30 tons, while double girder gantry cranes can achieve super-heavy operations of more than 500 tons, with spans ranging from a few meters to dozens of meters, to meet the load requirements of different scenarios.

 Scalability and Customization

Gantry cranes support a high degree of customization, according to the user’s operational needs, adjusting the span, lifting height, lifting capacity, travel mode and other core parameters to adapt to different working conditions. For example, if a port yard needs a double cantilever design, or a shipyard needs a large span and tonnage, all can be realized through customization.

In addition, the spreader of gantry cranes can be flexibly replaced. By replacing the spreader such as hooks, C-hooks, electromagnetic suction cups, grabs, etc., different materials can be handled, from containers and steel to bulk cargo and prefabricated parts, all of which can be adapted to enhance the versatility of the equipment.

 Mobility Options

Gantry cranes provide a variety of mobility options to suit different sites and operational scenarios. Rail gantry cranes run along a fixed track with high positioning accuracy, suitable for high-density stockpiling and automated operations; tire gantry cranes can be moved freely and are flexible in cross-area operations, suitable for irregular site scenarios.

 How to Choose the Right Gantry Crane

To choose the right gantry crane, you can’t just look at the lifting capacity, but also combine various factors such as operating scenes, load characteristics, site conditions and budget, etc. The following are the core selection factors.

Key Selection Factors

First of all, it is necessary to clarify the required lifting capacity, which is the basis for selection, but not only the weight of the cargo itself. The weight of the spreader (e.g. grab, electromagnetic suction cup, C-hook) should also be taken into account, so as to avoid inadequate selection, which may lead to failure of normal operation.

For example, the daily handling of 20 tons of containers, if with 5 tons of spreader, you need to choose the lifting capacity of not less than 25 tons of gantry cranes, to reserve a certain margin of safety, while avoiding excessive selection of cost waste.

Next is the span and lifting height, these two parameters are directly determined by the operating site. The span should match the actual width of the site to ensure that the main beam of the crane can completely cover the operating area, while also reserving the outriggers and the site columns, equipment safety clearance.

Lifting height is determined according to the height of the goods stacked, the height of the equipment, to ensure that the goods can be lifted smoothly, without collision with the top structure of the site, other equipment, while a small amount of space can be reserved to cope with the future operational needs of the slightest adjustment.

Work level should not be ignored, it is directly related to the service life and stability of the crane. Working level is determined by the frequency and duration of operation, outdoor heavy-duty operations, high-frequency operations need to choose a higher working level to avoid premature wear and tear of the equipment, frequent failures.

For example, port container yard gantry cranes, continuous operation for more than 10 hours a day, high frequency of operation, you need to choose A6 and above the level of work; and small workshop maintenance cranes, the frequency of operation is low, A3-A4 level can meet the demand.

Also consider the working environment, outdoor operations need to pay attention to wind, dust, corrosion performance, coastal ports to choose high corrosion grade equipment, windy and snowy areas in the north need to be configured with windproof devices; indoor operations focus on space adaptability, to avoid height, span and plant conflict.

Frequency of operation will also affect the selection, high-frequency continuous operation is recommended to choose double girder gantry cranes, the structure is more stable, more durable; low-frequency, light load operation, single girder or portable cranes have more cost advantages.

Finally, the budget and full life cycle cost, can not just look at the initial purchase price. Consideration should be given to installation costs, operating costs (energy consumption, maintenance fees), spare parts costs and downtime losses. For example, electric gantry cranes have a slightly higher initial investment, but lower long-term energy consumption, which is suitable for long-term stable operation.

 Gantry Crane vs Overhead Crane – Which One Is Better?

Gantry cranes and overhead cranes are both core equipment for industrial lifting, but there is no absolute “better”, only “more suitable”. The differences between the two are mainly focused on the structure, cost, application scenarios, combined with their own working conditions to choose, in order to avoid waste and inconvenience.

 Structural comparison

The core structural difference lies in the different support methods. Gantry crane adopts independent portal frame, the main girder is supported by both sides of the outriggers, the outriggers directly to the ground, does not rely on any building structure, the whole machine can run independently.

Overhead Crane (Overhead Crane) does not have independent legs, the main beam is suspended on the roof track of the plant, relying on the plant columns to carry the weight of the whole machine, can only be moved within the track inside the plant, and can not be extended to the outside of the plant operations.

In terms of structural rigidity, the rigidity and stability of double girder gantry cranes are no less than that of overhead cranes, while the rigidity of single girder gantry cranes is slightly inferior, but is sufficient to meet the needs of light and medium-sized operations; the main girder of the overhead cranes is mostly of double girder design, which has a more uniform rigidity and is suitable for high-precision operations inside the plant.

 Installation cost differences

Installation cost differences mainly come from site remodeling and equipment deployment. The installation cost of gantry cranes is relatively lower, especially for tire-type gantry cranes, which do not need to lay tracks, and can be installed and commissioned in a few days by just leveling the site.

Although rail-type gantry cranes need to lay tracks, they do not need to remodel the existing building, and the cost of track laying is controllable; whereas overhead cranes must be attached to the plant, and need to reinforce the plant and lay roof tracks, with high remodeling costs and a long period of time, especially in old plants, which may require additional reinforcement of the columns, further increasing the cost.

In addition, gantry cranes can be disassembled and transferred flexibly, and if the site is subsequently relocated, the equipment can be utilized twice to reduce long-term investment; bridge cranes, once installed, are almost impossible to move, and the risk of idle equipment is higher.

 Application suitability

The core advantage of gantry cranes is outdoor suitability, suitable for open yards, ports, construction sites and other scenarios without fixed plant, whether it is container storage, bridge lifting, or bulk cargo handling, can be flexibly adapted to the span and height can be freely customized.

Bridge cranes are more suitable for plant operations, such as manufacturing workshops, steel processing plants, mainly used for workshop equipment maintenance, material handling, component assembly, the scope of work is restricted by the plant, but the positioning accuracy is high, suitable for indoor high precision, high frequency operations.

Simply put, for outdoor work, inter-area movement and no fixed plant, choose gantry cranes; for indoor fixed sites, high-precision work and reliance on plant structure, choose overhead cranes.

Long-term flexibility

Long-term flexibility of gantry cranes is stronger, whether it is the span, lifting height, or mobile mode, can be adjusted according to the subsequent operational needs, for example, rail-type gantry cranes can extend the track to expand the operating range, and tire-type gantry cranes can be shifted to the operating area at any time.

If the subsequent site expansion, operational load adjustment, gantry cranes can be adapted through the transformation of the main girder, replacement of spreaders, etc., without the need for a complete replacement of equipment; bridge cranes are restricted by the structure of the plant, and once the plant is fixed, the span and lifting height can not be adjusted, and if the operational requirements change, only to re-procure the equipment, which is less flexible.

 Comparison Table

Comparison Item Gantry Crane Overhead Crane

Structural Support Independent gantry frame, supported by legs on the ground Depends on factory columns and roof rails, no independent legs

Installation Cost Low, no factory modification needed; tire-type requires no track High, needs factory reinforcement and roof track laying

Application Scenario Outdoor yards, ports, construction sites, no fixed factory Indoor workshops, manufacturing plants, fixed indoor sites

Long-term Flexibility High, adjustable span/lifting height, movable and reusable Low, limited by factory structure, hard to adjust or move

Positioning Accuracy Good (especially RMG), suitable for high-density stacking High, suitable for indoor high-precision operations

Safety Features to Consider

Gantry cranes are mostly used for outdoor heavy-duty operations in complex environments with large loads. Safety features are the core of selection and use, and the following key safety devices are indispensable and indispensable.

Overload protection

Overload protection is the most basic and important safety device, which is used to prevent the crane from overloading. It can detect the lifting load in real time, and when the load exceeds the rated lifting capacity, it will automatically cut off the lifting power and stop the lifting action, so as to avoid safety accidents such as deformation of the main beam and breakage of the wire rope due to overloading.

Especially for outdoor heavy-duty work, the weight of goods may have errors, overload protection can effectively avoid such risks, it is recommended to choose the equipment with overload alarm function, once close to the rated load, it will send out an alarm to remind the operator to pay attention.

 Anti-sway control

Outdoor work is easily affected by wind, and the goods are easily shaken after lifting, which not only affects the operation efficiency, but also may collide with the equipment and personnel, resulting in potential safety hazards. Anti-sway control device can effectively inhibit cargo shaking, so that the cargo can be lifted and moved smoothly.

For outdoor scenes such as ports and construction sites, it is recommended to prioritize the configuration of anti-shaking control, especially for large-span and high lifting height gantry cranes, the anti-shaking function can significantly improve operational safety and efficiency, and reduce the probability of collision damage to the goods.

 Limit switches

Limit switches are divided into hoisting limit and traveling limit, which are used to limit the operating range of the crane and prevent the equipment from exceeding the safety boundary. The lift limit prevents the hook from rising too high and hitting the main girder or other components, while the travel limit prevents the crane from traveling to the end of the track and being derailed.

Limit switches need to be checked regularly to ensure sensitivity, and once a fault occurs, they need to be shut down immediately for maintenance to avoid safety accidents caused by limit failure. Some of the higher-end machines are also equipped with double limit switches to further enhance safety.

Wind protection systems

Outdoor gantry cranes must be equipped with wind protection systems, especially in coastal ports and open construction sites, where the wind is strong and can easily cause the crane to shift and tip over. Common windproof devices include rail clamps, anchoring devices, windproof cables and so on.

The rail clamp can fix the crane wheels on the track to prevent the wind from pushing the equipment to move; the anchoring device can fix the crane to the ground, which is suitable for long-term parking in windy weather; the windproof cable can assist in fixing the main beam to reduce the impact of the wind on the equipment.

Emergency braking

Emergency braking device is an emergency safety guarantee, when the crane fails and the personnel is in danger, the operator can cut off the power supply of the equipment immediately through the emergency stop button and stop all the actions to avoid the expansion of the accident.

Emergency braking button should be installed in the operator’s easy to reach position, such as cab, wireless remote control, ground operator station, and at the same time, should be tested regularly to ensure that it can work properly in an emergency situation, no stalling, failure.

Frequently Asked Questions

The following are the most frequently asked questions when you understand and purchase gantry cranes, combined with the actual working conditions, to give easy-to-understand answers to help you quickly clear up your doubts.

What is the difference between RMG and RTG cranes?

The core difference between RMG and RTG cranes is the way of movement, RMG is a rail-mounted gantry crane, relying on a fixed track to run, with a fixed operating range and high positioning accuracy, suitable for high-density stockpiling, such as large container terminals; RTG is a tire-mounted gantry crane, relying on rubber tires to move without a track, with a high degree of flexibility, suitable for small and medium-sized ports, and temporary storage yards.

In addition, RMG has higher stockpiling density and operational efficiency, and is suitable for automation; RTG has low site modification costs and can operate across regions, but its positioning accuracy and stockpiling density are slightly lower than that of RMG.

What industries use gantry cranes the most?

The most widely used gantry cranes are in ports and container terminals, where RMG and RTG are indispensable in almost all container yards; followed by the construction and infrastructure industries for bridge lifting and prefabricated parts handling; and the manufacturing industry and steel fabrication factories, where they are commonly used for the handling and assembly of heavy equipment and components.

In addition, shipbuilding and offshore engineering, mining, bulk yards and other industries will also use a large number of gantry cranes, especially double girder gantry cranes, suitable for heavy-duty operations.

How much does a gantry crane cost?

There is no fixed standard for the price of a gantry crane, which mainly depends on the lifting capacity, span, working level and configuration, and there is a big difference. Small portable gantry cranes, lifting capacity 5-10 tons, span 5-10 meters, the price is about tens of thousands of yuan; single girder gantry cranes, lifting capacity 10-30 tons, span 10-20 meters, the price is more than ten to hundreds of thousands of yuan.

Double main girder gantry cranes are more expensive, with a lifting capacity of 30-100 tons and a span of 20-30 meters, priced at tens to millions of yuan; oversized tonnage and large span port or shipbuilding gantry cranes can cost up to several million or even tens of millions of yuan. In addition, the higher the configuration (such as anti-shaking, automation, windproof device), the price will increase accordingly.

What is the maximum capacity of a gantry crane?

The maximum lifting capacity of a gantry crane does not have a fixed upper limit and can be customized according to demand. Conventional gantry cranes, with a lifting capacity of 5-100 tons, are suitable for most industrial scenarios; for heavy-duty operation scenarios such as ports, shipbuilding, etc., double girder gantry cranes with a lifting capacity of 500 tons or more can be customized.

Currently on the market, super large tonnage gantry cranes with a lifting capacity of up to 1,000 tons or more are mainly used in large shipbuilding, ocean engineering, heavy equipment manufacturing and other industries, which have large spans and complex structures and require professional design and manufacturing.

Can gantry cranes be customized?

Yes, and customization is one of the core advantages of gantry cranes. Almost all parameters can be customized according to the user’s working conditions, such as span, lifting height, lifting capacity, working level, as well as the mode of movement (rail, tire), spreader (hook, grab, electromagnetic suction cup), control system (remote control, cab) and so on.

For example, if the port needs double cantilever design, the double cantilever main beam can be customized; if the coastal area needs anti-corrosion, the equipment can be customized with high anti-corrosion grade; if the small workshop needs compact layout, the miniaturized and detachable gantry cranes can be customized, which can be fully adapted to their own operational needs.

 Conclusion

The core value of gantry cranes lies in their flexibility, durability and strong heavy-duty capability. They do not need to be attached to a fixed building, and can be adapted to a variety of complex working conditions such as outdoor, temporary sites, etc., making them indispensable lifting equipment for ports, construction, manufacturing and other industries.

The key to choosing a gantry crane is not how high the parameters are, but whether it is suitable for your own operating environment, load requirements and budget. Different types of gantry cranes have their own advantages, single main girder is suitable for light and medium operations, double main girder is suitable for heavy operations, RMG is suitable for high-precision stockpiling, RTG is suitable for flexible mobility, to find their own working conditions, in order to choose the most cost-effective equipment.

It is worth noting that the safety and long-term reliability of gantry cranes are more important than the initial purchase price. Reasonable configuration of safety devices, choose the appropriate level of work, pay attention to the whole life cycle cost, can effectively reduce the loss of downtime, prolong the service life of the equipment, so that the equipment for the long-term stability of production services.

 the conclusion: for your project to choose the most suitable gantry crane

Gantry crane types, each type is suitable for specific scenes. The key to selecting the type is to clarify their operational needs, and combined with the budget and installation conditions.

If the needs of special, customized gantry crane is more suitable. Whether you choose a standardized or customized model, please contact us directly for a precise selection plan.
