In heavy industry manufacturing, construction, port warehousing and other scenarios, traditional orbital and fixed lifting are subject to site and infrastructure restrictions, making it difficult to adapt to dynamic operation needs.

Relying on the advantages of trackless walking, indoor and outdoor versatility, flexible transition, and stable heavy-duty, tire-type mobile gantry crane (RMG) has become the core equipment of modern flexible heavy-duty handling.This article analyzes the principle, structure, advantages, selection, safety and maintenance points of RMG in a concise manner, and provides a reference for engineering procurement and on-site application.

What Is a Rubber-Tyred Mobile Gantry Crane?

Tire-type mobile gantry crane is a trackless gantry lifting equipment equipped with a rubber tire walking system. It integrates mechanical, hydraulic, electrical and safety protection systems, and can independently complete the whole process of positioning, lifting, translation, transshipment, and unloading of heavy objects.The core features are no need for track, global adaptation, flexible displacement, and free switching of indoor and outdoor working conditions.

Tire Type RMG vs Rail Type Gantry Crane

Orbital gantry cranes need to be laid with fixed steel rails and concrete foundations. They have high positioning accuracy and are suitable for fixed-point and high-frequency operations, but the infrastructure cost is high, they cannot be shifted, and the site adaptability is poor.

Tire-type RMG relies on rubber tires to walk without a fixed track. It can turn at multiple angles and transition across regions. It has stronger mobility and versatility. It is more suitable for changeable working conditions, temporary construction, and dynamic production line scenarios. The ultimate positioning accuracy is slightly lower than that of track models.

Principle of trackless autonomous walking

RMG supports straight, diagonal, 90° steering, and in-situ fine-tuning through high-strength load-bearing tires, independent drive motors, and intelligent steering modules.As long as the ground meets the leveling and load-bearing standards, it can move freely in the whole area, completely solving the pain points of traditional gantry crane track constraints and inability to shift flexibly.

Main Components

The rmg gantry crane relies on the coordinated operation of multiple systems to achieve stable, safe and efficient heavy-duty operations. The major core components perform their respective functions and are accurately adapted to working conditions. The core structure functions are as follows：

• Gantry frame: welded and formed with high-strength steel, the overall structure is stable, the deformation resistance is strong, and the weight and heavy-duty pressure of the whole machine can be stably carried. It is the core load-bearing body of the equipment operation.
• Tire walking system: equipped with wear-resistant and explosion-proof industrial rubber tires and a dedicated drive mechanism, it has strong bearing capacity and stable walking. It can be adapted to a variety of flat ground to achieve flexible movement and free transition in the whole area.
• Electric hoist/lifting trolley: it can slide horizontally accurately along the beam of the gantry, and it is equipped with professional spreaders to complete the vertical lifting and fine-tuning of heavy objects to ensure the accuracy of hoisting.
• Lifting mechanism: it is composed of a hoist, a wire rope, and a dual brake assembly. The braking is sensitive and the lifting is stable, which effectively eliminates the risk of falling off the hoisting, and is suitable for all kinds of heavy-duty lifting operations.
• Intelligent steering system: supports multi-mode steering adjustment, can be adapted to complex operating environments such as narrow spaces and irregular sites, and greatly improves the flexibility of equipment maneuvering.
• Drive system: it is divided into two drive modes, electric and hydraulic. The electric model is silent and low-consumption, and is suitable for indoor normalization operations; the hydraulic model has plenty of power and strong bearing capacity, and is suitable for outdoor high-intensity and heavy-duty working conditions.
• Electrical control cabinet: the intelligent control core of the equipment, through frequency conversion and speed regulation technology, the walking, lifting, and steering speed of the equipment are accurately regulated to ensure stable and controllable operation.
• Wireless remote control system: equipped with a long-distance wireless control device, it is responsive and easy to operate, allowing operators to operate in a safe area, effectively avoiding the risk of close-range hoisting.
• Safety protection system: integrates multiple safety devices such as overload protection, travel limit, intelligent anti-collision, emergency braking, sound and light alarm, and strengthens the safety line of defense for equipment and personnel operations in all directions.

Key Advantages of Rubber-Tyred Mobile Gantry Cranes

Indoor and outdoor dual-scene universal

The equipment supports indoor and outdoor all-weather cross-border operations, which can not only meet the needs of precision equipment hoisting and bulk material transfer in workshops and warehouses, but also adapt to complex outdoor working conditions such as construction sites, road and bridge infrastructure, port depots, and prefabricated component factories, and truly realize one-machine multi-scene reuse, with outstanding environmental adaptation capabilities.

No rail infrastructure required

The equipment does not need to lay steel rails and special civil foundations, and can be quickly put into use by relying only on flat ground with up-to-standard bearing capacity, eliminating the need for high supporting investments such as traditional track laying, transformation and expansion, and regular maintenance.The overall deployment is convenient, the production speed is fast, the initial infrastructure investment is greatly streamlined, and the project landing cost is effectively controlled.

Strong heavy-duty capacity

The equipment supports heavy-duty customization from 2 tons to 100 tons, with a wide load coverage, and can easily undertake the hoisting of various large and overweight materials such as steel structures, prefabricated components, industrial molds, generator sets, containers, etc.

The whole machine has strong structural rigidity and uniform load distribution. Even if it is under heavy-duty conditions for a long time, it can maintain a stable operating state, with excellent bearing capacity and operating reliability.

High site utilization rate

The equipment can flexibly adjust the operation coverage according to the material stacking location and construction layout, eliminate the operation blind spots of fixed equipment, effectively reduce the redundant processes of secondary material handling and back-and-forth transportation, fully activate the available space of the plant and yard, and greatly improve the site utilization rate and overall operation flow efficiency.

Adapt to dynamic working conditions

The whole equipment does not need to be disassembled, and can be flexibly and quickly transitioned and shifted with the upgrading and iteration of the production line and the advancement of the construction process, and can be efficiently adapted to dynamic and changeable working conditions such as temporary engineering projects and phased construction.The equipment has wide versatility and high reuse rate, which can effectively reduce the idle loss of equipment and further improve the overall construction and production efficiency.

Easy to deploy

The equipment does not require supporting plant runways and permanent track infrastructure, and has strong compatibility with work sites, and can be directly adapted to conventional working conditions such as concrete, asphalt, and compacted hardened ground.With minimalist landing conditions, short equipment deployment cycle and low entry threshold, no large-scale civil construction investment is required, the overall investment is controllable, and the long-term economic benefits are outstanding.

Indoor Applications of Rubber-Tyred Mobile Gantry Cranes

RMG gantry cranes are suitable for various indoor industrial refinement and heavy-duty operation scenarios, and can be flexibly scheduled and used for different workshop working conditions. The core indoor applications are classified as follows：

1. Intelligent manufacturing plant: mainly used for the displacement and disassembly of large-scale production molds, die-casting tooling, motors, transformers and complete sets of production equipment.It can follow the transformation of the production line and the flexible transition of process adjustment, without the need to fix the hoisting point, and adapt to the needs of flexible production.
2. Mechanical assembly workshop: For the assembly process of large-scale heavy-duty equipment and machine modules, the alignment, lifting, and fine-tuning positioning of heavy-duty parts are accurately completed, so as to effectively improve the assembly accuracy and assembly efficiency, and avoid the problem of manual hoisting and alignment deviation.
3. Warehousing and logistics center: It specializes in the stacking, loading, unloading, and transshipment of oversized equipment, heavy pallet goods, and industrial raw materials, to solve the pain points that ordinary forklifts cannot carry and the coverage of fixed cranes is limited, and to improve the efficiency of warehousing and circulation.
4. Shipbuilding and heavy industry manufacturing workshop: suitable for cross-station transfer of large-scale welded components, hull accessories, and heavy steel structure modules, it can flexibly shuttle in the multi-process flow of the workshop to meet the needs of multi-station and multi-process continuous hoisting operations.
5. Factory operation and maintenance scenarios: provide flexible heavy-duty hoisting support for the replacement, maintenance, and emergency repair of large-scale machinery and equipment, electrical mainframes, and supporting equipment in the workshop, and adapt to irregular and multi-point maintenance operations, greatly reducing the length of equipment downtime.

Outdoor Applications of RMG Cranes

RMG gantry crane is equipped with excellent outdoor environment adaptation capabilities, can adapt to open-air, multi-process, dynamic displacement construction scenarios, stable bearing capacity, flexible transition, is the core equipment for outdoor heavy-duty handling, the core outdoor applications are classified as follows：

1. Construction site of construction projects: it is mainly used for the hoisting and placement of steel structure frames, precast concrete components, large-scale building materials and construction equipment.It can flexibly shift according to the advancement of construction buildings and work surfaces, adapt to the needs of multi-point and multi-regional rotation construction, and effectively improve the efficiency of on-site hoisting.
2. Road, bridge and railway infrastructure engineering: focus on the lifting and shifting of bridge prefabricated beams, steel structure rods, railway subgrade modules, and large-scale engineering components.In view of the characteristics of the phased construction of road and bridge projects and the continuous advancement of the work area, the equipment can quickly transition to the new work surface and adapt to the dynamic construction rhythm.
3. Ports and open-air depots: it is suitable for the loading and unloading, stacking and cross-regional transshipment of heavy cargo, bulk cargo, and container components in inland depots and small and medium-sized ports.The equipment has no track restrictions, and the operation movement line can be freely planned, greatly improving the space utilization rate of the yard and the efficiency of cargo turnover.
4. Prefabricated component factory area: Responsible for the whole process of transportation of concrete prefabricated parts, building materials components, and assembled modules between the pouring area, maintenance area, stacking area, and loading area.It is suitable for high-frequency circulation operations in the factory area, and the handling path can be flexibly adjusted to ensure the continuous and efficient operation of the production line.
5. Power and energy engineering projects: mainly undertake the hoisting, alignment and installation of heavy equipment such as transformers, generator sets, wind power equipment, and large industrial modules.The equipment has strong environmental adaptability, can operate stably in complex open-air working conditions, and meets the high-precision and high-safety construction requirements of energy engineering.

How to Select the Right Rubber-Tyred Mobile Gantry Crane

RMG gantry cranes are customized heavy-duty equipment, and the matching of parameters directly determines the operation safety and cost performance.The selection needs to be combined with the actual working conditions on the site to accurately match in all directions, so as to prevent insufficient parameters from affecting the operation, or excessive parameters from causing waste of resources. The seven core selection points are as follows：

• Lifting load: accurately calculate the daily routine operating load and the maximum limit load, strictly reserve the safe load margin, while taking into account the load requirements of later production line upgrades and operating conditions expansion, and ensure the long-term adaptation of equipment.
• Lifting height: Combined with the effective clearance height of the site, the dimensions of heavy-duty materials, and the distribution of obstacles on the site, the effective lifting height of the equipment is accurately determined to avoid problems such as lifting bumps and restricted lifting.
• Span and operating range: According to the overall width of the on-site operating area and the material transfer radius, match the adapted equipment span to ensure the global coverage of hoisting operations, with no operating blind spots and no travel shortcomings.
• Ground conditions: Check the flatness, hardening degree and carrying capacity of the operating ground in advance, and adapt the models to different sites such as concrete, asphalt, and compacted earthwork to eliminate safety hazards such as slippage, tilt, and settlement of equipment operations.
• Walking steering mode: Straight walking mode can be selected for regular and open work sites. According to the needs of narrow sites, irregular depots, and multi-directional transitions, priority is given to the multi-directional intelligent steering system to improve operation flexibility.
• Power supply method: Cable power supply is preferred for indoor fixed and normalized operations, which is energy-saving and stable, and convenient operation and maintenance; for outdoor conditions where there is no fixed power grid and frequent transitions are required, lithium battery, diesel hybrid and other power supply solutions can be selected to adapt to non-grid operation scenarios.
• Working condition level: Distinguish between the frequency of operations and the intensity of working conditions. Conventional models are used for intermittent and temporary heavy-duty operations. High-frequency, continuous, and high-intensity handling operations need to be equipped with heavy-duty and durable models to meet the needs of long-term stable operation.

Important Safety Features for Mobile Gantry Cranes

The RMG gantry crane has strong dynamic operation, flexible working conditions, and higher safety control requirements.The equipment relies on a full set of intelligent safety protection configuration and standardized operation system to ensure the safety of man-machine operations in two dimensions.

Full set of core security configuration

The equipment is equipped with multiple intelligent protection devices at the factory, and a full-dimensional passive protection system is built to avoid the hidden dangers of hoisting from the hardware level.：

• Load protection device: equipped with overload protection and real-time load monitoring system, it can identify dangerous working conditions such as overload and partial load in real time, and automatically limit the lifting action to eliminate the risk of overload hoisting.
• Travel limit device: integrated dual protection of lifting low limit and walking limit, accurately limit the operating boundary of the equipment, and effectively prevent equipment failures and safety accidents such as rushing to the top, offside, and collision.
• Emergency braking device: equipped with an emergency stop switch and an emergency braking system of the whole machine, it can instantly cut off the power and lock the operation of the equipment when the working conditions are abnormal, and quickly stop loss and avoid danger.
• Intelligent early warning and anti-collision device: equipped with intelligent anti-collision sensor module and sound and light alarm device, it can warn surrounding obstacles and personnel in real time throughout the operation, and remind the scene to avoid.
• Control safety device: equipped with a remote control fault self-locking function, the equipment control system automatically locks and runs when it fails, eliminating safety issues such as misoperation and uncontrolled operation.

Standardized operating specifications

Perfect hardware protection needs to be matched with standardized operating procedures, and normalized and standardized operations are the core guarantee of safe operations.：

• Pre-operation inspection: Before the equipment is turned on, it is necessary to complete all-round inspections of tire status, site flatness, braking system, limit device, control system, etc. to eliminate site hidden dangers and equipment failures.
• Standardize hoisting operations: operate in strict accordance with the rated load, eliminate illegal operations such as overload, cable-stayed crooked hoisting, and extreme speed start and stop, and smoothly complete the whole process of hoisting, transshipment, and unloading.
• Normalized safety inspection: monitor the operating status of the equipment in real time during the operation process, find abnormal noises, offsets, alarms and other abnormal conditions, immediately stop for investigation, and prohibit operations with faults.
• Licensed compliance operations: operators need to be licensed, familiar with equipment performance and emergency response processes, and strictly follow the safety regulations for lifting operations to carry out construction.

How Much Does a Rubber-Tyred Mobile Gantry Crane Cost?

RMG gantry cranes are non-standard customized heavy-duty equipment. There is no unified fixed quotation, and the total price of the equipment fluctuates according to the customized needs of working conditions.In order to facilitate procurement, accurately control the budget and rationally select the type, the core cost composition factors and professional procurement recommendations are now classified and explained.：

Core cost components

The price of equipment is determined by multiple dimensions such as fuselage configuration, function customization, and landing services. The core influencing elements are as follows：

• Basic parameter configuration: it includes three core parameters: rated lifting tonnage, gantry span, and maximum lifting height. The larger the parameter specifications, the higher the material used in the fuselage and the structural process standards, and the basic cost will increase accordingly.
• Walking steering system: it covers multi-mode walking configurations such as industrial explosion-proof tire specifications, straight/diagonal/in-place steering, and intelligent steering modules adapted to complex sites will increase equipment configuration costs accordingly.
• Power control system: it is divided into different power solutions such as cable power supply, lithium battery power supply, and hybrid power supply. It is equipped with frequency conversion speed control, intelligent control, and remote control systems. The configuration level directly affects the equipment pricing.
• Safety protection configuration: basic protection, a full set of intelligent protection, explosion-proof and dust-proof customized protection and other different safety configuration packages, the higher the protection level, the higher the equipment safety redundancy and manufacturing cost.
• Customization of special working conditions: exclusive customization for special operating environments such as high temperature, low temperature, dust, humidity, explosion-proof, etc., as well as personalized transformation of non-standard sizes and special loads, will produce a customized premium.
• Landing and after-sales supporting: including one-stop services such as equipment transportation, on-site installation, commissioning training, quality assurance services, and spare parts supporting, it is an important part of the overall procurement cost.

Chemical procurement advice

Do not single-compare bare metal quotations for procurement and selection. It is necessary to consider the overall cost performance based on the use value of the equipment throughout the life cycle.：

• Focus on the whole life cycle cost: abandon the misunderstanding of only looking at the initial purchase price, and focus on equipment energy consumption efficiency, failure rate, maintenance cost, parts versatility and service life of the whole machine to reduce long-term operating investment.
• On-demand customization and rejection of redundancy: combined with the actual working conditions of the site to match the parameters and configuration, there is no need to overly pursue ultra-high-specification configuration, avoid cost waste caused by excess functions, and take into account practicality and economy.
• Pay attention to after-sales supporting capabilities: give priority to manufacturers with perfect installation training, quality assurance and maintenance, and rapid spare parts supply system to reduce equipment downtime and ensure long-term stable operations.

RMG Crane Maintenance Checklist

Daily inspection

Focusing on daily visual inspection and functional verification, it focuses on checking the tire wear status of the equipment, the sensitivity of the braking system, the integrity of the hook and wire rope, the effectiveness of the limit switch, and the response status of the control system. Comprehensively investigate the appearance of the equipment, damage, abnormal operation and other basic hidden dangers, to ensure the safe operation of the equipment on the same day.

Regular maintenance

Carry out periodic in-depth maintenance operations to clean, lubricate, fasten and debug core components such as gearboxes, drive motors, electrical circuits, fuselage welding welds, hydraulic systems, and transmission bearings, and simultaneously verify the operating performance of various safety protection devices to prevent failures caused by component aging and performance attenuation.

Long-term overhaul

Carry out annual systematic maintenance of the whole machine, including flaw detection and testing of the overall structure of the fuselage, replacement of worn tires, calibration and debugging of a full set of electrical systems, simultaneous completion of third-party professional load testing and annual inspection of equipment safety, all-round repair of equipment loss problems, to ensure long-term stable and compliance operation of equipment.

Conclusion

With the advantages of trackless walking, flexible transition, indoor and outdoor adaptation, and heavy-duty stability, the tire-type mobile gantry crane (RMG) is suitable for a variety of material handling scenarios such as manufacturing, infrastructure, ports, and energy.Compared with fixed lifting equipment, it is more suitable for projects where working conditions change frequently and flexible scheduling is required.

When selecting the type, it should be combined with a comprehensive assessment of load, span, operating frequency, site conditions and mobile needs, and daily maintenance should be done.Henan Mine Crane can provide customized design and manufacturing services for RMG tire-type mobile gantry cranes according to actual working conditions to help customers obtain more matching lifting solutions.

This article analyzes the principle, structure, advantages, selection, safety and maintenance points of RMG in a concise manner, and provides a reference for engineering procurement and on-site application

Tire gantry crane (RTG) is the core container operation equipment of ports, inland logistics hubs, and multimodal transport terminals.Compared with rail gantry cranes (RMG), RTG does not require embedded tracks, has strong site mobility and flexible layout, and can be adapted to yard transformation and capacity expansion. It is the mainstream choice for medium-throughput container yard stations.

RTG is a million-level long-term fixed asset, and procurement needs to take into account the purchase unit price, life cycle cost, equipment adaptability and automation upgrade potential.This article streamlines and combs the core parameters of RTG, the latest prices, pricing factors, operating costs, selection methods and procurement pit avoidance points.

What Is a Rubber Tyred Gantry (RTG) Crane?

RTG is a wheeled mobile container gantry crane, mainly engaged in 20/40–foot standard container loading, unloading, stacking and transshipment, relying on rubber tires to walk, can be freely shifted in the hardened yard, and can normally cover 5-8 rows of container + truck passages, suitable for flexible and dynamic logistics operation scenarios.

Core parameters

• The rated lifting capacity of the equipment covers 35-70 tons, supports high–rise container stacking operations from 1 stack of 5 to 1 stack of 6, and the vertical space utilization rate of the yard is extremely high.；
• The standard operating span is 23-26 meters, which can meet the span requirements of multiple rows of containers and passages.The whole machine is equipped with 4-8 sets of special rubber tires and a professional steering system, which is stable in walking, flexible in handling, and extremely adaptable to the site.
• The power system includes three mainstream solutions: diesel, oil-electric hybrid, and pure electric, which can be adapted to different operating intensities, budget requirements, and environmental compliance requirements.

Core advantage

• Low-cost site adaptation: there is no need to lay a fixed track, which greatly reduces the initial infrastructure investment, while supporting the flexible transformation, layout adjustment and phased expansion of the yard to adapt to the dynamic development needs of the logistics hub.
• High site utilization efficiency: it supports high-rise container stacking operations and has a high stacking density, which can fully tap the potential of the vertical space of the yard and effectively increase the throughput per unit area of the yard.
• Universal adaptation for multiple scenarios: it can be fully adapted to 20/40-foot standard container loading, unloading, stacking, and transshipment operations, supports customized exclusive accessories, and is compatible with all kinds of heavy-duty non-standard cargo operations, and has strong scene compatibility.
• Flexible operation ability: relying on the tire-type mobile structure, the operating range is flexible and adjustable, and the operation can be freely shifted according to the distribution of cargo flow, which perfectly matches the diversified and flexible operation model of modern logistics hubs.

How Much Does an RTG Crane Cost?

RTG is a highly customized heavy-duty lifting equipment. The pricing of the whole machine is affected by multiple factors such as specifications, power type, automation configuration and brand quality, and the price range of the new machine has a great span.Although the procurement threshold for second-hand refurbished RTG equipment is lower, the failure rate and maintenance costs are higher in the later stage, and the overall cost performance is obviously short.

• Small and medium-sized basic RTG (20-40 tons): the price range is$80,000–$400,000.This model has a streamlined configuration and excellent cost performance. It focuses on lightweight container operations, and is perfectly adapted to the low-frequency and small-throughput operation scenarios of small inland logistics depots and small and medium-sized freight depots.
• The main port standard RTG (40-60 tons): the price range is$700,000–22,000,000, and the average transaction price of the mainstream market is concentrated at$1,000,000–$2,000,000.As a standard model for logistics hubs and medium-sized ports, the equipment has stable performance and complete functions, which can meet the needs of normalized, medium and high-intensity container turnover operations.
• Heavy-duty fully automatic RTG (over 60 tons): the price is$1,200,000–$4,000,000 and above.The equipment is equipped with a high-end intelligent control system and a heavy-duty configuration, which is suitable for large-scale deep-water terminals and high-throughput specialized logistics hubs, and can realize efficient, automated and high-density container stacking and transshipment operations.
• Additional fixed expenses: RTG tires are replaced in a full set every 2-3 years, at a cost of$150,000–$200,000.Steel, supply chain and environmental protection policies will affect the final quotation in real time, and precise prices need to be customized for inquiry.

Key Factors Affecting Rubber Tyred Gantry Crane Price

RTG gantry cranes are customized special equipment, and the price has no fixed standard. They are affected by multiple core variables and the project is greatly differentiated.The following are the core pricing factors sorted from high to low by influence weight, and they are also the key basis for procurement inquiry and price comparison.：

• Lifting specifications (core decisive factors): The rated lifting weight, operating span, and stacking height directly determine the material specifications of the steel structure of the whole machine, the strength design of the fuselage, and the grade of the core supporting components. It is the core benchmark for the basic cost of RTG. The larger the parameter, the higher the cost of the whole machine.
• Power system solution: The cost of different power versions is inversely different from the operation and maintenance cost. The procurement cost is sorted by: diesel < oil-electric hybrid < pure electric E-RTG.The purchase premium of pure electric motor type is 30%-50%, but the energy consumption is lower, the operation and maintenance pressure is less, and the long-term comprehensive economic advantages are outstanding.
• Intelligent and automated configuration: Basic manual models are the most cost-effective, with intelligent functions such as GPS automatic walking, intelligent anti-shake, remote control, automatic stacking, and intelligent anti-collision. The procurement cost of the whole machine will rise by 30%-45%, greatly improving operational efficiency and labor utilization.
• Brand and origin technology: Kony, Liebherr and other international first-line brands rely on mature technology, stable quality and perfect after-sales service, and the pricing is high; the price of domestic high-quality models with the same configuration can be reduced by 30%-60%, which is suitable for domestic logistics hubs to reduce the cost of procurement needs, and the cost-effective advantage is significant.
• Personalized customization requirements: For customized retrofits such as coastal anticorrosion, extreme high and low temperature conditions, non–standard operating spans, exclusive operating accessories, and special safety standards, additional costs will be incurred. The premium range for a single customization is$50,000-$200,000, depending on the complexity of the transformation. Fluctuate.
• Operating condition level: FEM A6–A8 high-working-level heavy-duty models suitable for 24-hour high-intensity operations are fully upgraded in terms of structural strength, component wear resistance, and overall machine stability, and the cost is significantly higher than that of conventional light-load operating models.
• Core accessories and market conditions: the brand selection of core accessories such as engines, electronic control systems, hydraulic components, annual steel raw material price fluctuations, the global supply chain situation and industry environmental protection policies will indirectly affect the RTG terminal price.

RTG Crane Operating Costs: Beyond the Purchase Price

The service life of RTG is 15-20 years, and the long-term operating cost is generally higher than the purchase price of the equipment, which is the core consideration in the selection.

Energy consumption cost

Energy consumption is the largest variable cost of RTG operations, and the economics of different power models vary significantly.Based on the standard operating conditions of 4,000 hours of annual operation, the annual fuel cost of traditional diesel RTG is about$72,000, and the operating cost stability is poor due to fluctuations in oil prices.

The hybrid RTG is equipped with an energy recovery system, and the fuel saving rate of a single operation can reach 87%, which greatly reduces fuel consumption.The energy-saving advantages of pure electric E-RTG are the most obvious. Compared with diesel-powered models, the energy consumption cost is reduced by 50%-70%, and the annual electricity cost is only about$32,000.Electricity prices are stable and non-fluctuating, and they are more suitable for the long-term normalized operation of logistics hubs.

Maintenance cost

The power type is the core watershed of RTG maintenance costs.Diesel RTG has a complex structure and many wearing parts. The engine, fuel and hydraulic systems require frequent maintenance and repair, with a high failure rate and high long-term maintenance expenses.

The mechanical structure of pure electric RTG is streamlined, there are no vulnerable parts related to the internal combustion engine, the motor and the electronic control system are more stable, and the annual maintenance cost is 30%-50% lower than that of diesel engine models, which effectively reduces the loss of spare parts, labor and downtime, and has outstanding cost-effective advantages for long-term operation and maintenance.

Fixed consumables and hidden operating costs

Tire loss is the exclusive high-frequency rigidity cost of RTG.Affected by load, site friction and climate, the entire set of tires needs to be replaced every 2-3 years. The cost of a single replacement is$150,000–$200,000, which is a fixed large expenditure for long–term operations.

In addition, RTG operations also cover hidden costs such as labor training, equipment insurance, spare parts replacement, downtime and loss, and exhaust gas compliance management, with high long-term cumulative expenses.

Core conclusion: Hybrid and pure electric RTG procurement and infrastructure costs are higher, but energy consumption, maintenance, and consumables costs are lower.Under conventional operation scenarios, the equipment premium can be returned to the cost in 3-5 years, and the remaining service cycle can be sustainably reduced. It is the best solution for long–term compliance, quality improvement and efficiency of logistics hubs.

How to Choose the Right RTG Crane for a Logistics Hub

RTG selection needs to be based on the actual working conditions of the site, with the core principles of adapting to operating requirements, optimizing the full cycle cost, and reserving intelligent upgrade space, taking into account the current practicality and future expansion.The specific selection steps are as follows：

1. Clarify operating conditions and production capacity requirements: combine the annual container throughput of the site, mainstream box specifications, rated stacking height and other core indicators, accurately match the basic lifting parameters of the equipment, and eliminate the problem of excess parameters or insufficient performance.
2. Match the site environment and infrastructure conditions: according to the load-bearing standards of the site, regional climatic conditions, overall layout planning and long-term expansion requirements, determine the operating span of the equipment, anti-corrosion protection level, tire configuration and walking adaptation plan.
3. Lock in standardized core technical parameters: for mainstream logistics hub operation scenarios, priority is given to the rated lifting weight of 35-65 tons, the standard span of 23-26 meters, the stacking capacity of 1+5/1+6 layers, and the professional configuration of FEM A6–A8 high work level, which is suitable for normalized high–intensity operations.
4. Scientific selection of power system solutions: diesel power is preferred for stations with limited short-term budgets and low operating frequencies; the pursuit of a balance between cost and energy saving is adapted to hybrid models; long-term large-scale, high-frequency operation of logistics hubs, priority is given to the deployment of energy-saving and cost-reducing pure electric E-RTG equipment.
5. Intelligent configuration is matched on demand: small and medium-sized conventional stations are adapted to semi-automatic control systems to meet the needs of basic operations; large-scale high-throughput hubs can be upgraded with fully automatic operations, remote operation and maintenance, and intelligent control systems to greatly improve operation efficiency and automation level.
6. Comprehensive evaluation of after-sales system and full-cycle costs: procurement selection abandons simple low-cost thinking, and gives priority to high-quality manufacturers with perfect after-sales system, adequate supply of spare parts, and support for iterative equipment upgrades. Focus on the cost-effective performance of the whole life cycle of the equipment to maximize the return on investment.

Questions to Ask Before Buying an RTG Crane

RTG is a high-value customized equipment, and poor procurement information can easily lead to risks such as inconsistent configuration, invisible price increases, after-sales delays, and delivery delays.Before purchasing, it is necessary to verify the manufacturer’s plan from the five core dimensions to avoid hidden procurement risks, ensure the cost performance and long-term stability of the equipment, and streamline the inquiry. The main points are as follows：

1. Adaptation of working conditions and parameter customization: check whether the tonnage, span, stacking height, and working level of the equipment match the working conditions of the station; clarify the non-standard customization plan, construction period and cost, and eliminate inefficient and wasteful low-configuration parameters and high-configuration.
2. Quotation details and full-cycle TCO: Request itemized landing quotations, clarify all costs such as bare metal, installation, and optional configuration, and eliminate invisible price increases; simultaneously verify long-term operation and maintenance costs such as energy consumption, maintenance, tire replacement, and spare parts, and take the whole life cycle cost as the core basis for procurement.
3. Power plan and compliance: combine site power supply, operating intensity, and environmental protection policies to match the optimal power model; verify equipment energy consumption, emissions, and noise indicators to ensure full compliance with local compliance standards.
4. Intelligent configuration and upgrade potential: distinguish between standard configuration of intelligent functions and optional charging standards; confirm the feasibility and cost of equipment automation iteration, TOS system docking, and functional upgrade to ensure the long-term availability of equipment.
5. Manufacturer qualification and delivery after-sales: verify the manufacturer’s similar project cases and industry qualifications; clarify the quality assurance policy, the timeliness of local after-sales response, training services, and spare parts cycle; lock in the production delivery cycle and extension guarantee terms to ensure the smooth commissioning of the project.

Why Choose an Experienced RTG Crane Manufacturer?

• Mature technology and working condition adaptation ability: Senior manufacturers have a large number of domestic and foreign project landing experience, and the technical system is mature. They can provide customized adaptation solutions for different site working conditions, climatic environment, and operating intensity, effectively avoiding non-standard site adaptation defects, and the equipment has stronger operating stability.
• Improve after-sales and reduce downtime losses: it has a standardized and localized after-sales system, adequate spare parts inventory and rapid response service capabilities, and can deal with equipment failures and maintenance issues in a timely manner, minimize equipment downtime and missed work losses, and ensure continuous and efficient operation of the site.
• Excellent equipment performance and durability: the whole machine has excellent technology, reliable quality of core accessories, better energy consumption control of the equipment, wear resistance and manufacturing resistance, longer service life, and can be adapted to long-term high-intensity normalization operations, greatly reducing iterative replacement costs.
• Sustainable upgrading and expansion capabilities: the original equipment reserves intelligent and electrified upgrade interfaces, supports later automation transformation, iteration of electronic control systems, and docking of TOS systems, and can continuously optimize equipment performance and extend equipment life cycles following the development of logistics hubs.

Conclusion

RTG procurement should focus on the cost performance of the whole life cycle, rather than just focusing on the price of a stand-alone machine.Stations need to choose models according to the operating volume, site conditions and upgrade planning: small and medium-sized stations are preferably cost-effective, stable and durable basic models, and large logistics hubs are adapted to hybrid, pure electric and intelligent automation RTG to achieve cost reduction, efficiency and sustainable expansion.Equipment quality and original factory service are the key to long-term efficient operation.

Henan Mine Crane specializes in R&D and manufacturing RTG/RMG gantry cranes for logistics, and can provide standardized and customized intelligent lifting solutions.With mature technology, rich landing experience and a sound after-sales system, it can provide highly adaptable equipment for ports, inland hubs, and container depots, effectively improving operational efficiency, reducing operation and maintenance costs, and maximizing customer return on investment.

Many project developers of container terminals, inland dry ports, and intermodal yards face the same dilemma: Should they choose RTG (Rubber-Tired Gantry) cranes or RMG (Rail-Mounted Gantry) cranes? Both types of equipment can handle container stacking and yard handling, but choosing the wrong one can lead to a series of problems, including wasted infrastructure investment, low yard utilization, subpar throughput capacity, high long-term operational and maintenance costs, and even an inability to accommodate future automation upgrades.

Most procurement mistakes stem from focusing solely on equipment quotes or following trends without considering the specific layout of the yard, the volume of operations, and long-term operational planning. There is no one-size-fits-all answer to the RTG vs RMG for container yard projects selection. The only valid criterion is aligning with the actual operating conditions and long-term development needs of your specific project.

Based on years of experience with container yard projects both domestically and internationally, we provide a comprehensive comparison of the real differences between RTG and RMG to precisely match the right crane solution for your yard.

Core Application Scenarios for RTG and RMG

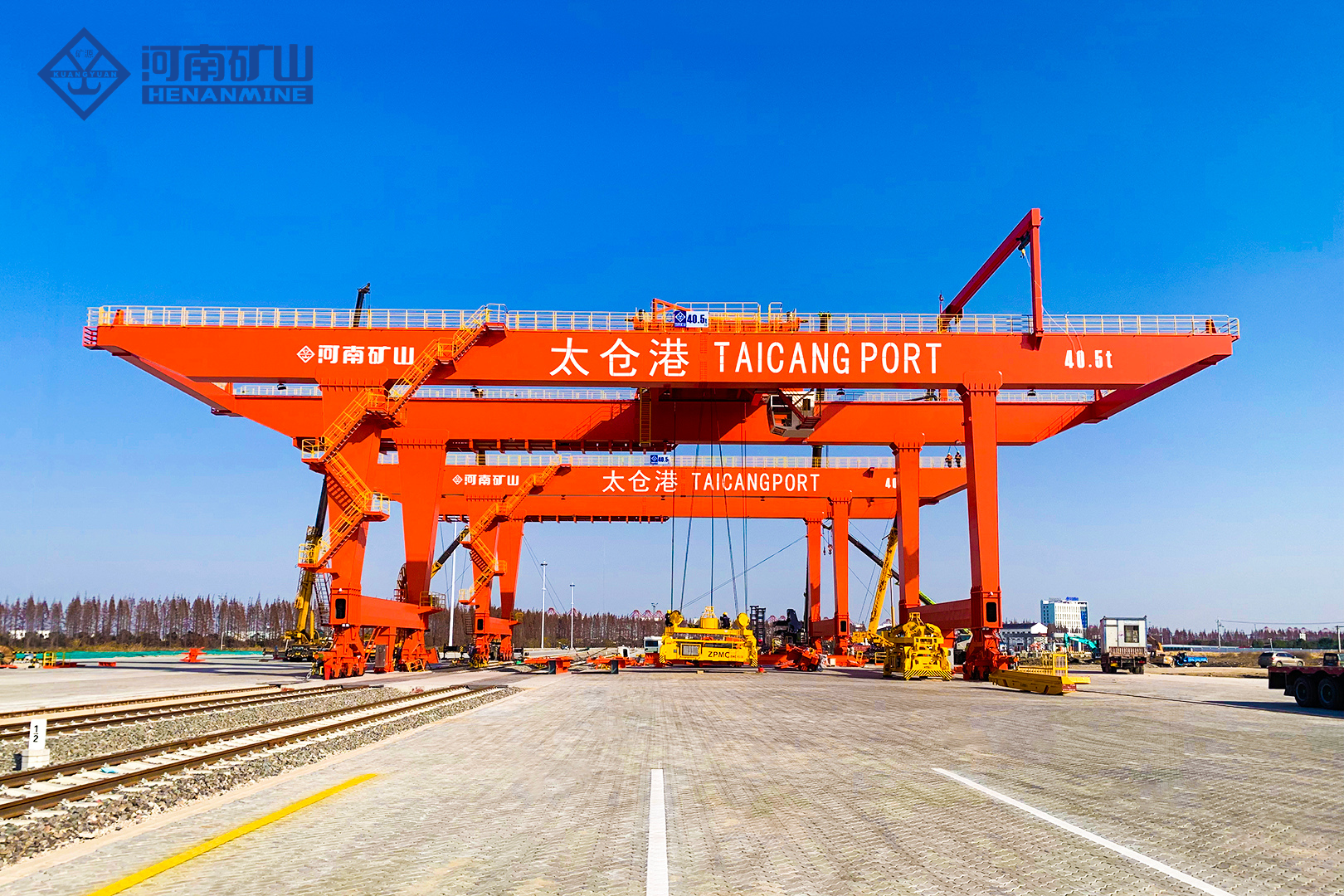

Seaport Container Terminals

Seaport container terminals, characterized by high operational frequency and orderly container stacking, represent the core application scenario for container yard crane comparison. Terminals require equipment to consistently and reliably perform container stacking, inter-block transfer, and block organization tasks, placing stringent demands on the equipment’s continuous operational capability.

Large, standardized seaport terminals flexibly combine RTG and RMG equipment based on overall yard planning to meet high-density storage and high-frequency handling demands, ensuring stable terminal throughput.

Inland Container Yards

Inland container yards primarily handle container storage, loading/unloading, and inter-zone transfers. Site planning is flexible, without the strict standardized block restrictions found in seaports. In these scenarios, equipment mobility is prioritized, and fixed tracks are not required.

RTG cranes for container yards, with their outstanding mobility, have become the mainstream choice for inland yards. They can adapt to dynamic adjustments in operational areas and accommodate diverse operational needs.

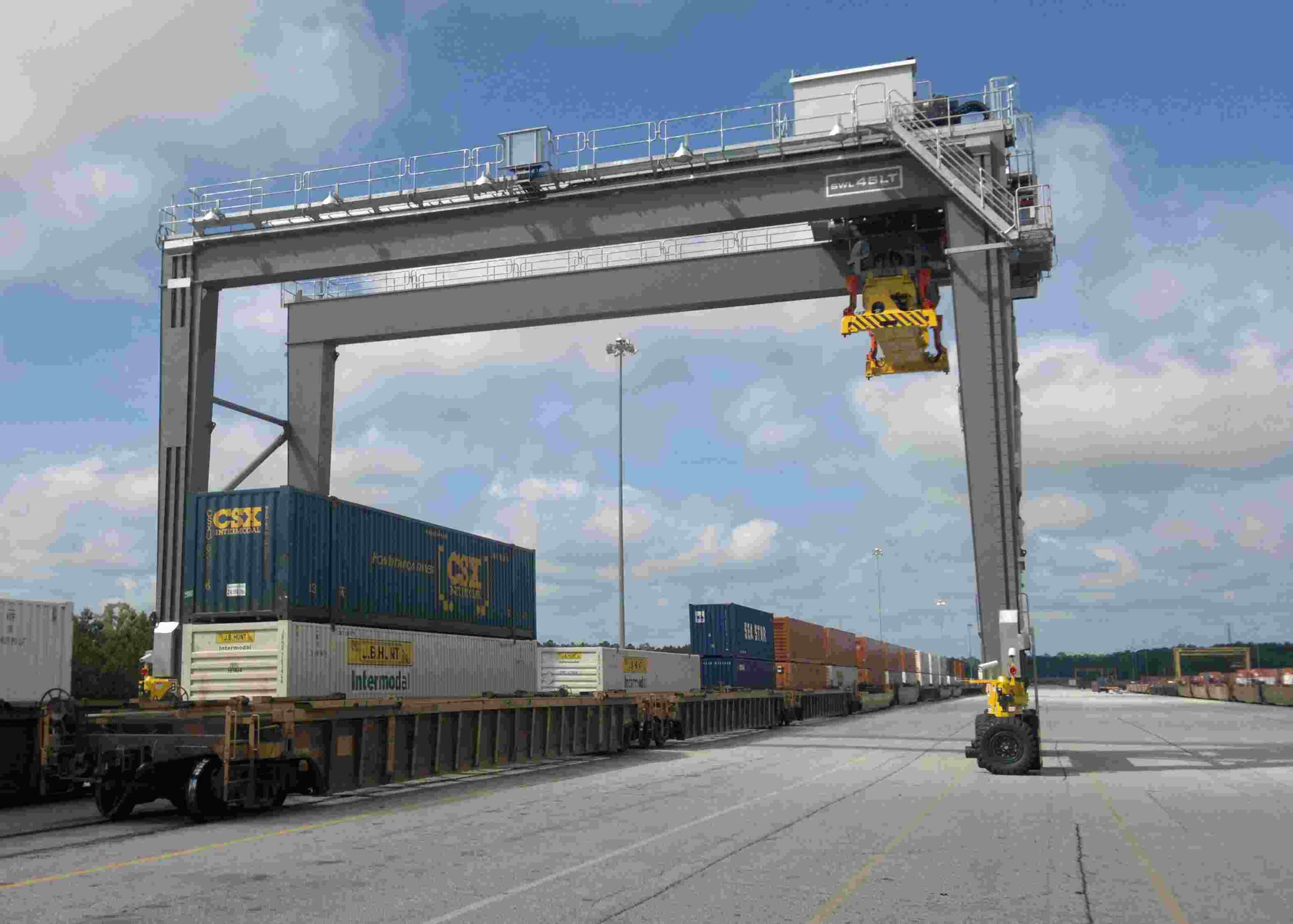

Rail-Intermodal Logistics Terminals

Container transfer operations at rail-intermodal logistics terminals feature fixed routes and well-organized work areas, placing higher demands on equipment stability and positioning accuracy. Equipment must precisely align with fixed loading and unloading points.

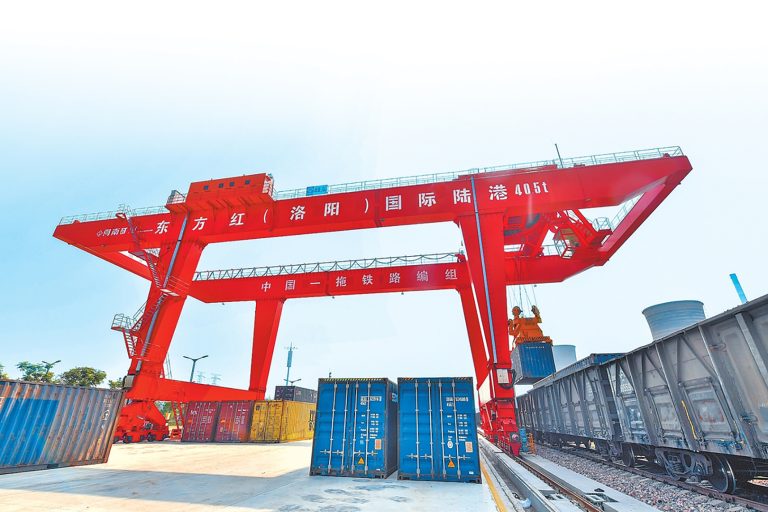

The RMG crane for container terminal, which operates on fixed tracks, perfectly aligns with the standardized operational processes of rail-intermodal terminals, reliably handling container transfers between trains and yards, as well as between yards and trucks.

Inland Dry Ports and Multimodal Hubs

Inland dry ports and multimodal hubs feature stable cargo volumes and are typically organized into standardized, uniformly planned zones. They focus on large-scale warehousing and transshipment operations, placing high demands on site utilization and operational stability.

Most newly constructed smart dry ports prioritize the use of RMG equipment to establish standardized, efficient container storage and transshipment systems based on standardized operating models.

Large-Scale Industrial Logistics Yards

Large logistics yards located near ports or industrial zones primarily handle the on-site handling and stacking of foreign trade container cargo. Their operational models are flexible, and site layouts are dynamically adjusted based on cargo volume.

Such yards are generally reluctant to invest in high-cost fixed infrastructure. RTG equipment, which offers strong adaptability and low retrofitting difficulty, can effectively control costs associated with site modifications and equipment upgrades.

Common Core Requirements for Container Yard Projects

High Container Storage Utilization

Yard land resources are limited. Whether for new projects or retrofitting existing yards, optimal equipment selection is essential to increase container stacking levels and block utilization. Equipment span and stacking height parameters directly determine the yard’s storage capacity and land utilization efficiency.

Appropriate equipment configurations can maximize container storage capacity within limited space and streamline on-site cargo flow.

Stable, Routine Operational Performance

Container yards operate continuously around the clock, with extremely high frequencies of equipment start-up, transfer, and stacking. Equipment failures directly cause container backlogs and logistics bottlenecks, disrupting the overall operational rhythm.

Purchasers generally prioritize structural durability and component reliability to ensure low-failure, continuous year-round operation at the yard.

High Compatibility Between Equipment and Yard Layout

The lane layout, spacing between container blocks, and rail connection points vary from yard to yard, making one-size-fits-all solutions impractical. The equipment’s operating range, span, and travel paths must align with the actual site layout.

Mismatched parameters can lead to operational blind spots and traffic interference, significantly reducing the yard’s overall operational efficiency.

Safe and Smooth Container Handling

Containers are heavy, uniform cargo. Swaying or shifting during lifting can easily cause collisions or deformation, which not only affects positioning accuracy but also poses safety hazards.

The equipment’s anti-sway capabilities, precise control, and operational cushioning performance are key to ensuring safety and stability throughout the entire process of container lifting, transfer, and stacking.

Controllable Long-Term Operating Costs

Most buyers focus solely on the initial purchase price of equipment, overlooking hidden costs such as long-term maintenance, energy consumption, spare part replacements, and infrastructure upkeep. Since yard cranes have a service life of over a decade, long-term operating expenses far exceed the one-time purchase cost.

Details such as tire wear, track maintenance, and energy consumption differences directly drive the gap in full-cycle operating costs between RTG and RMG.

Compatibility with Future Automation Upgrades

Many traditional yards currently rely primarily on manual operation, but long-term plans call for a gradual transition to semi-automated and fully automated modes. When selecting equipment, it is essential to consider scalability to avoid premature obsolescence due to the inability to adapt to intelligent upgrades in the short term.

Models designed for automation integration can be directly upgraded later, significantly reducing the cost of intelligent upgrades for the yard.

Detailed Comparison of RTG and RMG Models and Their Suitable Applications

What Is an RTG (Rubber-Tired Gantry Crane)?

RTG (Rubber-Tired Gantry Cranes) rely on rubber tires for mobility and do not require fixed tracks, making them the model that stands out for flexibility in the rubber-tired gantry crane vs. rail-mounted gantry crane comparison. The equipment can freely turn and operate across zones on paved surfaces, unrestricted by fixed travel paths.

RTG require no large-scale civil engineering work, making site modifications straightforward. Operational zones can be adjusted at any time to meet yard requirements, making them well-suited for dynamic operational models.

What is an RMG (Rail-Mounted Gantry Crane)?

RMG rail-mounted gantry cranes operate on pre-embedded ground tracks, offering fixed paths, precise positioning, and stable operation. As core equipment for standardized container yards, they feature uniform and consistent operational zones with virtually no tracking deviation issues.

This equipment requires upfront infrastructure work such as track laying and foundation reinforcement, resulting in higher initial investment. However, it offers standardized and stable operation, making it suitable for large-scale, high-throughput fixed yard projects.

Project Scenarios Where RTG Is the Preferred Choice

Yards with undefined layouts or those requiring phased expansion are highly suited for RTG equipment. In later project phases, container zones can be flexibly adjusted and operational areas expanded, leveraging the RTG maneuverability to adapt to dynamic site modifications.

For older yards or temporary operations where track construction is not feasible, selecting RTG eliminates high infrastructure costs and enables rapid deployment and production.

Multi-purpose logistics yards with fluctuating operations and frequent adjustments to working areas also commonly choose RTG to ensure operational flexibility.

Project Scenarios Where RMG Is the Preferred Choice

For newly constructed, standardized container terminals with comprehensive planning and fixed layouts, RMG equipment is the preferred choice. The fixed rail operation mode eliminates positioning errors and is well-suited for high-density, high-frequency, large-scale stacking operations.

Rail intermodal hubs and smart yards planned for intelligent upgrades are better suited for RMG models. With fixed equipment trajectories and stable data collection, they facilitate integration with automated control systems to achieve unmanned operation upgrades.

For large port areas seeking long-term stable operations and low O&M variability, the stability and durability advantages of RMG will continue to stand out over the long term.

Core Technical Parameters to Verify During Procurement

Rated Lifting Capacity

The equipment’s rated tonnage must match the maximum load of standard containers, loaded containers, and over-height containers, accounting for the lifting gear’s own weight and allowing for a sufficient safety margin. For yards with high volumes of loaded container throughput, load capacity standards should be appropriately increased to avoid long-term full-load operation of the equipment.

Equipment Span

The equipment span determines the number of container rows covered in a single pass and must align with the dimensions of the yard blocks and the layout of truck lanes. A reasonable span allows for the simultaneous coverage of multiple container rows and access lanes, reducing the number of round trips required.

Stacking Height

Stacking height directly affects yard storage density, and storage standards vary significantly across different terminals. The equipment’s lifting height must match the planned number of stacking levels to meet daily stacking and storage requirements.

Cantilever Length

Models equipped with a cantilever can cover side truck and rail loading/unloading areas, enabling the transfer of side-loaded containers without moving the main unit. The cantilever length must strictly match the lane width and the scope of transfer operations.

Gantry Travel Length

Gantry travel length determines the equipment’s operational coverage area. It must align with the total length of each individual operational zone within the yard to ensure no blind spots and achieve full-coverage stacking and transfer operations.

Operational Speed

Lifting, trolley, and gantry travel speeds collectively determine the duration of a single operational cycle. High-throughput terminals may opt for higher speeds, while standard logistics yards should select conventional speeds to balance equipment stability and operational efficiency.

Power and Drive Systems

RTG support various power supply modes, including diesel, electric, hybrid, and battery-powered, making them suitable for sites without fixed power sources. RMG typically use slip ring or busbar power supply, offering stable power and lower energy consumption, making them suitable for long-term continuous operation scenarios.

Actual model selection should be flexibly matched based on site power supply conditions, average daily operating hours, and energy consumption budgets.

Control and Automation Levels

Manual, remote, or semi-automatic control modes can be selected based on the project’s current status. For projects with long-term automation plans, interfaces for fully automated systems can be pre-installed to reduce future retrofitting costs.

Site Environment Adaptability

Coastal terminals require equipment with protection against wind, salt fog, and dust, while inland yards prioritize high-temperature resistance and protection against sand and dust. The equipment’s environmental protection rating directly determines its long-term service life outdoors.

Key Differences Between RTG and RMG (Key Considerations for Procurement)

Yard Layout Flexibility

RTG have no track restrictions and offer exceptional site flexibility, allowing for free adjustment of operational areas. They are suitable for various projects involving site modifications, block adjustments, and phased expansions.

RMG have fixed operating paths and a regular layout, making it impossible to arbitrarily adjust operational blocks. They are better suited for standardized yards that are planned in one go and remain unchanged over the long term.

Infrastructure Requirements

RTG have minimal site requirements; they can begin operations with only a paved surface, eliminating the need for costly track construction. This results in lower upfront infrastructure investment and faster deployment.

RMG require precise track laying, foundation reinforcement, and the installation of supporting power facilities. Consequently, upfront infrastructure costs are higher, and the construction cycle is relatively longer.

Automation Compatibility

RMG is the preferred model for automated yards. With fixed trajectories, precise positioning, and stable operational data, its control system is easy to integrate, making unmanned conversion less challenging and more likely to succeed.

RTG automation conversion is more difficult. Because the equipment’s travel paths are not fixed, it requires complex positioning and navigation systems, resulting in higher conversion costs and technical barriers.

Long-Term Operating Costs

RTG have relatively high long-term maintenance costs, including ongoing tire wear, steering system maintenance expenses, and consistent energy consumption for diesel and hybrid models, along with numerous minor maintenance tasks.

While RMG require higher initial infrastructure investment, they have no tire wear in the long term, low track maintenance frequency, and stable energy consumption, offering a cost advantage for large-scale, long-term operations.

Site Utilization and Block Design

RMG are suited for highly standardized block planning, enabling neat stacking with controllable spacing, high land utilization, and suitability for high-density container storage operations.

RTG can adapt to irregular sites and allow for flexible arrangement of operational blocks, but their level of standardization is insufficient, resulting in slightly lower stacking uniformity for high-density storage compared to RMGs.

Differences in Maintenance Focus

RTG daily maintenance focuses on mobility-related components such as tires, steering mechanisms, travel drives, and hydraulic systems, involving numerous wear-and-tear parts and high maintenance frequency.

RMG maintenance centers on track alignment, power supply systems, and fixed travel mechanisms, featuring simple procedures and low frequency, making long-term maintenance more hassle-free.

Optimal Project Types

RTG are suitable for flexible container yard projects involving phased development, limited space, temporary operations, and dynamic operational requirements.

RMG are better suited for high-end container terminals with fixed layouts, high throughput, rail integration, large-scale operations, and a need for automation upgrades.

How to Select a Reliable RTG/RMG Container Crane Supplier

Verify Manufacturing Capabilities at the Source

RTG and RMG are large-scale port machinery with manufacturing precision and safety standards far exceeding those of ordinary industrial cranes. Since distributors cannot guarantee equipment quality or customization, procurement should prioritize original manufacturers with in-house R&D, production, quality inspection, and export delivery capabilities.

Original manufacturers can precisely tailor equipment to withstand heavy-load, outdoor port environments and harsh operating conditions, ensuring operational stability from the outset.

Verify Implementation Experience with Similar Yard Projects

High-quality suppliers must be familiar with the operational logic of seaports, inland ports, and intermodal yards, possess extensive experience with intermodal yard crane solutions, and understand specialized requirements such as port infrastructure, corrosion and wind resistance, and automation integration.

Sufficient experience with similar projects allows for the early avoidance of common implementation issues such as site compatibility, operational interference, and parameter mismatches.

Evaluate Professional Engineering Customization Capabilities

A professional engineering team can accurately determine the appropriate crane model based on yard drawings, block layouts, throughput requirements, and automation plans, and optimize equipment parameters specifically for the application, rather than simply applying generic standard models.

Verify Complete Set of Technical Documentation

Reputable export manufacturers can provide a complete set of English technical documentation, including assembly drawings, wheel load data, electrical schematics, parts lists, and factory quality inspection reports, to meet the customs clearance, acceptance, and operation and maintenance registration requirements for overseas projects.

Verify Core Component Brands and Specifications

Core components such as motors, gearboxes, brakes, PLC control systems, and container spreaders directly determine equipment stability and service life. When purchasing, clearly specify component brands and protection standards to prevent substandard or downgraded configurations.

Verify Factory Quality Inspection and Testing Procedures

Prior to shipment, the equipment must undergo weld inspection, dimensional verification, no-load and full-load testing, and functional commissioning. Complete inspection records must be retained to ensure the equipment can be put into stable operation immediately upon arrival.

Define the Scope of Installation and Commissioning Services

The supply model must be confirmed in advance, distinguishing between options such as equipment-only supply, installation guidance, and turnkey commissioning. Port machinery requires high installation precision, and professional technical support can help prevent operational failures later on.

Confirm Long-Term After-Sales Support and Spare Parts Availability

Yard equipment operates continuously year-round, requiring manufacturers to provide long-term spare parts supply, software updates, fault diagnosis, and rapid after-sales response to minimize downtime losses at the yard.

Common Procurement Pitfalls in Container Stacker Crane Selection

Selecting equipment based solely on low price will significantly increase long-term operational and maintenance costs.

Blindly following trends or ignoring yard traffic flow and block layout will result in poor equipment compatibility, creating operational blind spots and traffic interference issues, thereby reducing overall operational efficiency.

Focusing only on current operational needs while ignoring long-term automation plans will render equipment incompatible with future smart upgrades, leading to additional costs for replacement.

Focusing solely on the initial purchase price while ignoring long-term expenses such as energy consumption, spare parts replacement, and infrastructure maintenance will cause the project’s total lifecycle costs to far exceed the initial budget.

Failing to verify site infrastructure, power supply, and ground load-bearing capacity in advance can result in equipment being unable to be installed and put into operation upon arrival, necessitating secondary site modifications.

The incorrect practice of selecting equipment models before planning yard blocks will directly reduce site utilization and cause混乱 in on-site operational workflows.

Selecting a manufacturer without experience in non-port yard projects may result in equipment that is ill-suited for port heavy-load and harsh outdoor conditions, compromising long-term operational stability.

Incomplete site, operating condition, and throughput data provided during the quotation process can lead to customized solutions that do not match on-site realities, triggering repeated modifications and project delays.

Frequently Asked Questions

What is the core difference between RTG and RMG?

The core differences lie in operating modes, infrastructure requirements, flexibility, and compatibility with automation. RTGs are tire-mounted, track-free, have lower infrastructure costs, and offer greater flexibility; RMGs are rail-mounted, follow fixed paths, provide precise positioning, and are better suited for automated operations, though they require higher upfront infrastructure investment.

Which is better for container terminals: RTG or RMG?

There is no absolute superiority; it depends entirely on project suitability. New, standardized, high-throughput large-scale terminals with automation plans should prioritize RMG; terminals built in phases, with flexible layouts, undergoing retrofits, or with infrastructure constraints are better suited for RTG.

Does RTG offer greater site flexibility than RMG?

RTG offers significantly greater flexibility than RMG. Unrestricted by fixed tracks, it allows for free adjustment of operational areas and adapts well to diverse scenarios such as site expansion, block adjustments, and temporary operations.

Is RMG more suitable for automated yards?

Yes, RMG is the preferred model for automated container yards. Its fixed travel paths and precise, stable operational data simplify integration with control systems, enabling seamless implementation of semi-automated, fully automated, and unmanned operations.

Which model has lower long-term operating costs?

For small-scale, short-term yard projects, RTG offers lower overall costs; for large-scale, long-term operations in standardized high-throughput yards, the RMG offers a more significant advantage in total lifecycle costs due to its low maintenance, low energy consumption, and high stability.

Which model is suitable for rail-intermodal terminals?

Rail-intermodal terminals have fixed operating points and orderly traffic flow, making the RMG rail-mounted gantry crane the preferred choice. It can precisely align with rail loading and unloading points, ensuring stable operation and standardized work procedures.

What project information should be prepared before requesting a quote?

Before requesting a quote, please prepare complete data including yard layout drawings, block dimensions, lane and rail locations, planned stacking heights, average daily throughput, power supply conditions, and long-term automation plans to ensure the solution is implemented accurately.

Summary

Which is better: RTG or RMG? There is no standard answer; both types of equipment have their own suitable scenarios. The core of selection does not lie in the superiority of the equipment, but in aligning with the project’s site conditions, operational model, throughput targets, and long-term plans.

For yards with flexible payment terms, infrastructure constraints, and dynamic operational models, RTG offer better value for money; for high-end yards that are standardized, large-scale, and pursue automation upgrades and long-term stable operations, RMG provide greater value.

Professional container terminal yard crane selection requires a comprehensive assessment that combines infrastructure conditions, operational frequency, maintenance budgets, and long-term planning. Relying on the manufacturer’s engineering experience helps avoid selection pitfalls and ensures the long-term stable operation of the equipment.

Henan Mine Crane (Crane Industrial) has specialized in port yard crane equipment for many years, with extensive experience in implementing projects at domestic and international terminals, dry ports, and intermodal hubs. We can customize dedicated RTG and RMG solutions based on project conditions and provide a full set of English technical documentation along with cross-border after-sales support.

Unsure whether an RTG or RMG is the right fit? Provide us with your yard drawings, block layout, stacking height requirements, throughput, and automation plans, and our engineering team will precisely match you with the optimal yard crane solution.

Over the years of doing port equipment sales in Henan Mine Crane, I have received terminal planners and operation managers from all over the world, and the selection of short-distance container handling equipment is one of the most frequently asked questions.

Many people are torn between RTG cranes and straddle carriers, thinking that both of them can accomplish short-haul transfer and stacking, and it is the same to choose which one. In fact, it is not, these two short distance container handling equipment, core positioning and applicable scenarios are very different.

If you choose the right one, it can make the yard work smoothly and reduce the long-term operation cost; if you choose the wrong one, it will not only drag down the operation efficiency, but also increase the investment of later transformation, which will affect the overall competitiveness of the terminal.

Nowadays, the concept of automated yard and hybrid yard is becoming more and more popular, and more customers start to pay attention to the automation suitability and full life cycle cost of the equipment. Today, I will use the practical experience of front-line engineers, combined with the cases of Henan Mine Crane’s global terminal services, to explain the differences between RTG crane vs straddle carrier, and the logic of selection thoroughly.

Let’s not talk about the abstract, but focus on comparing the mobility, cost, stacking density, automation adaptability and return on investment of the two, to help you make the most suitable choice according to your own terminal size and needs.

Overview of Short-Distance Container Handling in Ports

Typical Workflow

In order to understand the difference between RTG and straddle carrier, first of all, we have to be clear about the complete workflow of short-distance container handling in ports, which is the basis for selection.

In the first step, STS crane unloads the container from the ship, which is the starting point of terminal operation and the key link between ocean transportation and land handling.

In the second step, the unloaded containers need to be transferred to the designated yard block through short-haul handling equipment, this process is what we call short-haul handling, which is also the core operating scenario of RTG and transporter.

In the third step, after the containers are transported to the yard, they need to be stacked or repositioned to ensure that the yard space is reasonably utilized, and at the same time to facilitate subsequent extraction.

In the last step, the containers are picked up from the yard according to the demand and transferred out of the port by truck or railroad, completing the whole short-distance handling closed loop.

Where RTG and Straddle Carriers Fit

In the whole short-haul handling process, RTG and straddle carriers are positioned completely differently, and each assumes different core functions.

The core positioning of RTG cranes is yard stacking equipment, which is mainly responsible for stacking and picking up containers after they are transported to the yard. It is more adept at efficiently completing the multi-layer stacking of containers in a fixed yard block to enhance yard utilization.

Transporter is a kind of “two-in-one” equipment, both transportation and stacking functions, can independently complete the short-distance transfer, stacking and extraction of containers, without relying on other horizontal transportation equipment.

Simply put, RTG focuses on “stacking” and transporter focuses on “transportation + stacking”, both of which have different operation logic and different terminal scenarios, which is also a key point to distinguish in container yard equipment selection. This is also a key point of distinction in container yard equipment selection.

What Is an RTG (Rubber Tyred Gantry) Crane?

Definition

RTG crane, full name Rubber Tyred Gantry Crane (Rubber Tyred Gantry Crane), is a kind of gantry crane that relies on tires to support and move, and its core purpose is to stack containers in the yard block.

Unlike rail-type gantry cranes, it does not have to rely on fixed rails, and can move flexibly within the designated yard area, but the range of movement is mainly limited to the inside of the yard block, and is not suitable for long-distance transshipment across the block.

Henan Mine Crane’s RTG cranes are suitable for different sizes of terminal yards around the world, no matter small and medium-sized inland ports or large coastal ports, they can be customized according to the actual needs of the stacking height and operating range.

Key Characteristics

RTG cranes are mainly powered by diesel-electric and hybrid models, and now more and more terminals tend to choose hybrid or pure electric models, which can not only reduce energy consumption, but also meet the requirements of environmental protection.

Its moving track is relatively fixed, mainly along the container rows, the operation range is concentrated in the fixed yard blocks, the turning radius is limited, not suitable for frequent adjustment of the operation area.

Stacking ability is its core advantage, usually can achieve 1-over-5, 1-over-6 stacking height, some large RTG can even reach 1-over-7, can greatly enhance the utilization of yard space.

It should be noted that RTG itself does not have long-distance horizontal transportation ability, must rely on the terminal tractor or trucks and other equipment, the container from the shore transfer to its operating area, which is one of the biggest difference between it and the straddle carrier.

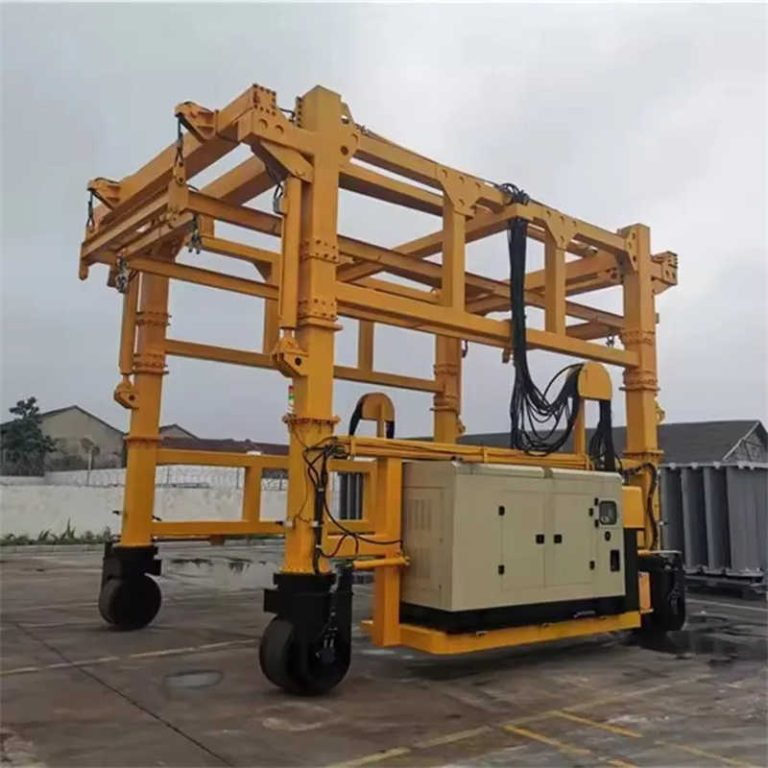

What Is a Straddle Carrier?

Definition

Straddle Carrier is a self-propelled container handling equipment, which, unlike RTG, can independently complete the lifting, transportation and stacking of containers without relying on other auxiliary equipment.

Its shape is similar to the “door” type, the container can be wrapped in its own frame, through the tires to achieve the full yard movement, not only from the STS crane under the box, but also directly to the designated location of the container stacking, to achieve the “one-stop” short-distance handling.

Henan Mine Crane also has straddle carriers for global terminals, which can be customized in terms of load capacity and stacking height for different short-distance handling needs, and are suitable for the flexible operation of medium-sized terminals.

Key Characteristics

Self-propelled is its core feature. It does not need rails or other traction equipment, and can be moved in any area of the yard, which is extremely flexible and suitable for terminals that need to adjust the operation area frequently.

Its container lifting method is completed within its own frame, and the lifting height is limited, usually can only realize 1-over-2 or 1-over-3 stacking height, which is far lower than RTG cranes.

The biggest advantage is the integration of transportation and stacking functions, can be directly from the STS crane under the box, and then transferred to the yard stacking, eliminating the intermediate horizontal transportation links, simplifying the operating process.

However, its operational efficiency is limited by the stacking height, which is suitable for terminals that do not require high density of the yard and pursue operational flexibility, and it is also a common flexible solution in the port horizontal transportation solution.

RTG vs Straddle Carrier – Technical Comparison

Below is a detailed comparison of RTG and straddle carrier from 7 core technical dimensions, combined with the actual operating scenarios, to help you more intuitively determine which equipment is more suitable for your terminal, which is also the core content of RTG vs straddle carrier comparison.

1. Mobility and Flexibility

The difference in mobility and flexibility directly determines the layout of the yard they are suitable for, the specific comparison is as follows:

Factor	RTG	Straddle Carrier
Movement	Along yard rows	Full yard mobility
Turning radius	Limited	High flexibility
Block layout changes	Moderate	Highly flexible

The flexibility of straddle carrier is much higher than RTG, it can move freely in the whole yard, with small turning radius, and can even turn around flexibly in the narrow area, which is very suitable for terminals with frequent adjustment of yard layout.

I have served a medium-sized terminal in Southeast Asia, whose yard needs to be adjusted at any time according to the arrival of ships, and finally chose the straddle carrier because of its high flexibility and its ability to quickly adapt to different operational needs.

RTG’s movement range is mainly limited to fixed yard rows, with a large turning radius, and it takes more time to adjust the operation block, which is more suitable for structured yards with fixed layout and standardized operation flow.

2. Stacking Density

Stacking density directly affects the space utilization rate of the yard, especially in terminals with tight land resources, which is particularly important, the specific comparison is as follows:

Factor	RTG	Straddle Carrier
Typical stacking height	1-over-5 / 6	1-over-2 / 3
Space utilization	High	Moderate
TEU per hectare	Higher	Lower

The stacking density of RTG is much higher than that of straddle carriers, which can usually stack 5-6 layers of containers, and some large RTGs can reach 7 layers, and each hectare of yard can accommodate more TEUs, and the land utilization rate is extremely high.

Many small ports in Europe with tight land resources give priority to RTG cranes because it can maximize the yard capacity in a limited space, without additional land expansion, reducing land costs.

The stacking height of straddle carriers is low, usually only 2-3 layers can be stacked, the space utilization rate is medium, and the number of TEUs per hectare of yard is much lower than that of RTG, which is more suitable for terminals that have sufficient land resources and do not have high requirements for stacking density.

3. Infrastructure Requirements

The two types of equipment have different infrastructure requirements, which is also a key consideration in terminal planning and directly affects the pre-construction costs.

RTG cranes require heavy paved yard floor, especially the road surface in the operation area, which needs to be able to withstand the weight of RTG and the impact of the operation, and usually the road thickness needs to reach 15-20 cm.

At the same time, it is necessary to design dedicated yard lanes to ensure that the RTG can move along fixed rows and avoid conflicts with other equipment. In addition, as RTGs require separate horizontal transportation equipment, they also need to plan reasonable transportation routes to ensure smooth container transfer.

The infrastructure requirements of trans-loader are more complicated, it needs the whole yard floor to be reinforced and paved, and it cannot be limited to the operation area only, because it can move all over the yard, and any area may become the operation point.

And it needs wider traffic lanes to avoid collision with other equipment during operation, but it does not need additional horizontal transportation equipment, which can reduce the cost of transportation route planning.

Special attention needs to be paid to the issue of ground pressure, the ground pressure of the cross-traffic truck is large, if the road pavement is not in place, long-term operation will lead to ground subsidence, damage, and increase the cost of maintenance in the later stage, which is a point that many customers are prone to ignore. Henan Mine Crane will calculate the ground pressure in advance and give the reasonable pavement suggestion when doing the program for customers.

4. Capital Expenditure (CAPEX)

Many customers in the selection, only focus on the price of a single unit of equipment, ignoring the initial investment at the system level, which is a common misunderstanding. RTG and cross-traffic trucks need to be compared from the perspective of the entire system, not the price of a single unit of equipment.

An RTG system has a lower cost for a single piece of equipment, typically 15-20% less than a straddle carrier, but it requires additional horizontal transportation equipment such as terminal tractors or trucks, which also need to be factored into the initial investment.

For example, a medium-sized yard requires 10 RTG cranes and 20 terminal tractors to ensure smooth operations, and the overall initial investment is not low. Henan Mine Crane has done a program for a South American terminal, RTG single unit is cheaper than the transporter, but with the cost of the tractor, the initial investment in the system and the transporter system is basically the same.

The cost of a single unit of transporter system is higher because it integrates transportation and stacking functions, and the technical complexity is higher, but it does not require additional horizontal transportation equipment, which can reduce the number of equipment purchases and lower the initial investment at the system level.

For medium-sized terminals, the initial investment in a straddle carrier system may be more advantageous because it eliminates the purchase and maintenance costs of horizontal transportation equipment and simplifies the equipment management process.

5. Operating Cost (OPEX)

Operating cost is a core consideration for long-term terminal operations and includes fuel/energy costs, labor costs, and maintenance costs, which vary significantly.

In terms of fuel and energy, RTG mainly adopts diesel-electric or hybrid power, and some terminals will choose electrification transformation. After electrification, the energy cost of RTG is lower, and the electricity cost is only about 1/3 of the cost of diesel, which saves a lot of energy cost in long-term operation.

Cross-traffic vehicles are mainly diesel-powered, although there are also electric models gradually appeared, but the popularity is not high, diesel consumption is large, energy costs are relatively high, fuel costs usually account for about 40% of its operating costs.

In terms of labor cost, RTG needs a separate operator, each RTG is equipped with an operator, and also needs to be equipped with a terminal tractor driver, the labor cost is higher; transporter is an operator responsible for a piece of equipment, both to complete the transportation, but also to complete the stacking, do not need an additional driver, can significantly reduce the labor cost.

In terms of maintenance cost, RTG’s maintenance focuses on tire wear, engine and lifting system, due to the fixed scope of operation, the wear of equipment is relatively uniform, the average annual maintenance cost is about 35,000 yuan; cross-transportation vehicle’s maintenance focuses on tire wear, engine, steering system and lifting frame, with a wide scope of operation, tire wear is faster, the average annual maintenance cost is about 20,000 yuan, but the tire replacement frequency is higher, the long-term The average annual maintenance cost is about $20,000, but the tires are replaced more frequently, so the long-term maintenance cost is not low.

6. Automation Readiness

With the development of automated terminals, the automation suitability of equipment is more and more important, and the automation maturity of RTG and straddle carriers differs greatly, the specific comparison is as follows:

Factor	RTG	Straddle Carrier
Remote operation	Common	Increasing
Full automation	Possible but complex	More challenging
Integration with TOS	Mature	Growing

RTG’s automation maturity is higher, remote operation has been very common, Henan Mine Crane’s RTG cranes, can be easily docked to the terminal operating system (TOS), remote control and job scheduling, part of the RTG can also realize semi-automated operation.

Although the full automation of RTG is more complex to realize, but the technology has been relatively mature, many automated yards around the world, have adopted automated RTG systems, such as Kalmar’s Kalmar One automation system, can be seamlessly integrated with RTG, to achieve the full yard automation operations.

The development of automation of cross-haul trucks is relatively lagging behind, and the application of remote operation is gradually increasing, but full automation is much more difficult to realize. Because it requires full yard movement, precise positioning and path planning are more difficult, and integration with TOS systems is not mature enough, it is more of a semi-automated operation mode at present.

If your terminal has a clear automation upgrade plan, give priority to RTG cranes, its automation adaptability is stronger, can be better integrated into the container yard automation equipment system.

7. Productivity and Throughput

The operational efficiency and throughput of the two, depending on the operational scenarios and processes, can not simply say which one is faster, the core difference lies in the operational logic.

RTG’s stacking efficiency is very high, in a fixed yard block, it can quickly complete the stacking and extraction of containers, and it can complete 30-40 operations per hour, but its efficiency depends on the cooperation of horizontal transportation equipment.

If the turnover efficiency of the terminal tractor cannot keep up, RTG will have waiting time, affecting the overall throughput. For example, in a yard with an insufficient number of tractor-trailers, the RTG may be idle 30% of the time, preventing it from maximizing efficiency.

The advantage of straddle carriers lies in short-distance direct transfer, able to pick up boxes directly from under the STS crane and transfer them to the yard for stacking, eliminating the intermediate horizontal transportation link, moving faster over short distances, and shortening the cycle time from the shore bridge to the yard.

Especially in the terminals with shorter short-distance handling (within 500 meters), the transporter has higher operational efficiency, which can reduce the container handling link and improve the overall throughput. However, its stacking efficiency is low, and with the increase of yard density, the operational efficiency will obviously decrease.

Operational Workflow Comparison

The operational workflow of the two types of equipment is very different, which directly affects the operation mode and efficiency of the terminal. Below are two types of equipment-based yard operational workflow, which will help you determine the suitability more intuitively.

RTG-Based Yard Concept

RTG as the core of the yard operation process, the need for multi-equipment synergy, the specific process is: STS crane unloading containers → terminal tractor will be transferred to the container RTG operation block → RTG will be stacked to the designated location.

The advantages of this operation mode are obvious, the yard structure is clear, the stacking density is high, can maximize the use of yard space, suitable for high throughput, fixed layout of the terminal.

Henan Mine Crane serves a large domestic port, which adopts this mode, 10 RTGs with 20 terminal tractors, to realize the efficient operation of the yard, each hectare of the yard can accommodate more TEUs, and the throughput is greatly increased.

The disadvantages are also prominent. It is necessary to coordinate the operating rhythm of RTGs and tractor-trailers, and once the two are not properly coordinated, there will be waiting time, which affects the overall operating efficiency. For example, if the tractor is late, the RTG will be idle; if the RTG operates slowly, the tractor will wait in line.

Straddle Carrier-Based Yard Concept

Straddle Carrier-Based Yard Concept is a relatively simple yard operation process, which does not require the coordination of multiple equipment. The specific process is as follows: STS crane unloads the containers → Straddle Carrier-Based Yard Concept picks up the containers, transfers them to the designated location and completes the stacking.

The advantages of this mode of operation are fewer operational steps, high flexibility, transporter can independently complete the pick-up, transfer, stacking, without relying on other equipment, which can reduce equipment coordination costs, and at the same time can constitute an effective buffer between the shorebridge and yard operations to enhance the efficiency of shorebridge operations.

For example, for a medium-sized terminal, 3 sets of straddle carriers can be used to complete the operation with 1 set of shorebridge without additional tractor, which simplifies the operation process and reduces the management cost.

The disadvantage is that the stacking density is low, the utilization rate of the yard space is not high, and the straddle car is moving all over the yard, which requires good traffic management to avoid collision between the equipment, especially during the peak operation period, which is prone to traffic congestion.

Lifecycle Cost Analysis

10-20 Year Cost Perspective

Selection should not only look at the initial investment, but also pay attention to the full life cycle cost of 10-20 years, which is the key to determine the long-term return on investment. From the perspective of the whole life cycle, the cost differences between the two types of equipment are mainly reflected in the following aspects.

In terms of initial investment, the RTG system requires the procurement of RTG cranes and horizontal transportation equipment, with a higher initial investment; the straddle carrier system does not require additional horizontal transportation equipment, with a relatively low initial investment, but the price of a single straddle carrier is higher.

In terms of fuel/energy costs, RTG electrification has lower energy costs and can save a lot of money in long-term operation; cross-traffic trucks are mainly diesel-powered and have higher energy costs, especially in the case of rising fuel prices, the operating costs will increase significantly. Pure electric transporters have low energy costs but high initial investment, which is suitable for terminals with long-term planning.

In terms of tire replacement frequency, the tires of straddle car wear faster and usually need to be replaced every 1-2 years, while the tires of RTG wear relatively slower and need to be replaced every 3-4 years, which makes the tires of straddle car more costly to replace in the long run.

In terms of maintenance downtime, RTG’s maintenance is relatively simple and the maintenance downtime is shorter, usually 10-15 days per year, while the maintenance complexity of straddle carriers is higher and the maintenance downtime is longer, about 15-20 days per year, which affects the terminal’s operational efficiency.

As for the trend of labor cost, as the labor cost rises year by year, the pressure of labor cost of RTG will be more and more big, while trans-carrier can reduce the number of labor, in the long run, the advantage of labor cost will be more and more obvious.

Overall, in high density, high throughput terminals, RTGs have lower whole life cycle costs and can realize better long-term return on investment; in medium-sized, low density terminals, straddle carriers have more advantageous whole life cycle costs and can reduce operational complexity and costs.

Standards and Compliance

For global terminals, standards compliance is critical. Especially for export projects, it is essential to meet international standards and local port specifications, otherwise acceptance will not be possible and project progress will be jeopardized, RTGs and straddle carriers need to comply with the following standards and requirements.

Common International Standards

ISO 4301 is the common international standard for crane classification, of which ISO 4301-5:2025 is specifically for bridge and gantry cranes. RTG cranes need to comply with this standard, which specifies the classification of the equipment, safety requirements and design specifications.

FEM standard (European Material Handling Federation standard), mainly regulating the structure of cranes and working class classification, RTG and straddle carriers are usually working class A7-A8, this level of equipment, can withstand high-frequency, high-load continuous operation, in line with the terminal’s high-intensity operational needs.

In addition, straddle carriers need to comply with relevant vehicle safety standards to ensure the safety of personnel and equipment during operation. Henan Mine Crane’s RTGs and straddle carriers all comply with the above international standards, and we can provide complete certification documents to ensure that the projects of our global customers can pass the acceptance smoothly.

Port-Specific Requirements

In addition to international standards, different ports also have their own specific requirements, mainly focusing on three aspects.

Firstly, environmental regulations, the emission requirements of port equipment are becoming more and more stringent in different countries around the world, such as the EU’s Euro V and VI emission standards, and North America’s EPA emission standards, and Henan Mine Crane’s RTGs and straddle carriers can be customized according to the local environmental protection requirements to meet the standard power system and avoid the risk of compliance.

Henan Mine Crane will optimize the design of the equipment according to the specific specifications of the ports to ensure that the equipment will not damage the road surface during operation and at the same time meet the road surface load-bearing requirements.

Henan Mine Crane will optimize the design of the equipment according to the specific specifications of the port to ensure that the equipment will not damage the road surface during operation and at the same time meet the requirements of road surface bearing. Thirdly, the safety and protection requirements of the equipment, such as wind-resistant system, anti-collision system, etc., especially in coastal ports, which require the equipment to have a strong wind-resistant capability.

When to Choose RTG for Short-Distance Handling

Combined with the practical cases of terminals around the world, in the following cases, RTG cranes are preferred to achieve a higher return on investment and better suit the needs of the terminal.

If your terminal has high container throughput and needs to handle a large number of containers every day, give priority to RTG, which has high stacking efficiency, can quickly complete the stacking and extraction of containers, together with the horizontal transportation equipment, can support the high throughput of operational needs.

When land resources are tight and the density of the yard needs to be improved, RTG is preferred; its high stacking height can store more containers on the limited land and reduce the cost of land occupation, which is also the reason why terminals in Europe, Asia and other areas with tight land resources prefer RTG.

Fixed yard layout with structured block design, RTG is preferred. it has a fixed operating range and can be better adapted to structured yards to improve operating efficiency and reduce equipment adjustment time.

For terminals with an electrified or hybrid energy strategy, RTGs are preferred, as their proven electrification technology reduces energy costs and meets environmental requirements, making them suitable for terminals that emphasize green operations.

When to Choose Straddle Carrier

When to Choose Straddle Carrier is preferred for the following situations, it can simplify the operation process, reduce the management cost, and adapt to the flexible operation requirements of the terminal.

For medium-sized terminals with medium throughput, straddle carriers are preferred. Its operation process is simple and does not require additional horizontal transportation equipment, which can reduce equipment purchase and management costs, and is suitable for the operation scale of medium-sized terminals.

If the yard operation needs to be adjusted flexibly, such as changing the operation block frequently, the transporter is preferred. It is highly maneuverable and can move freely throughout the yard, quickly adapting to different operational needs without frequent adjustments to the equipment layout.

If you do not require high stacking height and do not need to pursue high yard density, you should give priority to transporters. Although its stacking height is low, it can meet the storage needs of medium-sized terminals, and at the same time has higher operational flexibility.

If you want to simplify the operation mode and reduce the cost of equipment coordination, give preference to straddle carriers. It can pick up, transfer, and stack containers independently without having to coordinate the operating rhythm of RTGs and tractor-trailers, which reduces the difficulty of operation management.

Common Buyer Mistakes

Combined with so many years of global terminal consulting experience, I summarize five of the most common mistakes customers make when selecting a model, many terminals have stepped into these pits, and I hope you can avoid them.

Comparing only unit price instead of system cost

This is the most common misunderstanding, many customers only look at the price of a single unit of equipment, think RTG single unit is cheap, then prioritize RTG, ignoring the initial investment in the system level.

RTG needs to be equipped with additional horizontal transportation equipment, the investment of these equipment plus the purchase cost of RTG, the initial investment of the system may be higher than the cross-truck system. The correct approach is to compare the initial investment of the entire system, not the price of individual pieces of equipment.

Ignoring pavement engineering impact

Many customers only focus on the equipment itself, ignoring the requirements of the equipment on the yard pavement, resulting in damage to the pavement at a later stage, increasing maintenance costs.

The ground pressure of cross-truck is large, and the whole yard needs to be reinforced and paved; although RTG only needs to be paved in the operation area, it also needs to reach a certain thickness and load-bearing capacity. Henan Mine Crane will calculate the ground pressure in advance and give reasonable pavement suggestions to avoid problems in the later stage.

Underestimating tire lifecycle cost

Tires are the wearing parts of two kinds of equipments, and many customers underestimate the replacement cost of tires, especially for straddle trucks, the tires wear out faster and are replaced more frequently.

Tire costs for crossover trucks usually account for 15-20% of operating costs, which is a significant expense in the long run. When selecting a model, you need to account for the frequency and cost of tire replacement and incorporate it into the whole life cycle cost analysis.

Overlooking automation roadmap

Many customers do not consider the automation upgrading plan of the terminal when selecting the model, and choose the equipment with poor automation adaptability, resulting in the later inability to integrate into the automation system, and need to invest in additional transformation costs.

If your terminal has a long-term automation plan, give priority to RTG cranes, which have a higher degree of automation maturity, can be better integrated into the automated yard system, to avoid the trouble of later transformation.

Not calculating land utilization value

In terminals with tight land resources, many customers do not calculate land utilization value and choose straddle carriers with low stacking density, resulting in the need for additional land expansion and increased land costs.

RTGs with high stacking density can store more containers on limited land and reduce land occupation costs. In the long run, the value of land utilization is much higher than the price difference of the equipment itself.

Decision Checklist for Terminal Planners

In order to facilitate terminal planners to quickly determine which equipment to prioritize, I have compiled a decision checklist, against the check, you can quickly make a choice to avoid selection errors.

1. What is the annual TEU throughput target of the terminal? For high throughput, prioritize RTGs, and for medium throughput, consider straddle carriers.

2. How many hectares of yard space are available? If land is tight and high density is pursued, RTG is preferred; if there is sufficient land, intermodal trucks can be considered.

3. What is the design capacity of the yard surface? Can it meet the ground pressure requirement of trans-shipment vehicles? The road surface cannot be strengthened extensively, give priority to RTG.

4. Does the terminal have a clear automation upgrade plan? If there is an automation plan, RTG is preferred; if there is no automation requirement, cross-docking trucks can be considered.

5. What is the fuel/energy cost forecast for the next few years? High energy cost, prefer electrified RTG; low energy cost, consider trans-shipment truck.

6. What is the labor cost structure of the terminal? For high labor cost, prefer cross-dockers; for low labor cost, consider RTGs.

Frequently Asked Questions

Q1: Which is faster for short-distance movement?

The straddle carrier is faster for short-distance movement. It can pick up the boxes directly from the STS crane and transfer them to the yard for stacking, eliminating the intermediate horizontal transportation, which is especially advantageous for short-distance movement within 500 meters.

However, if it is a high-density yard, the stacking efficiency of RTG is higher, and the overall operational throughput is more advantageous than that of straddle carriers.

Q2: Which system offers higher stacking density?

RTG system offers higher stacking density. 1-over-5 or 1-over-6 stacking heights can be achieved, and more TEUs per hectare can be accommodated in the yard, thus the land utilization rate is much higher than that of straddle carriers.

The stacking height of straddle car is usually only 1-over-2 or 1-over-3, which has medium space utilization rate and is suitable for terminals that do not require high stacking density.

Q3: Which has lower lifecycle cost?

It depends on the size of the terminal and the stacking density. For high throughput, high density terminals, RTG has lower lifecycle cost because of its low energy cost and high stacking efficiency, which can dilute the initial investment and operation cost.

For medium-sized, low-density terminals, the TLC of a straddle carrier is more advantageous because it reduces labor costs and equipment coordination costs, and simplifies operational processes.

Q4: Can both be electrified?

Yes, they can. The electrification of RTG cranes is now very mature, and many terminals have opted for pure electric or hybrid RTGs, which can significantly reduce energy costs and meet environmental requirements.

There are also electric models of straddle carriers, but their popularity is not high at the moment, and they are mainly diesel-powered. The initial investment of electric transporters is higher, but the long-term energy cost is lower, which is suitable for terminals with long-term planning and focus on green operation.

Q5: Which is better for automation?

RTG cranes are better for automation. Its automation is more mature, remote operation, semi-automated operation has been very common, and it can be easily connected to the TOS system to realize the whole yard automation operation.

The automation of straddle carriers is more difficult to realize, and at present it is more semi-automated operation. Full automation technology is still under gradual development, and it is suitable for terminals without clear automation planning.

Conclusion

Talking about this, I believe you are already clear about the core differences between RTG cranes and straddle carriers, and also know how to choose the right short distance container handling equipment for their terminals.

In fact, there is no absolute “better”, only “more suitable”. RTG crane’s core advantage is structured, high-density, scalable, suitable for high throughput, land constraints, automation planning of the terminal; cross-transportation truck’s core advantage is flexibility, Integration, suitable for medium-sized, low-density, the pursuit of simplified operation of the terminal.

The core of selection is to combine the size of your terminal, throughput, land resources, automation planning and cost budget, comprehensive judgment, do not just look at the price of a single piece of equipment, but also focus on the initial investment in the system level and long-term life cycle costs.

Henan Mine Crane Factory Custom

Henan Mine Crane has been focusing on the design, production and service of heavy-duty port equipment for more than 20 years, and has provided RTG and transporter solutions for terminals in more than 50 countries and regions around the world, accumulating rich experience in selection and operation.

Whether you need RTG cranes with high stacking density or flexible and efficient straddle carriers, we can customize the equipment to meet international standards according to your specific needs, and provide professional support from selection consulting, design and production, to installation and commissioning, after-sales maintenance, to help you avoid selection misunderstandings and reduce operating costs.

If you have a yard layout plan, you are welcome to submit it to us, and we will do a customized RTG vs Straddle Carrier system analysis for you; you can also contact our engineering team to get a life cycle cost comparison report, or download the “Container Yard Equipment Selection Guide”, to help you make the most suitable choice.

A single yard crane decision can lock a terminal into the wrong operating model for 20 years. That’s the real stakes behind the RTG crane vs RMG crane question, and it’s why “just compare the specs” isn’t a good enough strategy.

Both cranes lift, move, and stack ISO containers in the yard. Both come in similar capacity ranges. But a rubber-tyred gantry (RTG) crane and a rail-mounted gantry (RMG) crane solve different operational problems, and choosing based on price sheets alone is how terminals end up rebuilding foundations or replacing equipment years ahead of schedule.

This guide breaks down the structural differences, the real cost picture over a full lifecycle, and, more usefully, which crane type actually fits different project profiles, from small inland depots to fully automated mega-hubs.

What Are RTG and RMG Cranes?

Before comparing them, it helps to define each one clearly, since the names get used loosely in procurement conversations.

RTG Crane Definition

Henan Mine Crane manufactured RTG crane (Rubber-Tyred Gantry crane) is a container yard crane that travels on rubber tires across a paved surface. It straddles a block of container rows, lifts with a spreader-equipped trolley, and can reposition between blocks without any fixed track. RTGs are typically diesel-electric or fully electric, and they remain the default choice for terminals that need to shift yard layout without major civil rework.

RMG Crane Definition

An RMG crane (Rail-Mounted Gantry crane) performs the same lifting and stacking function but runs on steel rails set into a concrete foundation. The fixed path gives it precise, repeatable positioning, which is why RMGs are the standard equipment for automated container yards, rail intermodal terminals, and high-density stacking operations.

Why This Decision Carries 20-Year Consequences

Yard cranes aren’t a five-year purchase. Civil works, rail foundations, and even paved yard surfaces are built to last two decades or more, and retrofitting a yard from one crane type to the other mid-life is expensive and disruptive.

That means the RTG vs RMG decision has to account for where the terminal will be in 10–15 years, not just its current throughput. A terminal that buys based purely on today’s volume — and ignores its automation roadmap or growth trajectory — often ends up paying twice: once for the wrong equipment, and again for the correction.

Structural and Mechanical Differences

The core distinction between these two crane types comes down to one thing: how they travel.

Travel Mechanism

An RTG crane rides on multiple rubber tires (commonly 8 or 16, depending on configuration) across a flat, load-rated yard surface. This lets it reposition freely between container blocks with no track constraint. An RMG crane runs on precision steel rails anchored in a concrete subbase, which restricts it to a single lane but delivers a far more stable and repeatable travel path.

Drive and Power Systems

RTGs are commonly diesel-electric, though fully electric and hybrid models are increasingly common as terminals work to cut fuel costs and emissions. RMGs are almost always grid-connected, drawing power directly from the terminal’s electrical infrastructure rather than an onboard engine. This single difference is the main driver behind the operating-cost gap covered later in this article.

Both crane types share comparable lifting mechanisms: a trolley-mounted spreader, variable-frequency drives for smooth acceleration, and anti-sway control systems to reduce container swing during high cycles.

Span and Stacking Configuration

Span — the distance between the crane’s legs — has to clear the full width of the container block plus the truck lane(s) running beneath it, with safety margin on both sides. Stacking configuration is usually described in industry shorthand like “1-over-5” or “1-over-6,” meaning the spreader can pass over five or six tiers of stacked containers to reach the top box. Higher stacking density increases yard capacity per acre, but it also raises the bar for anti-sway performance and structural stability — a factor that affects both RTG and RMG specifications, though RMG’s rail-guided stability generally tolerates higher stacks more easily.

RTG vs RMG Crane: Full Comparison Table

Decision Factor	RTG Crane	RMG Crane
Travel surface	Rubber tires on paved yard	Steel rails on concrete foundation
Yard flexibility	High — relocate between blocks	Fixed — committed to its lane
Civil infrastructure cost	Lower — no rail foundation needed	Higher — rail bed, drainage, subbase required
Typical travel speed	Slower (tire friction limited)	Faster (steel-on-rail efficiency)
Crane moves per hour	Roughly 20–28 moves/hr	Roughly 28–40+ moves/hr with automation
Automation ceiling	Semi-automated; full auto needs DGPS/laser positioning	Full automation is standard and easier to integrate
Power source	Diesel-electric, hybrid, or electric	Grid-connected electric
Lifting capacity	Roughly 35–70 tons	Roughly 30–100+ tons (wider range available)
Stacking height	Typically 5- or 6-high	Up to 7- or 8-high on deep-stack models
Energy cost per move	Higher on diesel; closer to RMG on electric	Lower — grid power, regenerative braking
Best terminal scale	Small to mid-size, evolving layouts	Large, fixed-layout, high-density yards
Upfront investment	Lower	Higher

These figures are industry-representative ranges. Actual performance depends on stack density, truck arrival rate, and terminal operating system (TOS) efficiency.

Cost Comparison: Civil Infrastructure, Capex, and Lifecycle TCO

Cost is where the RTG vs RMG comparison gets misleading if you only look at the purchase price.

Upfront Capital Cost

RTG installations typically cost 40–60% less per lane than RMG, simply because they skip rail foundations and dedicated drainage works — a flat, properly load-rated yard surface is enough. RMG installations require precision rail-bed construction, which raises both the civil engineering bill and the project timeline before the crane ever arrives on site.

Operating Cost Over Time

The picture flips once the cranes are running. Grid-powered Henan Mine Crane Factory supply RMGs typically cost 30–45% less per container move in energy alone compared with diesel-electric RTGs, and rail-guided travel produces less mechanical wear than tire systems, which lowers maintenance frequency.

Most lifecycle cost models show RMG reaching total cost parity with RTG somewhere around 5–6 years of continuous operation — after that point, RMG’s lower running costs start outweighing its higher upfront investment. Terminals with throughput below roughly 400,000–500,000 TEU/year rarely reach that crossover fast enough to justify RMG; terminals above 700,000–1,000,000 TEU/year almost always do.

Key takeaway: RTG wins on day-one capital efficiency. RMG wins on long-run cost per move. The right answer depends on how long the terminal expects to operate at scale.

Throughput and Automation Capability

Throughput capacity and automation readiness move together, because automation is what unlocks an RMG’s full speed advantage.

Moves Per Hour

Henan Mine Crane Factory supply RTGs typically handle 20–28 moves per hour in manual or semi-automated operation. RMGs, especially in automated configurations, can reach 28–40+ moves per hour, since rail-guided travel removes the positioning uncertainty that slows tire-based systems during high-stack cycles.

Automation Readiness

RMG cranes reach full automation more reliably because rail guidance provides absolute position accuracy without relying on GPS or laser-positioning workarounds. This is why virtually every fully automated container terminal in operation today uses RMG as its yard stacking equipment, integrated directly with the terminal operating system (TOS).

RTG automation is achievable — DGPS and laser positioning systems can bring an RTG close to full automation — but it adds system complexity and cost that often erases the crane’s natural cost advantage. For many mid-tier terminals, semi-automated RTG remains a mature, cost-effective middle ground rather than a stepping stone to full automation.

Safety Systems Behind Automated Operation

Whichever crane type a terminal automates, the safety layer looks similar: obstacle-detection radar to identify trucks and personnel under the gantry, gantry skew-correction systems that keep both sides of the structure synchronized to prevent rail or surface gouging, and spreader anti-sway control to keep containers steady during high-speed cycles. These systems matter more as automation level increases, since there’s no operator in the cab to catch an edge case visually.

Which Project Type Fits Each Crane?

This is the question most comparison guides skip, and it’s the one that actually determines the right purchase.

Seaport Hub Terminals (500,000+ TEU/year)

Large hub ports with high, stable volume and a fixed yard layout are the clearest case for RMG. The combination of high-density stacking, automation compatibility, and lower per-move energy cost compounds in RMG’s favor at this scale.

Mid-Size and Regional Ports

Terminals in the 100,000–800,000 TEU/year range, particularly those whose yard layout might still change, generally fit RTG better. Lower civil cost and the ability to reposition blocks without rail rework matter more here than the throughput ceiling RMG offers.

Inland Container Depots and Rail Intermodal Yards

Inland depots with frequent layout adjustments — and facilities handling irregular volumes — favor RTG for its mobility and lower entry cost. Dedicated rail intermodal yards, on the other hand, often lean toward RMG, since they need to align directly with fixed rail tracks for train-to-truck transfers.

Terminals Planning Phased Growth

For terminals expecting to scale from regional to hub status over 5–10 years, the honest answer is often “start with RTG, design for RMG later.” That phased approach is detailed in the next section.

The RTG-to-RMG Conversion Path: A Hybrid Strategy

One option most comparison articles leave out entirely: terminals don’t have to pick one crane type permanently on day one.

A growing number of mid-tier ports start with RTG cranes and convert specific lanes to RMG once throughput justifies the rail investment. This works when the original RTG lane spacing is specified with future RMG rail gauge in mind — concrete rail foundations can then be added later without relocating existing container blocks.

This hybrid approach lets a terminal:

1. Deploy at lower upfront cost while volume is still building.
2. Avoid over-investing in automation infrastructure before it’s needed.
3. Convert individual lanes to RMG incrementally as specific blocks justify the throughput.
4. Preserve capital for other terminal investments during the growth phase.

If phased growth is part of the plan, it’s worth raising RMG-conversion geometry with your crane supplier before specifying the first RTG units — retrofitting spacing after the fact is far more expensive than designing for it upfront.

Common Procurement Mistakes to Avoid

Terminals that get the Henan Mine Crane manufactured RTG vs RMG decision wrong usually make one of these five mistakes:

1. Underestimating wheel pressure.Miscalculated wheel loads on RMG rail foundations can mean six- and seven-figure civil rework bills after installation.
2. Skipping future expansion planning.Selecting capacity, stacking height, or duty class for today’s volume only, with no margin for 3–5 years of growth.
3. Underestimating wind load.Coastal terminals especially need storm anchoring, rail clamps, and wind-speed monitoring built into the spec, not added afterward.
4. Choosing on price alone.Underspecified steel, electrical components, or duty class shows up as frequent breakdowns within 3–5 years — and the resulting downtime costs typically exceed the initial savings.

Pre-RFQ Decision Checklist

Before requesting quotes from crane suppliers, confirm you have answers to each of these:

• Annual TEU throughput, including peak-season demand (not just the yearly average)
• Yard block configuration: rows, columns, and truck lane width
• Required stacking height and lifting capacity (including reefer and oversized containers)
• Current and planned automation level (manual, semi-automated, fully automated)
• Terminal operating system (TOS) integration requirements
• Site soil conditions and civil engineering constraints
• Local wind load and corrosion-protection requirements
• Required duty classification (ISO 4301 / FEM working level) for 24-hour operation
• Growth horizon: expected throughput in 5 and 10 years
• Required certifications: CE Declaration of Conformity, ISO 9001:2015, ISO 4301 duty class documentation, and factory load test certificates

Bringing this checklist to your first supplier conversation usually shortens the proposal cycle significantly, since it removes the back-and-forth needed to pin down basic specs.

Frequently Asked Questions

What is the main difference between an RTG crane and an RMG crane?

An RTG crane travels on rubber tires across a paved yard, giving it the flexibility to reposition between container blocks. An RMG crane runs on fixed steel rails, giving it higher positioning accuracy, faster cycle speed, and easier automation, at the cost of yard layout flexibility.

Which is cheaper: RTG or RMG?

RTG is cheaper to install, typically 40–60% lower in civil cost per lane, because it skips rail foundation work. RMG is usually cheaper to operate over time, with 30–45% lower energy cost per move on grid power. Which one is “cheaper” overall depends on throughput and how long the terminal expects to run at scale.

What throughput level justifies switching from RTG to RMG?

Most terminal planners treat 500,000–700,000 TEU/year as the crossover range where RMG’s automation and energy savings outweigh its higher civil investment. Below roughly 400,000 TEU/year, RTG flexibility usually delivers the better return.

Can a terminal start with RTG and convert to RMG later?

Yes, if planned in advance. When RTG lane spacing is specified to match a future RMG rail gauge, concrete rail foundations can be added later without relocating existing container blocks.

Which crane type is better for automated container terminals?

RMG is the standard choice for fully automated terminals because rail guidance delivers absolute position accuracy without relying on GPS or laser-positioning workarounds. RTG can reach high levels of automation too, but it requires additional positioning systems that add cost and complexity.

How long do RTG and RMG cranes typically last?

With standard duty-class specification and regular maintenance, both crane types are generally built for a 20–25 year service life. Actual lifespan depends heavily on steel structure design, duty classification, and how consistently preventive maintenance is followed.

Henan Mine Crane Factory Custom

There’s no single winner in the RTG crane vs RMG crane debate.What you need depends on your throughput requirements, layout, automation plans and future investment strategies. Selecting the right crane for your operation today will can help you meet your performance metrics, lower lifetime costs and scale for future capacity without requiring a costly upgrade.

Over 20 years in Crane manufacturing experience, Henan Mine Crane offers tailor-made RTG and RMG crane solutions worldwide for all types of ports, rail terminal and container yards. Our experienced engineering team guides you through the complete range of services from project planning, equipment design to manufacturing and technical support.

Thinking of designing a new container yard or refurbishing your existing facilities? Get in touch with us today for professional advice and a tailored crane package to suit your project.

With the rapid development of global logistics and the continuous increase of container throughput, the loading and unloading operation efficiency, site utilization rate and operation cost control of container yards have become the key carriers of the core competitiveness of ports, logistics parks and freight hubs.RTG and RMG, as two core lifting equipment in container yard, are widely used in container stacking, transshipment, loading and unloading, sorting and other full-scene operations. They are the core equipment of modern container storage and transportation system.

With the rise of intelligent port and automatic yard construction upsurge, the market puts forward higher requirements for the flexibility, automation level, energy consumption control and long-term operation and maintenance stability of container lifting equipment.More and more yard operators and engineering purchasers find that blind selection of RTG or RMG cranes is prone to problems such as mismatch between equipment performance and operation scenario, waste of production capacity, excessive operation and maintenance cost, limited automation upgrade, etc.

In fact, the selection of Henan Mine Crane manufactured RTG and RMG cranes directly determines the daily operation throughput, long-term return on investment, site space utilization and intelligent upgrading potential of the yard.There are significant differences between the two in terms of operation mode, infrastructure requirements, operation performance, adaptation scenario, etc. There is no absolute difference between good and bad, only the difference between scene adaptation or not.

What Is an RTG Crane?

RTG crane, namely rubber tire container gantry crane, is a special mobile lifting equipment suitable for flexible operation in container yard.It relies on rubber tires to realize free walking without tracks, without laying fixed rails, and has strong site adaptability.The equipment adopts stable double-beam portal structure, with diesel generator set as the main power supply mode. The high-end model can be compatible with mains power and lithium battery storage, and can flexibly adapt to various storage conditions with limited power supply conditions and unstable operation sites.

RTG crane can complete standard container stacking, cross-regional transfer, vehicle loading and unloading and short-distance shifting operations, conventional models support 3 to 7 layers of stacking, suitable for full-specification standard containers.Its core advantages are flexibility, efficient transfer, low infrastructure cost and fast installation and production speed, adapting to scattered cargo flow, temporary storage yard and inland small and medium-sized logistics park.The new generation of intelligent models are equipped with semi-automatic control, remote monitoring and anti-collision systems, realizing the upgrading of basic intelligent operations.

What Is an RMG Crane?

RMG crane, namely rail-mounted container gantry crane, is the core heavy lifting equipment of large automatic port and high density storage yard.The equipment relies on special rails preset in the yard for fixed operation, accurate positioning and stable operation. It adopts high-strength rigid portal steel structure, and the overall load bearing and operation stability far exceed RTG models.The equipment is equipped with mains sliding contact line power supply, stable power, zero fuel pollution, in line with green port construction standards, can achieve high-precision alignment operations.

RMG crane supports 6 – 9 layers of high-density container stacking, greatly improves the space utilization rate of the storage yard, is originally adapted to the fully automated operation system, can be connected with intelligent dispatching, unmanned card collection and other systems, and realizes unmanned stacking and transfer in the whole process.The equipment has stable throughput, low long-term operation and maintenance cost, but limited mobility, high investment in track infrastructure in the early stage and long installation cycle. It is mainly suitable for large-scale standardized, high-throughput and long-term fixed operation container hub yard.

RTG Crane vs RMG Crane: Key Differences Comparison

Mobility and operating flexibility

Mobility and operational flexibility are the core differentiation features of RTG and RMG, which directly determine the scene adaptation ability of equipment.Henan Mine Crane manufactured  RTG crane relies on rubber tires to travel, without fixed track constraints, can achieve 360° flexible steering, cross-area free transfer, can switch operation areas at any time according to the change of cargo flow in the yard, operation station adjustment, covering any operation point in the whole yard.Even if the yard layout is temporarily adjusted and the operation scope is expanded, RTG cranes can adapt quickly without modifying equipment, and the flexible operation ability is extremely strong, especially suitable for the yard where the cargo flow is scattered, the operation area is not fixed, and the operation point is temporarily increased or decreased.

RMG crane adopts fixed track operation mode, the whole machine can only work back and forth along the preset rail straight line, the operation range is completely fixed, and it is impossible to transfer across tracks and regions, and the mobility is almost zero.If the work area needs to be adjusted, the track must be re-laid, the construction period can be several weeks, and the modification cost is extremely high.However, the operation mode of fixed track makes the operation path of RMG crane regular without deviation, suitable for standardized, flow-oriented and high-frequency sub-container operation in fixed area, eliminating invalid operation shift and more controllable operation order.

Installation requirements and infrastructure cost

In terms of installation conditions and infrastructure costs, the investment difference between the two types of equipment is significant, which directly affects the initial investment budget of the project.RTG crane has very low requirements on the site, only needs flat and hardened ground to complete installation and commissioning, no need to lay special rails, no need to modify the site foundation, and the supporting infrastructure works are extremely small.The equipment installation process is simple and the commissioning cycle is short. Generally, the whole machine can be put into production in 3-7 days, which greatly shortens the project landing cycle.The overall capital cost can be saved by more than 40% compared with RMG, which is perfect for small and medium-sized yard projects with limited budget and rapid commissioning.

RMG crane has strict requirements on infrastructure. In the early stage, a series of supporting projects such as site leveling, high-strength foundation pouring, special rail laying, power supply sliding contact line layout, track calibration, etc. need to be completed. The infrastructure engineering quantity is large, the construction period is long, and the overall infrastructure investment in the early stage is high.At the same time, the track needs regular calibration and maintenance to prevent the track deformation from affecting the operation accuracy of the equipment, and there are fixed expenses for long-term infrastructure maintenance.However, standardized track infrastructure can ensure long-term stable operation of equipment, greatly reduce the risk of equipment failure in the later stage, and is suitable for large-scale port projects with long-term planning, one-time investment and long-term benefits.

Lifting capacity and stacking performance

Lifting capacity and stacking performance determine the space utilization rate and heavy load operation capacity of the yard. Henan Mine Crane manufactured RTG crane conventional rated lifting capacity of 35-50 tons, can meet the standard 20 feet, 40 feet, 45 feet container conventional loading and unloading stacking requirements, limited by tire bearing and flexible walking structure, equipment stability is limited, conventional stacking layers are 3-7 layers, span suitable for small and medium-sized yard layout, can meet the basic operation requirements of small and medium-sized throughput yard.Under the heavy load and super-high stacking scenario, the RTG crane’s operation stability will decrease, and there are certain operation restrictions.

RMG crane relies on rigid track and high strength steel structure, the whole machine load stability is stronger, rated lifting capacity can reach 40-60 tons, can easily adapt to heavy container operations.At the same time, the precise positioning characteristics of fixed rails enable RMG cranes to achieve high-density container stacking of up to 9 floors, with smaller stacking spacing and more regular arrangement, greatly improving the vertical space utilization rate of the yard. Under the same floor area, the cargo storage capacity can be increased by more than 30%.For large terminals with tight land resources and high density storage, RMG’s stacking advantage is irreplaceable.

Operation efficiency and throughput

Operation efficiency and throughput are the core indicators to measure the operation capacity of the yard, and the efficiency advantages of the two equipment adapt to different operation scales.RTG crane has high flexibility, can quickly respond to scattered orders, temporary loading and unloading tasks, and is convenient for cross-regional scheduling. It is suitable for multi-batch, small-batch and scattered cargo flow operation mode, which can effectively avoid operation congestion and flexibly adapt to peak fluctuations of operation.However, due to the limitation of walking accuracy and running speed, its single operation cycle is longer, the stability of continuous high-frequency operation is general, and the upper limit of daily throughput is lower, which is suitable for normal operation of small and medium-sized yards.

RMG cranes run faster, have higher alignment accuracy, have no walking deviation in track guidance, and have a smoother single container grabbing, stacking, and unloading operation process without invalid positioning losses.At the same time, the equipment can realize continuous uninterrupted high-frequency operation, standardized operation rhythm and strong stability. With cluster scheduling mode, the overall throughput of the yard can be greatly improved.In the operation scenario of 10,000 TEUs per day in large ports, the operation efficiency of RMG crane is 20%-35% higher than RTG, which is the best choice for high throughput storage yard.

Automation and intelligent control capability

At the intelligent and automatic upgrading level, the adaptability gap between the two equipment is obvious, which directly determines the intelligent upgrading potential of the yard.RTG crane is mainly semi-automatic and manual auxiliary control at present. The new generation of intelligent RTG can be equipped with remote control, fault warning and simple automatic stacking functions. However, due to the influence of tire walking deviation and ground flatness, the automatic alignment accuracy is limited, so it is difficult to realize completely unmanned operation.Its intelligent upgrade mainly focuses on equipment monitoring, energy consumption statistics and remote operation and maintenance, which is suitable for lightweight intelligent transformation and storage yard without full automation requirements.

RMG crane is the core intelligent equipment of intelligent storage yard and unmanned wharf. The fixed track operation mode can realize millimeter alignment accuracy, seamlessly connect with WMS storage management system, intelligent dispatching system and unmanned card collection coordination system of storage yard, realize full-process unmanned automatic operation, covering automatic container identification, accurate stacking, intelligent transfer, automatic fault alarm, real-time data upload and other functions.Large-scale ports can realize full automatic operation of storage yard through multi-RMG cluster linkage, greatly reduce labor cost, improve operation standardization degree and adapt to long-term intelligent upgrading planning.

Energy consumption and maintenance requirements

Energy consumption and operation and maintenance cost are the core expenses of long-term operation of the yard, which directly affect the return on investment of the project.RTG cranes are mostly powered by diesel generator sets, fuel consumption and exhaust emission exist in the operation process, and the energy consumption cost is relatively high.Lithium battery and mains RTG have lower energy consumption, but the equipment purchase price is higher.In terms of operation and maintenance, RTG core wearing parts are rubber tires, hydraulic system and generator set. The tires are easy to wear and age and need to be replaced regularly. The hydraulic system is easy to have leakage problems. The average annual operation and maintenance frequency is relatively high. The long-term accumulated operation and maintenance cost is high.The advantage lies in the simple structure of the equipment, convenient maintenance, no need for professional track operation and maintenance team, ordinary maintenance personnel can complete daily maintenance.

RMG crane adopts mains power supply, stable energy consumption, high utilization rate, no fuel loss, energy consumption reduced by 30%-50% compared with diesel version RTG under the same workload, and zero exhaust emission, in line with green port policy requirements.The core wearing parts of the equipment are rail steel wheels and brake system. The steel structure main body has strong durability and extremely low failure rate. The daily operation and maintenance only requires rail calibration, electrical system inspection and parts lubrication. The operation and maintenance frequency is low and the single operation and maintenance cost is low.Although the initial infrastructure investment is high, the overall operation and maintenance cost for the long-term 5-10 years is much lower than RTG.The only short board is the high professional maintenance requirements, which requires supporting professional technical team operation and maintenance.

RTG vs RMG Crane: Which One Is Better for Different Applications?

Choosing RTG crane when

Combined with RTG crane’s flexibility, low cost and easy deployment core advantages, RTG crane is preferred in the following scenarios to maximize cost performance.

• Small and medium-sized container yard, inland logistics park, railway freight station.In this kind of scenario, the cargo flow is scattered, the operation area is not fixed, and there is no large-scale standardized operation demand. RTG’s flexible transfer capability can perfectly adapt to scattered loading and unloading and cross-regional transfer operation without high infrastructure investment.
• Temporary storage yard, short-term project operation scenario.For temporary operation scenarios such as temporary storage of projects, short-term freight transit, seasonal surge of cargo flow, etc., RTG has outstanding advantages of rapid installation, portability and reutilization, avoiding waste of resources caused by fixed infrastructure investment and greatly reducing the cost of temporary equipment of the project.
• New yard with limited budget and fast commissioning.RTG has low investment in the early stage, short commissioning cycle, fast return speed, no complex supporting projects, and can quickly realize the operation of the yard. It is suitable for equipment selection of small and medium-sized logistics enterprises and start-up freight hubs.
• Operation scenarios where site conditions are limited and fixed tracks cannot be laid.Some old storage yards, mountain logistics parks and temporary transit sites do not have track laying conditions. RTG trackless operation mode can perfectly adapt to the short board of the site to ensure the normal operation.

Choosing RMG crane when

Relying on the advantages of high precision, high productivity, high automation and low long-term operation and maintenance cost of Henan Mine Crane manufactured RMG crane, the following scenarios are the core adaptation scenarios of RMG crane.

• Large-scale coastal ports, core container hub terminals.This kind of scenario has huge average daily throughput and intensive operation frequency, which requires extremely high stacking density, operation efficiency, and site utilization. RMG’s high stacking layers and high operation efficiency can maximize the value of the site and ensure the stable operation of high-load operations..
• Planning and construction of intelligent unmanned storage yard and automatic wharf projects.RMG is the standard core equipment of automatic storage yard, which can realize full-process unmanned operation, connect various intelligent management systems, greatly reduce manual intervention, improve intelligent and standardized operation level of storage yard, and adapt to long-term intelligent port construction planning.
• Stockyards where land resources are tight and high-density storage is required.The scarcity of land resources in the core port area, RMG’s ultra-high stacking capacity and compact arrangement mode can increase container storage capacity in limited sites, solve the pain point of insufficient site space, and improve site utilization rate and storage capacity.
• Long-term stable operation, the pursuit of low long-term operation and maintenance costs of standardized yard.For large-scale storage yards with long-term fixed operation and no site transformation requirements, the advantages of RMG with low failure rate, low energy consumption and low long-term operation and maintenance cost can be fully highlighted, and the long-term return on investment far exceeds RTG cranes.

Factors to Consider Before Purchasing RTG or RMG Crane

Container yard size and layout

Stockyard size and layout are the basic premise of equipment selection.RTG crane is preferred for small, irregular, multi-zone and scattered storage yard, and its flexible transfer ability can be used to adapt to complex site layout without modifying the site.Medium-sized standardized storage yard can be flexibly selected according to cargo flow mode, giving consideration to flexibility and efficiency.For large-scale standardized storage yard and standardized operation area of core port area, RMG crane shall be preferred to realize standardized, high-density and high-efficiency operation relying on fixed track, so as to maximize the value of site space.At the same time, it is necessary to combine the yard span, operation channel width and stacking area planning to match the equipment model corresponding to the span and height, so as to avoid space waste and insufficient equipment adaptation.

Required handling capacity

The average daily and annual container handling capacity directly determines the cost performance of equipment selection.If the daily throughput of the yard is lower than 500 TEUs, the RTG crane can fully meet the operation requirements, with less equipment overcapacity and lower input cost.If the daily throughput exceeds 1000 TEUs and the demand for high-frequency and continuous operations is prominent, the advantages of high efficiency and stability of RMG cranes will be fully reflected, which can avoid operation congestion and order backlog caused by insufficient equipment capacity.When selecting models, it is necessary to combine the fluctuation of cargo flow in peak operation and peak season, reserve 10%-20% of equipment capacity margin, and ensure the long-term operation expansion demand of the yard.

Automation development plan

Long-term intelligent and automatic development planning of enterprises is the core consideration factor.If the yard only needs basic manual auxiliary operations, no automation upgrade requirements, short-term pursuit of low cost, high flexibility, Henan Mine Crane manufactured RTG crane is a cost-effective choice, can meet the basic operations without additional intelligent transformation investment.If the enterprise plans to build a smart yard and unmanned operation system within 3-5 years, and gradually realize automatic dispatching and unattended operation, it must give priority to the selection of RMG cranes.There is a natural bottleneck in the automation upgrade of RTG, which makes it impossible to realize the unmanned entire process. Later transformation is difficult and costly. However, RMG can seamlessly connect with various intelligent systems and support phased intelligent upgrades, which is in line with the intelligent development trend of the industry.

Budget and total cost of ownership

The selection cannot only look at the unit price of equipment purchase, but the total cost of the whole life cycle needs to be comprehensively calculated.From the short-term investment point of view, Henan Mine Crane manufactured RTG crane procurement cost is low, infrastructure investment is small, production is fast, suitable for short-term budget limited, rapid return of the project, the initial capital pressure is very small.From the perspective of long-term operation, although RMG crane has high initial procurement and infrastructure investment, it has lower energy consumption, low failure rate, low operation and maintenance cost and longer equipment service life. The total cost of 5-8 years life cycle is much lower than RTG.Enterprises need to combine their own investment cycle, short-term lease sites, temporary operations, rapid profit projects select RTG.RMG is selected for projects with long-term self-sustaining site, stable operation for more than ten years, and long-term low consumption and high efficiency.

Local climate and working environment

The climate and environmental conditions of the operation site directly affect the operation stability and service life of the equipment.Under rainy, snowy, windy and coastal high salt fog environment, RMG crane enclosed electrical system, rigid track structure has stronger anti-interference ability, is not easy to be affected by weather, can ensure all-weather stable operation, and equipment anti-corrosion performance is stronger, adapt to harsh coastal conditions.RTG crane rubber tires in rainy and snowy weather easy to slip, wear acceleration, sandstorm weather prone to dust into the hydraulic system, frequent equipment failures, high salt fog environment parts corrosion faster.Inland dry, mild climate, stable weather operating environment, RTG equipment loss is lower, can stably play the advantages of operation, adaptability is stronger.

Henan Mine Crane Factory Custom

RTG crane and RMG crane are the core operation equipment of container yard. There is no absolute advantage or disadvantage between them, only the adaptation scene is significantly different.RTG wins flexibility, low infrastructure cost, fast deployment speed, suitable for inland small and medium-sized storage yards, temporary operation sites and projects with limited budget and no automation requirements.RMG has the characteristics of high operation precision, large stacking density, stable throughput and high intelligence, and is more suitable for large-scale ports, standardized hubs and intelligent unmanned yards.

Do not blindly purchase equipment if you want to accurately select types, reduce costs and increase efficiency and upgrade production capacity.Henan Mine Crane Factory has been developing and manufacturing deep-ploughing cranes for many years. It can customize RTG and RMG crane selection scheme one-to-one according to your yard size, operation throughput, budget and intelligent planning, taking into account short-term production costs and long-term operation and maintenance benefits, helping all kinds of logistics and port enterprises to build efficient, stable and high-return container operation system.

Henan Mine Crane has been engaged in container crane sales for more than ten years, I have received customers from ports and container yards all over the world, and almost every customer will ask the same question: RMG (rail-mounted gantry cranes) and RTG (tire-mounted gantry cranes) , which one is better for your yard?

Container yard operation efficiency, depends largely on the selection of cranes. Choose the right equipment, can greatly enhance the efficiency of container stacking, transfer, control operating costs; choose the wrong, will not only cause a waste of funds, but also drag the throughput of the entire yard, affecting the long-term revenue.

RMG (rail-mounted gantry cranes) and RTG (tire-mounted gantry cranes) are currently the two most mainstream stacking equipment in container yards. There is no absolute “good” and “bad”, only ‘fit’ and “not fit”.

Today I put aside the hard technical parameters stack, with the perspective of a front-line engineers, combined with Henan Mine Crane services to customers around the world, the differences between the two types of cranes, applicable scenarios dismantled to make it clear. Whether you are a large container terminal, or medium-sized yard, or in the expansion phase, you can find the answer to their own selection, but also to help you make sense of the core comparison points of RMG vs RTG crane.

What Is an RMG Crane?

Definition

RMG crane, full name Rail Mounted Gantry Crane (Rail Mounted Gantry Crane), is a kind of container stacking crane running on a fixed track. Its running track is determined by the rail and cannot be moved at will, but because of this fixity, it can realize higher precision stacking operation.

Henan Mine Crane produces RMG cranes, all of which are designed with all-electric drive, adapting to different standard rail specifications around the world, whether it is large-scale automated terminals or rail intermodal terminals, all of which can be flexibly adapted. Its core advantages are high stability and high throughput, especially suitable for long-term fixed layout of large yards.

Typical Applications

The application of RMG cranes mainly focuses on large sites with high requirements for throughput and stacking density.

Large container terminals are its main application scenarios, such as the world’s major ports of the main yard, every day need to handle thousands or even tens of thousands of standard containers, RMG’s high throughput and high stacking accuracy, can be perfectly adapted to the needs of this high-intensity operations.

RMG cranes are also indispensable for automated stacking yards. Its fixed rail design makes it easier to dock with the automation control system to realize unmanned operation and reduce labor costs, which is also the mainstream direction of the current global smart port development.

In addition, rail intermodal terminals (rail intermodal terminals) also often use RMG cranes, which can accurately docking rail containers for transshipment needs, to achieve the container “rail – yard” seamless connection, to enhance intermodal efficiency.

Core Characteristics

Fixed rail system is the core characteristic of RMG cranes. The track is usually laid on the yard floor, the crane runs horizontally along the track and moves longitudinally through the trolley, the running track is fixed, there will be no deviation, which is also the key to its high stacking accuracy.

All-electric operation is another major feature, compared with RTG’s diesel-electric drive, RMG’s energy consumption is lower, no noise and no exhaust emission during operation, which is more in line with the development trend of global green port.

Its stacking precision is extremely high, and it can realize multi-layer precise stacking of containers, maximizing the use of yard space. At the same time, RMG has strong automation compatibility and can be easily connected to the terminal operating system (TOS) to realize remote operation, unattended automation functions, etc., which is suitable for the upgrading of automated RMG system.

What Is an RTG Crane?

RTG Crane, known as Rubber Tyred Gantry Crane (RTG Crane), is a kind of container stacking crane that relies on tires to move. It does not have a fixed running track, and can move freely within the yard, with great flexibility.

Henan Mine Crane’s RTG cranes are mainly driven by diesel-electric or hybrid power, which can be adapted to different types of yard floors without complicated infrastructure modifications, and have short installation and commissioning cycles, which is very suitable for yards that need to be put into use quickly.

Typical Applications

The application of RTG cranes is more focused on flexibility and adaptability, especially for medium-sized or expansion stage of the yard.

Medium-sized port yards are its main application scenarios, the throughput of such yards is moderate, do not need to RMG as high throughput, but the layout of the higher flexibility requirements, RTG can be freely adjusted to the operating area, adapted to different stacking needs.

Expanding yards are also very suitable for the selection of RTG cranes. Many yards in the initial stage of development, limited funds, can not invest a lot of costs to build track infrastructure, RTG does not need track, can be quickly put into use, and later with the expansion of the yard scale, but also the flexibility to adjust the operating range.

For terminals without rail infrastructure, RTG is the first choice. It can work directly on the existing ground without complex civil engineering, which greatly reduces the initial investment cost of the project.

Core Characteristics

Tire mobility is the core feature of RTG cranes, it uses large engineering tires, can move freely on the yard floor, not restricted by the track, the operating range is flexible, according to the changes in the layout of the yard, can be adjusted at any time to the operating area.

The power form is mainly diesel-electric or hybrid, diesel-electric drive can take into account the power and energy consumption, hybrid is more environmentally friendly, can reduce exhaust emissions, to adapt to the environmental requirements of some regions.

Its biggest advantage is its adaptability to the layout of the yard, without the need for a fixed track, it can be quickly adapted to different yard planning, whether it is a temporary yard, or a long-term use of medium-sized yards, can be flexible to cope with.

RMG vs RTG – Technical Comparison

Just talking about the concept is not enough, I combine Henan Mine Crane’s experience in serving global customers, from 7 core technical dimensions, to give you a detailed comparison, to help you more intuitively see the difference between the two, to facilitate the subsequent selection.

1. Infrastructure Requirements

Infrastructure requirements, is one of the most core differences between the two, but also directly affects the initial investment cost of the project. Specific comparison is as follows:

Factor	RMG	RTG
Rail foundation	Required	Not required
Civil work cost	Higher	Lower
Installation complexity	Higher	Moderate

RMG requires the laying of specialized tracks, and the laying of tracks requires professional civil engineering, including foundation treatment, track installation, fixing, etc., which is not only costly, but also has a long installation period and higher complexity.

RTG, on the other hand, does not need tracks, as long as the yard floor is level and the load bearing is up to standard, it can be directly installed and used. The civil engineering is very simple, mainly consisting of ground compaction and leveling, which is of low cost, and the cycle of installation and commissioning is short, and it can be put into use in a few weeks usually.

Many global customers give priority to RTG in the initial investment stage, just because it can save a lot of civil construction costs and quickly realize the production. However, in the case of a large yard with a long-term fixed layout, although the civil construction cost of RMG is high, the stability and efficiency of long-term operation can offset the initial investment.

2. Mobility and Flexibility

Mobility and flexibility, directly affecting the operating range of the crane and the adaptability of the layout of the yard, specific comparisons are as follows:

Factor	RMG	RTG
Movement	Fixed rail	Free movement
Yard layout change	Limited	Flexible
Repositioning	Difficult	Easy

RMG’s running track is fixed by the track, can only move horizontally along the track, longitudinal adjustment through the trolley, the operating range is fixed, can not move at will. If the yard layout needs to be adjusted at a later stage, the track is difficult and costly to modify, and the flexibility is very limited.

RTG relies on tires to move freely within the yard, whether transverse, longitudinal, or turning, U-turn, are very flexible. Even if the layout of the yard is adjusted at a later stage, RTG can quickly adapt and re-plan the operation area without any infrastructure modification.

In short, if your yard layout is fixed and will not be changed for a long time, the fixed operation of RMG can ensure the accuracy of operation; if your yard is in the stage of expansion or the layout needs to be adjusted frequently, the flexibility of RTG will be more advantageous.

3. Stacking Density and Space Utilization

Stacking Density and Space Utilization directly determines the container storage capacity of the yard, especially for port yards with tight land resources, this is crucial.

RMG can achieve higher stacking density because it is guided by a fixed track with very high running accuracy, and the containers can be accurately aligned without offset when stacked. Normally, RMG can stack 6-8 layers of containers, and some large RMG can even stack more than 10 layers.

RTG, because it is moved by tires, will have slight shaking during operation, the stacking accuracy is not as good as RMG, and in order to ensure the safety of turning and moving, it is necessary to reserve a certain turning clearance, so the stacking density will be a little lower, and usually can stack 5-7 layers of containers.

In terms of TEU (standard container) storage capacity per hectare of yard, RMG can be 15%-25% higher than RTG. For large ports with expensive land resources, the space utilization advantage of RMG is very obvious, which can store more containers on limited land and increase the throughput of the yard.

4. Automation Readiness

With the development of global smart ports, automation has become the development trend of container yards, the two cranes’ automation readiness varies greatly, the specific comparison is as follows:

Factor	RMG	RTG
Full automation	Highly suitable	Limited
TOS integration	Strong	Moderate
Remote operation	Common	Increasing

The fixed rail design of RMG can accurately locate the running position of the crane, and it is easier to interface with the automation control system and terminal operating system (TOS) to realize fully automated operation. At present, most of the automated container terminals in the world choose RMG cranes, which can realize unattended and remote operation and significantly reduce labor costs.

RTG’s automation adaptability is relatively limited. Because of its moving trajectory is not fixed, accurate positioning is more difficult, although there are some RTG to achieve semi-automation or remote operation, but the technical difficulty and cost of full automation is higher, not as mature as RMG.

If you have a clear automation strategy and want to build a smart port or automated yard, RMG is definitely a better choice; if your yard does not require high automation and pays more attention to flexibility, RTG can meet the demand.

5. Energy Efficiency

Energy efficiency directly affects the long-term operating costs of cranes, especially for high-frequency operation of the yard, the difference in energy consumption will bring significant cost differences.

RMG adopts all-electric operation, the source of energy is electricity, energy consumption is lower, and there is no exhaust emission during operation, more environmentally friendly. According to the actual project data of Henan Mine Crane, under the same operation volume, the energy consumption of RMG is 30%-40% lower than RTG, which can save a lot of energy costs in long-term operation.

RTG mainly adopts diesel electric drive, the energy source is diesel, energy consumption is higher, and diesel combustion will produce exhaust emissions, environmental protection is not as good as RMG. although there are hybrid RTG, which can reduce energy consumption to a certain extent, but the overall energy saving is still not as good as RMG.

For areas with high energy costs, or ports that emphasize environmental protection, the energy-saving advantage of RMG is very obvious. Moreover, with the tightening of global environmental policies, all-electric RMGs are more in line with the future development trend and can help customers avoid environmental compliance risks.

6. Wheel Load and Ground Pressure

Wheel load and ground pressure directly affect the design and maintenance cost of the yard floor, which is also a point easily neglected by many customers.

The load of RMG is evenly distributed to the ground through the track beams, the ground pressure is small, the load bearing requirement on the yard floor is relatively low, and the maintenance cost of the ground is also low. Moreover, the track protects the ground, reduces the wear and tear of the ground, and extends the service life of the ground.

The load of RTG is transferred to the ground through tires, the ground pressure is larger, the load-bearing requirement for the yard floor is higher, and a thicker and stronger ground needs to be laid, and the initial ground construction cost is higher. At the same time, the friction between the tires and the ground will cause ground wear, and the maintenance cost of the ground will increase in the long run.

Many customers only focus on the cost of the crane itself when selecting the model, ignoring the ground design and maintenance costs. In fact, RTG although the initial cost of equipment is low, but the ground construction and long-term maintenance costs are higher, while RMG although the initial cost of civil engineering is high, but the ground maintenance costs are lower, and in the long run more cost-effective.

7. Lifecycle Cost Comparison

Selection should not only look at the initial investment, but also calculate the entire life cycle cost, which can truly reflect the cost-effectiveness of the equipment.

In terms of initial investment, RMG is more costly, mainly because of the investment in track and civil engineering; RTG’s initial investment is lower, without the need for track and complex civil engineering, and the cost of the equipment itself is also relatively low.

In terms of operation cost, RMG has a very obvious advantage. It has low energy consumption, which can save a lot of energy costs; and strong automation adaptability, which can reduce labor costs, especially for large yards, the savings in labor costs are very significant.

RTG has higher operating costs, high diesel consumption and high energy costs; and it needs to be equipped with professional operators, and the labor cost is also higher.

In terms of maintenance cost, RMG mainly needs to maintain the track and electrical system, the maintenance cycle of the track is long and the cost is low, and the maintenance of the electrical system is relatively simple; RTG mainly needs to maintain the tires and the diesel engine, the tires are worn out faster and need to be replaced periodically, and the maintenance cost of the diesel engine is higher, so in the long run, the maintenance cost is much higher than that of the RMG.

Operational Workflow Comparison

In addition to technical parameters, the two cranes’ operational workflow differences will also affect the overall efficiency of the yard, combined with the actual operational scenarios, to give you a simple comparison.

Vessel Discharge Phase

In the vessel unloading phase, both cranes can work with shore side container cranes (STS) to complete the container transfer operation. Both RMG and RTG can quickly receive the containers unloaded by shore-side cranes and transfer them to the designated area in the yard without affecting the efficiency of ship unloading.

The difference between the two is mainly reflected in the flexibility of transshipment, RTG can be more flexible to adjust the transshipment route, adapted to different ship unloading rhythm; RMG is more stable, higher transshipment accuracy, suitable for high-frequency, large-volume transshipment operations.

Yard Stacking Phase

Yard stacking phase is the most obvious difference between the two, RMG relies on fixed track operation, can realize precise stacking of containers, suitable for large-scale, high-density stacking operations, especially automated yard, can realize unmanned stacking, high efficiency.

RTG, on the other hand, is more flexible and can adjust the stacking area according to the actual situation of the yard, which is suitable for the flexible operation of small and medium-sized yards, especially for the containers that need to be temporarily stacked and quickly turned over, the advantages of RTG are more obvious.

Intermodal Integration

In the intermodal transportation scenario, the advantages of RMG are more prominent. It can accurately match the transshipment needs of railroad containers and realize the seamless connection of container “railroad – yard”, especially in railroad intermodal terminals, RMG can greatly improve the intermodal efficiency and reduce the transshipment time of containers.

Although RTG can also participate in intermodal transportation, but the flexibility is more than enough, the accuracy is not enough, when docking railroads, highways and other modes of transportation, the efficiency is not as good as RMG, more suitable for small and medium-sized intermodal yards.

Standards and Classification

Both RMG and RTG cranes need to comply with global industry standards to ensure the safety and reliability of the equipment, especially for export projects, standards compliance is the most important.

FEM Classification (Often A7-A8)

FEM (Federation of European Material Handling) standard, is the global container crane industry common standards, RMG and RTG cranes working level, usually in the FEM A7-A8 class. This level of cranes can withstand high-frequency, high-load continuous operation, in line with the high-intensity operational needs of container yards.

Henan Mine Crane’s RMG and RTG cranes are all designed and produced according to the FEM A7-A8 class standard, which ensures that the equipment can maintain stability in long-term high-frequency operations and reduce the incidence of failure.

ISO 4301 Classification

ISO 4301 standard mainly regulates the classification of cranes in terms of working level, and specifies the design requirements, safety requirements and inspection standards of equipment corresponding to different working levels.RMG and RTG cranes need to comply with the requirements of ISO 4301 standard to ensure the safety and reliability of the equipment.

For projects exported to Europe, Southeast Asia and other regions, the ISO standard is a necessary compliance requirement. Henan Mine Crane will provide ISO-compliant equipment and certification documents according to customers’ export destinations.

CMAA Duty Classes

CMAA (Crane Manufacturers Association of America) standards, mainly applicable to crane projects in North America, RMG and RTG cranes work class, usually corresponds to the heavy duty class of CMAA, to meet the demand for high-intensity operations in container yards in North America.

If the customer’s project is exported to North America, the equipment needs to comply with the CMAA standard. Henan Mine Crane will optimize the design and production of the equipment according to the CMAA standard to ensure that the equipment can adapt to the regulatory requirements of the North American region.

Port Authority Compliance Requirements

Port authorities in different countries and regions have different requirements for container cranes, mainly focusing on safety, environmental protection, efficiency and other aspects. For example, ports in the EU have higher environmental requirements for cranes, which need to meet the standards of exhaust emissions, noise control, etc. Ports in North America have higher safety redundancy requirements for equipment.

When Henan Mine Crane undertakes global projects, it will understand the compliance requirements of the local port authorities in advance to ensure that the design and production of equipment meets the local standards, so as to avoid compliance problems and delays in project progress.

When Should You Choose an RMG?

Combined with Henan Mine Crane’s global project experience, choosing an RMG crane can maximize long-term benefits as long as any of the following situations are met.

If your yard is a large container terminal with high throughput, handling a large number of containers every day, with high requirements for operational efficiency and stacking density, RMG is the first choice. Its high throughput and high stacking accuracy can perfectly match the operational needs of large yards and improve the overall operational efficiency.

If the layout of your yard is fixed for a long time without major adjustments, the fixed track design of RMG can ensure the stability and precision of the operation, while reducing the cost of later adjustments.

If your company has a clear automation strategy and wants to build an automated and intelligent yard, RMG’s strong automation adaptability can easily interface with the automation control system to realize unmanned operation, reduce labor costs, and adapt to the needs of smart port development.

If your yard involves intermodal transportation by rail, and you need to realize seamless connection of container “railroad – yard”, RMG’s accurate positioning ability can greatly improve intermodal transportation efficiency and reduce transit time.

If your company pays more attention to long-term operation cost and is willing to invest higher initial cost, RMG’s low energy consumption and low maintenance cost can save a lot of money in long-term operation and improve ROI.

When Should You Choose an RTG?

Not all yards are suitable for RMG, the following scenarios, choose RTG cranes, more cost-effective, more adaptable to the needs.

If your yard is a medium-sized terminal with moderate throughput, does not need high throughput like RMG, and has limited capital to invest a lot of cost to build tracks and civil works, RTG is a better choice. It has low initial investment and can be put into use quickly to meet the operational needs of medium-sized yards.

If your yard is in the expansion stage, the layout may be adjusted at any time. RTG is flexible and can quickly adapt to different yard layouts without any infrastructure modification, reducing the cost and trouble caused by expansion.

If your yard does not have track infrastructure and there is no plan to build track in the short term, RTG does not require track and can operate directly on the existing ground, significantly reducing the initial investment cost of the project.

If your yard is unstable, sometimes busy, sometimes idle, RTG has the flexibility to adjust the operation area and operation rhythm according to the change of operation volume, avoiding idle equipment and improving the utilization rate of equipment.

Common Procurement Mistakes

Combined with so many years of global procurement consulting experience, I summarized the most common 4 misunderstandings in the selection of customers, many customers have stepped on these pits, I hope you can avoid.

The most common misunderstanding is to ignore the future automation plan. Many customers in the selection, only consider the current operational needs, did not consider the future automation upgrades, choose RTG, later want to realize automation, not only the technical difficulties, the cost is also very high, the loss is not worth it.

Underestimating the ground cost of RTG is also a common problem for many customers. Some customers only see the low initial equipment cost of RTG, ignoring its requirements for the ground load-bearing, later need to invest a lot of money to remodel the ground, or even because the ground is not up to standard, resulting in the equipment can not run normally.

It is most undesirable to only look at the initial purchase price and ignore the life cycle cost. RTG’s initial price is low, but the long-term operating cost and maintenance cost is high; RMG’s initial price is high, but the long-term operating cost is low, which is more cost-effective in the long run. Many customers choose RTG because they are greedy for the initial cheapness, but later they spend more money instead.

Not calculating the life cycle cost is also a common misconception. When selecting the equipment, you should not only look at the price of the equipment itself, but also calculate the cost of energy, maintenance costs, labor costs, construction costs, etc., and comprehensively calculate the life cycle cost, in order to select the most cost-effective equipment.

RMG vs RTG Decision Checklist

In order to facilitate your quick judgment, I have compiled a decision checklist, check against, you can quickly determine whether you need to choose RMG or RTG cranes, to avoid selection errors.

1. What is the annual TEU throughput of your yard? High throughput (more than 1 million TEU) prioritize RMG, medium and low throughput (less than 1 million TEU) can consider RTG.

2. Is your yard layout fixed? RMG is preferred for long-term fixed layout, and RTG is preferred for flexible adjustment. 3.

3. How much available land area do you have? RMG is preferred if land resources are tight and high stacking density is pursued; RTG is preferred if land is sufficient and density is not required. 4.

4. What is the energy cost in your area? With high energy cost, RMG with all-electric is preferred; with low energy cost, RTG can be considered.

5. Do you have a clear roadmap for automation upgrade? If you have automation plan, prefer RMG; if there is no need for automation, you can consider RTG. 6.

6. What is your capital budget? With limited short-term budget, RTG is preferred; focusing on long-term ROI and willing to invest initial cost, RMG is preferred.

Frequently Asked Questions

Q1: Which is cheaper: RMG or RTG?

In terms of initial purchase price, RTG is cheaper because it does not require tracks and complex civil works, and the cost of the equipment itself is relatively low. However, in terms of life cycle cost, RMG is cheaper because of its low energy consumption, low maintenance cost and low labor cost, which can save a lot of money in the long run.

Q2: Which is better for automated terminals?

RMG is usually better for automated terminals, its fixed rail design, can be accurately positioned, easier to interface with the automation control system, terminal operating system, to achieve fully automated operations, at present most of the world’s automated container terminals, the use of RMG cranes.

Q3: Can RTG cranes be electrified?

Yes, it can. At present, RTG cranes can be electrified by cable reel, slip wire or bus system, after the transformation of RTG, the energy consumption will be greatly reduced, environmental protection will be improved, to meet the environmental requirements of some regions. Henan Mine Crane can also provide customers with RTG electrification transformation services.

Q4: Which crane provides higher stacking density?

RMG provides higher stacking density. Because it is guided by a fixed track, it operates with high precision, the containers can be accurately aligned when stacked, and there is no need to reserve too much gap, usually 6-8 layers can be stacked, and some of the large RMGs can even be stacked more than 10 layers, which makes the space utilization rate higher.

Q5: Which crane is easier to relocate?

RTG is easier to relocate, it does not have fixed rails, it relies on tires to move, it can be directly transported to the new yard by trailer, the installation and debugging cycle is short, and it can be put into use quickly; whereas RMG needs to dismantle the rails and equipments, it is difficult to transport and install, and the cost of relocation is high and the cycle is long.

Conclusion

Talking about this, I believe you are already clear about the core differences between RMG and RTG cranes, and also know how to choose for their own container yard.

In fact, there is no absolute “better”, only “more suitable”. RMG’s core advantage is high density, high throughput, strong automation adaptability, suitable for large, fixed layout, the pursuit of long-term efficiency of the yard; RTG’s core advantage is flexibility, RTG’s core advantages are high flexibility, low initial investment, and short installation cycle, suitable for medium-sized, expansion-stage yards with limited budgets.

The core of selection is to combine your yard size, throughput, layout planning, automation needs and capital budget to make a comprehensive judgment. Don’t just look at the initial price, but calculate the long-term life cycle cost, in order to select the most cost-effective equipment, to achieve the maximization of yard efficiency and revenue.

Henan Mine Crane Factory Custom

Henan Mine Crane has been focusing on the design, production and service of heavy-duty cranes for more than 20 years, and has provided RMG and RTG crane solutions for ports and yards in more than 50 countries and regions around the world, accumulating a wealth of experience in selection and operation.

Whether you need highly automated RMG, or flexible and efficient RTG, we can customize the equipment to meet global standards according to your specific needs, from selection consulting, design and production, to installation and commissioning, after-sales maintenance, the whole process to provide professional support, to help you avoid selection errors and reduce operating costs.

Choosing a suitable container crane is not only a purchase investment, but also an investment in the long-term development of the yard. Only by choosing the right equipment, can we make the yard operation smoother and more efficient, and take advantage of the competition in the global port.

Many container yards, railroad terminals and logistics hubs only compare the bare-bones quotes of RMG and RTG cranes when purchasing equipment. However, for port lifting equipment, the pure purchase price simply does not reflect the real input.

To determine whether a yard container gantry crane is cost-effective, the core to look at the full life cycle cost of ownership, that is, the industry is often referred to as TCO. from the initial infrastructure investment, daily energy consumption, regular maintenance, replacement of consumables, to the equipment downtime loss, labor costs and later upgrade space, each of which affects the cost of equipment for more than ten years.

In this paper, from the perspective of the actual project landing, a detailed comparison of rail mounted gantry crane vs rubber tyred gantry crane cost differences, to help different sizes of yards, terminal operators and EPC contractors to choose the right equipment to match the working conditions, more cost-effective.

the core meaning of Crane TCO

The full life cycle cost of ownership of equipment, covering all the expenses of Crane from procurement, installation, operation to end of life. Many overseas projects have late over-budget problems, most of which are only accounting for the price of equipment in the early stage, ignoring the hidden costs.

The complete TCO includes equipment procurement costs, site infrastructure renovation costs, power supply supporting costs, energy expenditure, maintenance spare parts costs, labor operating costs, and equipment failure and downtime brought about by operational losses, as well as late automation upgrades, equipment refurbishment of the potential investment.

Harbor and yard cranes are ultra-long-cycle fixed assets, service life is generally more than 20 years. Initially low-priced equipment, often because of high-frequency maintenance, high energy consumption, frequent failures, accumulating higher long-term costs.

There is no absolutely cheaper equipment, only the cost solution that fits the project conditions, site planning and operation mode. Fixed high-frequency operation of the yard and flexible temporary yard, suitable for a completely different model.

RMG and RTG Crane Basic Introduction

RMG Rail Mounted Gantry Crane

RMG full name Rail Mounted Gantry Crane, relying on the ground to travel on a fixed track, is a standardized container yard, rail freight station, inland waterless port of the main equipment. The equipment runs on a fixed track, with high alignment accuracy and good running stability.

This kind of container RMG crane is suitable for high-frequency and high-density container stacking and transshipment operations, with strong electrification adaptability, and it is also the preferred model of the current automated smart terminal.

Its shortcomings are also more obvious, the equipment relies on a fixed track infrastructure, the site layout, once finalized, it is difficult to arbitrarily adjust, the preliminary civil construction investment is relatively higher.

RTG Tire Gantry Crane

RTG is known as Rubber Tyred Gantry Crane, which uses rubber tires to walk without the constraints of a fixed track, and has great operational flexibility. Most of the small and medium-sized flexible yards, temporary storage areas will use this type of equipment.

RTG Crane can be freely switched within the yard operating area, low threshold for site modification, fast deployment, suitable for the layout of frequent adjustments, the scope of operation is not fixed logistics projects.

However, tire wear, steering system loss, fuel or hybrid system maintenance, will become a long-term operation of the fixed expenditure, but also many users are easy to ignore the hidden costs.

Comparison of RMG and RTG Costs in All Dimensions

Combined with the practical experience of various overseas yard projects, the core cost and performance differences between the two types of Cranes are compiled to visualize the TCO gap:

Cost & Performance Factor	RMG Crane	RTG Crane	Long-Term TCO Impact
Initial Equipment Cost	Medium-High	Medium	RTG has slight advantage in bare machine price
Civil & Foundation Cost	High (rail & foundation required)	Low (only yard pavement)	RMG increases one-time infrastructure investment
Annual Energy Cost	Low (pure electric, stable operation)	High (diesel/hybrid power loss)	RMG saves continuous energy expenditure
Daily Maintenance Cost	Low (no tire replacement)	High (tire & steering system upkeep)	RTG produces recurring consumable cost
Automation Upgrade	Low cost, easy realization	High cost, complex navigation system	RMG is more suitable for future intelligent yards
Operation Flexibility	Fixed yard layout only	Free movement & layout adjustment	RTG adapts to changeable yard demands
Service Life	25-35 years	15-20 years	RMG extends long-term replacement cycle

In-depth analysis of core sub-costs

Initial infrastructure and equipment investment

The biggest threshold of RMG Crane is the civil construction support. In addition to the equipment itself, it is also necessary to lay tracks, fixed sleepers, pouring special foundations, with a synchro line or cable reel power supply system, the one-time infrastructure investment is higher.

RTG does not need track construction, only need to harden the site to meet the standard, less investment in infrastructure in the early stage, the equipment into the field faster, suitable for short-term projects with limited budget and urgent production.

Long-term energy cost

Most of RMG crane for container yard adopts pure electric drive, stable power supply, low running loss and no fuel consumption. The annual energy savings for terminals with high-frequency year-round operation are very considerable.

Diesel and hybrid RTGs have fuel loss and power conversion loss, and even if they are upgraded to pure electric version, they need to be equipped with charging facilities, so the overall energy cost is always higher than that of RMG equipment in the same working condition.

Maintenance and Consumables Costs

RMG relies on fixed track driving, stable traveling structure, almost no alignment deviation problems, the core maintenance focuses on the motor, electronic control and lifting mechanism, no high-frequency expenditures on consumables.

The rubber tires of RTG are just consumables, and need to be replaced regularly because of the serious wear and tear of long term heavy driving and steering. At the same time, the steering system, hydraulic system, diesel unit maintenance frequency and cost, much higher than the RMG Crane.

Automation upgrade and downtime costs

Fixed rail makes the automation of RMG extremely difficult to transform, can be easily adapted to remote control, automatic stacking and dock system docking, to adapt to the future demand for intelligent yard upgrades.

RTG automation requires the installation of complex navigation, collision avoidance and path planning systems, which is costly to retrofit. And tire failure, steering deviation easily lead to equipment downtime, indirectly generating yard operation delay costs.

 Model selection: when to choose RMG, when to choose RTG?

For projects with fixed site layout, high container throughput and long-term stable operation, customized RMG crane is preferred, while railroad container yard, inland waterless port and large fixed storage yard are the core adaptive scenes of RMG.

These projects have a long operation cycle, RMG lower energy consumption, less maintenance, longer service life, can quickly erase the difference in the price of the previous infrastructure, long-term TCO advantage is very obvious.

Site planning has not been finalized, the need for frequent adjustment of the operating area, belonging to the temporary transitional yard project, more suitable for RTG Crane. Flexible mobility, can maximize the use of site resources, to avoid the waste of fixed infrastructure.

 the selection of price comparison of common misconceptions

Part of the project only look at the current working conditions, ignoring the future demand for automation upgrades. When you want to transform the smart yard in the later stage, the transformation cost of RTG will be much higher than the investment of direct purchase of RMG in the early stage.

At the same time, you can’t just pursue low-cost infrastructure. High-frequency operational scenarios forced selection of RTG, will lead to accelerated wear and tear of equipment, failure and downtime increase, but affect the overall efficiency of the yard operation.

Henan Mine Crane how to provide suitable cost optimization solutions

As a professional RMG crane supplier China, Henan Mine Crane will not blindly recommend high-priced equipment, but will calculate TCO one by one and match the optimal model according to the customer’s site layout, operation frequency, budget planning and long-term operation goals.

For fixed high-frequency yards, we can provide non-standard customized RMG Cranes, optimize the self-weight of the steel structure, electrical configuration and power supply scheme, under the premise of ensuring the stability of the equipment, to control the overall investment.

For flexible operation and short-term operation projects, we will also give the cost comparison program between RTG and RMG, so that customers can clearly see the gap between short-term investment and long-term benefits.

At the same time, we can provide a full set of technical drawings, wheel pressure parameters, installation guidance and overseas after-sales support to reduce the hidden costs of equipment installation, operation and upgrading.

FAQ

Which one has lower overall cost, RMG or RTG?

For long-term fixed high-frequency operation scenarios, RMG has a lower total life cycle cost. For temporary and flexible yard changes, RTG has less upfront investment and higher overall cost performance.

Which Crane is more suitable for automated terminals?

RMG Crane rail fixed, running track can be controlled, automation transformation is simple, strong stability, is the mainstream selection of automated container terminals.

What is the biggest hidden cost of RTG?

Mainly regular replacement of tires, steering system maintenance and long-term fuel energy consumption, the cumulative expenditure over the years is much higher than the difference in equipment prices.

Conclusion

Selecting a reliable gantry crane manufacturer is never simply looking for a low price quote, the core is a comprehensive solution to match the project Model suitability, accuracy of technical parameters, production process, quality inspection standards, manufacturer experience and long-term service, far more important than the price difference. Model suitability, accuracy of technical parameters, production process, quality inspection standards, manufacturer experience and long-term service, far more important than the price of a single purchase.

Henan Mine Crane, as a professional global gantry crane source manufacturers, with mature overseas project landing experience, can provide model selection, non-standard customization, protection upgrades, technical docking, installation and after-sales service for all kinds of outdoor We always take the actual needs of the project as the core, and provide highly adaptable and stable gantry crane solutions for There are gantry crane procurement and after-sales service for all kinds of outdoor complex working conditions.

There are gantry crane procurement and selection needs, you can provide equipment tonnage, span, lifting height, site conditions and drawings, Henan Mine Crane engineers team for your one-on-one customization of exclusive lifting solutions.

RMG Crane vs STS Crane: Which is Core for Port Handling?

Henan Mine Crane has been engaged in port crane sales for more than ten years, I have received port planners and operational managers around the world, the most frequently asked question is: RMG and STS cranes, in the end, which is the core equipment for port operations?

The efficiency of modern container ports depends on the synergistic operation of the crane system. Whether it is a large deep-water port, or a medium-sized river port, as long as it involves container loading and unloading transshipment, almost inseparable from these two types of equipment.

Many customers will fall into a misunderstanding, think that the two can only choose a “core”, either favor STS, or focus on RMG. in fact, these two cranes do not have absolute primary and secondary, each bear different core functions, one cannot do without the other.

Today I will put aside the hard theory, with the hands-on experience of front-line engineers, combined with Henan Mine Crane service global ports of the actual case, the differences between RMG crane vs STS crane, function, selection logic to make it clear. Whether you are doing port planning, or equipment upgrading, you can find the answer to fit your port, and also clarify the core role of the two types of equipment in the port crane system workflow.

Overview of Port Crane Systems

The Container Handling Workflow

In order to understand the core role of RMG and STS, first of all, we must understand the complete flow of container operation in the port, which is the basis for judging the importance of the two.

The first step is Ship-to-shore transfer, that is, unloading containers from the ship to the port, or loading containers from the port to the ship, which is the first gate of port operation, and is the key to connecting ocean transportation and land transportation.

The second step is horizontal transportation, through the truck, trailer or AGV automatic guided vehicle, the container from the shore to the yard, or from the yard to the shore, equivalent to the port operation of the “conveyor belt”, to ensure the smooth flow of containers.

The third step is the yard stacking and retrieval (Yard stacking and retrieval), the transfer of containers stacked up in an orderly manner, saving space in the yard, and at the same time in the need to quickly extract, to avoid congestion in the yard.

The final step is gate or rail dispatch, where containers are transported out of the port by trucks or transferred to inland areas by rail, completing the closed loop of port operations.

Where STS and RMG Cranes Fit

In the whole operation process, STS and RMG cranes play their respective roles, respectively occupy the two key links, one without the other.

The core position of STS cranes is on the shore (Quayside), specializing in container loading and unloading between ship and shore. Whether it is a mega container ship, or small and medium-sized ships, need to rely on STS cranes to realize the rapid transfer of containers, it is the port connected to the sea “portal”.

RMG cranes are mainly used in container yards and railroad yards, and their core task is to stack, extract and transfer containers within the yard. It can maximize the use of yard space, to ensure orderly storage of containers to avoid congestion, is the port land operation of the “core hub”.

Simply put, STS tube “ship to shore”, RMG tube “shore to field”, the two synergistic cooperation, in order to make the whole port operation efficiently, which is also container terminal crane types in the most core of the two kinds of equipment. This is also the two core equipment in container terminal crane types.

What Is an STS (Ship-to-Shore) Crane?

Definition and Function

STS crane, full name Ship-to-Shore Crane (Shore Container Crane), is a large crane installed on the shore of the port, the core function is only one: to realize the container loading and unloading transshipment between the ship and the port.

It is like a “giant arm” of the port, one end of which reaches out to the sea and docks with the deck of the container ship, while the other end connects with the shore of the port to accurately unload the containers from the ship or load the containers from the port smoothly onto the ship.

Henan Mine Crane produces STS cranes, adapted to different types of port shore layouts around the world, whether it is a deep-water berth or a shallow-water berth, can be adjusted according to the size of the ship and the operational needs of its own parameters, to ensure that the loading and unloading operations are smooth.

Many people do not know that STS crane function in port is not only simple loading and unloading, but also directly determines the ship’s stay in port, which in turn affects the port’s throughput and competitiveness.

Key Features

Long outreach (outreach) is the core feature of STS crane, which is also the key to docking large ships. Now the world’s mainstream Post-Panamax and Ultra Large Container Vessel (ULCV), the deck width is large, STS cranes need to have a long enough outreach to cover the entire deck.

Henan Mine Crane’s STS cranes, with an outreach of more than 60 meters, can be easily adapted to ultra-large container ships with a capacity of more than 24,000 TEU, which is consistent with the specifications of the large STS cranes ordered by the U.S. Port of Georgia, and meets the operational needs of the world’s large ports.

High lifting height and fast lifting speed are also its core advantages. The lifting height is high enough to lift containers from the bottom deck of a large ship to the shore; the fast lifting speed improves the loading and unloading efficiency and reduces the ship’s waiting time.

Like RMG, STS cranes also run along the track, but its track is laid on the shore and extends horizontally along the berth, which ensures that it can cover the whole berth of the ships during operation, and runs stably and accurately.

Typical Applications

The application of STS cranes is very concentrated, mainly all kinds of container ports and terminals, whether coastal deep-water ports, or river ports, as long as there is a container ship docking, it is indispensable.

High throughput shore-side operations, is its core application scenarios. For example, the main berths of major mainstream ports around the world need to handle thousands of standard containers every day, and the efficient loading and unloading capacity of STS cranes can ensure rapid turnover of ships and improve the overall throughput of the port.

Like the Port of Singapore in Southeast Asia, the Port of Rotterdam in Europe, as well as the domestic port of Shanghai, Shenzhen Port, have deployed a large number of STS cranes, including Henan Mine Crane’s equipment, which operate continuously all year round, supporting the efficient operation of the port.

What Is an RMG (Rail Mounted Gantry) Crane?

Definition and Function

RMG crane, full name Rail Mounted Gantry Crane (Rail Mounted Gantry Crane), is a gantry crane relying on the rail operation, the core function is in the container yard and the rail yard station, complete the stacking of containers, picking up and on-site transfer.

The biggest difference between it and STS cranes is that the scope of operation is limited to land, not involving sea operations. If STS is the “gateway” of the port, then RMG is the “warehouseman” of the port, responsible for storing containers in an orderly manner, quick access.

Henan Mine Crane’s RMG cranes can not only realize multi-layer stacking of containers, but also docking railroad transportation to realize seamless transfer of containers “yard – railroad”, which is also the core value of RMG crane for container yard.

Key Features

Rail-guided precision operation is the core feature of RMG crane. Its track is laid on the yard floor and extends vertically or horizontally along the yard, and the crane runs along the track without any deviation, which can realize precise stacking and extraction of containers.

High stacking density is another major advantage. Because of the precise operation, the containers can be accurately aligned when stacking, without the need to reserve too much clearance, usually 6-8 layers of containers can be stacked, which significantly improves the utilization of yard space, which is also its core advantage over other yard cranes.

Its automation compatibility is extremely strong, very suitable for automated yard (ASC/RMG systems). Henan Mine Crane’s RMG cranes can easily interface with the terminal operating system (TOS) to realize remote operation and unattended operation, reducing labor costs, which is also the mainstream development direction of the current global smart port.

In addition, RMG cranes have stable operation, low wear and tear, light maintenance burden, and lower long-term operating costs, which is an important reason for many ports to choose it as the core equipment of the yard.

Typical Applications

Container yard is the most important application scenario of RMG cranes, whether it is a dedicated yard in large ports, or a comprehensive yard in medium-sized ports, you can see its figure. Especially high throughput, long-term fixed layout of the yard, RMG advantages are more obvious.

Automated stacking yards (ASC/RMG systems) are one of its core application scenarios. With the development of smart ports around the world, more and more ports have started to build automated yards, and RMG cranes have become the core equipment of automated yards due to their precise operation and strong automation compatibility.

Railroad intermodal yard is also an important application scenario for RMG cranes. It can accurately docking railroad container loading and unloading needs, realize the container “yard – railroad” seamless transfer, the formation of a “non-landing” operation chain, to enhance the efficiency of intermodal transport.

For example, the Port of Hamburg in Europe and Zhengzhou International Dry Port in China have deployed Henan Mine Crane’s RMG cranes for intermodal railroad operations, which have significantly improved the efficiency of container transshipment.

RMG Crane vs STS Crane – Core Functional Differences

Many customers can not distinguish the core differences between RMG and STS, in fact, as long as you grasp the “operational scenarios” and “core functionality”, you can quickly distinguish. I will use the table below to make a clear comparison, and then combined with the actual operation scenarios to explain in detail, to help you completely clarify the STS and RMG crane difference.

Aspect	STS Crane	RMG Crane
Primary Role	Ship loading/unloading	Yard stacking and transfer
Location	Quayside	Container yard or rail yard
Core Function	Vessel interface	Yard efficiency and storage
Mobility	Rail-mounted along quay	Rail-mounted within yard
Automation Level	Semi to fully automated	Highly suitable for full automation

From the table, we can clearly see that the core difference between the two lies in the operation scenario and function, the core of STS is “docking ship”, all the designs are centered on ship and shore loading and unloading; the core of RMG is “yard management”, all the designs are designed to enhance the efficiency of the yard and the space utilization. The core of RMG is “yard management”, and all designs are aimed at improving yard efficiency and space utilization.

For example, the track of STS is laid along the shore, aiming at covering the whole berth and facilitating the docking of ships; the track of RMG is laid inside the yard, aiming at realizing the precise stacking of containers and in-field transfer. The two running tracks seem to be similar, but in fact they are suitable for different operational needs.

In terms of automation level, RMG is more suitable for fully automated operation, because its operation scope is fixed, the process is standardized, and it is easy to interface with automated systems; STS is mostly semi-automated or fully automated, and requires certain manual intervention in combination with the docking position of the ship and the container placement.

Technical Comparison: RMG vs STS Crane

In addition to functional differences, there are also obvious differences between the two in terms of technical parameters, which directly determine their operational capabilities and adaptable scenarios. The following is a detailed comparison of the four core dimensions to help you accurately match your needs when selecting a model.

1. Lifting Capacity and Reach

Lifting capacity and reach is one of the core technical differences between the two, which directly determines their operating range and capacity.

STS crane lifting capacity is usually 40-75 tons (including spreader weight), this lifting capacity can easily cope with the handling of large containers, especially 40 feet of heavy containers. Its core advantage is its large outreach, usually over 40-60 meters, which can cover the entire deck of Super Panamax and ULCV, ensuring that all containers on the ship can be loaded and unloaded.

The lifting capacity of RMG cranes is usually 40-65 tons. Although the lifting capacity is slightly lower than STS, it can fully meet the stacking and transshipment needs of container yards. Its design focus is not outreach, but stacking height and span, stacking height of up to 18-24 meters, span of up to 30-50 meters, can cover a number of yard blocks, to enhance the utilization rate of the yard.

Simply put, STS pursues “far enough” to dock with large ships, while RMG pursues “high enough and wide enough” to maximize the utilization of yard space.

2. Structural Design

The difference in structural design is to fit the respective operation scenarios, the specific comparison is as follows:

Feature	STS Crane	RMG Crane
Structure	Cantilever boom over water	Gantry frame over yard blocks
Key Dimension	Outreach & lift height	Span & stacking height

STS crane adopts cantilever beam structure, one end of which extends to the sea, and the other end is fixed on the shore rail, this structure can maximize the extension of outreach, and at the same time ensure the stability of the equipment to cope with the wind loads on the sea. Henan Mine Crane STS cranes, cantilever beams manufactured with high-strength steel, can withstand strong winds, to ensure that the normal operation in bad weather.

The RMG crane has a gantry structure that spans the entire yard block. This structure ensures the stability and precision of the equipment, while facilitating the stacking and extraction of containers. Its gantry height and span can be customized according to the actual dimensions of the yard, which is suitable for different sizes of yards.

3. Operational Speed and Productivity

The operational speed and productivity of both cranes are measured by different standards, and they are suitable for their respective operational needs.

The operational speed of STS cranes is usually measured by the number of moves per hour (MPH), which is the key to determine the turnaround time of the vessel. Large STS cranes can complete 30-40 operations per hour. Efficient STS equipment can significantly shorten the vessel’s stay in the port and increase the utilization rate of berths in the port.

The operational focus of RMG cranes is not speed, but yard throughput, stacking efficiency and precision. Its operating speed is slightly lower than that of STS, but it can realize continuous operation, especially the automated RMG system, which can operate 24 hours a day to ensure the rapid flow of containers in the yard and avoid congestion.

For example, a port with an annual throughput of 1 million TEU needs to be equipped with efficient STS cranes to shorten the turnaround time of ships, and at the same time, it needs a sufficient number of RMG cranes to ensure that containers can be received and released quickly at the yard, and both of them work together in order to realize the efficient operation of the port.

4. Infrastructure Requirements

The two infrastructure requirements differ greatly, which is also a key consideration in port planning and equipment selection.

STS cranes require reinforced shore structures and specialized crane tracks. Because of its large size and lifting capacity, the load bearing capacity of the bank is extremely high, and the bank needs to be reinforced in advance, and the track needs to be laid in precise alignment to ensure stable operation of the equipment. The investment cost of this infrastructure is high and the cycle time is long.

RMG cranes require yard track beams, precise track alignment and civil foundations. Its tracks are laid on the yard floor and do not need to reinforce the shore structure like STS, but it needs to ensure the precise alignment of the tracks to avoid affecting the operational accuracy of the equipment. Compared with STS, RMG has lower infrastructure investment cost and shorter cycle time.

When Henan Mine Crane undertakes global port projects, it will customize RMG and STS cranes according to the existing infrastructure of the port, so as to minimize the cost of infrastructure renovation for customers.

Which Is the “Core” Crane for Port Handling?

Back to the most concerned question: RMG and STS, which is the core of port operation? The answer is very simple: both are the core, but they play different roles in different stages of operation.

STS Crane – The Core of Vessel Operations

STS Crane is the core of vessel operations, without it, container vessels can not efficiently complete loading and unloading operations. It directly determines the vessel turnaround time, which is one of the core indicators of port competitiveness.

For ports, the shorter the ship turnaround time is, the higher the berth utilization rate is, the more ships can be received, and the larger the port throughput is. Especially in the present time of fierce competition in global shipping, fast ship turnaround capacity enables the port to attract more shipping companies to cooperate.

Without STS cranes, container ships can only stay at berth for a long time, unable to complete loading and unloading, which will not only affect the operational efficiency of the port, but also bring huge losses to shipping companies. From this point of view, STS cranes are the “lifeline” of ports connecting to the sea.

RMG Crane – The Core of Yard Efficiency

RMG crane is the core of yard efficiency, without it, the yard can not realize the orderly stacking of containers and rapid extraction, which will eventually lead to yard congestion, and then drag down the efficiency of the entire port operations.

It directly determines the capacity of the yard and the efficiency of container flow. High stacking density enables the port to store more containers on limited land, reducing land occupation costs; fast stacking and extraction capacity ensures the timely flow of containers and avoids the STS cranes on the shore not being able to unload containers properly due to yard congestion.

Especially in automated ports, the role of RMG cranes is more prominent. It can realize unmanned operation, reduce labor costs, and at the same time improve operational accuracy and efficiency, is an indispensable core equipment for automated ports.

The Real Answer: Both Are Core in Different Stages

The Real Answer: Both Are Core in Different Stages Both are core equipments in different stages of operation, which can realize the efficient operation of the port only by cooperating with each other. The specific correspondence is as follows:

Port Function	Core Crane
Ship operations	STS Crane
Yard operations	RMG Crane
Overall terminal efficiency	Integrated STS + RMG system

For example, if a large container ship docks at the port, STS cranes are responsible for unloading the containers from the ship and transferring them to the yard through horizontal transportation equipment; RMG cranes are responsible for stacking these containers in an orderly manner, extracting them quickly when needed, and transferring them to the gates or railroads, completing the whole operation process.

If there is only STS and no RMG, the unloaded containers will be piled up on the shore, resulting in STS not being able to continue unloading; if there is only RMG and no STS, the containers can not be unloaded from the ship to the yard, and RMG can not play a role. Both are indispensable and can only work together to realize the efficient operation of the port.

Workflow Integration: How STS and RMG Work Together

After understanding the core role of the two, let’s talk in detail about how they work together to complete the entire port container workflow. Combined with Henan Mine Crane’s practical experience in serving ports around the world, the whole process is divided into four steps, which are smoothly connected to ensure maximum efficiency.

Step 1 – Ship Operations

After the ship docks at the berth, STS cranes start the operation immediately, unloading the containers from the ship accurately and placing them on trucks, trailers or AGVs on the shore.

During the process, STS crane will adjust the lifting speed and outreach according to the weight and size of the container to ensure the container is unloaded smoothly and avoid damage. At the same time, it will work with the horizontal transportation equipment to ensure that the unloaded containers can be quickly transferred without occupying space on the shore.

Step 2 – Horizontal Transport

Horizontal transportation equipment (trucks, trailers, AGVs) will unload the containers from the STS crane and transfer them to the designated yard blocks. This link is equivalent to a “conveyor belt”, connecting the shore and the yard to ensure the fast flow of containers.

When Henan Mine Crane provides solutions for ports, it will optimize the horizontal transport routes to ensure that the transport equipment can quickly go back and forth between the shore and the yard, reducing the waiting time and improving the efficiency of the whole operation process. At the same time, equipment linkage is realized through the TOS system, allowing STS, horizontal transportation equipment and RMG to work together and realize automatic task allocation.

Step 3 – Yard Operations

After the containers are transferred to the yard, the RMG crane starts the operation immediately and stacks the containers accurately to the specified position. It will assign different stacking areas according to the types of containers (heavy containers, empty containers) and destinations to ensure that the containers are stored in an orderly manner for subsequent pickup.

If the container needs to be extracted, the RMG crane will quickly find the target container according to the instruction from the TOS system, accurately extract it, place it on the horizontal transportation equipment, and transfer it to the shore or gate. In this process, the precise operation and high stacking density of RMG can significantly improve the efficiency of the yard and avoid congestion.

Especially, the automated RMG system can realize the remote control mode of “1 control 3-5”, which can improve the throughput of the yard and the continuity of the night shift, and further optimize the operation efficiency.

Step 4 – Gate and Rail Handling

In the last step, RMG cranes work with gate and rail operations to transfer containers that need to be shipped out of the port to trucks or railroad cars to complete inland distribution.

For rail intermodal transport, RMG cranes can accurately docking rail container handling needs, to achieve seamless container “yard – rail” transfer, reduce the container transfer time, improve intermodal transport efficiency. This is also one of the core advantages of Henan Mine Crane RMG cranes, which can be adapted to the needs of global intermodal transportation ports.

Cost and Investment Comparison

Port planning and equipment selection, the cost and return on investment is a key consideration, RMG and STS crane investment costs, operating costs vary greatly, the following three dimensions, to give you a detailed comparison, to help you clearly calculate the “input-output account.

Capital Investment

Initial investment, the difference between the two is very obvious, STS cranes have a very high unit cost, because of its large size, high technical difficulty, need to be equipped with a long cantilever, high lifting height and a strong lifting mechanism, the single unit investment is usually 3-5 times of RMG cranes.

However, the demand for STS cranes is less, a port berth, usually only need to be equipped with 1-2 sets of STS cranes to meet operational needs. For example, the U.S. Port of Georgia for the Port of Savannah ordered 8 sets of STS cranes, which can support the operational needs of large ships.

RMG cranes have a lower cost per unit, although the technical requirements are also very high, but the size and structure is relatively simple, the investment per unit is much lower than STS, but it is in greater demand, a large yard, usually need to be equipped with more than 10 RMG cranes, in order to cover the entire yard’s operational needs, to ensure the efficiency of the yard.

Operating Costs

In terms of operating costs, both are powered by electricity, energy costs are relatively low, which is also a common advantage of port cranes. However, the operating costs of the two, there are some differences.

RMG cranes have lower operating costs, especially the automated RMG system, which can achieve unmanned operation and significantly reduce labor costs. At the same time, RMG equipment wear and tear is small, low maintenance costs, rail structure is stable, no need to frequently adjust the parameters of the equipment, the average annual maintenance cost is only 50% -60% of similar yard cranes.

The operating cost of STS crane is relatively high, it needs to be equipped with professional operators, the labor cost is high; at the same time, its operating environment is complex, facing the strong winds of the sea, high humidity and other harsh environments, the wear and tear of the equipment and maintenance costs are also relatively high, and it needs to be regularly maintained on the cantilever, hoisting mechanism and other core components.

ROI Perspective

From the perspective of return on investment (ROI), the two have different influencing factors, can not simply say which one is more cost-effective, the key to look at the core needs of the port.

The return on investment of STS cranes is mainly reflected in the berth productivity and vessel turnaround time. An efficient STS crane can significantly shorten the turnaround time of the ship, enhance the utilization rate of the berth, so that the port can receive more ships, increase throughput, and then enhance the port’s revenue. For large deepwater ports, the return on investment of STS cranes is very significant.

The return on investment of RMG cranes is mainly reflected in the yard capacity, automation level and long-term scalability. It can improve the utilization of yard space and reduce land occupation costs; after automation, it can reduce labor costs and improve operational efficiency; at the same time, it is highly scalable and can flexibly increase the number of equipments according to the growth of port throughput, which is suitable for the long-term development of the port.

Standards and Technical Compliance

For global ports, the standards compliance of equipment is crucial, especially for export projects, which must comply with international standards and local port-specific requirements, or else they will not pass the acceptance, affecting the progress of the project.RMG and STS cranes are required to comply with the following international standards and port-specific requirements.

Common International Standards

ISO standard is a global crane standard, ISO 4301 mainly regulates the classification and safety requirements of cranes, and specifies the equipment design, manufacturing and inspection standards corresponding to different working levels, RMG and STS cranes need to comply with this standard.

FEM standard (European Material Handling Federation standard), mainly regulating the structure of the crane and the classification of the working level, RMG and STS cranes working level is usually A7-A8, this level of cranes, can withstand high-frequency, high-load continuous operation, in line with the port’s high-intensity operational needs.

Henan Mine Crane’s RMG and STS cranes can be customized according to the CMAA standard to meet the needs of ports in North America.

Henan Mine Crane’s RMG and STS cranes are all in compliance with the above international standards, and can provide complete certification documents to ensure that the projects of customers around the world can be successfully accepted.

Port-Specific Requirements

In addition to international standards, different ports have their own specific requirements, mainly focusing on three aspects.

The first is wind resistance and storm protection systems. Coastal ports face strong winds, storms and other inclement weather, RMG and STS cranes need to be equipped with a perfect wind resistance system and storm protection devices to ensure safe operation in bad weather to avoid equipment damage. Henan Mine Crane will customize the wind-resistant design according to the wind level of the port to adapt to the environmental needs of different ports.

Second, seismic considerations. In earthquake-prone areas, cranes need to have a certain degree of seismic capacity, Henan Mine Crane will optimize the structural design of the equipment according to the local seismic level, to enhance the seismic performance of the equipment, to ensure that the equipment can remain stable in the event of an earthquake.

Third, the integration with the terminal operating system (TOS). The efficient operation of modern ports can not be separated from the scheduling of the TOS system, RMG and STS cranes need to be able to seamlessly integrate with the TOS system to achieve automatic task allocation, real-time feedback on the operating status, to enhance the operational efficiency of the entire port. Henan Mine Crane can easily interface with the world’s mainstream TOS system to meet the port’s automated scheduling needs.

When to Prioritize STS Investment

Although RMG and STS are both core equipment, when planning and upgrading equipment in ports, you need to prioritize investment in one of the equipment according to your own development needs. In the following cases, it is recommended to prioritize STS crane investment.

If the port is expanding berth capacity, increasing deep-water berths and needing to dock more large ships, it needs to prioritize investment in STS cranes. Adequate STS equipment will ensure the efficient operation of the additional berths and enhance the port’s ship reception capacity.

If the port needs to deal with super Panamax, ULCV and other large ships, the outreach and lifting capacity of the existing STS cranes can not meet the demand, it is necessary to prioritize investment in new STS cranes. For example, the U.S. port of Georgia in order to deal with large ships of more than 24,000 TEU, specifically ordered large STS cranes to enhance the port’s ability to adapt to the ship.

If the ship turnaround time is too long, which becomes a bottleneck for port development, it is also necessary to prioritize investment in STS cranes. Enhancing the operational efficiency of STS can shorten the ship turnaround time, improve the competitiveness of the port and attract more shipping companies to cooperate.

In addition, if ports want to enhance their competitiveness in global shipping routes, they also need to prioritize the investment in STS cranes to build efficient shore-side operation systems, which will enhance the port’s throughput and ship turnaround capacity.

When to Prioritize RMG Investment

In the following cases, it is recommended to prioritize the investment of RMG cranes, which can more quickly improve the operational efficiency of the port and achieve a higher return on investment.

If the port’s land resources are tight, want to increase the yard capacity, but can not expand the land area, you need to prioritize the investment of RMG cranes, RMG’s high stacking density, can be stored in the limited land more containers, significantly increase the yard capacity, without the need to occupy additional land.

If the port is transforming into an automated and intelligent port, it is necessary to give priority to investing in RMG cranes. the RMG’s strong automation compatibility can quickly realize unmanned operation, with the TOS system and AGV equipment, to create an automated yard, reduce labor costs, and improve operational efficiency.

If the yard is heavily congested and becomes a bottleneck for port operations, affecting the efficiency of the entire port, you need to prioritize investment in RMG cranes. Increasing the number of RMG equipment improves the stacking and extraction efficiency of the yard, eases yard congestion, and ensures that STS cranes on the shore can operate normally.

In addition, if the port is developing railroad intermodal transportation, the need to achieve seamless container “yard – rail” transfer, also need to give priority to invest in RMG cranes, which can accurately docking rail container handling needs, improve intermodal efficiency.

Common Misconceptions

Combined with so many years of global port consulting experience, I summarized three of the most common misconceptions of customers in the selection, many ports have stepped on these pits, I hope you can avoid.

“STS Cranes Are the Only Core Equipment”

Many customers believe that as long as there are efficient STS cranes, the efficiency of the port can be improved, and RMG cranes are only auxiliary equipment, dispensable. In fact, this idea is wrong.

Without efficient RMG cranes, the containers unloaded by STS cranes will be piled up on the shore, and cannot be transferred to the yard in time, which ultimately leads to STS cranes not being able to continue unloading containers, and the turnaround time of the ship will be lengthened instead. Henan Mine Crane has served a Southeast Asian port, the initial focus on STS investment, ignoring the construction of RMG, resulting in serious congestion in the yard, STS equipment is often idle, but affects the efficiency of the port.

Only RMG and STS synergistic cooperation can realize the efficient operation of the port, both are indispensable.

“RMG Can Replace STS”

The operating range of RMG is limited to the yard interior, there is not enough outreach to extend to the sea, can not docking ships, can not complete the ship-to-shore loading and unloading operations. It is designed to focus on yard stacking and transshipment, not ship-to-shore docking, and the two have completely different operating scenarios and core functions that cannot be replaced by each other.

“Ports Only Need to Focus on the Quay”

Some port planners believe that as long as the shore STS cranes are done well and the efficiency of shore operation is improved, the efficiency of the whole port can be improved, ignoring the construction of RMG in the yard. This thinking is also one-sided.

The efficiency of modern ports depends on the synergy of the shore and yard, and one is indispensable. No matter how efficient the shoreside STS is, if the RMG in the yard cannot receive and transfer containers in time, it will form a bottleneck and drag down the efficiency of the whole port. Only by balancing the performance of the shore side and the yard can we realize the efficient operation of the port.

Decision Checklist for Port Planners

In order to facilitate port planners to quickly determine which equipment to prioritize investment, I have compiled a decision checklist, check against, you can quickly make a choice to avoid selection errors.

1. what is the current berth utilization rate of the port? If the berth utilization rate is too high, the ship waiting time is long, give priority to invest in STS cranes.

2. Is the main bottleneck of the port ship turnaround time, or yard congestion? If vessel turnaround time is long, prioritize investment in STS; if yard congestion, prioritize investment in RMG.

3. Is automation a long-term development strategy for the port? If yes, prioritize investment in RMG cranes to lay the foundation for automated yard construction.

4. Is the port’s development focus on expanding berth capacity or enhancing yard density? For berth expansion, prioritize investment in STS; for upgrading yard density, prioritize investment in RMG.

5. What is the target annual throughput (TEU) of the port? For high throughput ports, it is necessary to take both STS and RMG investments into consideration to ensure that they are synergistic and appropriate.

Frequently Asked Questions

Q1: Can a port operate without RMG cranes?

Yes, it can. It is true that some smaller ports or ports with lower throughput can operate without RMG cranes and use RTG cranes or frontal cranes instead. However, the stacking density and automation level of these equipment are not as good as RMG cranes.

For medium and large ports, especially high throughput, the pursuit of automation of the port, the advantages of RMG cranes is very obvious, can significantly improve the efficiency of the yard, reduce the cost of land occupation, and more cost-effective in the long term.

Q2: Can RMG cranes replace STS cranes?

No, we can’t. The operation scenarios and core functions of the two are completely different: STS cranes are responsible for container loading and unloading between ship and shore, and need a long enough outreach to connect to the ship; RMG cranes are responsible for stacking and transshipment within the yard, and their operation range is limited to land, and cannot connect to the ship.

Simply put, RMG is in charge of the “yard” and STS is in charge of the “shore”, they cannot replace each other.

Q3: Which crane is more expensive?

STS cranes are significantly more expensive than RMG cranes, usually 3-5 times more expensive than RMG cranes. However, the demand for STS is low and the demand for RMG is high. The overall investment cost needs to be calculated according to the size and demand of the port.

For example, a large port may need 2 sets of STS cranes and 10 sets of RMG cranes, and the total investment of RMG may be more than STS.

Q4: Which crane is better for automated ports?

RMG crane is better for automated ports. Its operation range is fixed, the process is standardized, and it is easy to interface with automation system and TOS system to realize fully automated operation. At present, most of the automated yards around the world are using RMG cranes.

STS cranes can also be semi-automated or fully automated, but because of the complexity of the operating scenario, need to be combined with the ship’s docking position, container placement to adjust, the difficulty of automation is relatively high.

Q5: Which crane has a greater impact on port competitiveness?

Both cranes have a greater impact on port competitiveness, but with different focuses: STS crane affects the ship turnaround time, the shorter the ship turnaround time, the stronger the competitiveness of the port, and the more shipping companies can be attracted to cooperate; RMG crane affects the efficiency of the yard, the higher the efficiency of the yard, the higher the port’s throughput, which can support the long-term development of the port.

Only when the two work together can the competitiveness of the port be maximized.

Conclusion

Talking about this, I believe you have a clear understanding of the core differences between RMG and STS cranes, and also understand the answer to the question “which is the core of port operations”.

STS cranes are the core of ship-to-shore operations, is the port connected to the sea “gateway”, directly determines the turnaround time of the ship and the port’s berth competitiveness; RMG cranes are the core of the yard operations, is the port’s “warehouseman”, directly determines the yard capacity and container flow efficiency. Capacity and container flow efficiency.

There is no absolute priority between the two, a high-performance container port, inseparable from the seamless synergy between the two. The core of port planning and equipment selection, not to choose “which is better”, but according to their own scale, throughput, development strategy, balance the investment of both, so that they work together to maximize port efficiency.

Henan Mine Crane Factory Custom

Henan Mine Crane has been focusing on the design, production and service of heavy-duty harbor cranes for more than 20 years, and has provided RMG and STS crane solutions for harbors in more than 50 countries and regions around the world, accumulating rich experience in harbor planning and equipment selection.

Whether you need efficient STS cranes to improve the efficiency of ship turnover, or need highly automated RMG cranes to optimize yard management, we can customize the equipment in line with international standards according to your specific needs, from the selection of consulting, design and production, to the installation and commissioning, after-sales maintenance, the whole process of providing professional support, to help you avoid the selection of misunderstandings, and to achieve the port’s efficient and stable operation.

For the port, RMG and STS crane investment, not a simple equipment procurement, but the layout of the long-term development of the port. Only by choosing the right equipment and synergistic cooperation, can we take advantage of the global shipping competition and realize long-term benefits.

Rail mounted gantry cranes, also known as RMG cranes in the industry, are widely used in container yards, coastal ports, railroad freight yards and industrial material storage sites. Many overseas customers will find that the standard models on the market are difficult to fully match their project conditions.

Different countries have different site dimensions, track foundation, power supply standards, frequency of operation. Some yards require multi-layer container stacking, some rail yards focus on precise alignment loading and unloading, and there are also coastal projects to withstand salt spray corrosion for a long time. This is the core reason why customized RMG Crane solutions have become the mainstream choice.

A set of mature customized RMG Crane will not be limited to fixed parameters, but designed around the actual conditions of the site, the current operational needs and future expansion planning. Compared with standardized equipment, customized rail mounted gantry cranes can better adapt to the site layout, fit the rhythm of long-term operation, and reduce the cost of later transformation and operation and maintenance from the root.

Main application scenarios of customized RMG Cranes

Customized RMG Cranes are designed with different structures and configurations according to actual project scenarios. The table below categorizes them by mainstream application areas, working conditions and targeted customization focus:

Application Scenario	Working Condition Features	Core Customization Focus
Container Yard	Daily stacking and internal transfer of 20ft, 40ft and 45ft standard containers, focusing on yard space utilization	Customize lifting height according to stacking layers to support high-layer container storage and maximize yard land utilization
Railway Terminal	High-frequency intermodal handling between trains, yards and trucks, requiring high positioning accuracy	Optimize span and cantilever range to adapt to rail alignment, ensuring stable and accurate container loading and unloading
Port & Intermodal Logistics Hub	Large container throughput, long continuous operation time and uninterrupted logistics transfer	Reinforce structural load-bearing capacity, improve continuous operation adaptability, and reserve terminal system interface
Industrial Yard	Handling of non-container heavy materials such as steel coils, precast parts and large pipes	Match customized lifting tools including hooks, lifting beams and electromagnetic suckers to adapt to various heavy-duty working conditions

RMG Crane Customization Core Parameter Comparison Table

Parameter customization is the core of the whole set of RMG Crane customization program, which directly determines the adaptability and service life of the equipment. The following English comparison table summarizes all the customized parameters that must be verified in the procurement, the optional range and the key points of scenario adaptation, which is convenient for overseas customers to quickly select the model:

Custom Parameter	Optional Custom Range	Custom Purpose & Application
Lifting Capacity	10t ~ 60t (including spreader weight)	Matches standard container, heavy container and industrial heavy cargo handling demands
Span	10m ~ 50m custom design	Fits different container rows, truck lanes and yard overall width
Lifting Height	6m ~ 30m, support multi-layer container stacking	Improves yard storage density, reserves future stacking upgrade space
Cantilever Length	Single-side / double-side 1m~8m	Covers side truck and rail loading areas, eliminates operation blind spots
Traveling Length	Customized according to yard block length	Determines full yard coverage and overall handling productivity
Working Duty	A5 ~ A8 industrial grade	Matches daily operation frequency, adapts intermittent or 24h continuous work
Power Supply Mode	Cable reel, conductor rail, sliding contact line	Adapts local voltage, frequency and site infrastructure conditions
Control Method	Cabin / Remote / Semi-auto / Full-auto	Meets current operation needs and future intelligent upgrade plans

Exclusive customized design based on yard layout

Every yard layout is unique, which is the key reason why standardized equipment is not universal. Before we customize the design, we fully check the core layout data of the customer’s site.

We will count the number of rows of containers, the width of truck aisles, the location of railroad tracks and areas reserved for equipment maintenance, and strictly control all safety spacing. All parameters will be designed to fit the site layout, and there will be no mismatch between the equipment and the site.

For old yards with existing track foundations, we will customize the matching wheel pressure parameters according to the existing track type, gauge and foundation bearing capacity, so as to avoid additional costs for foundation modification. For brand-new yards, we will reserve space for equipment upgrading and track extension in combination with the demand for capacity expansion at a later stage.

At the same time, we will account for site obstacles, building spacing, and top clearance height, to ensure that the entire operation of the equipment is unobstructed, taking into account the safety of operation and the convenience of maintenance in the later stage.

Customized Safety Protection System Configuration

The safety configuration will be customized according to the operating scenarios and regional environments, eliminating the problem of insufficient protection or functional redundancy brought about by the unified standard configuration.

All customized RMG Cranes are equipped with basic safety devices, including overload limiter, emergency stop device, upper and lower limit switches, traveling buffer device and fault alarm system, to ensure basic operational safety.

For outdoor open-air operation scenarios, we will add wind speed alarms, rail clamps, lightning protection devices and rain covers for electrical components. We will upgrade the anti-corrosion coating system in the coastal salt spray area, and optimize the equipment protection process in the inland dusty and extremely warm area.

Container operation exclusive anti-swing system, anti-collision device, laser positioning assistance system, can be selected according to customer needs, to further enhance the stability and accuracy of the operation.

Customized Electrical and Automation Solutions

The customization of the electrical system mainly focuses on the brand of accessories, control logic and automation level. Customers can specify the brands of core accessories such as motors, gearboxes, brakes, PLC control systems, etc., to meet the project acceptance standards.

The whole machine is equipped with frequency conversion control system as standard, which can effectively reduce the loss of mechanical structure, improve the positioning accuracy of the equipment and extend the service life of the whole machine.

The automation configuration supports gradient customization. The basic model meets the demand for manual control, the mid-range model is equipped with remote control function, and the high-end fully automated model can realize automatic container identification, precise alignment, unmanned stacking, and can also be docked to the intelligent management system of the yard, which is suitable for different budgets and upgrade planning.

Customization of steel structure and environment

The steel frame of RMG Crane is the core of load-bearing equipment. We optimize the structural strength of the main girder, outriggers and end girder according to the equipment span, lifting capacity and local wind parameters, and match them with exclusive access platforms and non-slip walkways.

The coating and anti-corrosion process is completely customized. Ordinary inland industrial sites use conventional anti-corrosion spraying, humid and rainy areas with thicker protective coatings, and coastal port projects use heavy-duty anti-corrosion process to resist salt spray corrosion, suitable for long-term outdoor harsh working conditions.

Customized RMG Crane complete landing process

The whole set of customized service starts from the demand docking, one-on-one follow-up, to ensure that the program, production, delivery, landing the whole process to adapt to the project requirements.

We first collect the customer’s operational requirements, site drawings and power supply parameters, complete the program design with the layout of the yard, and issue detailed technical solutions, equipment drawings and wheel pressure data. After both parties confirm the parameters and configuration, we define the scope of supply, including the main engine, spreader, track accessories, electrical system, after-sales support services and other content.

The production stage strictly follows the customized drawing processing, completes the whole process of quality inspection, such as welding, non-destructive testing, whole machine assembly, no-load load test, etc., and keeps complete inspection records. After the equipment leaves the factory, according to the size of the equipment to do section packing, suitable for ocean shipping transportation, to avoid transportation loss.

After the equipment arrives at the site, we provide professional installation guidance, machine commissioning and operator training to ensure that the equipment is quickly put into operation.

Core information to be prepared by the customer before inquiry

Precise customized solutions cannot be separated from complete project information. Customers prepare the relevant data in advance, can significantly shorten the program docking cycle.

Basic equipment parameters include the required lifting capacity, span, lifting height, cantilever length, track travel distance and equipment operating level. At the same time, it is necessary to clarify the local voltage frequency, power supply mode and maneuvering requirements.

Operational information includes container specifications, maximum cargo weight, number of stacking levels and operational scenarios. Site information includes yard layout, track type, foundation conditions, maximum local wind speed and temperature and humidity environment.

Finally, the trade terms, delivery period, warranty requirements and required acceptance documents are clarified, and we can issue accurate customized solutions and detailed quotations.

Common Purchasing Mistakes of Customized RMG Cranes

Many customers only focus on the purchase price when purchasing, ignoring the integrity of the customized configuration. Low-priced solutions often reduce the steel structure materials, simplify the safety configuration, and choose common accessories, which will result in a higher long-term failure rate.

Some buyers ignore the importance of wheel pressure parameters, without checking the foundation bearing capacity in advance, resulting in equipment installation can not operate normally, the need to remodel the foundation for the second time, increasing additional costs.

Other customers only meet the current operational needs, ignoring the later yard expansion and automation upgrades, the equipment can not be adapted to the new needs after a few years of use, resulting in a waste of equipment. Clearly defining the scope of supply and reserving space for upgrading are the keys to customized procurement.

Why choose Henan Mine Crane for customized RMG cranes?

As a senior Chinese RMG Crane supplier, we have a full range of customized R & D and production capacity, and can completely one-to-one design solutions according to the working conditions of overseas projects, without applying common templates.

We have mature overseas project landing experience, familiar with the power supply standards, environmental conditions and export acceptance requirements, we can provide a full set of English technical drawings, test reports and customs clearance information, suitable for global project acceptance.

We provide one-stop customized service, from solution design, manufacturing, quality inspection and packaging, to shipping docking, on-site commissioning, after-sales maintenance, to solve the problem of cumbersome docking and after-sales lag of overseas customers.

Frequently Asked Questions

Is it possible to customize the equipment to fit the customer’s existing old rail system?

Yes, we can. We will first check the existing rail type, gauge and foundation wheel pressure limitations, and adjust the equipment traveling structure and wheel pressure parameters to fit the original site facilities.

Can the customized RMG Crane be used for both container and general cargo lifting?

Yes, it can. It can be equipped with switchable spreader, which can be used for both container stacking and general heavy materials lifting, and is suitable for the needs of multi-functional yard operation.

Does the customized model support later automation upgrade?

Yes. We can reserve the intelligent control interface in advance, so that you can directly upgrade the remote control, automatic positioning and other functions later without replacing the whole machine.

Summarize

As a professional global manufacturer of custom RMG cranes, Henan Mine Crane has extensive experience in overseas container yards, railway terminals As a professional global manufacturer of custom RMG cranes, Henan Mine Crane has extensive experience in overseas container yards, railway terminals and logistics hub projects. We provide full-service support including parameter customization, structural optimization, environmental adaptation, technical docking, on-site guidance and complete after-sales service, delivering stable, site-specific RMG crane solutions for global clients.

If you have RMG crane customization and procurement needs, provide your specific parameters including lifting capacity, span, lifting height, cantilever length and yard conditions. If you have RMG crane customization and procurement needs, provide your specific parameters including lifting capacity, span, lifting height, cantilever length and yard conditions. Henan Mine Crane’s professional engineering team will design exclusive custom rail mounted gantry crane solutions for your project.
