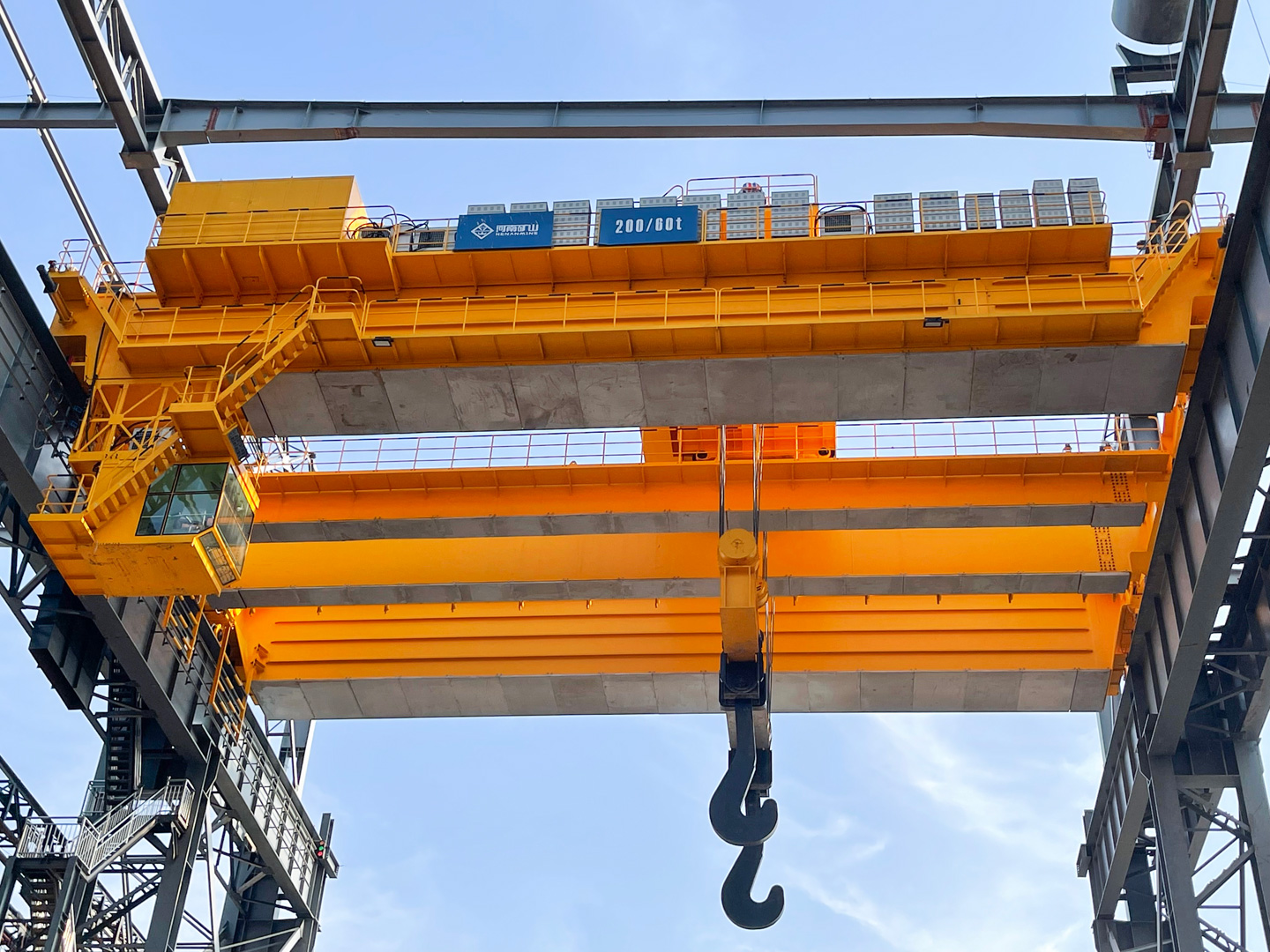

Product Introduction of Henan Mine Crane’s Four-Girder Casting Bridge Crane

Henan Mine Crane’s four-girder casting bridge crane is a heavy-duty core equipment custom-designed for foundry workshops in steel and non-ferrous metal smelting industries. It precisely adapts to extreme operating conditions such as molten metal handling, ladle transfer, and casting lifting.

Featuring a four-beam, four-rail, dual-trolley structure at its core, the equipment integrates intelligent welding techniques, multi-level safety redundancy design, and enhanced high-temperature protection. This addresses industry pain points inherent in traditional double-beam casting cranes—poor load-bearing stability, weak torsional resistance, and high-temperature failure susceptibility—delivering a safe and reliable material handling solution for 24/7 continuous heavy-duty operations in foundries.

Core Technical Advantages

1. Four-beam, four-rail structure with stable load-bearing and high torsional resistance: Utilizing a four-beam, four-rail dual-trolley layout, the main beams are constructed from Q235B/Q345B high-strength steel. Optimized through finite element analysis, the structure exhibits superior stiffness under vertical and horizontal loads compared to LQ/1700, with strength ≤1000 kg/cm², far exceeding industry standard requirements. The trolley employs a balanced 20-wheel configuration with uniform wheel pressure distribution, effectively reducing structural steel costs for factory buildings.
2. Full-process safety redundancy ensures secure molten material handling:
   The main hoisting mechanism employs a redundant design with dual motors, dual reducers, and quadruple braking. If one motor fails, the other can temporarily operate to complete the current cycle. Multiple safeguards include overload warning, forced power shutdown at 1.05 times load capacity, infrared temperature monitoring, and anti-collision systems. An upper limit switch on the power circuit prevents hook collisions with the body, eliminating molten metal splatter.
3. Intelligent Manufacturing Processes Enhance Overall Reliability:
   The main girder welding employs industry-leading intelligent welding robots. Internal welds utilize MAG welding with a mixed shielding gas of Ar and CO₂, while external welds employ automatic submerged arc welding. All welds undergo radiographic testing and ultrasonic flaw detection to ensure welding quality, guaranteeing machining precision and service life.
4. High-Temperature Adaptive Design for Enhanced Operating Environment
   The lower section of the main beam incorporates dual thermal insulation systems. An internal cooling fan maintains optimal operating conditions for electrical control equipment. The operator cab features a fully enclosed, insulated structure with integrated cooling fans/air conditioning. The large-format tempered glass front panel provides expansive visibility while blocking high-temperature radiation. Electrical system utilizes IP55-rated, H-class insulation YZR series metallurgical motors, adapted for foundry workshops’ high-temperature, high-dust conditions to effectively prevent component failure.
5. Modular customization for diverse production needs
   Core parameters are customizable. Rated lifting capacities range from 125/32 to 320/80 tons, with spans ranging from 19 to 28.5 meters and lifting heights from 22 to 32 meters. The gantry hook supports both rotating and non-rotating configurations. Employing modular, equal-strength, equal-lifespan design, transmission and structural components are optimally matched for ease of maintenance. Customizable fully automated operation enables remote monitoring and fault diagnosis, supporting seamless integration with MES production systems. Operational efficiency improves by 32% compared to traditional equipment.

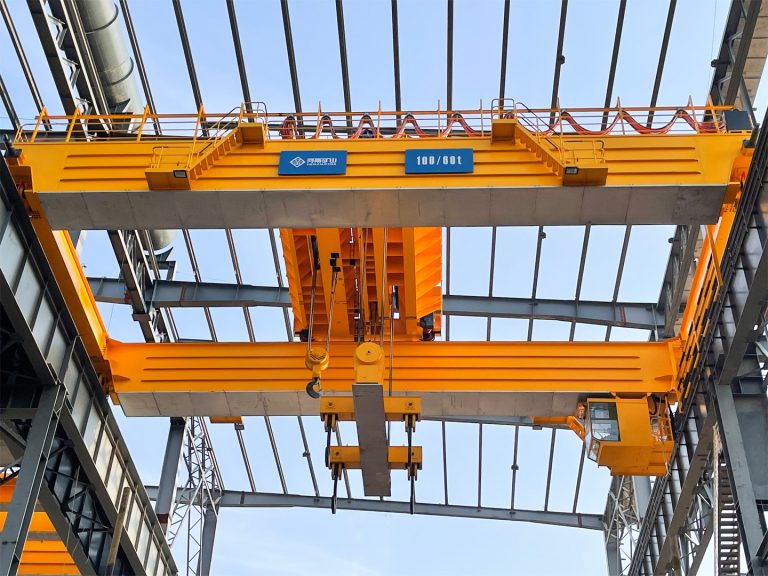

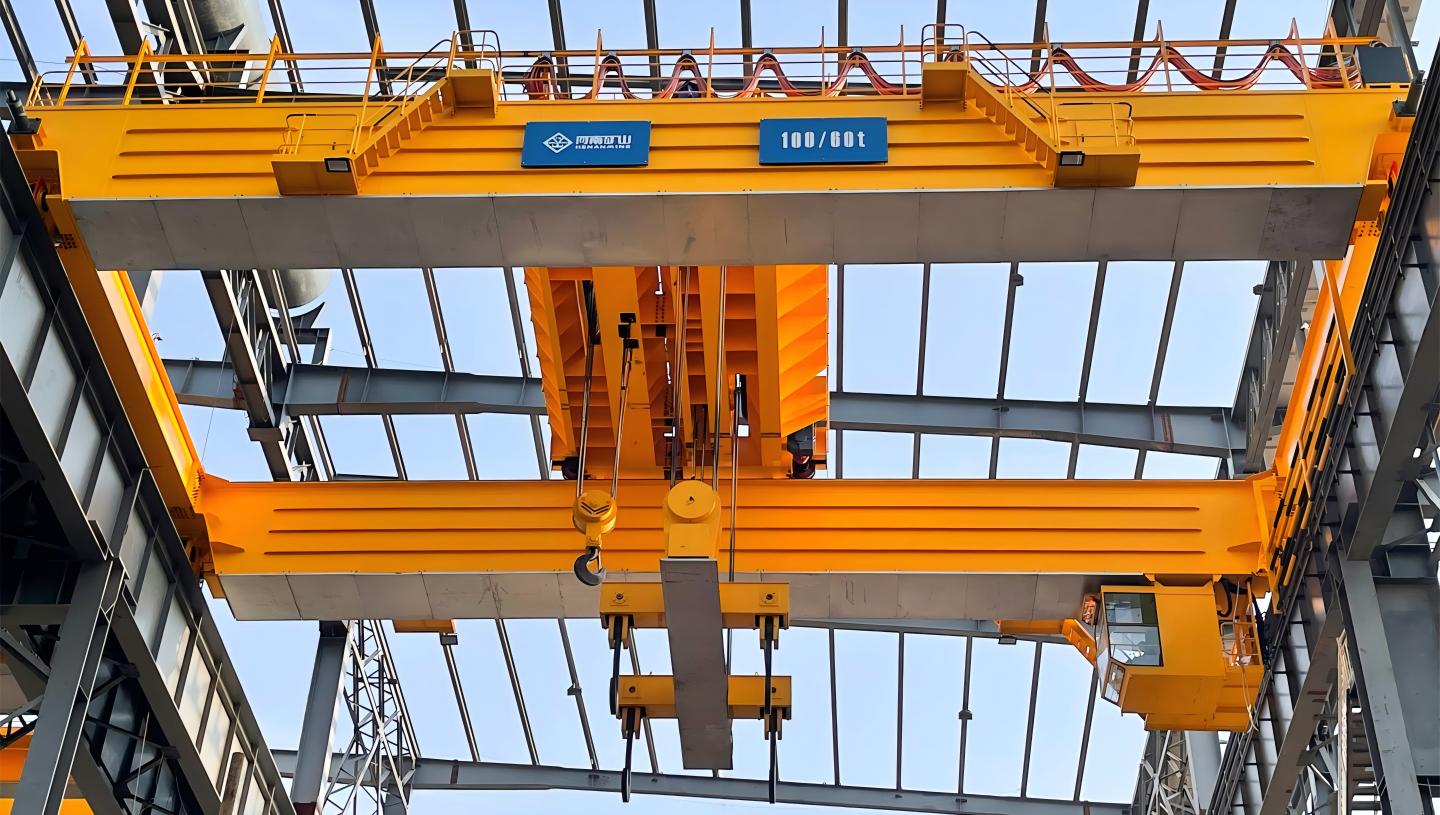

   Henan Mine Crane’s Four-Girder Casting Bridge Crane

   Application Scenarios

   Specifically engineered for core foundry processes, it is widely used in steel and non-ferrous metal smelting for transporting molten metals (steel/copper), casting, iron blending, lifting large castings, and mold handling. Operates in -30°C to 40°C environments, withstands long-term 1000°C radiation, meets A7 duty cycle standards, and supports continuous operation exceeding 8000 hours annually.



   Henan Mine Crane’s Four-Girder Casting Bridge Crane

   Benchmark Case Endorsement

   A customized 260/100t four-girder casting bridge crane for a major steel group meets the demands of its 12-million-ton-per-year steelmaking workshop. Post-commissioning, it achieved zero accident rate in molten metal handling, boosted operational efficiency by 32%, and reduced annual maintenance costs by 18%, establishing itself as a flagship equipment for the enterprise’s smart manufacturing upgrade. Leveraging the structural advantages and manufacturing capabilities of this product series, Henan Mining consistently provides customized solutions and spare parts services to major domestic metallurgical enterprises, earning widespread industry recognition.



   Henan Mine Crane’s Four-Girder Casting Bridge Crane

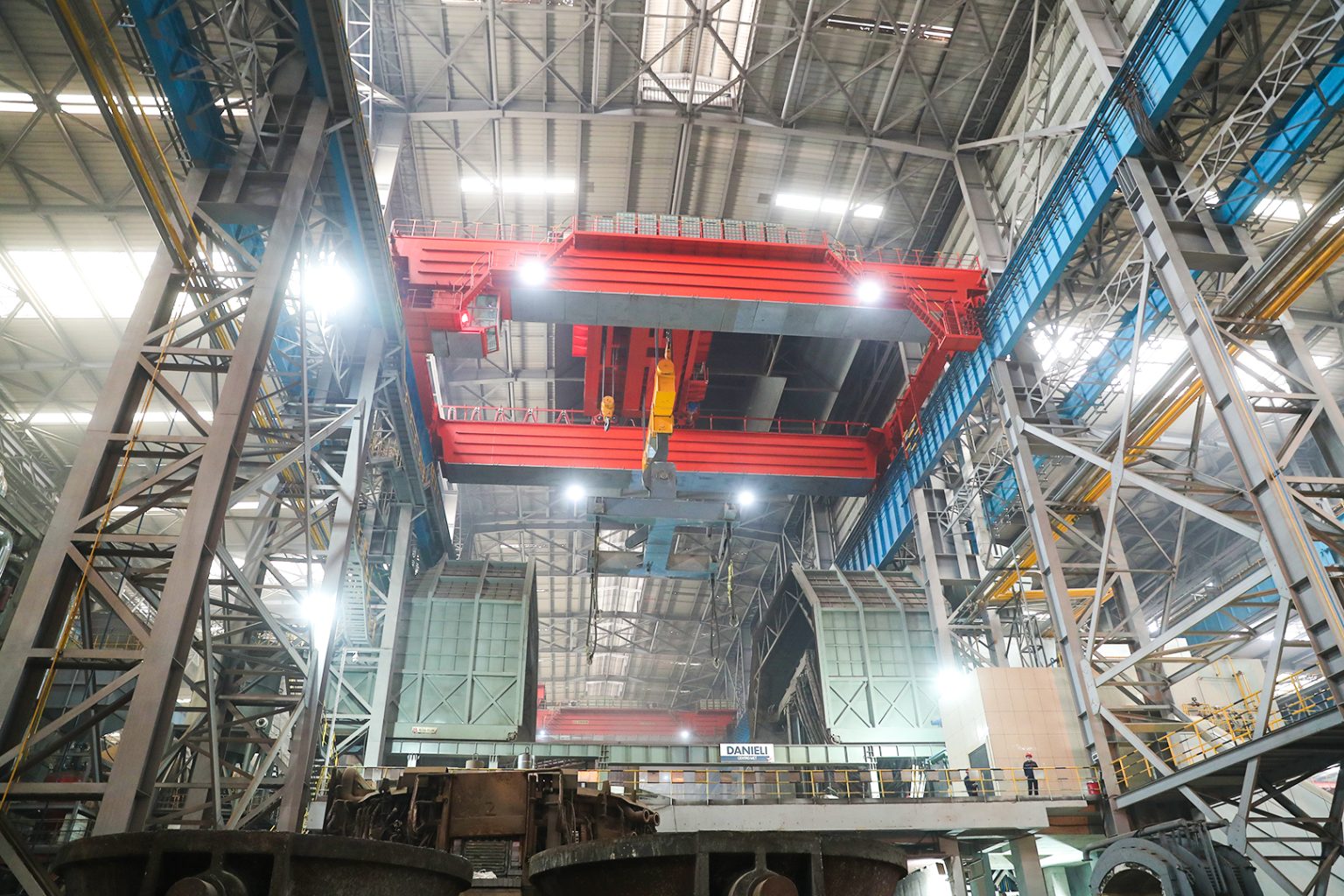

Product Introduction of Henan Mine Crane’s 360t Foundry Crane

The Henan Mine Crane 360t Foundry Crane is a super-heavy-duty material handling solution custom-engineered for large-scale steel and metallurgical enterprises’ heavy foundry workshops. It precisely addresses extreme operating conditions such as transporting 360t-class molten metals (steel/iron), casting massive components, and moving heavy molds.

Featuring a four-girder, four-rail, dual-trolley structure, the equipment integrates Q690 high-strength steel intelligent welding technology, multi-level safety redundancy design, and enhanced high-temperature protection. This eliminates industry pain points such as poor load stability, weak torsional resistance, high-temperature failure risks, and elevated safety hazards in ultra-heavy-duty casting cranes, enabling 24/7 continuous heavy-load safe operation.As Henan Mine Crane’s breakthrough product that disrupted state-owned enterprise monopolies, this model achieves industry-leading innovations in large-span, high-precision, and safety performance. It has been successfully delivered to benchmark projects like Jinsheng’an Group and operates reliably. Certified against multiple mandatory national standards including AQ7011—2018 “Safety Regulations for Lifting Molten Metals at High Temperatures” and and GB/T 14405-2011. It serves as core support equipment for intelligent, large-scale production in major foundries.



Core Technical Advantages

1. Four-beam, four-rail reinforced structure with stable load-bearing and exceptional torsional resistance: Features a four-beam, four-rail dual-trolley layout. The main beams utilize Q690 high-strength low-alloy structural steel, optimized through finite element analysis. Simulated under 360t full load, off-center load, and high-temperature radiation conditions, it ensures uniform load distribution. Structural rigidity exceeds LQ/1700 standard requirements, with torsional resistance improved by 50% compared to traditional double-beam structures. The trolley employs a balanced 24-wheel arrangement, distributing wheel pressure evenly to significantly reduce structural load on the plant building and minimize retrofitting costs.
2. Comprehensive Safety Redundancy, Fortifying Molten Metal Handling Defenses: The main hoisting mechanism features an ultimate redundant design with dual motors, dual reducers, and quadruple braking. Should a single motor or reducer fail, the other set can independently complete one full work cycle, ensuring safe molten metal placement. Wire ropes utilize GB/T 8918 standard wire rope core-specific models with a safety factor of 9:1 (far exceeding the industry standard of 5:1), maintaining safe load-bearing capacity even if two diagonal wires break. Multiple safeguards include 90% overload warning, forced power shutdown at 1.05 times rated load, infrared temperature monitoring, and collision avoidance alerts. The hoisting mechanism incorporates an upper limit switch on the power circuit to prevent molten metal splatter caused by hook collisions with the machine body.
3. Smart Manufacturing Processes Enhance Overall Reliability: Main beam welding employs intelligent robotic dual-wire submerged arc welding. Internal welds utilize MAG welding with mixed Ar+CO₂ shielding gas. All welds undergo 100% radiographic and ultrasonic testing with 100% pass rate. Large structural components like drums and trolley frames undergo natural gas annealing to fully eliminate welding stresses. Wheels and axles receive high-efficiency quenching and tempering treatment, achieving HRC 38-42 hardness and 30% improved wear resistance. The machine’s mean time between failures significantly exceeds industry benchmarks.
4. High-Temperature Precision Protection for Extreme Environments: To withstand foundry workshop temperatures exceeding 1000°C, the lower section of the main beam incorporates dual ceramic fiber insulation. An intelligent cooling fan system within the main beam maintains the electronic control equipment’s operating temperature ≤40°C.
5. The electrical system employs IP55-rated, H-class insulated YZR series metallurgical motors with ≥125°C temperature resistance. Combined with sealed dustproof cooling modules, it effectively withstands high temperatures and dust corrosion. The fully enclosed, insulated operator cab features industrial-grade air conditioning and radiation-resistant tempered glass, ensuring a comfortable and safe working environment.
6. Modular Customization + Intelligent Synergy for Diverse Applications: Core parameters are customizable to meet specific requirements. The gantry hook supports both rotating and non-rotating configurations, precisely adapting to layouts of heavy casting workshops of varying scales.
7. Featuring modular, equal-strength, equal-lifespan design, transmission and structural components offer high interchangeability for simplified maintenance. Supports fully automated operation with remote monitoring and fault diagnosis systems, seamlessly integrating with enterprise MES production execution systems. Enables automatic task reception and real-time operational data upload, boosting efficiency by over 35% compared to traditional equipment.

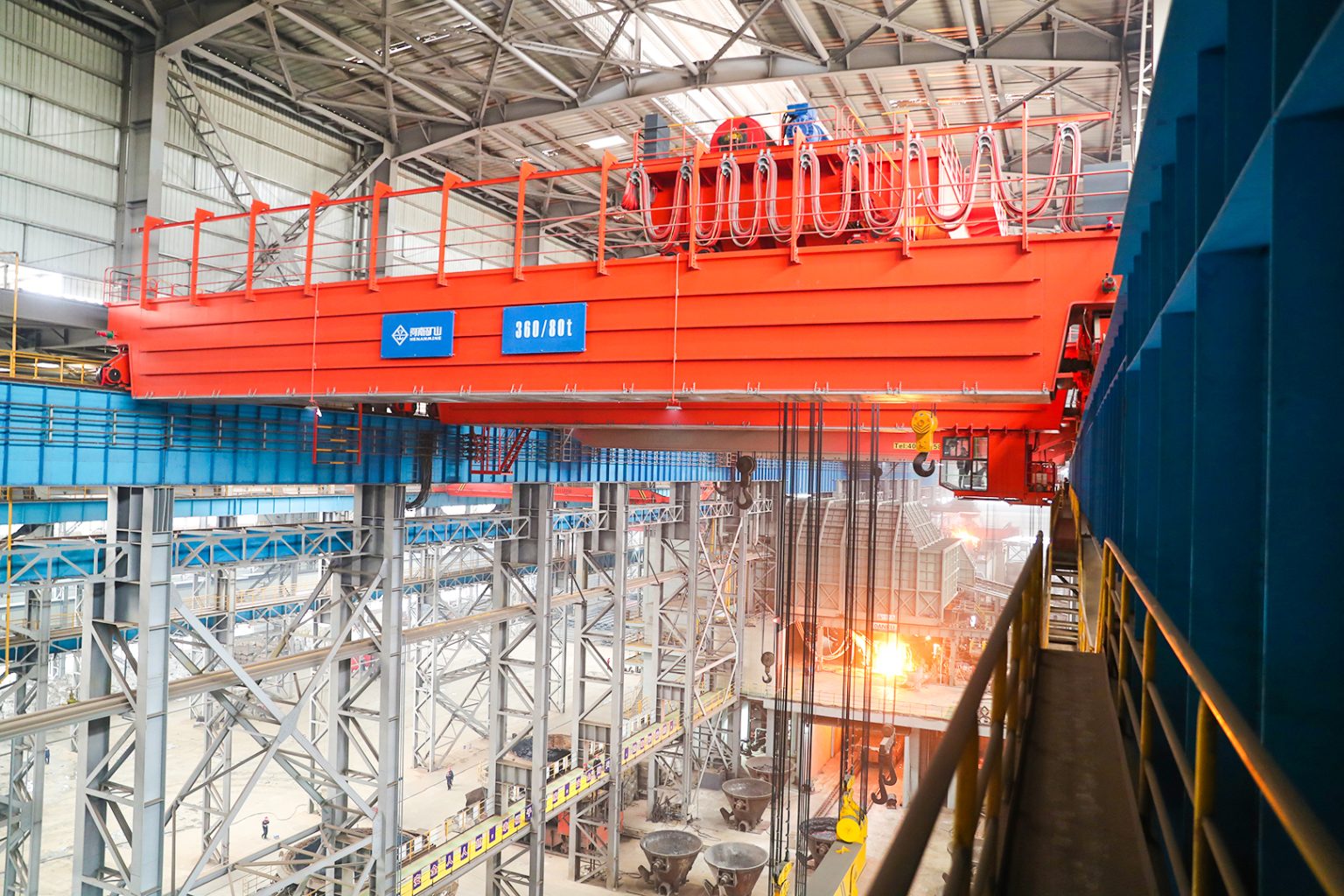

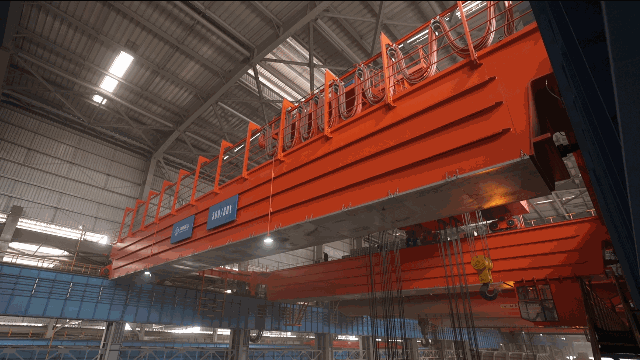

   Henan Mine Crane’s 360t Foundry Crane

Suitable Applications

Specifically engineered for core processes in heavy casting workshops of large steel and metallurgical enterprises, it is widely applied in scenarios such as transporting 360-ton-class molten metals (steel and iron), casting massive components, handling heavy molds, and lifting finished products for storage. It operates in environments ranging from -30°C to 40°C and can withstand long-term exposure to 1000°C high-temperature radiation.

with a duty cycle rating of A7, meeting the demands of continuous heavy-duty operations exceeding 8,000 hours annually.

Benchmark Case Endorsement

The 360-ton four-girder casting crane manufactured for Jinsheng’an Group represents Henan Mine Crane’s landmark achievement in breaking state-owned enterprise monopolies within the heavy-tonnage casting crane sector. Precisely tailored to the production demands of its heavy casting workshop, the equipment has achieved zero accident rate in molten metal handling since commissioning, with monthly average failures below 1 instance. Operational efficiency increased by 35%, and reduced annual maintenance costs by 20%, earning high praise from the client. The successful delivery of this project fully demonstrates Henan Mine Crane’s core capabilities in R&D, manufacturing, and commissioning of ultra-large-tonnage casting cranes, providing a proven solution for similar industry projects.

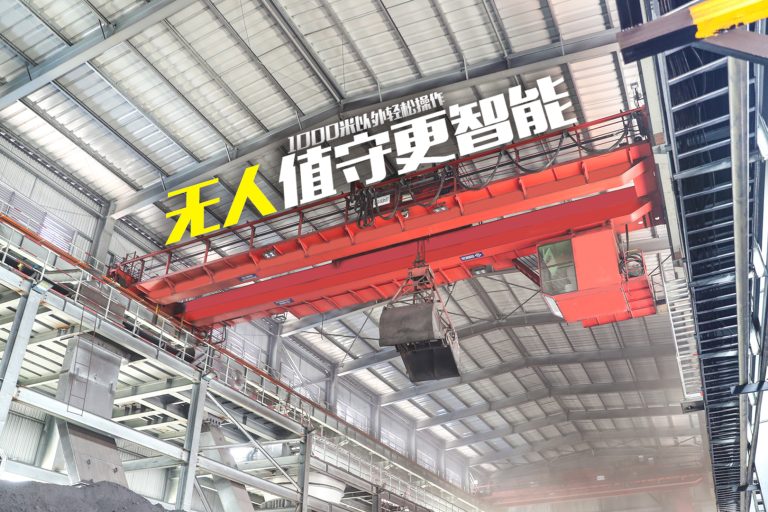

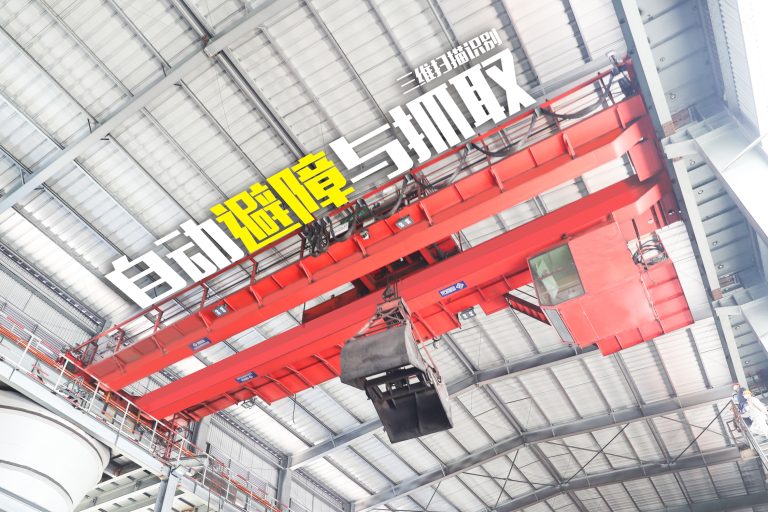

Henan Mine Crane Unmanned Grab Crane: Pioneering Intelligent Manufacturing in the Steel Industry — Benchmark Case Study: Baowu Shaogang 250,000T Rotary Kiln Project

Unmanned Grab Cranes, as core equipment in the era of intelligent manufacturing, are becoming a key driver for upgrading global heavy industries such as steel and metallurgy. Leveraging its core competencies in “customized R&D + technical benchmarking,” Henan Mine Crane has delivered intelligent lifting solutions for high-end manufacturing projects across more than 40 countries and regions worldwide. Among these, the 250,000-ton rotary hearth furnace project in collaboration with Baowu Group’s Shaoguan Iron & Steel stands as a prime example of how intelligent grab cranes can adapt to the demanding conditions of the metallurgical industry.

1. Project Overview

To meet these high-end requirements, Henan Mine Crane custom-engineered two unmanned grab cranes, fully adapted to rotary hearth furnace characteristics. These cranes became the “intelligent lifting core” for project implementation, enabling Shaogang to leapfrog from “manual operation” to “unmanned operation.”

2. Core Product Advantages: Precisely Addressing Metallurgical Industry Pain Points

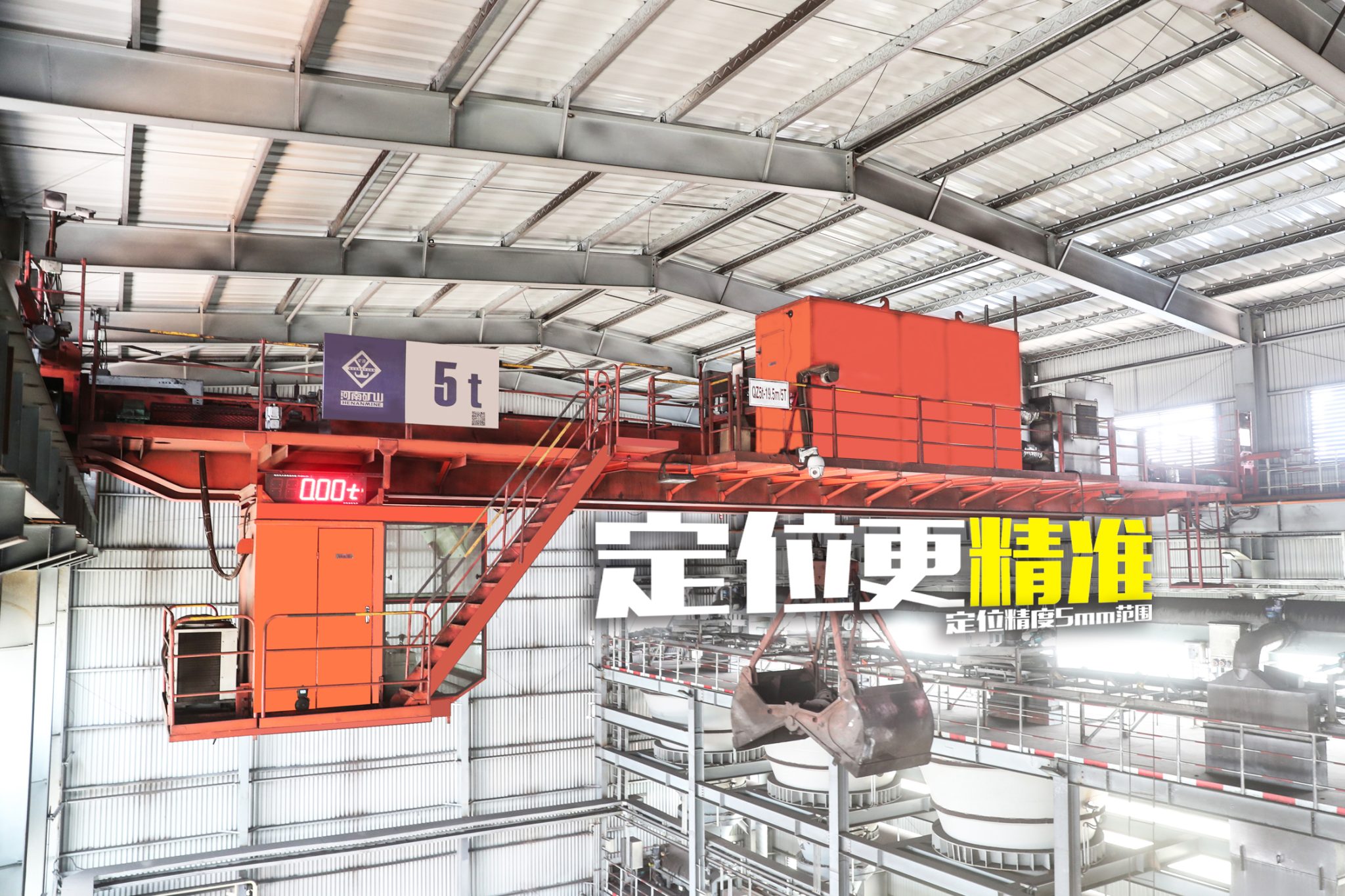

This batch of unmanned grab cranes specialized for rotary hearth furnaces integrates cutting-edge technologies like 3D scanning and automated coordination. Their core strengths encompass “precision, intelligence, sustainability, and safety”

• 5mm Precision Positioning Ensures “One-Button Steelmaking” Synergy: Equipped with high-precision 3D scanning and automatic positioning systems, the equipment maintains positioning and repetitive operation accuracy within 5 millimeters—far exceeding the industry standard of 10-15mm. This capability makes the 5mm Precision Positioning Unmanned Crane for the Steel Industry perfectly suited to rotary hearth furnace requirements for “precise charge feeding and efficient billet transfer.” Seamless integration with intelligent steelmaking systems prevents production interruptions caused by positioning errors, boosting transfer efficiency by 30% compared to traditional cranes.
• Remote Unmanned Operation for a Green Work Environment: Operators remotely control the crane from a central control room 1,000 meters away, completely avoiding dust pollution in metallurgical workshops and significantly reducing worker labor intensity. Since its deployment, this dust-environment remote-controlled grab crane has operated with zero faults, earning unanimous recognition from frontline overhead crane operators to management at Shaogang. It has also attracted delegations from multiple global metallurgical enterprises for study tours.
• Industry Benchmark Certification, Technical Strength Gains Authoritative Recognition: The equipment’s unmanned operation level reaches the top tier domestically, drawing significant attention from the North China Institute of Heavy Machinery. Both parties jointly established inspection and testing standards for this type of equipment, making the Baowu Shaogang 250,000-ton Rotary Kiln Unmanned Grab Crane a technical model in the industry and providing a “Chinese standard” reference for intelligent lifting equipment in the global metallurgical sector.

3. Endorsed by Deep Collaboration

Henan Mine Crane’s partnership with Baowu Group enterprises is no coincidence: In 2018, we were selected as Baosteel Zhanjiang’s premium supplier; we have consistently served as Shaogang Steel’s annual contract partner for overhead crane spare parts; and previously developed the first unmanned overhead crane for the water slag transfer workshop at Shaogang’s No. 6 blast furnace.

II. Corporate Hard Power

When selecting lifting equipment, international clients evaluate not only project case studies but also corporate production capacity and technical assurance. Since 2015, Henan Mine Crane has consistently ranked among the top in domestic industry metrics for production volume, sales, and market share: • Operates over 600 welding/machining robots and more than 100 automated welding/machining production lines, achieving independent R&D and precision manufacturing of core components; It has been recognized as a “National Green Factory” and “Henan Provincial Smart Factory,” with products certified under ISO, CE, and other international standards, fully meeting global industry requirements across regions.

III. Global Application Cases

Beyond the Baowu Shaogang benchmark project, Henan Mine Crane’s unmanned grab cranes have been successfully adapted for multiple metallurgical and steel projects worldwide, further demonstrating their versatility and reliability:

• Southeast Asia Steel Plant (2 million tons/year): Supplied 3 dust-environment-specific unmanned grab cranes adapted for local tropical high-temperature/high-humidity conditions. Enhanced moisture-proof and anti-corrosion designs, with a remote control system supporting multi-language switching. Equipment operated continuously for 18 months with zero failures.
• A large metallurgical project in the Middle East: Customized four salt-fog resistant unmanned grab cranes. Optimized metal structure coatings for the highly corrosive desert fringe environment, maintaining positioning accuracy within 5mm standards. This enabled the client to achieve efficient recycling and processing of metallurgical waste.
• Specialty Steel Plant in Europe: Supplied two intelligent collaborative unmanned grab cranes compliant with CE certification requirements. Integrated multi-device coordination scheduling system seamlessly interfaces with the client’s existing smart manufacturing platform, significantly enhancing production flexibility.


IV. Dedicated Service System for International Clients

Addressing core concerns of overseas clients, we established an end-to-end assurance mechanism for worry-free collaboration:

Customized R&D: Delivering comprehensive solutions from parameter design to 3D simulation based on project processes, environmental conditions, and international standards (CE/FEM/DIN);

Global Logistics & Compliance: Partnering with logistics giants like Maersk and Hapag-Lloyd to resolve oversized component transportation challenges while assisting with customs clearance, certification, and other compliance procedures;

Overseas Implementation Support: Dispatch bilingual technical teams for on-site equipment installation, commissioning, and operator training to ensure rapid production start-up;

After-Sales Maintenance Assurance: Operate a 24/7 multilingual (English, German, Spanish, Arabic) service hotline. Maintain three overseas spare parts warehouses in Germany, Singapore, and the UAE with a maximum 72-hour response time for spare parts.

V. Vision for Collaboration: Empowering Global Industrial Upgrades with Intelligent Lifting Equipment

From the 5mm precision positioning unmanned grab crane deployed in Baowu Shaogang’s 250,000-ton rotary kiln project to successful implementations across global metallurgical initiatives, Henan Mine Crane consistently prioritizes “technological innovation” as its core and “green intelligence” as its direction, delivering “safer, more efficient, and more environmentally friendly” lifting solutions to global clients.

If your enterprise operates in steel, metallurgy, non-ferrous metals, or related fields and is seeking unmanned rotary hearth furnace cranes, “remote-controlled lifting equipment for dusty environments,” or customized intelligent lifting solutions, please feel free to contact us anytime. We not only provide high-quality equipment meeting international standards but are also committed to becoming your trusted long-term strategic partner, jointly advancing intelligent manufacturing and green upgrades in global heavy industry!

Henan Mine Crane Fully Automated Metallurgical Crane: Empowering Intelligent Upgrades in Alloy Smelting —— Benchmark Case Study: Inner Mongolia Ferrochrome Project

Fully Automated Metallurgical Cranes serve as the “intelligent feeding core” for producing specialty alloys like ferrochrome and ferromanganese. Their automation level, positioning accuracy, and safety reliability directly determine a smelting project’s production efficiency, raw material utilization rate, and green transformation outcomes.

Henan Mine Crane manufactured fully automated metallurgical cranes have become the preferred equipment globally for the special alloy smelting industry. The successful commissioning and high recognition of multiple units customized for a chromium iron project in Ulanqab, Inner Mongolia, further validates the product’s deep adaptability to special alloy smelting scenarios.

I. Core Benchmark Project

1. Project Overview: Advanced Intelligent Requirements for Special Alloy Smelting

A chromium iron project in Ulanqab, Inner Mongolia, focuses on high-quality chromium iron production. As a key local industrial initiative, its core objectives address three critical pain points: “efficient raw material feeding, intelligent production processes, and controllable operational safety.”

To address these core needs, Henan Mine Crane custom-engineered multiple sets of fully automated metallurgical cranes specifically for ferrochrome projects. These cranes perfectly align with the ferrochrome smelting process, fully automating the entire raw material feeding workflow.

2. Core Product Advantages

This batch of 50-ton fully automated metallurgical cranes addresses special alloy smelting challenges through technological innovation, delivering core advantages across four dimensions: “Intelligence, Efficiency, Precision, and Safety.”

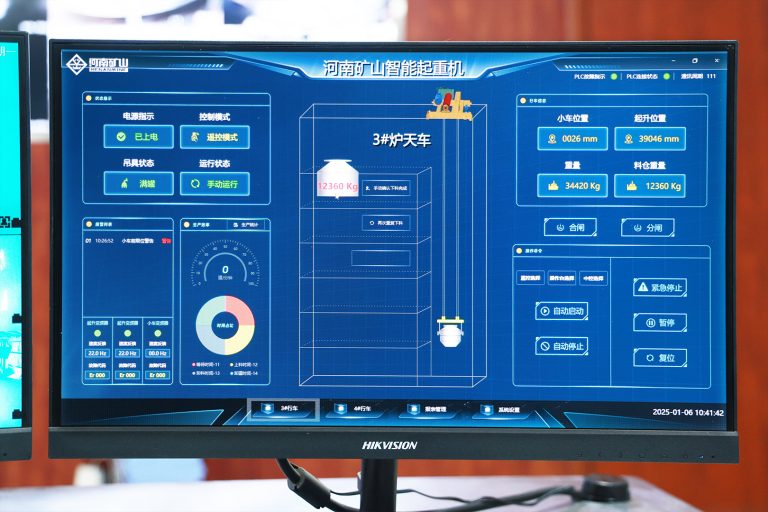

• Full-Process Automated Control Enables Unmanned Feeding: Equipped with a remote intelligent centralized control system, it automatically completes the entire process—hooking, unhooking, and feeding. This Fully Automated Feeding Metallurgical Crane for Ferrochrome Smelting eliminates manual dependency, becoming the core support for unmanned production in special alloy smelting.
• High-Efficiency Feeding Accelerates Production, Unleashing Capacity Potential: Possessing precise and rapid material grasping and handling capabilities, its intelligent system locates hoppers within milliseconds and accurately grasps raw materials, significantly reducing feeding time. It stands as the exemplar of high-efficiency feeding cranes for special alloy smelting.
• Precision Positioning & Anti-Sway for Operational Stability: Integrating advanced anti-sway functionality with core positioning algorithms, it achieves millimeter-level accuracy to precisely control material drop points, preventing raw material spillage and equipment collisions. This highlights the core value of the High-Precision Anti-Sway Fully Automatic Metallurgical Crane.
• Multi-Layer Safety Protection for Full Lifecycle Management: Equipped with multi-tiered safety systems and real-time monitoring modules, it tracks equipment status throughout operation, providing instant alerts for limit violations, abnormal loads, and other risks. It also supports full lifecycle data traceability and fault diagnosis. This sets the benchmark for high-safety metallurgical cranes in special alloy smelting.


3. Project Value

Following deployment, this batch of fully automated metallurgical cranes earned high praise from clients for their intelligent efficiency, precision stability, and safety reliability. They have become the core equipment supplier for intelligent upgrades in Inner Mongolia’s special alloy smelting industry.

II. Corporate Capabilities

• Technology R&D: Focused on developing fully automated, intelligent metallurgical cranes, holding multiple core patents in remote centralized control, precision positioning algorithms, and anti-sway technology
• Production Capacity & Quality: Equipped with over 600 welding/machining robots and 100+ automated production lines. Core components are self-manufactured, fully compliant with global metallurgical safety standards.
• Scene Experience: “Minesource” brand cranes have been validated in special alloy smelting projects worldwide, accumulating extensive experience in high-temperature, dusty, and continuous operation environments. Capable of rapidly responding to customized client requirements.

III. Global Application Cases

Henan Mine Crane’s Fully Automated Metallurgical Cranes have successfully served multiple global special alloy smelting projects

• Southeast Asia Manganese Iron Project: Supplied 6 units of 50t fully automated metallurgical cranes. Upgraded moisture-proof and anti-corrosion designs for local high-temperature, high-humidity environments. Intelligent feeding system adapted to manganese iron smelting raw material characteristics, enabling the client to achieve a monthly manganese iron output of 12,000 tons.
• Special Alloy Project in Europe: Customized 4 units of 60t fully automated metallurgical cranes compliant with EU CE certification and environmental standards, meeting precision production requirements for high-end specialty alloys.
• Middle East Ferrochrome Smelting Project: Supplied 3 units of 50t fully automated metallurgical cranes. Engineered to withstand extreme temperature fluctuations and sandstorm conditions in desert regions, with precision positioning systems maintaining millimeter-level accuracy even during low-visibility dust storms.


IV. Dedicated Service System for International Clients

Addressing core concerns of overseas special alloy smelting clients, we established a comprehensive worry-free service mechanism:

Customized R&D: Providing full-cycle tailored services—from parameter design and 3D simulation to sample testing—based on project alloy types, capacity requirements, operating conditions (high temperature, dust, temperature fluctuations), and international standards (CE/FEM/EN).

Global Logistics & Compliance: Partnering with international logistics giants like Maersk and COSCO Shipping to resolve challenges in transporting oversized components for fully automated metallurgical cranes and navigating cross-border customs clearance, ensuring timely and compliant delivery to designated locations.Overseas On-Site Support: Deploying bilingual technical teams for on-site equipment installation, commissioning, and specialized operator training. Providing one-on-one guidance for specialized alloy smelting processes to ensure rapid commissioning within 10 days.

V. Collaborative Vision: Empowering Global Alloy Smelting Upgrades with Intelligent Equipment

From the 50t fully automated metallurgical crane for the Inner Mongolia ferrochrome project to the successful implementation of multiple specialty alloy projects worldwide, Henan Mine Crane has consistently pioneered intelligent lifting technology in the metallurgical industry. If your enterprise operates in the fields of ferrochrome, ferromanganese, specialty alloys, or related smelting sectors and is seeking a fully automated metallurgical crane—specifically “intelligent feeding lifting equipment for specialty alloy smelting”—or customized solutions, we welcome your inquiries at any time.

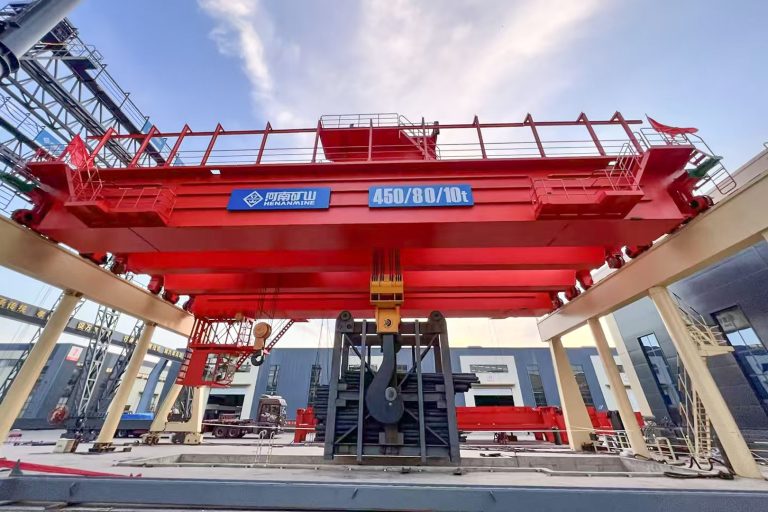

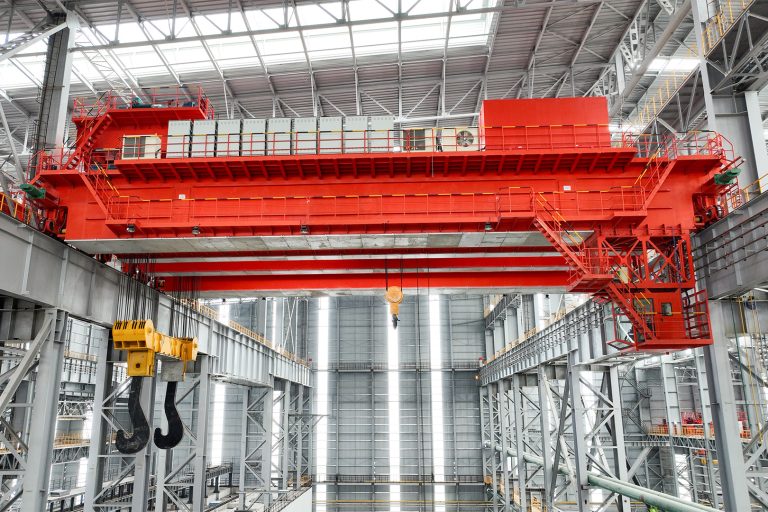

Henan Mine Crane 450t Four-Girder Four-Girder Casting Crane—Smart Benchmark for Electric Arc Furnace Steelmaking

Casting cranes serve as the “heavy-duty core equipment” in electric arc furnace steelmaking processes. Their lifting capacity, span, safety, and intelligence directly determine the efficiency and safety baseline for molten metal handling in large steel enterprises. Centered on “Premium Intelligent Manufacturing + Technological Breakthroughs,” Henan Mine Crane’s 450t Four-Girder Four-Girder Casting Crane stands as China’s benchmark model for electric furnace steelmaking—featuring the highest lifting capacity, most advanced technology, and widest span. Tailored specifically for molten metal handling, it has earned unanimous acclaim from metallurgical industry users.

I. Core Benchmark Project

1. Project Overview: The Ultimate Demand for High-End Electric Furnace Steelmaking

A major metallurgical enterprise focused on upgrading its high-end electric furnace steelmaking capacity required a foundry crane capable of handling “ultra-heavy loads, large-span operations, and ultimate safety” for critical molten metal transfer in its steelmaking and ironmaking plants. This necessitated near-demanding requirements for equipment reliability, safety, and intelligence.

To address this core need, Henan Mine Crane custom-engineered the 450t Four-Girder Four-Girder Foundry Crane. Perfectly aligned with electric furnace steelmaking process characteristics, it became the project’s core lifting equipment for molten metal transfer, completely resolving the safety and efficiency challenges faced by traditional cranes in ultra-heavy-load, long-span scenarios.

2. Core Product Advantages

This 450t Four-Girder Four-Girder Casting Crane for Electric Furnace Steelmaking employs comprehensive technological innovation to overcome heavy-load lifting challenges, delivering core advantages across four dimensions: “Safety, Durability, Intelligence, and Efficiency.”

• Finite Element Modeling Analysis for Enhanced Structural Strength: Advanced finite element modeling analysis is employed during design, applying equal strength and equal lifespan principles to components. This achieves perfect structural-mechanism integration, meeting 450-ton heavy-load demands while optimizing equipment weight and energy consumption. Its cost-performance ratio far surpasses industry peers, establishing it as the high-value solution for large-tonnage foundry cranes.
• PLC Intelligent Control with Upgrade Potential: Equipped with a PLC control system and open industrial Ethernet bus, the crane reserves intelligent upgrade interfaces. This supports future integration with customer digital production platforms, enabling functional expansion and technological iteration—aligning with the trend toward intelligent upgrade-ready heavy-duty foundry cranes.
• Lifecycle Safety Monitoring for Efficient Control: Equipped with a dedicated safety monitoring management system, it enables real-time safety alerts, comprehensive operational data logging, and full-lifecycle inspection traceability. This ensures safe handling of molten metal while boosting production efficiency.



3. Industry Reputation

Upon commissioning, this 450t four-beam, four-rail foundry crane has become the global technical benchmark for heavy-duty foundry cranes in electric furnace steelmaking processes. Its “high reliability, high safety, high configuration” performance perfectly meets the core requirements for molten metal handling in electric furnace steelmaking.

II. Corporate Capabilities



• Technology R&D: Focused on developing large-tonnage, intelligent, and high-safety cranes, holding multiple core technology patents. Particularly advanced internationally in four-beam four-rail structural design and molten metal handling safety control.
• Production Capacity Assurance: Equipped with over 600 welding/machining robots and more than 100 automated production lines, enabling independent manufacturing of core components for large-tonnage casting cranes and ensuring full-process quality control.
• Quality Compliance: Products certified under ISO, CE, FEM, and other international standards, fully meeting global metallurgical safety requirements. Suitable for major projects including electric furnace steelmaking and blast furnace ironmaking across diverse countries and regions.

III. Global Deployment Cases: Validating International Adaptability of Heavy-Capacity Foundry Cranes

Henan Mine Crane’s heavy-capacity foundry cranes have successfully served multiple global metallurgical projects

• Southeast Asian Electric Arc Furnace Steel Plant (5 Million Tons Annual Capacity): Supplied 2 units of 380t four-girder, four-rail casting cranes. Enhanced moisture-proof and anti-corrosion designs for the local high-temperature, high-humidity environment, enabling the client to achieve 400,000 tons of billet production per month.
• A European Special Steel Plant: Customized one 400t four-girder, four-rail casting crane to enable full-process visual control of molten metal handling, meeting stringent requirements for high-end specialty steel production.
• A Large Middle Eastern Metallurgical Project: Provided two 350t four-girder, four-rail casting cranes. The safety monitoring system was adapted for high-temperature radiation conditions, securing long-term contract renewals from the client.

IV. Dedicated Service System for International Clients

Addressing core concerns of overseas clients for heavy-duty lifting equipment, we established a comprehensive worry-free service mechanism:

1. Customized R&D: Providing full-cycle tailored services—from parameter design and 3D simulation to prototype testing—based on project processes, heavy-load requirements (200-500t), plant span, local conditions, and international standards;
2. Global Logistics & Compliance: Partnering with international logistics giants like Maersk and COSCO Shipping to resolve transportation and cross-border customs clearance challenges for oversized components of 450t-class cranes, ensuring timely and compliant delivery to designated locations.
3. Overseas On-Site Support: Deploy bilingual technical teams for equipment installation, commissioning, and specialized operator training. Provide dedicated guidance for high-risk molten metal handling to ensure rapid commissioning within 20 days.

V. Cooperation Vision

450t Four-Girder Four-Girder Molten Metal Transfer Crane Through the successful implementation of multiple major metallurgical projects, Henan Mine Crane has consistently tackled heavy-load challenges with technological innovation, meeting high-end demands through “premium intelligent manufacturing.”

If your enterprise operates in metallurgical fields such as electric furnace steelmaking or blast furnace ironmaking and seeks large-tonnage four-girder four-rail casting cranes—specialized high-safety lifting equipment for molten metal—or customized solutions, please feel free to contact us anytime.

We not only deliver high-quality heavy-duty equipment meeting international standards but are also committed to becoming your trusted long-term strategic partner. With our “hard power in heavy-duty capabilities + soft power in intelligent solutions,” we empower the global metallurgical industry to achieve safe, efficient, and green development!

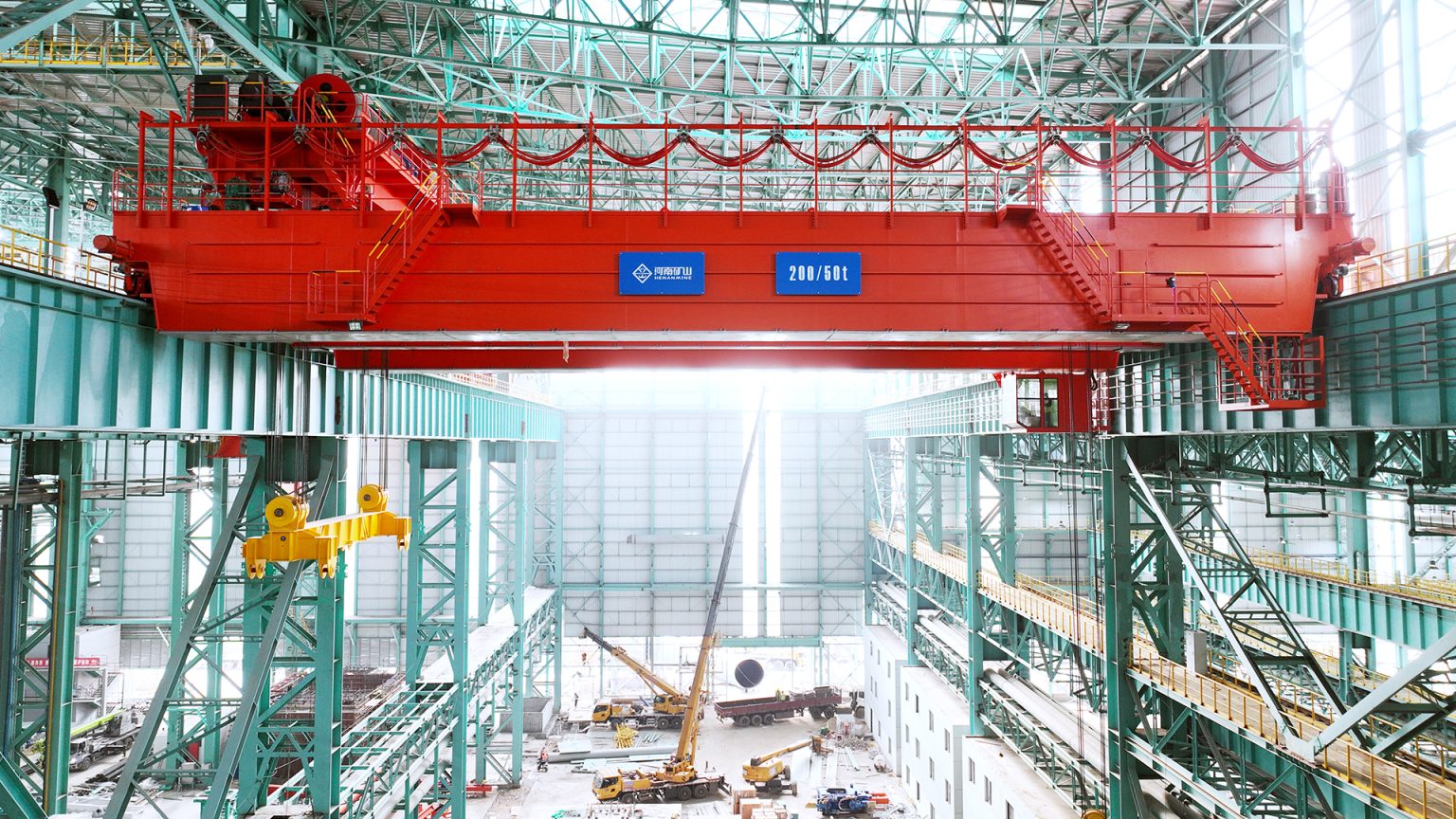

Henan Mine Crane Multi-Model Cranes: Empowering the Special Steel Base to Lead Globally

Casting Cranes such as the “Overhead Rotating Electromagnetic Beam Crane” and other core equipment support the efficient operation of the entire special steel production process. Their precision, stability, and adaptability across multiple scenarios directly determine the breakthrough in production capacity and quality upgrades for high-end steel bases.

I. Core Benchmark Project

1. Project Overview: Demanding Requirements for a Global High-End Steel Base

As a core member of the world’s leading integrated steel enterprise, Baowu Maanshan Iron & Steel’s 3.2 million-ton premium special steel base project focuses on high-end specialty steel production, aiming to establish a globally benchmark-level manufacturing facility. The production process encompasses multiple critical stages including steelmaking, refining, and rolling.

To meet these high-end requirements, Henan Mine Crane tailored a “multi-model crane solution,” delivering over 30 core project equipment units in a single shipment. This includes: 200t Foundry Cranes “200/50t Four-Girder Foundry Cranes” “160/63t Cranes” “40+40t Cranes” and overhead rotating electromagnetic beam cranes. These cranes comprehensively cover all production stages, becoming the “critical enablers” for the base’s successful commissioning. 160/63t crane,“ ”40+40t crane,“ and top-rotating electromagnetic beam cranes. This comprehensive coverage of all production stages has become the ”critical support” for the base’s successful commissioning.

2. Core Equipment Advantages

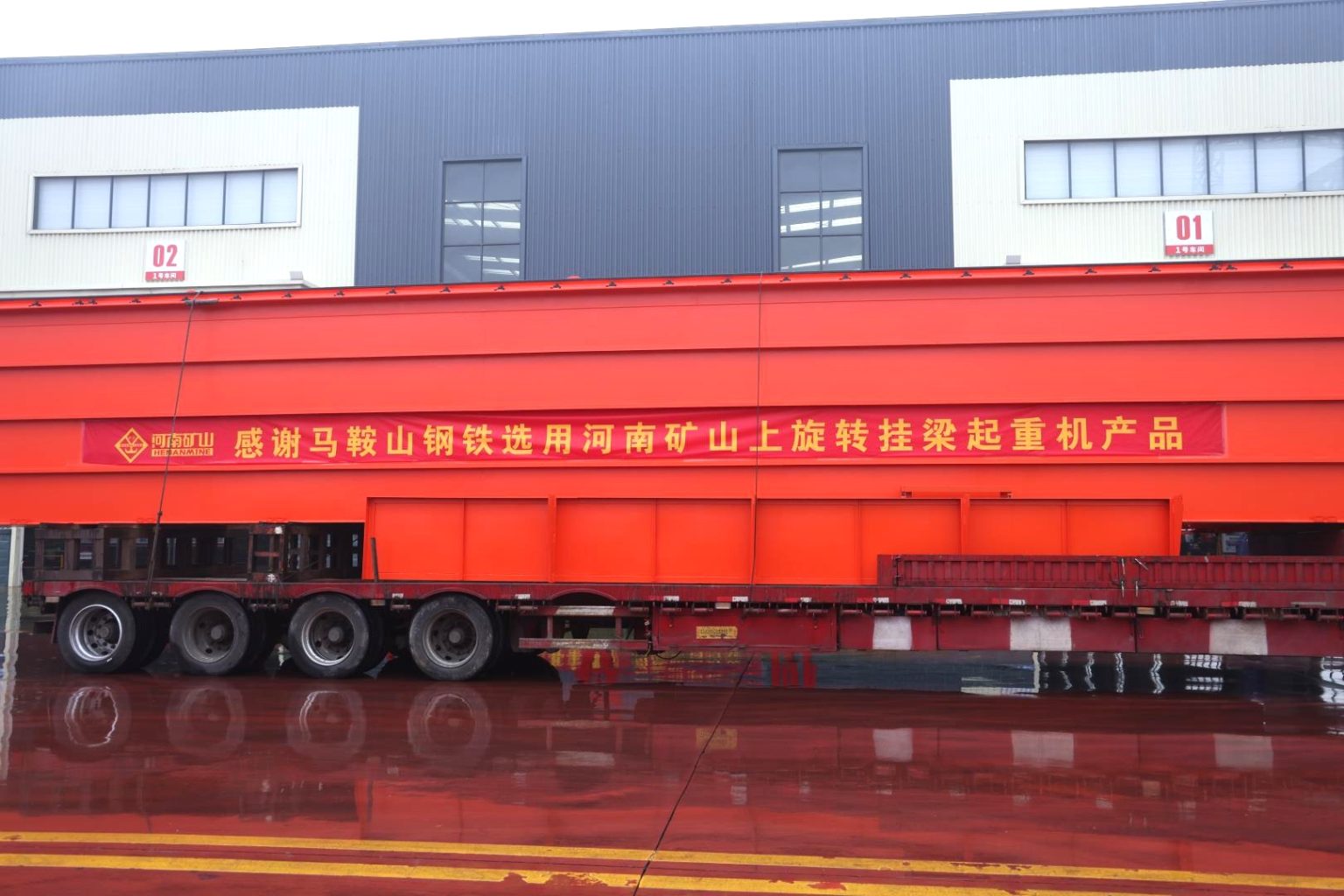

Upper Rotating Electromagnetic Beam Crane: 360° Flexible Adaptability, Precision and Efficiency: As a leading model among China’s largest-capacity (upper) rotating bridge cranes, its standout feature is the electromagnetic beam’s 360° free rotation. Paired with a high-precision positioning system controlling positioning errors within ±5mm, it perfectly addresses the pain points of “multi-directional material handling and precision docking” in high-quality special steel production.

This 3.2-million-ton special steel base-dedicated top-rotating electromagnetic beam crane boasts high manufacturing precision and exceptional stability. Widely applicable in high-end projects like steel mills and shipyards, it has boosted operational efficiency by 35% during steel transfer at Baowu Maanshan Iron & Steel, significantly reducing material transfer wait times.

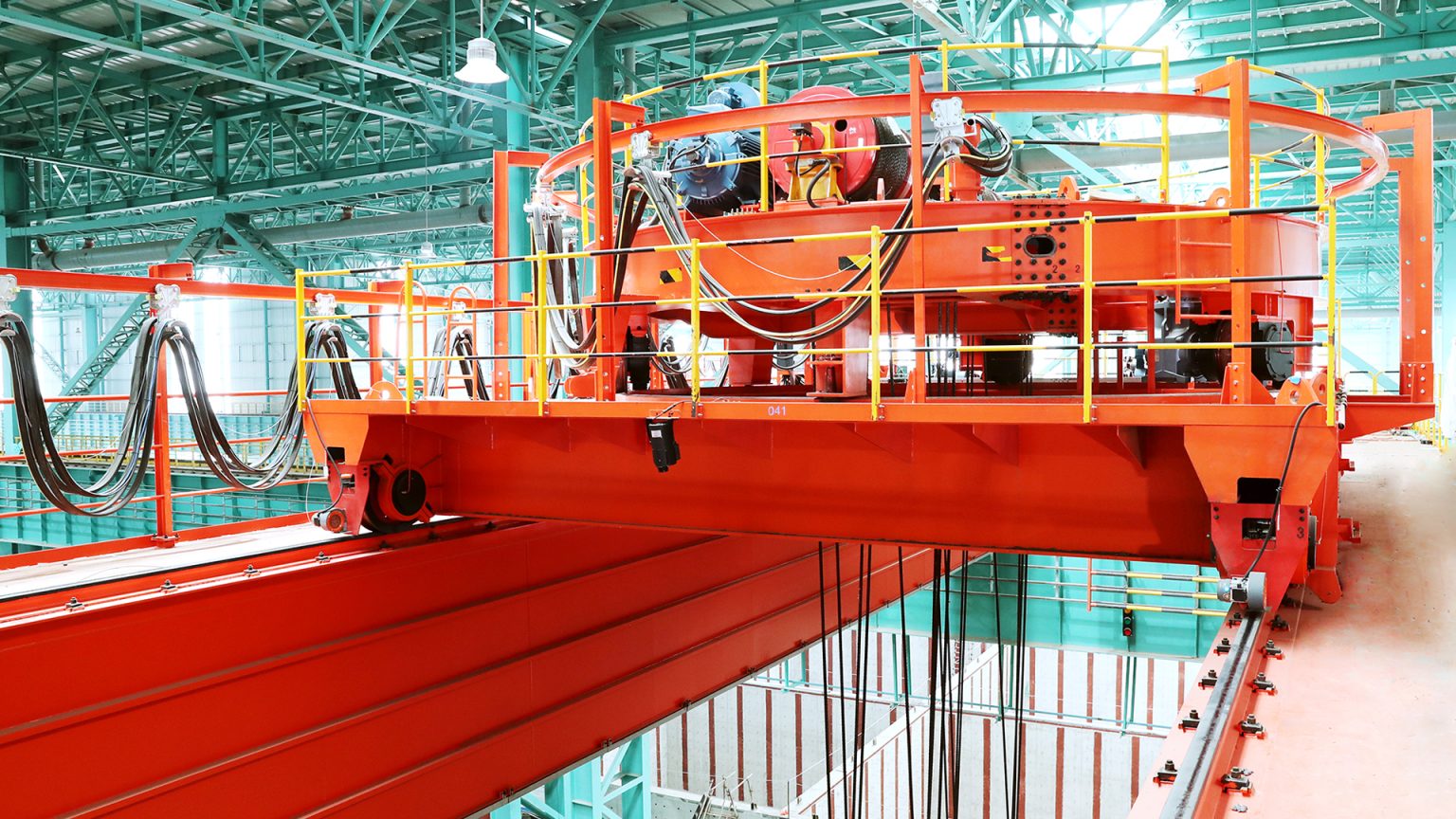

Heavy-Duty Casting Cranes: Stable Under Loads, Safeguarding Core Processes: The 200t casting crane and 200/50t four-girder casting crane are specifically engineered for ladle handling and refining operations. Their high-strength four-girder structure offers 30% greater deformation resistance than industry standards, effortlessly handling extreme conditions with heavy ladles. Paired with variable frequency speed control systems, they achieve adaptive adjustment for “slow, precise positioning under heavy loads and rapid transport under light loads.” This ensures smooth, leak-free molten steel transfer, fortifying safety and quality defenses for special steel smelting. These models set the benchmark as core heavy-duty casting cranes for special steel production.

Multi-Model Synergy: Scalable Solutions for Production Breakthroughs: Over 30 units form a “lifting matrix,” with each model performing distinct yet interconnected functions — — Foundry cranes focus on core steelmaking operations, overhead rotating electromagnetic beam cranes handle steel transfer, while small-to-medium tonnage cranes provide auxiliary lifting. This seamless integration across the entire production flow perfectly supports the large-scale production demands of 3.2 million tons of special steel, showcasing Henan Mine Crane’s comprehensive “customization + scale” service capabilities.

3. Partnership Endorsement

This collaboration is not coincidental but a continuation of Henan Mine Crane’s long-term, deep partnership with Baowu Group. Baowu Maanshan Iron & Steel’s renewed selection of Henan Mine Crane reflects high recognition of our product strength and service standards, validating the core competitiveness of Henan Mine Crane’s heavy-duty cranes in the high-end steel industry.

II. Corporate Hard Power

Overseas clients evaluate crane equipment not solely based on individual project cases, but also prioritize a company’s sustained R&D capabilities and quality control standards. Henan Mine Crane’s core strengths lie in:

Technology R&D: Focusing on innovation in high-end lifting equipment, we operate over 600 welding/machining robots and more than 100 automated production lines. Core components are independently developed and precision-manufactured, with multiple patented technologies accumulated in large-tonnage cast cranes and rotary electromagnetic beam cranes.

Quality Control: Upholding the philosophy of “Cultivating Excellence, Creating Smart Manufacturing,” the company has established a comprehensive quality control system. Products hold multiple international certifications including ISO, CE, and FEM, fully complying with global industry standards across regions.

Collaborative Legacy: Long-term strategic partnerships with globally renowned heavy industry enterprises like Baowu Group, Panhua Group, and Jinhui Group have built a mature portfolio of application cases in steel, metallurgy, and chemical sectors, enabling rapid response to customized client requirements.

III. Global Application Cases: Validating Multi-Model Crane Adaptability

Beyond the Baowu Maanshan benchmark project, Henan Mine Crane’s “Multi-Model Crane Solution” has successfully served multiple high-end steel projects worldwide, further demonstrating its international adaptability:

Southeast Asia 3 Million Ton Special Steel Plant: Supplied 25 crane sets, including 180t casting cranes and overhead rotating electromagnetic beam cranes. Upgraded moisture-proof and anti-corrosion designs for the local high-temperature, high-humidity environment. Equipment operated continuously for 2 years without failure, enabling the client to achieve a monthly special steel production capacity of 250,000 tons.

Specialty steel plant in Europe: Customized 12 sets of CE-certified cranes, including top-rotating electromagnetic beam cranes integrated with remote monitoring systems. These seamlessly connect to the client’s existing digital production platform, enabling real-time visualization and control of equipment status to meet the smart manufacturing requirements of Europe’s high-end industrial sector;

Middle Eastern metallurgical project: Supplied 15 sets of heavy-duty cranes, including 200/50t four-girder casting cranes and 40+40t cooperative cranes. Reinforced heat dissipation and sealing performance to withstand extreme temperature fluctuations and sandstorms in desert regions, achieving internationally advanced stability in heavy-load operations and securing long-term contract renewals.

IV. Dedicated Service System for Overseas Clients

For premium overseas steel project clients, we establish a comprehensive, worry-free service mechanism to simplify collaboration:

Customized R&D: Based on project capacity (e.g., 3-million-ton special steel base), production processes, local conditions (high temperatures, corrosion, temperature variations), and international standards (CE/FEM/DIN), we provide full-cycle custom services—from multi-model combination design and 3D simulation to prototype testing;

Global Logistics & Compliance: Partnering with international logistics giants like Maersk and COSCO Shipping, we resolve challenges in transporting oversized crane components and cross-border customs clearance, ensuring timely and compliant delivery of large-scale equipment (30 sets or more) to designated locations;

Overseas Implementation Support: Dispatch bilingual technical teams for on-site equipment installation, commissioning, and operator training. Provide specialized guidance for multi-unit coordinated operations, ensuring rapid commissioning within 15 days;

V. Empowering Global High-End Steel Upgrades with Premium Lifting Equipment

Henan Mine Crane consistently centers on “premium intelligent manufacturing” and fosters “long-term partnerships” to deliver “more precise, stable, and efficient” lifting solutions for global steel enterprises.

If your enterprise engages in premium special steel production or requires customized core equipment such as overhead rotating electromagnetic beam cranes or “large-tonnage four-girder casting cranes,” please feel free to contact us anytime. We not only deliver high-quality lifting equipment meeting international standards but are also committed to becoming your trusted long-term strategic partner, empowering the global premium steel industry to achieve quality upgrades and capacity breakthroughs!
